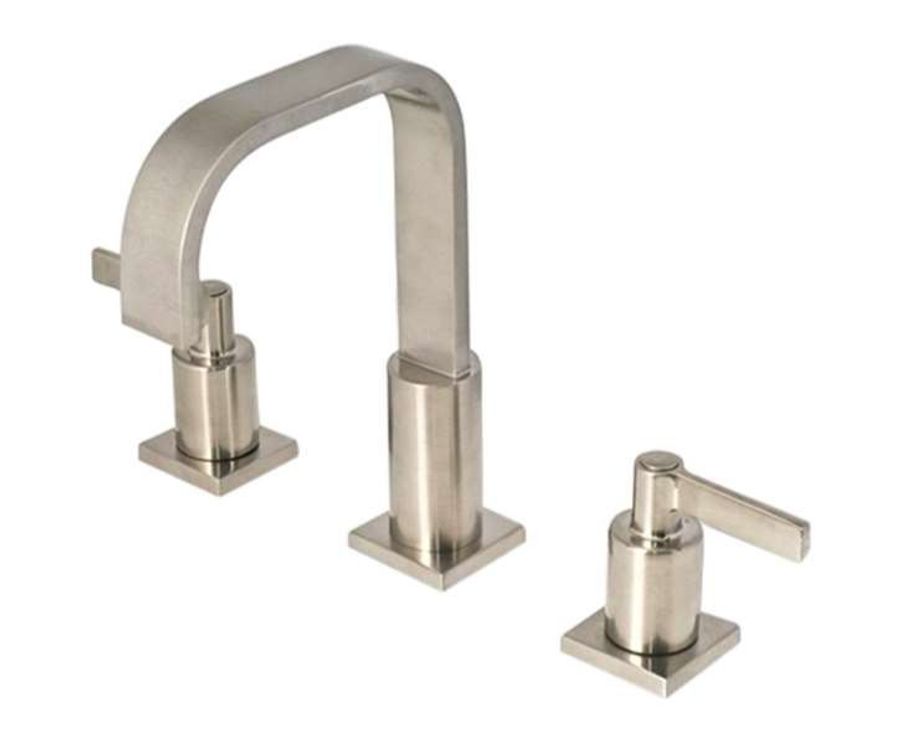

Fontana Showers Dual Handle Bathroom and Kitchen Sink Faucet
DUAL HANDLE BATHROOM AND KITCHEN SINK FAUCET
DUAL HANDLE BATHROOM AND KITCHEN SINK FAUCET
Dual Handle Stainless Steel Bathroom and Kitchen Sink Faucet
Stunning stylish European inspired modern contemporary design.
Durable brass body construction, Double handle operation, Three hole installation, Smooth, long lasting, and drip-free 1/4 turn operation ceramic disc cartridge.
The design was inspired by the FontanaShowers design. Be sure, when it comes to new Bathroom Faucet, FontanaShowers is offering shape, finish and styles you're looking for. It comes complete with accessories and installation instructions.
INFORMATION
BRAND NAME
FontanaShowers®
MODEL NUMBER
FSF2015
MAXIMUM FLOW RATE
1.5 GPM at 60 PSI
TYPE
Kitchen-Sink-Faucet
FINISH
COMPATIBLE DRAIN TYPE
Pop Up Drain Stopper (Sold Separately)
APPLICATIONS
- Residential
- Hospitality
- Commercial
FAUCET BODY MATERIAL
Brass
WIDE SPREAD
8" ~ 16"
SPOUT REACH
5 5/8"
FLOW RATE (L/MIN)
1.5 GPM 60 PSI
FAUCET BODY DIMENSION
Base : 2"
NUMBER OF HANDLES
Two
CHARACTERISTICS
- Solid Brass Construction
- Deck Mount
- Two Handle Control
- Modern Elegant Design
INSTALLATION TYPE
Widespread
FAUCET HEIGHT
8 7/8"
SPOUT HEIGHT
6 1/4"
DESIGN
Stunning stylish European Design
COLD AND HOT SWITCH
Yes
VALVE TYPE
Ceramic Valve
DOWNLOADS
↓ Warranty
↓ Installation Sheet
USE
Faucets
MAXIMUM PRESSURE
60 PSI

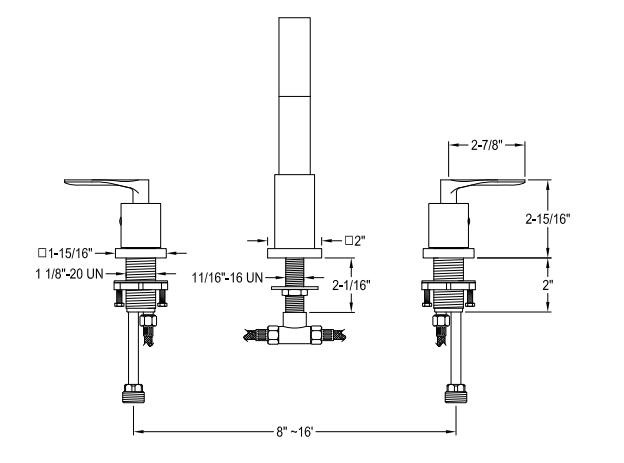

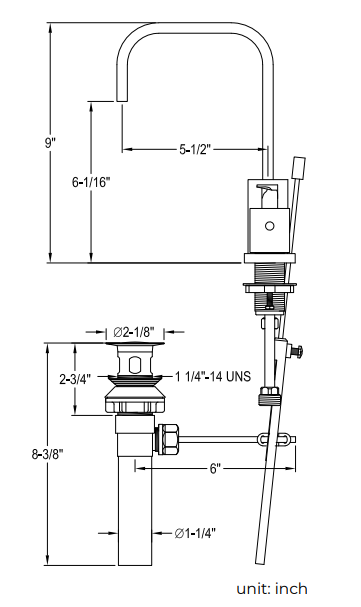

TECHNICAL DRAWINGS
DETAIL
CARE & CLEANING
- Clean progressively and gently.
- The product can be cleaned with warm water, a mild soap and a clean soft cloth.
- It is not required to use any abrasive cleaning pads, wire wool or micro-fibre cloths to clean the product.
- Avoid a vigorous cleaning action, as this could contribute to denaturing and dulling the finish.
- Abrasive or strong cleaning products containing ammonia, bleaches, alcohol, dyes, acids (hydrochloric, formic, phosphorus, chlorine or acetic) will be detrimental to the product finish.
- If using a spray cleaner, apply the cleaning agent onto a soft cloth, never directly spray onto the product as the cleaner may enter gaps and openings and cause damage. Do not allow the cleaner to remain on the product for a period of time. After cleaning, rinse thoroughly with clean water.
INSTALLATION INSTRUCTIONS
- Mark the position of handle and install.
- Ensure that the water supply below your sink is completely shut off by turning the valve all the way to the right.
- Remove the T-connector from the spout. first remove the nut that is holding it in place. Set the parts aside.
- Mark the position on deck where u want to install the faucet.
- Install Rubber washer on faucet. Ensure that the rubber o-ring is seated properly, and that the nut is tightened firmly using an adjustable wrench.
- Install pipeline. Connect the water pipe line in their connections ( Hot & cold).
- Connect the pipes to T-connector. Use the braided water lines to connect the hot and cold valve stems to the T-connector. While holding in place, hand tighten the lock nut. Finish tightening using a basin wrench.
- Use an adjustable wrench to tighten, but be careful not to overtighten. Apply thread sealant or plumber’s tape to each threaded connection before attaching.
- Connect the main water supply lines to the valve stems. Apply plumber’s tape or thread sealant to the threads before tightening.
- Turn the faucet on and allow the water to flow for approximately 60 seconds. Ensure that there are no leaks, and that both hot and cold water are running properly
