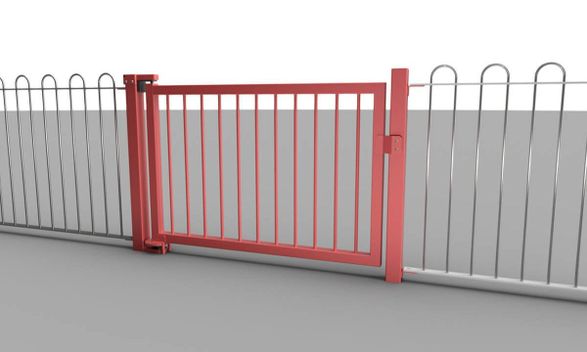

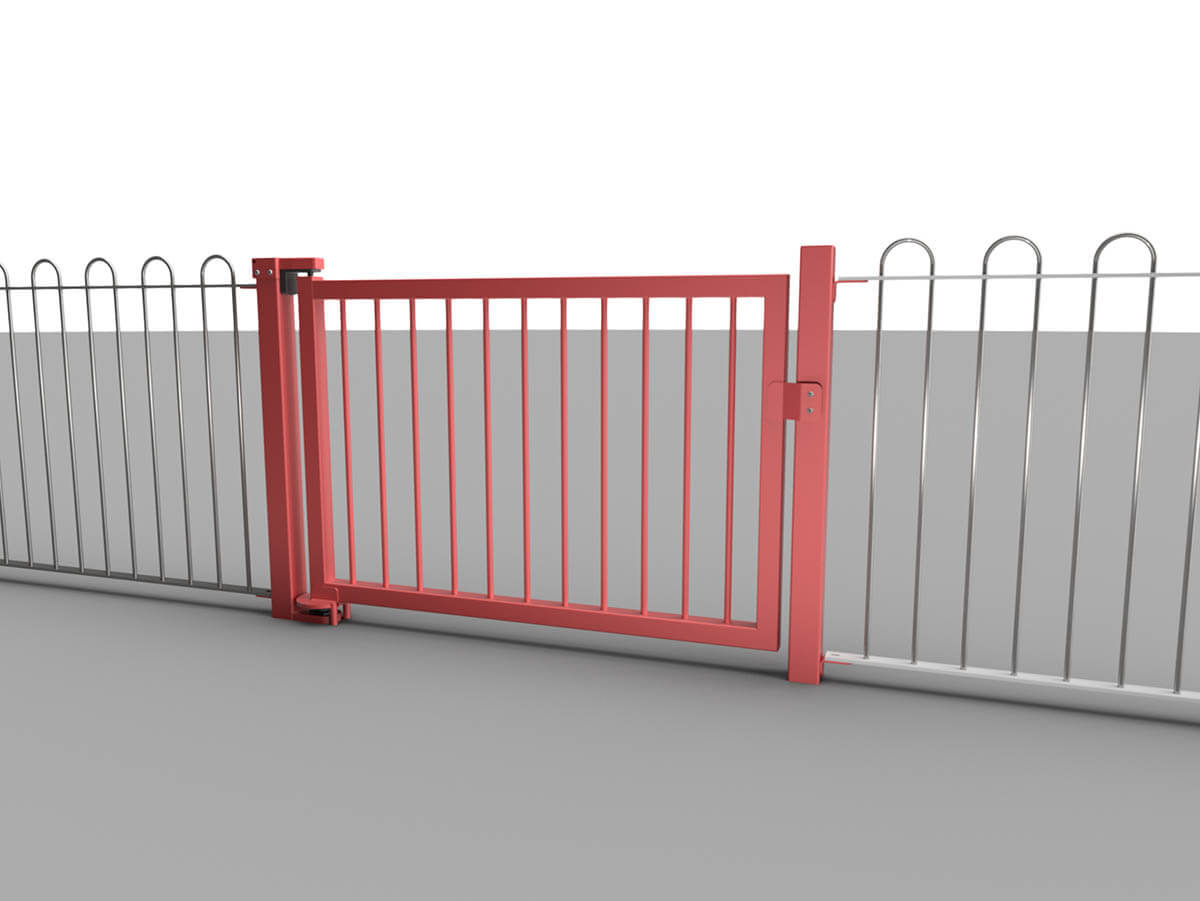

Zaun Kindergate Playground Gate
KINDERGATE PLAYGROUND GATE
KINDERGATE PLAYGROUND GATE
Zaun’s KinderGate Self Closing Gate is manufactured to comply with BS EN 1176 for playground equipment, making it free from finger traps, crush points and shear actions that could cause injury.

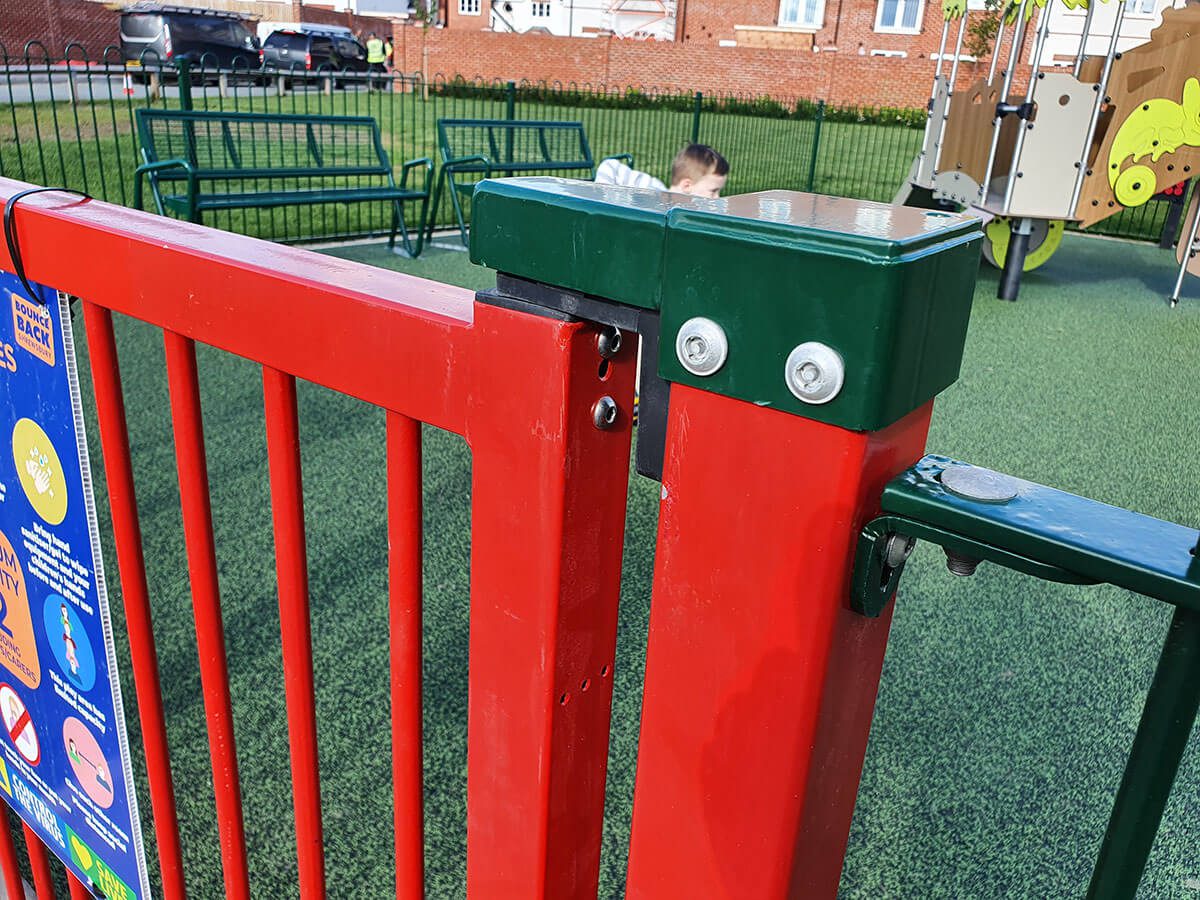

The KinderGate playground gate has an invisible, built-in hydraulic gate closer that is completely built into the gate frame, providing a fully shielded gate closer that prevents vandalism.
INFORMATION
BRAND
Zaun
PRODUCT TYPE
Playground Gate
COLLECTION
Kindergate
PRODUCTION
Made in United Kingdom
ANTI-TRAP SAFETY MECHANISM
An anti-trap mechanism ensures the self-closing gate and cannot swing beyond its stop point.
HEIGHT
- 1000mm
- 1200mm
BAR DIAMETER
16mm
BAR CENTRES
101mm
POST SIZE
70 x 70mm
POST CENTRES
- 1396mm
- 2700mm
OPENING WIDTH
- 1220mm (Clear width when fully open)
- 2524mm (Clear width when fully open)
HIGH-VISIBILITY PLAYGROUND EXIT GATE
Available 1000mm or 1200mm high and supplied in yellow (RAL1021) or red (RAL3000) as standard (other colours are available upon request) to highlight the exit point on a playground.
ENVIORNMENT
Outdoor
FIXING
Anti Tamper Security Fixings
PLAYGROUND GATE POSTS & FIXINGS
The kindergate gate features a post and stepping cleat configuration, providing a simple and easy installation method. Supplied with vandal-proof security fixings and installed using either power or hand tools.
FEATURES
- Available from stock
- Provides controlled gate flow
- Easily adjustable self-closing system
- The hydraulic self-closing mechanism
- Anti finger trap mechanism built within the unit
- RoSPA compliant making them ideal for Play Areas
ADJUSTABLE SELF-CLOSING SYSTEM
In addition, the aesthetic closing system both opens and closes the gate comfortably and features an adjustable closing speed to comply with RoSPA guidelines.
SMOOTH & CONTROLLED CLOSING
This self-closing mechanism makes the KinderGate Self Closing Gate virtually impossible to slam shut and stops the gate from bouncing back off the post when pushed hard.
COMBINATION GATES
The KinderGate is also available as a double-leaf or combination gate to provide access for plant and other maintenance machinery.
FINISH
- Hot-dip galvanised to ISO1461 & optional polyester powder coated, after stringent cleaning & treatment to give a well-adhered coating with a minimum of 60 microns.
-Enhanced painting systems such as marine coatings are also available for improved life expectancy in C2-C5M environments.
- All Zaun posts/panels/gates and painted auxiliary components (for example, clamp-bars, slide bolts etc.) benefit from a protective zinc layer and electrostatically applied polyester powder coating to BS1722 p16. Care is taken with pre-treatment to ensure sound adhesion between the zinc and paint layers. In a UK C1 environment, as defined in ISO 12944 p2, this should ensure a useful life expectancy of the fence of at least 15-20 years
Life expectancy in all environments can be extended by maintaining the fencing with regular washing. Useful life will be reduced if the fencing is damaged. Any coating damage should be repaired to reduce the effect on useful life.
