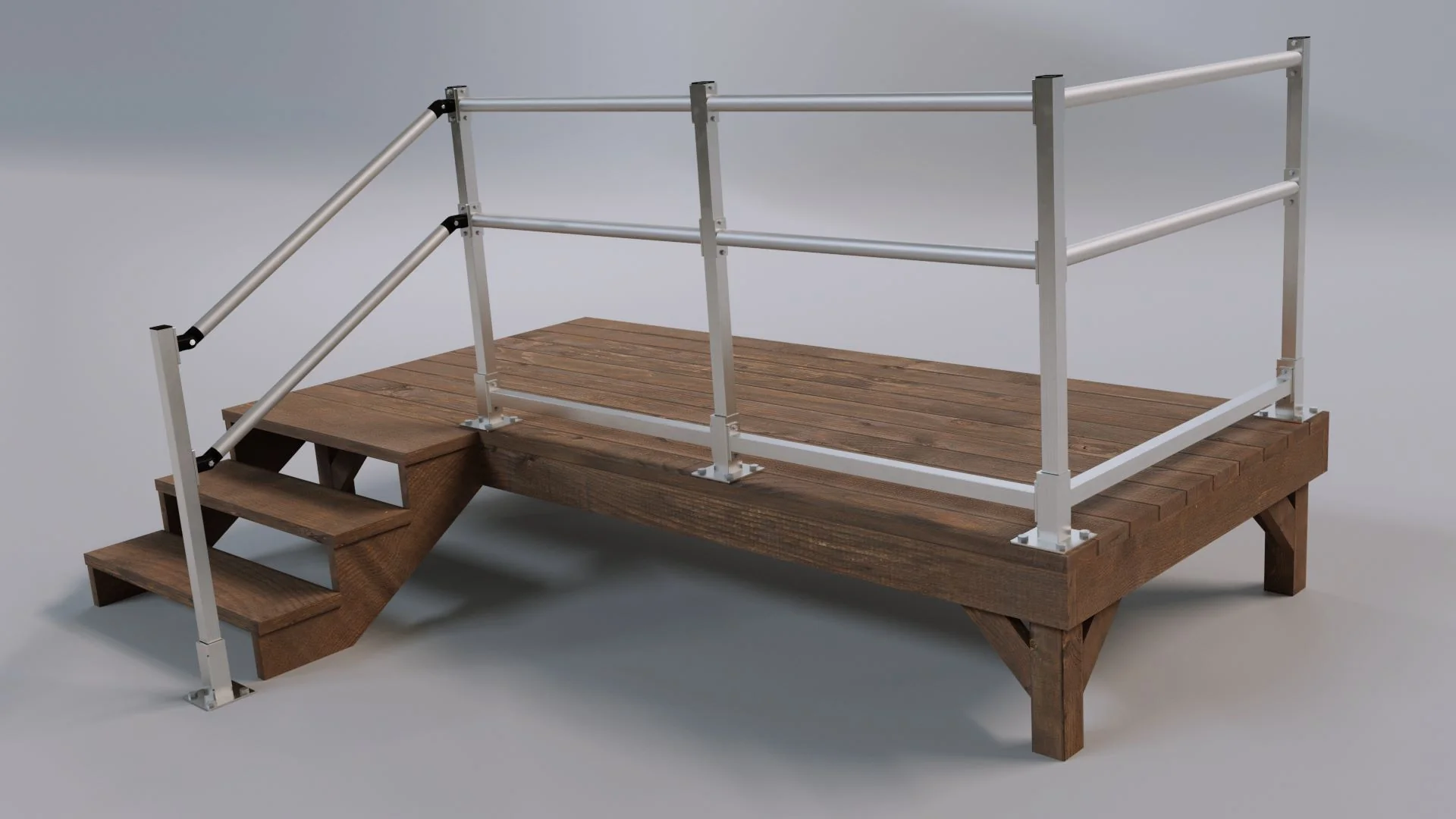

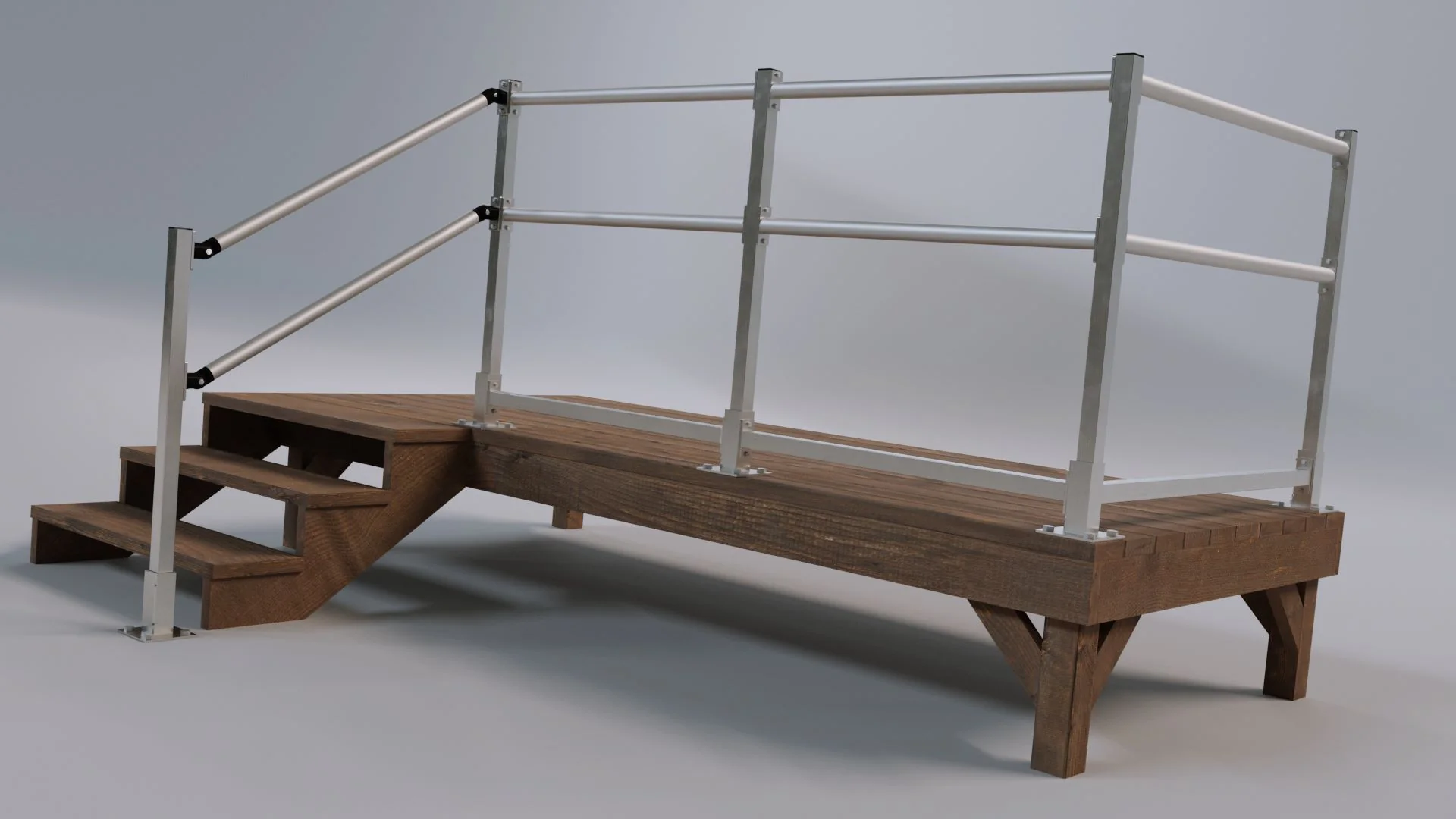

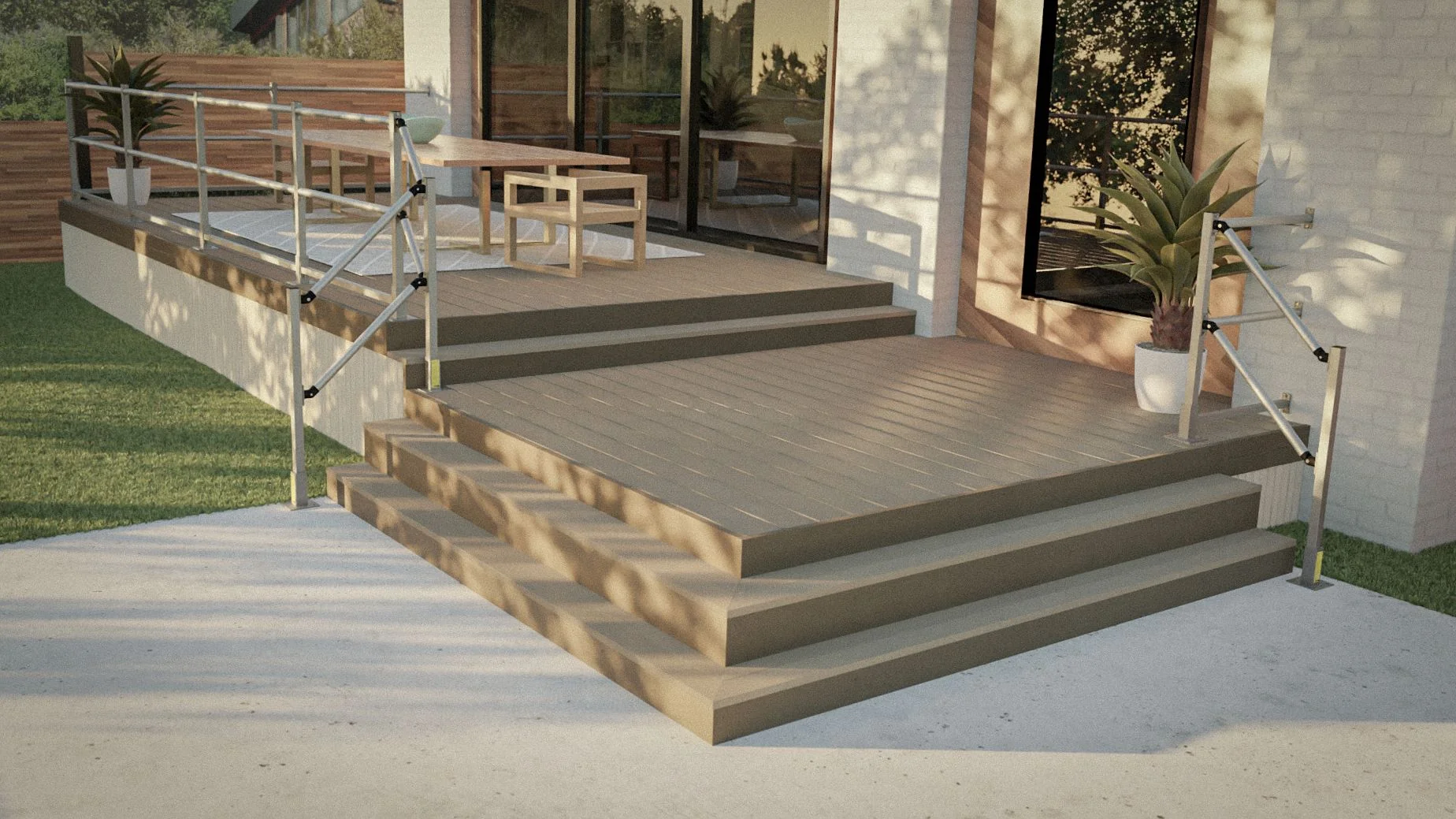

The Railway® modular handrail system provides a quick and easy way to add handrails and barriers to almost any deck or porch.
This handrail system is designed to be combined and configured to create the layout you need and can be easily mounted to an existing structure for an added level of safety.
INFORMATION
SAFETY
Dual round handrail tubes provide a secure and comfortable grip, ensuring multi-level safety. The square barrier tube runs along the bottom—parallel to the top two handrails—providing an additional level of safety and security.
BRAND
EZ Access
PRODUCT TYPE
Handrail System
CUSTOMIZABLE FINISH OPTIONS
With the choice between non-coated architectural finish or black powder coat, you can create a sleek and modern look that will enhance the safety and aesthetics of any space.
COLLECTION
Railway®
PRODUCTION
Made in USA
ENVIRONMENT
Outdoor
AVAILABLE MODELS
3
LIGHTWEIGHT & DURABLE ALUMINIUM CONSTRUCTION
This product is made of lightweight, yet heavy-duty aluminum that will not rust, rot, or deteriorate from the outdoor elements, ensuring years of maintenance-free use.
CUSTOMIZABLE DESIGN
The three Railway kits offer the flexibility to mix and match components to create a custom handrail system that fits perfectly on your porch, deck, stairs, or any combination thereof. Choose between a non-coated architectural finish or a sleek black powder coat to elevate both the safety and modern aesthetic of any space. The 5' handrail tubes can also be trimmed to ensure an exact fit for your specific requirements.
MATERIAL
Aluminium
SHIPPING
1-3 Business Days
TECHNICAL DATA

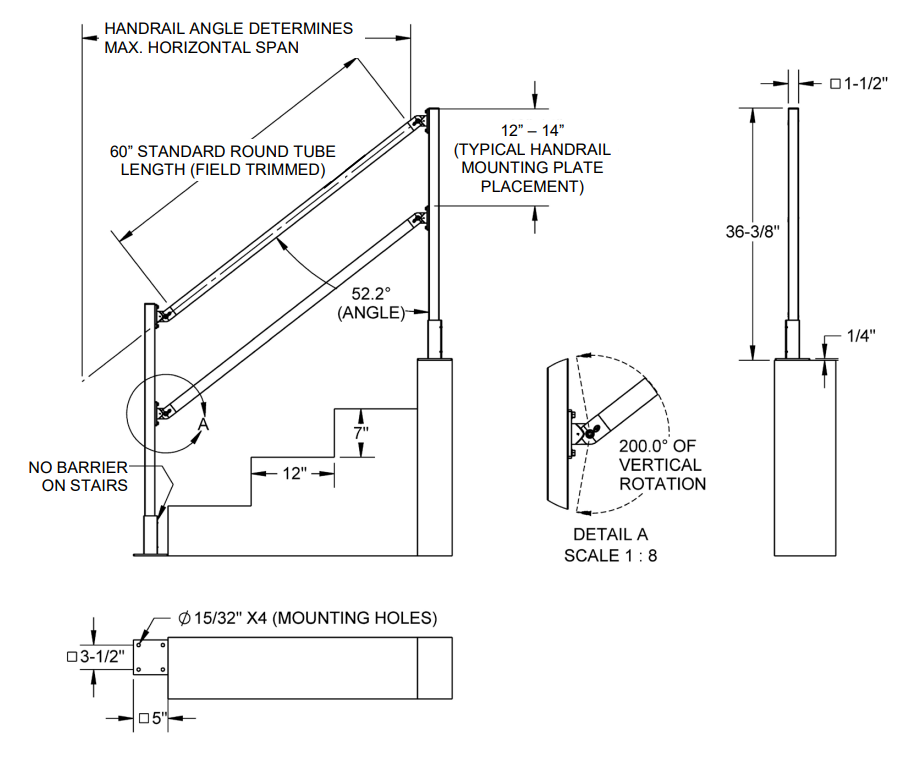

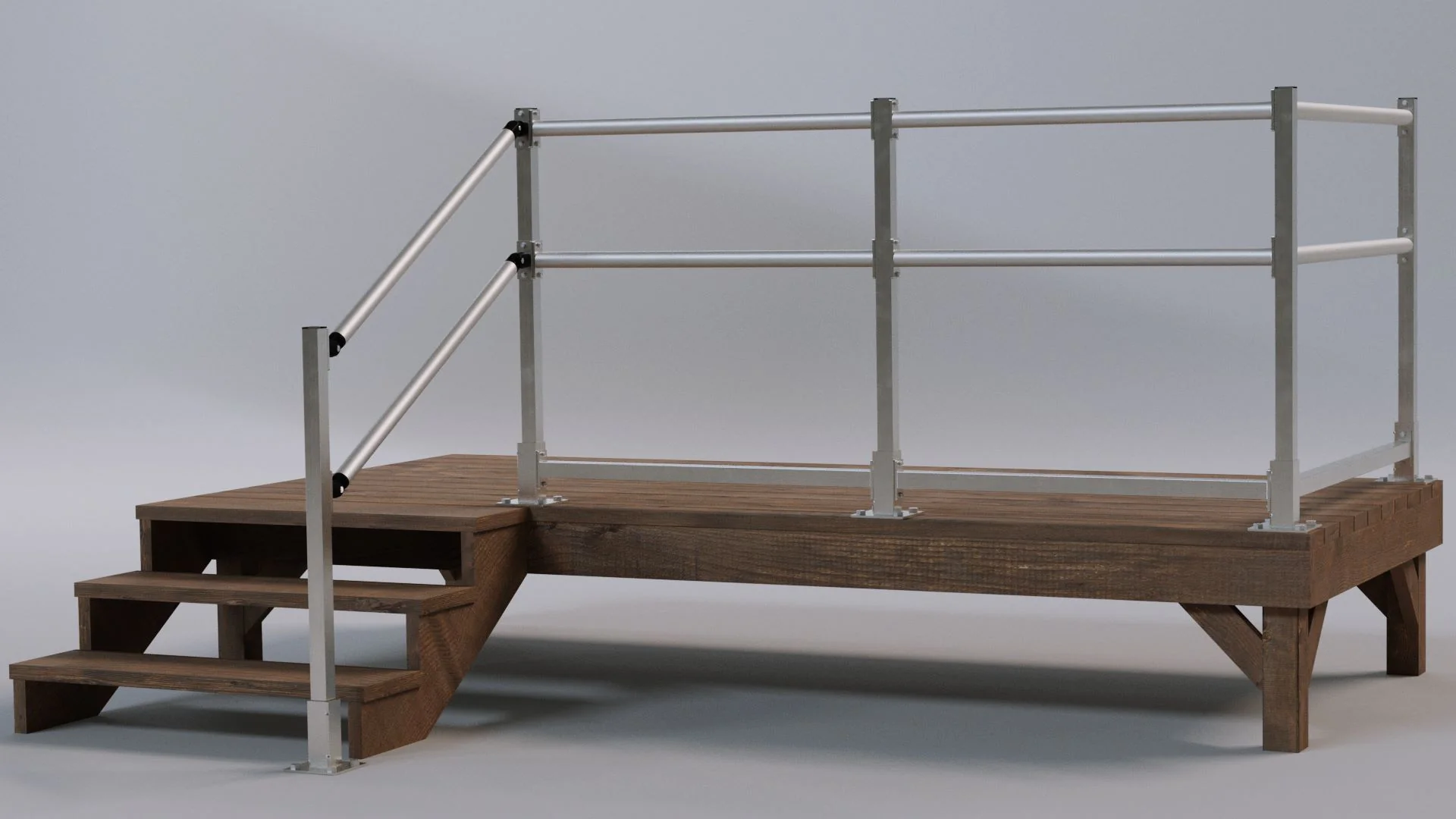

STAIR RUN

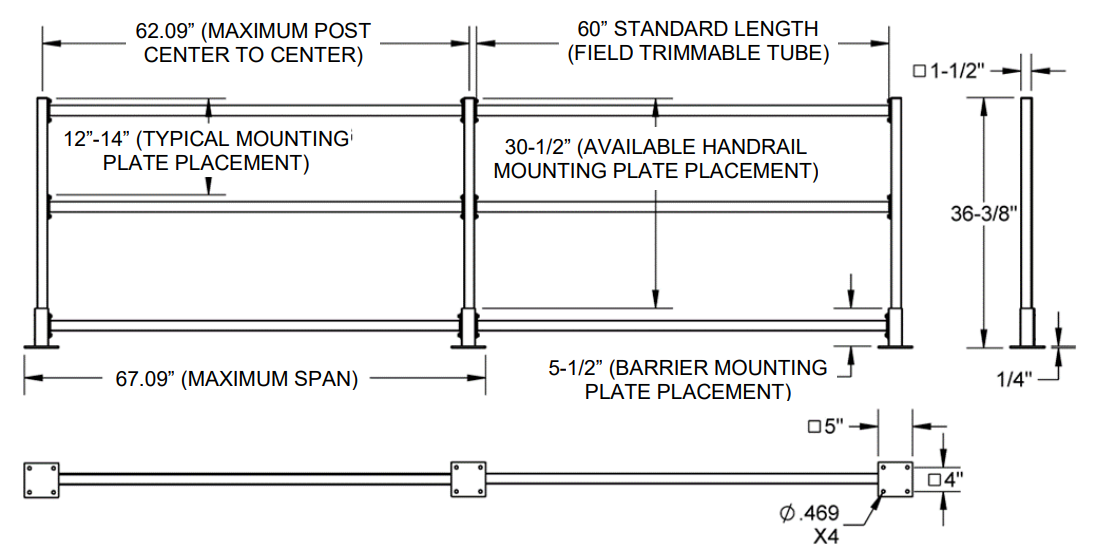

STRAIGHT RUN
TECHNICAL DETAIL
| MODELS | RAILPK | RAILPKPCBLK | RAILP5HBK | RAILP5HBKPCBLK | RAIL5SHK | RAIL5SHKPCBLK |
|---|---|---|---|---|---|---|
| Made Of Aluminum | Yes | Yes | Yes | Yes | Yes | Yes |
| Product Dimensions (L x W x H) | 5” x 5” x 36-3/8” | 5” x 5” x 36-3/8” | 64” x 5” x 36-3/8” | 64” x 5” x 36-3/8” | 64” x 5” x 36-3/8” | 64” x 5” x 36-3/8” |
| Weight | 3.2 lbs. | 3.2 lbs. | 12.17 lbs. | 12.17 lbs. | 9.3 lbs. | 9.3 lbs. |
| Rated Load | 200 lbs. | 200 lbs. | 200 lbs. | 200 lbs. | 200 lbs. | 200 lbs. |
| Field Trimmable Handrails | - | - | 60" Standard | 60" Standard | 60" Standard | 60" Standard |
| For Residential Use | Yes | Yes | Yes | Yes | Yes | Yes |
| Warranty | Lifetime Limited | Lifetime Limited | Lifetime Limited | Lifetime Limited | Lifetime Limited | Lifetime Limited |
COMPONENTS VIEW
HANDRAIL ATTACHMENT PLATE

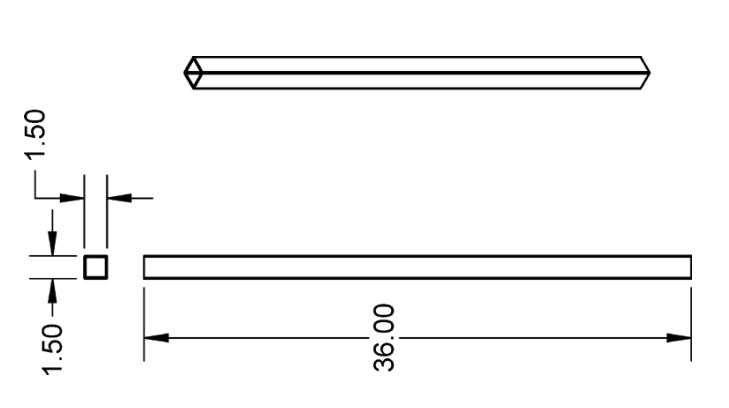

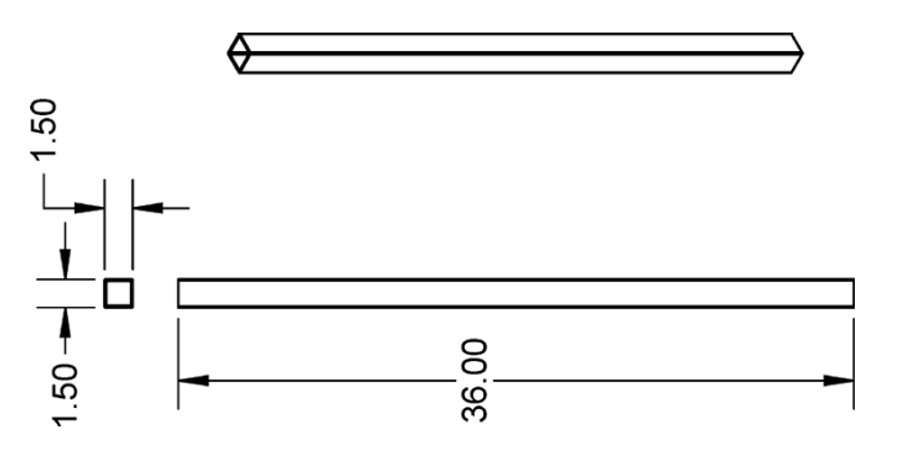

SQUARE POST

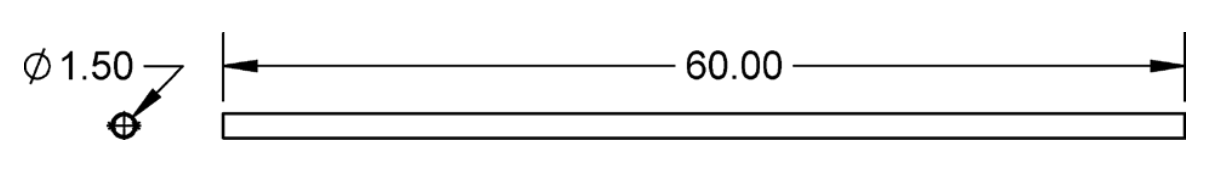

ROUND HANDRAIL TUBE

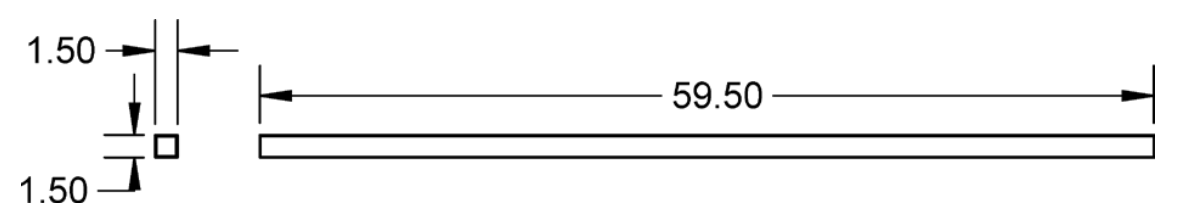

SQUARE BARRIER

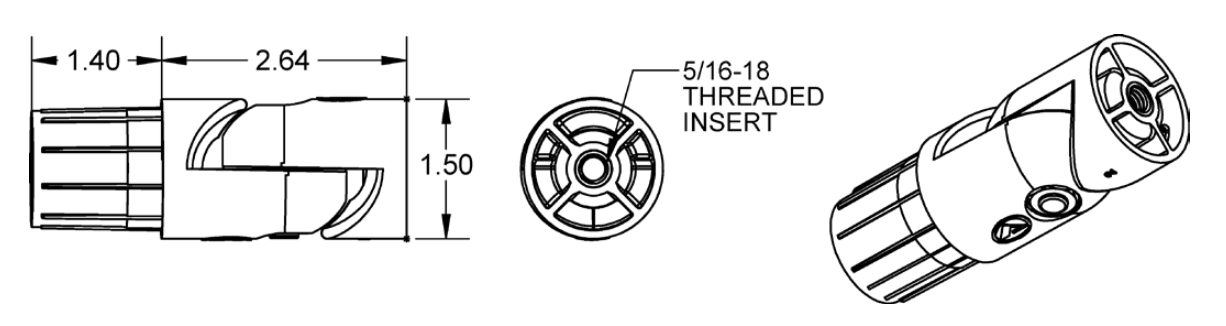

ADJUSTABLE CLOSURE ELBOW

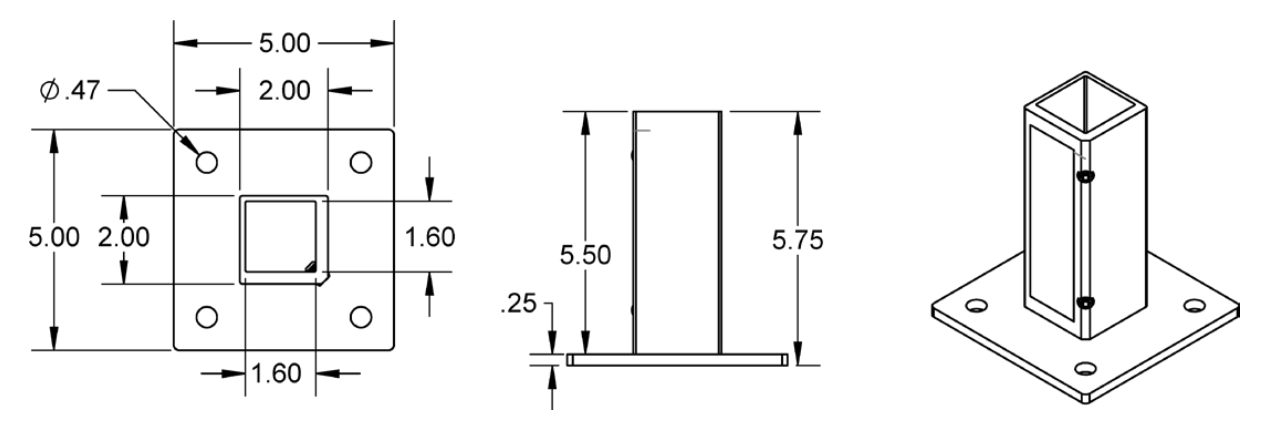

TOP MOUNT POST BASE

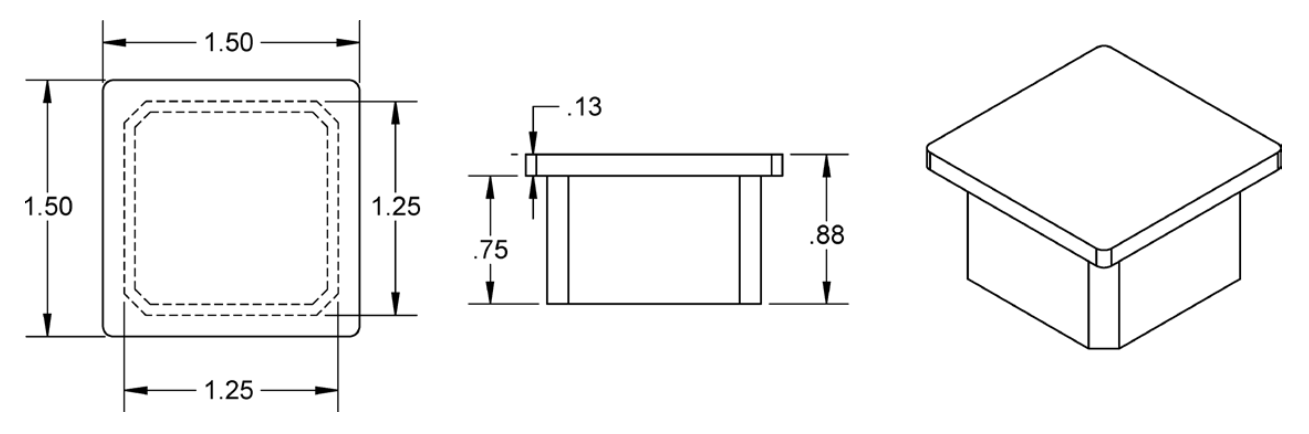

SQUARE PLUG
