Irsap Arpa 12_b Electric Radiator
ARPA 12_B ELECTRIC RADIATOR
ARPA 12_B ELECTRIC RADIATOR
The ARPA 12_B in the electric-only version is the ideal solution for living spaces where a standard heating connection is not possible or convenient. Available in 4 heights and 500 mm wide.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
INFORMATION
BRAND
Irsap
PRODUCT TYPE
Radiator
PRODUCTION
Made in Italy
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
HORIZONTAL TUBES
Horizontal tubes made of steel sheet with an 12 mm diameter
MATERIAL
Electric steel towel warmer radiator
CIRCULAR SECTION
Lateral manifolds with a 30 mm diameter circular section
STANDARD EQUIPMENT
- 4 wall fixing brackets in the same color of the radiator

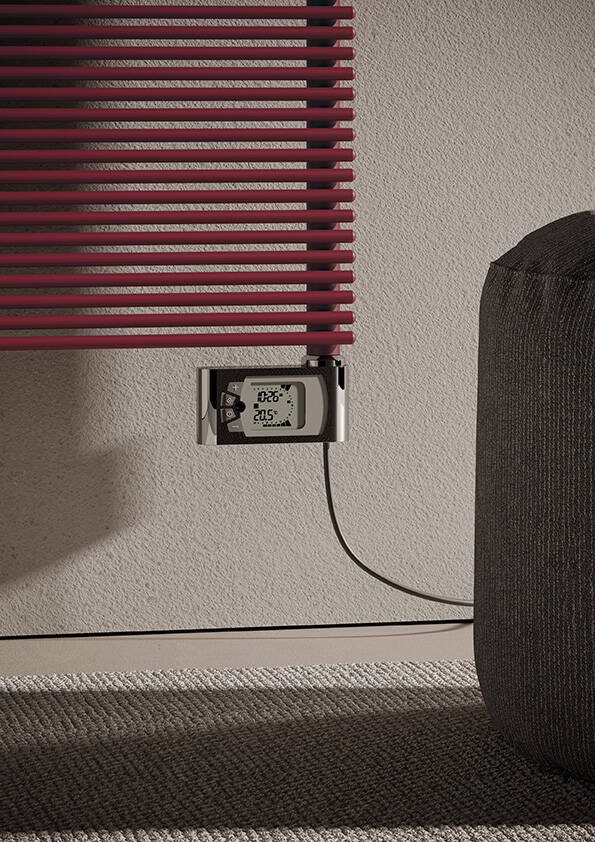

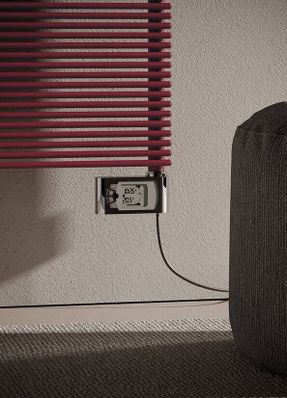

- The model with WiFi electronic control, type e, includes the electronics in the same finish as the radiator

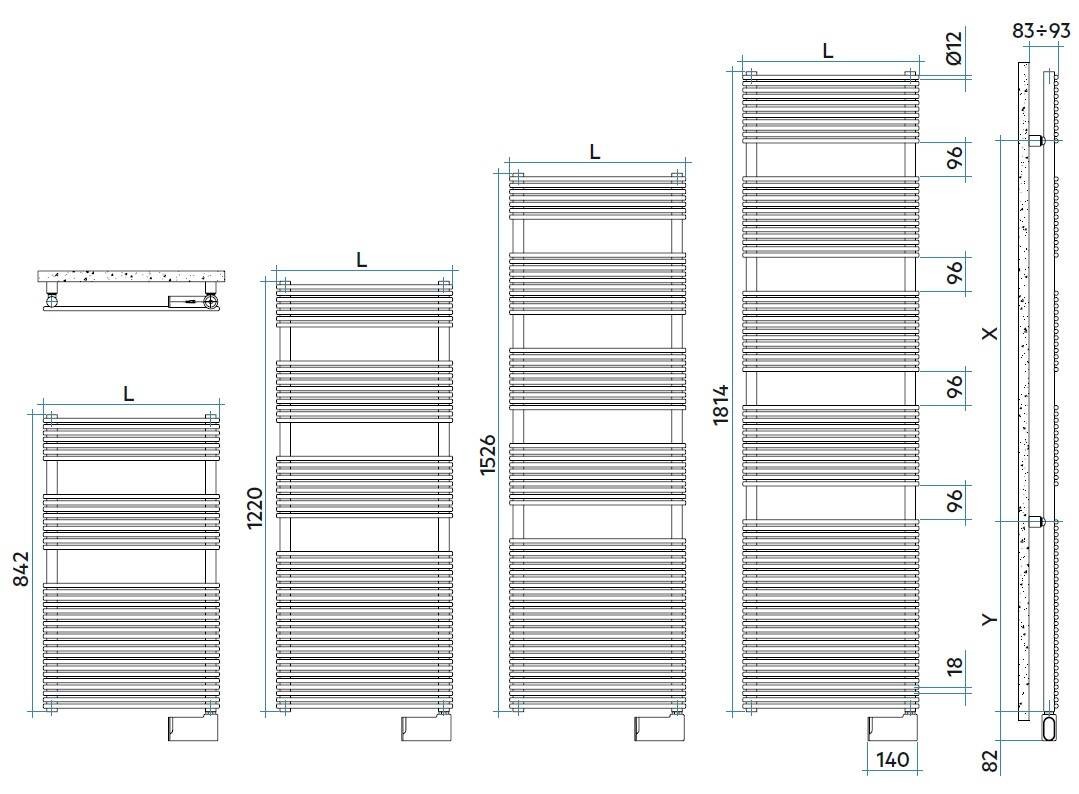

TECHNICAL DRAWING
CONTROLS

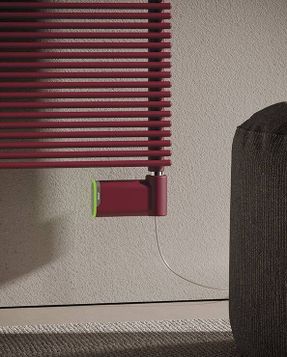

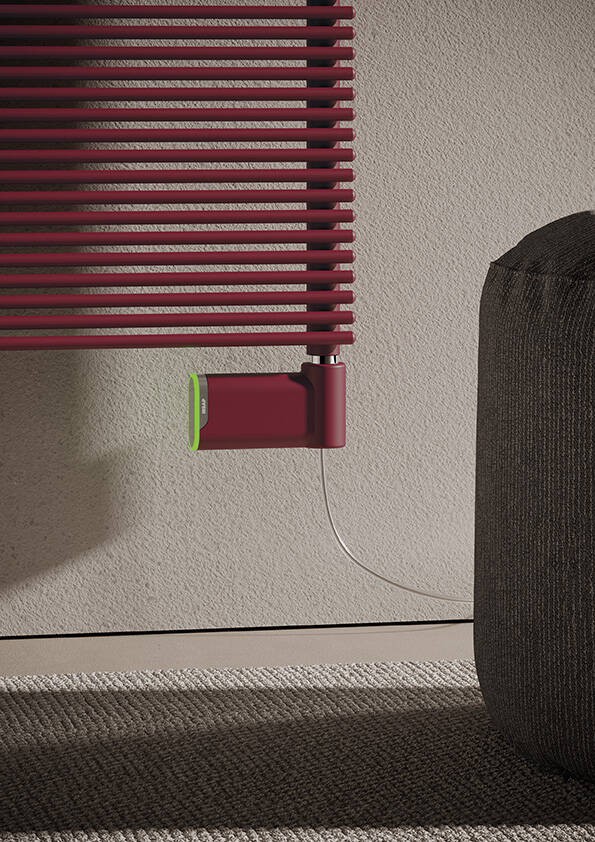

Electrical controls in the right manifold
THERMAL LIQUID
Complete with thermal liquid
INSULATION CLASS
Class I
LENGTH OF ELECTRICAL CABLE
1200 mm.
PROTECTION DEGREE
IP64
INTERNAL WORKING
Internal working thermostat calibrated to 90°C.
SAFETY
Safety thermo-fuse calibrated to 152°C.
FEEDING
Voltage 230V, 50Hz, 1Ph
POWER
Power absorbed by the electric heater 300-400-500-600-700-750-800-1000 Watt. (The combination of the electric heater and the model of radiator permit the latter’s surface to be maintained at a temperature below around 70°C).
TECHNICAL DATA
| MODEL | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | WEIGHT (KG) | ELECTRIC POWER (WATT) |
|---|---|---|---|---|---|
| 842 36 rails 2 espaces | 41,0 | 842 | 500 | 10,11 | 400 |
| 1220 52 rails 3 espaces | 41,0 | 1220 | 500 | 14,24 | 500 |
| 1526 64 rails 4 espaces | 41,0 | 1526 | 500 | 16,68 | 750 |
| 1814 80 rails 4 espaces | 41,0 | 1814 | 500 | 20,76 | 1000 |
CERTIFICATIONS
DETAIL
KEY TO THE ICONS
-Low temperature -Eco compatible product (Reg. 2015/1188) -New products -10-year Warranty -Electric radiator -Hydraulic radiator -Hydraulic radiator available -Hydraulic radiator with booster -Hydraulic radiator available with booster -Electric radiator available -Electric radiator with booster -Electric radiator available with booster -Valves included -Radiator with domestic hot water system
