HVAC ACCESS STAIRS
HVAC ACCESS STAIRS

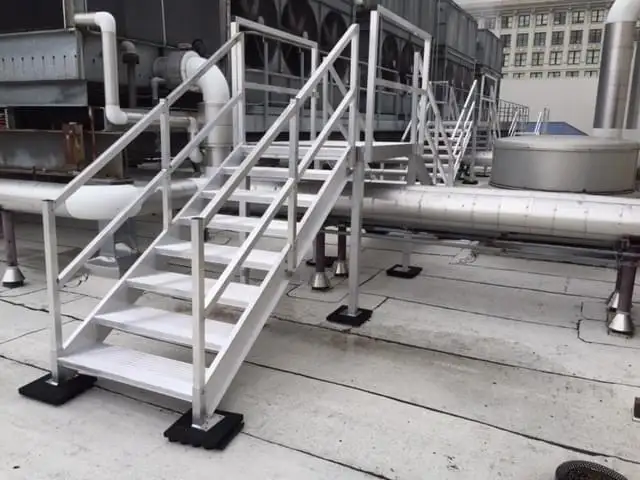

Our durable apex hvac access stairs have a modular design that is prefabricated and installation-ready.
The 100% industrial-grade aluminum will never warp, rust, or rot. Say goodbye to on-site welding and time-consuming installations, as our stairs bolt together on site and can be designed to reach any height.
INFORMATION
PRODUCT TYPE
Stairs
BALUSTERS
Less than 4″ apart
FAST INSTALLATION
Prefabricated and bolts together on-site with no welding required.
WEIGHT CAPACITY
100 lbs/sqft live load, 300 lbs point load over a sqft area

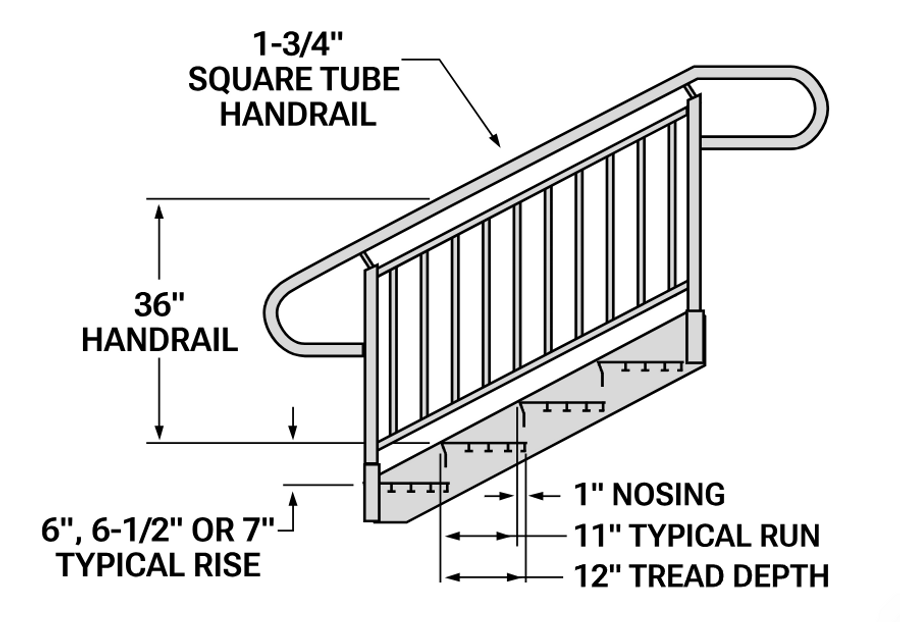

TREAD DEPTH
12″ (11″ + 1″ nosing)
GUARDRAIL (STEPS > 30″ & STEPS ≤ 30″)
36″ High
WIDTH (STEPS > 30″) & WIDTH (STEPS ≤ 30″)
40″ between the handrails, 48″ out-to-out
HEIGHT
We use 6″, 6.5″, or 7″ rises between the treads to reach any height.
HANDRAIL
36″ High
MATERIAL
Mill finish aluminum extrusions and sheet
PLATFORM SIZES
- 48″ x 48″
- 48″ x 64″
- 64″ x 64″
DURABLE, LONG LIFECYCLE
100% industrial-grade aluminum that won’t rust, warp, or rot.
WE INSTALL
Our professional installation crew ensures that your project goes smoothly.
INFINITE CONFIGURATIONS
Our modular design and experienced engineers can configure solutions for the most difficult projects.
OSHA COMPLIANT
All stairs and access platforms meet OSHA regulations. An ibc-compliant option is also available.
REACH ANY HEIGHT
Our team can design modular stairs to reach any height that you need.Our team can design modular stairs to reach any height that you need.
DECKING OPTIONS
FEATURES
CODE COMPLIANT
Our stair towers comply with the Americans with Disabilities Act (ADA) and International Building Code (IBC) and can meet local building codes.
RECONFIGURABLE
Because the system is modular, ramps, stairs, and railings can be reused or reconfigured as your needs change.

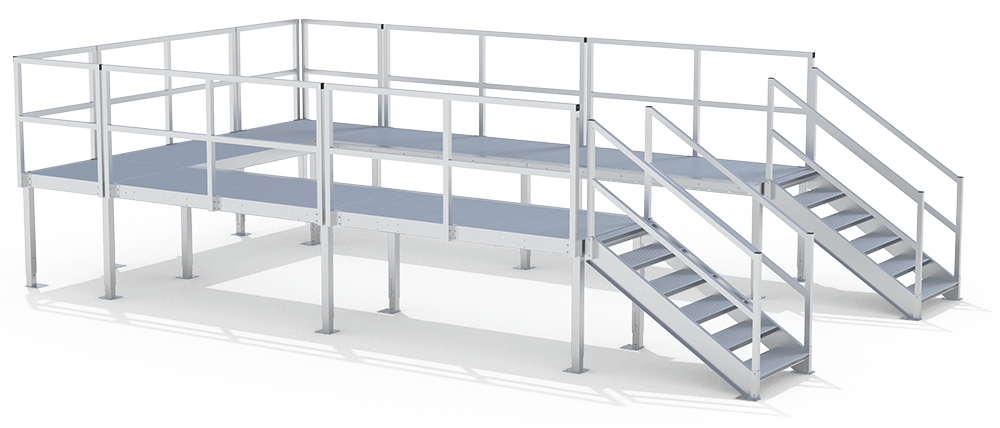

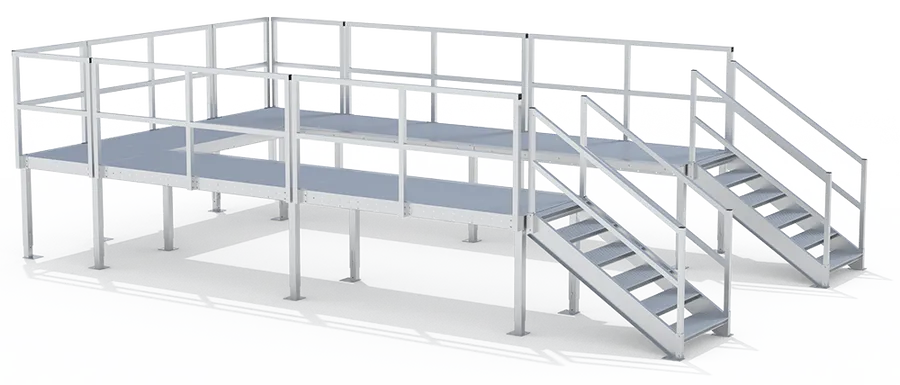

MODULAR DESIGN
Modular stair towers, platform landings, legs, and handrails bolt together without any on-site welding.
CUSTOM LAYOUTS
Our team of engineers will design a stair configuration layout just for you. Professional engineer stamps are available.
LEVELING LEGS
Platform legs have 8” of adjustability for uneven ground or ongoing adjustments.
100% ALUMINUM – LONG LASTING
The entire line of APEX products will never rust, warp, or rot. All components are low maintenance and will last much longer than wood or steel.

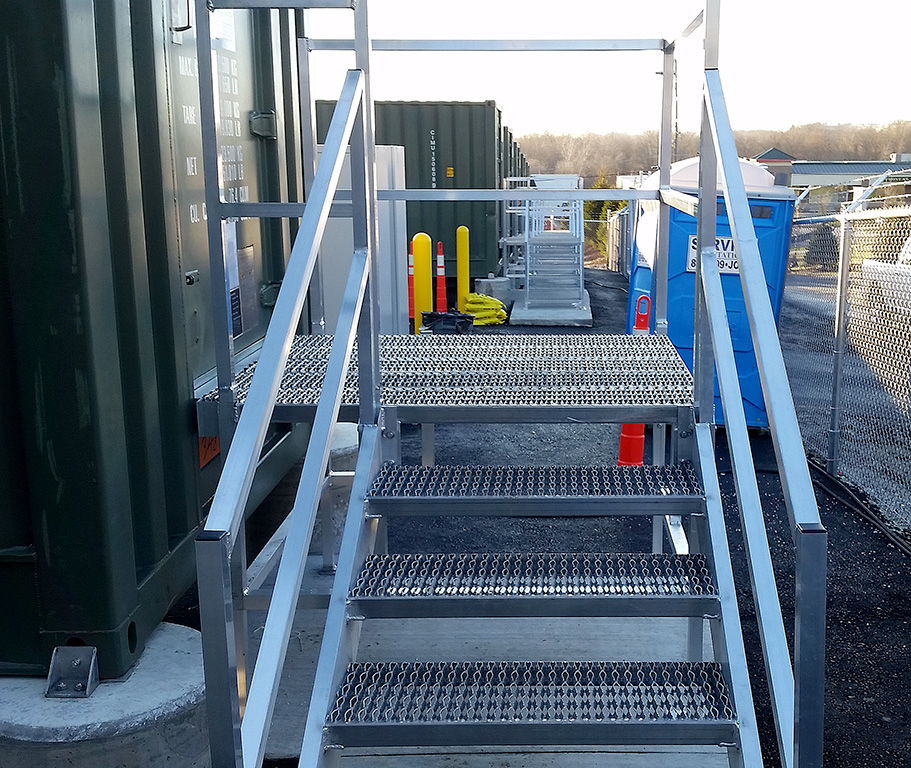

SLIP-RESISTANT DECKING
Apex stairs come standard with an aggressive, heavy-duty 3” channel grip strut grating that provides maximum, multi-directional slip resistance. Other decking options are also available.
EASY INSTALLATION
Our stair towers are modular and bolt together seamlessly.
HPD/LEED/ESG
Because our products are modular, repurposable, and contain 32.5% to 75% recycled content, including 50% to 65% pre-consumer and up to 20% post-consumer recycled scrap, they can help contribute to several LEED v4.1 credits and other green building rating systems.
