SMARTIA P100 SLIM PARTITION SYSTEM
SMARTIA P100 SLIM PARTITION SYSTEM

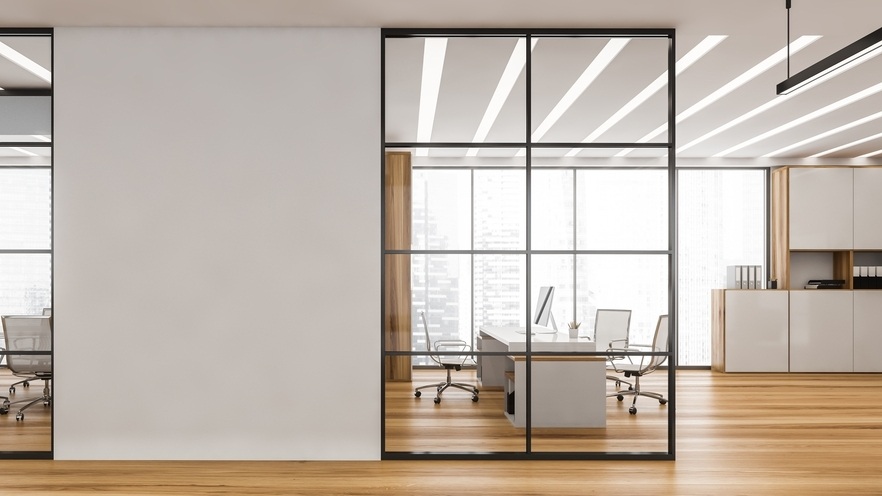

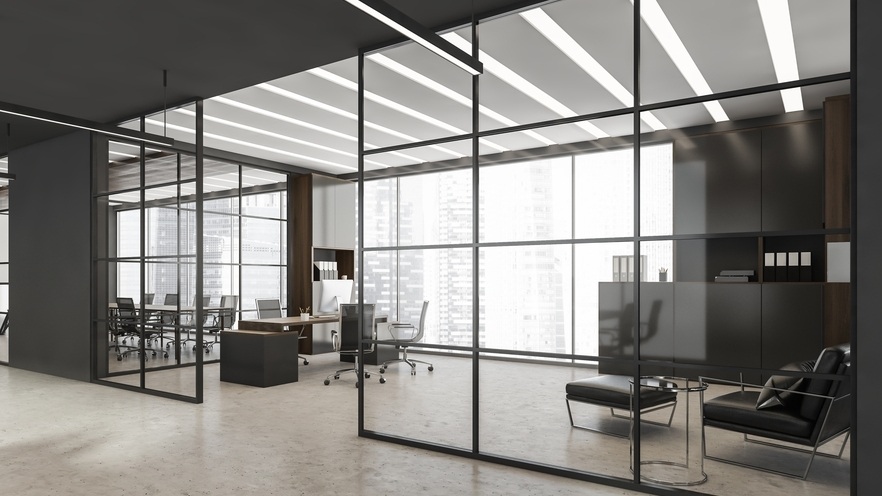

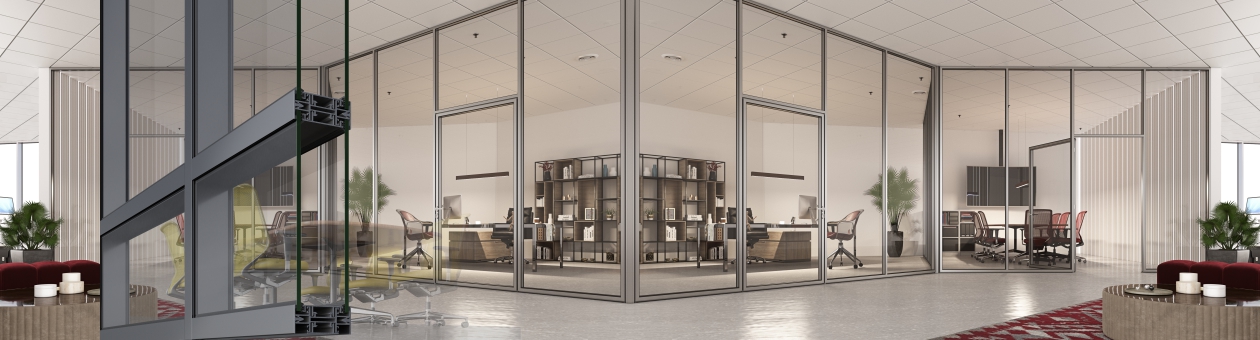

Smartia p100 slim is a minimal aluminium-framed office partition with double glazing and excellent sound reduction.
High aesthetics and a wide range of sturdy applications allow working conditions upgrade.
INFORMATION
BRAND
Alumil
PRODUCT TYPE
Partition System
GLASS THICKNESS
- 5+5 mm
- 10+10 mm
COLLECTION
Smartia
PRODUCTION
Made in Greece
SHADING
Incorporated adjustable blind shutter
APPLICATIONS
- Hotels
- Airports
- Οffice Buildings
- Meeting Rooms
PANEL WIDTH
70mm
VISIBLE FACE WIDTH
30mm
SOUND REDUCTION
47 dB
PANEL
Glass panel with glazing bead
SECTIONS
ADVANTAGES
- Attention to detail, to achieve highly stylish result.
- High sound insulation (47 dB) for comfortable working conditions.
- Technical complexity and wide variety of typologies, e.g. adjustable corner.
- Concealed and robust aluminium framework to allow large dimensions (1.0 x 2.7m).
- Very thin aluminium profiles (30mm) and minimum sight lines to enhance lighting levels.
DOOR TYPE
Aluminium framed glass panel same width as grid
DOWNLOADS
↓ Brochure
↓ System Specification
CONSTRUCTIONS
- “T”
- Grid
- Cross
- Corner
- Variable Corner

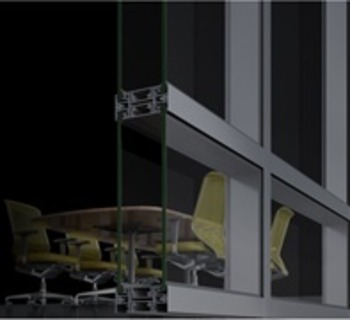

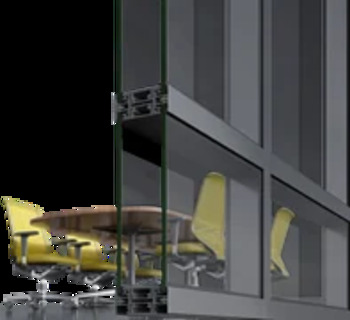

DETAIL
CERTIFICATES

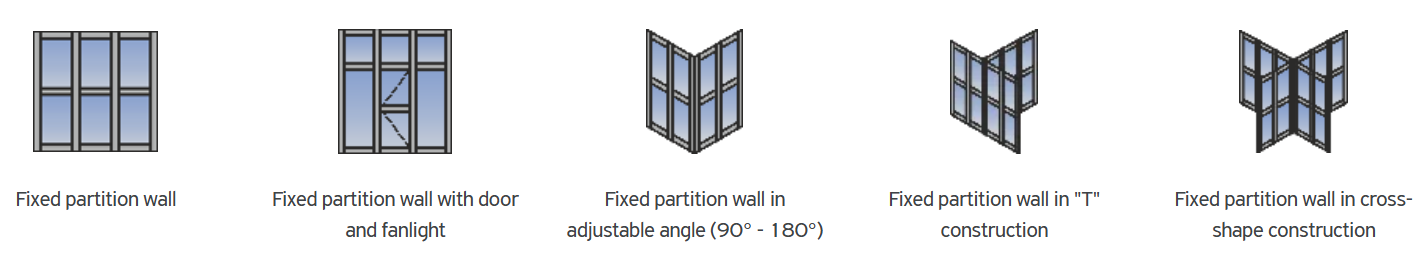

TYPOLOGIES
