MARLEY SOLARTILE®: ROOF-INTEGRATED SOLAR PANEL ROOF TILES
MARLEY SOLARTILE®: ROOF-INTEGRATED SOLAR PANEL ROOF TILES

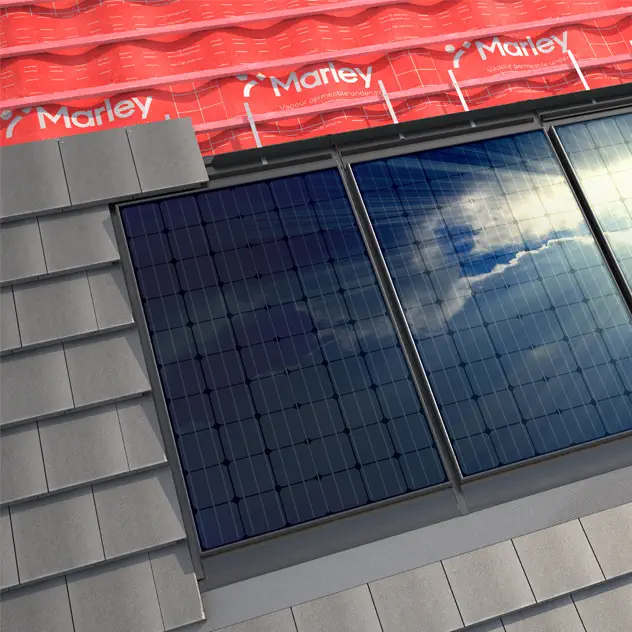

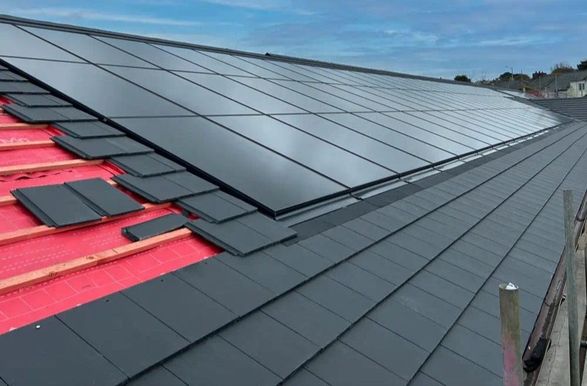

The marley solartile® is a solar roof tile that acts as a roof covering while also generating renewable energy, it features a low profile and streamlined appearance.
Including our NEW 445W Marley SolarTile® with All Glass technology
INFORMATION
BRAND
Marley
PRODUCT TYPE
Solar Panel
COLLECTION
Marley Solartile®
PRODUCTION
Made in UK
DETAIL
-Installed in either a landscape or portrait orientation, Marley SolarTile® panels are easily combined using patented push-fit technology. This offers flexibility of design, enabling solar arrays to be arranged in any shape or size -The solar panel roof tiles also feature 5mm panel spacing between tiles and hidden fixings that give a sleek, high-end finish.

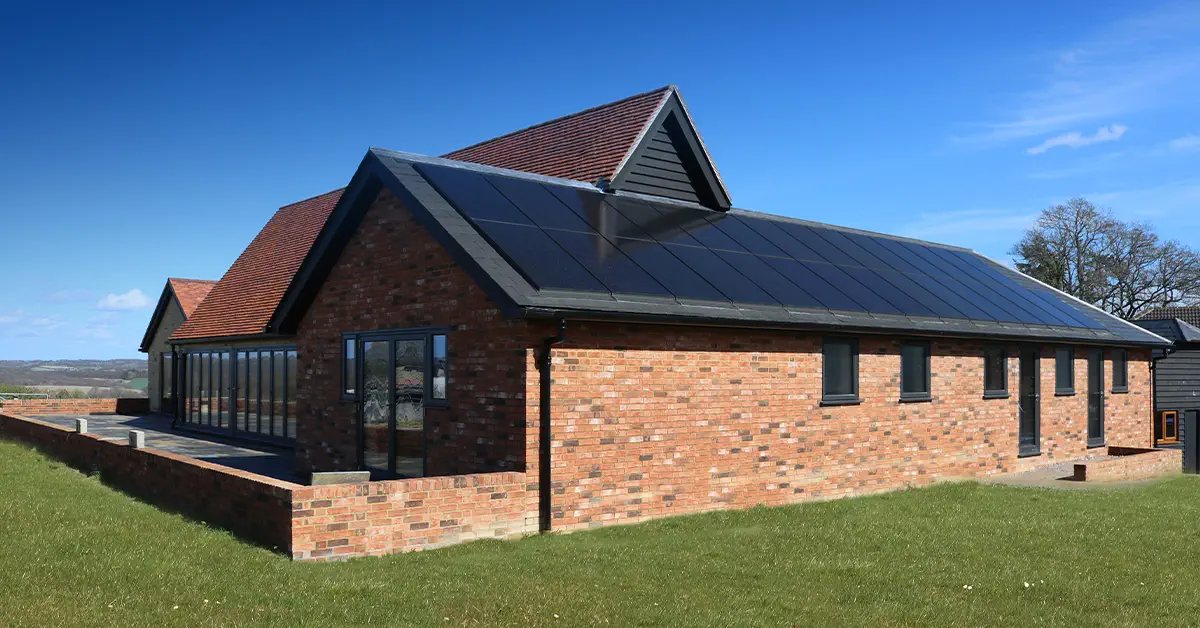

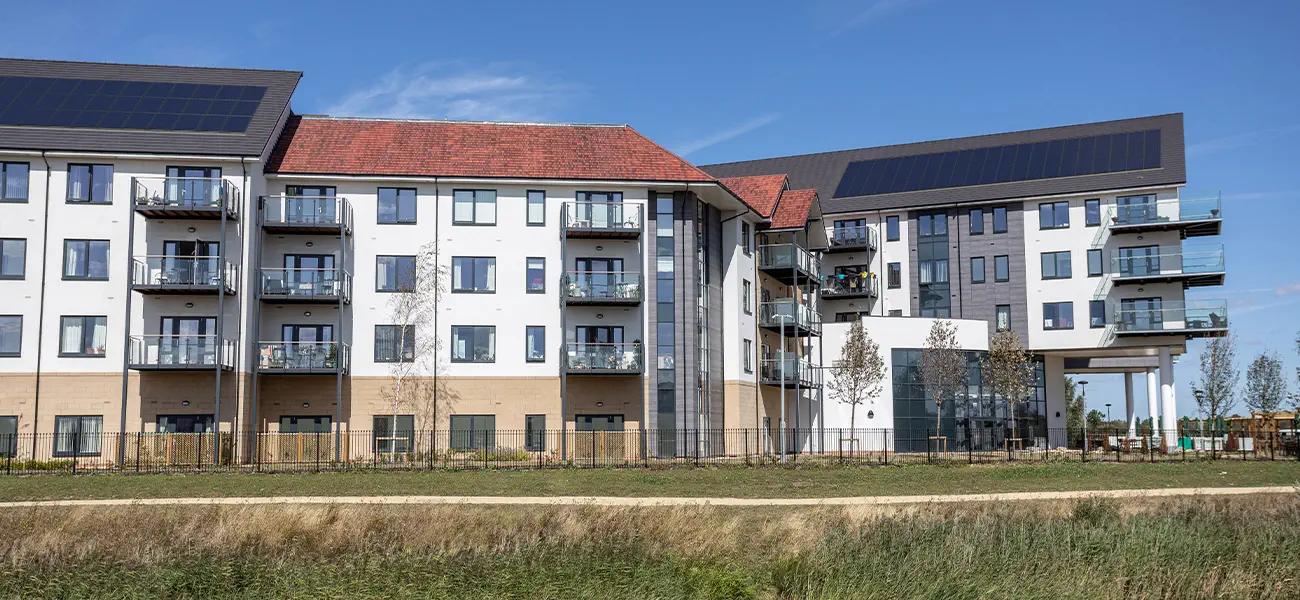

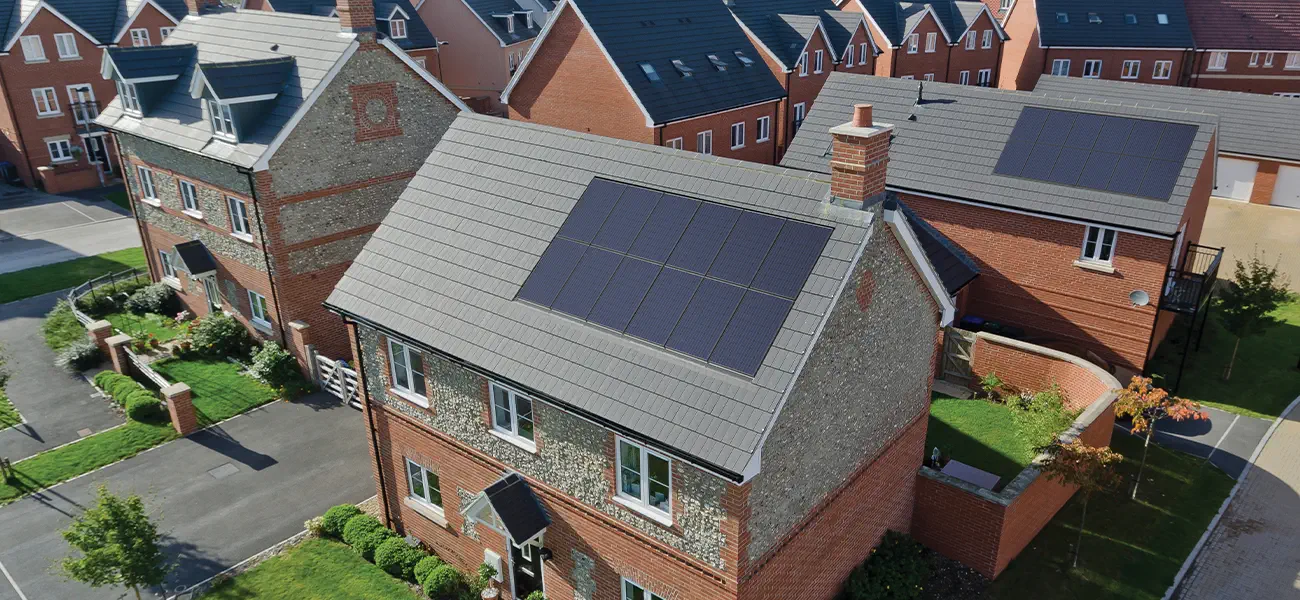

DESIGNED FOR NEW BUILD AND REFURBISHMENT ON EXISTING BUILDINGS
Marley SolarTile® is a versatile choice for both roof refurbishments and new-build projects. These solar photovoltaic (PV) roof tiles provide an uncluttered aesthetic with no visible brackets or racking, along with easy maintenance, and they are backed by our market-leading 15-year system guarantee.
Designed to be fitted as part of a typical roofing project, Marley SolarTile® is quick to install thanks to its patented push-together design. Typical installation times can be less than one hour per kilowatt peak, helping to reduce labour costs and project timelines.
PANEL PERFORMANCE
Marley SolarTile® is the only roof-integrated solar system to achieve the highest classification for resistance to the spread of flame and fire penetration in all European fire safety tests (BRoof T1, T2, T3 and T4).
- The PV solar panel roof tiles also provide excellent weather-tightness and wind resistance, without the need for extra roof batten support, adhesive flashing rolls or fireproofing materials. The certified wind resistance for Marley SolarTile® is more than four times higher than competitor PV roof tiles and is suitable for even the most exposed locations.

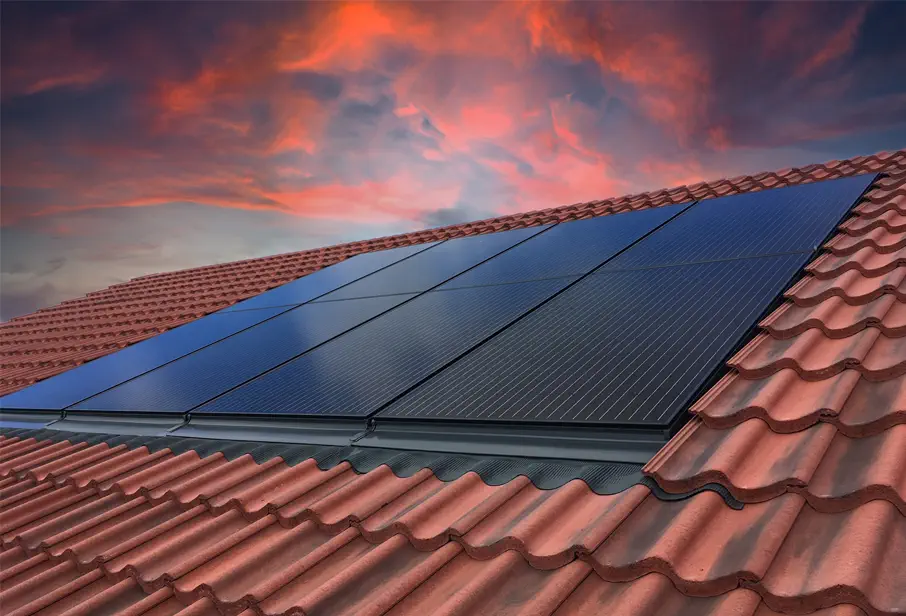

- Marley SolarTile® is compatible with the entire range of Marley roof coverings, including clay and concrete tiles and cedar shingles and shakes, and it is suitable for installation on low-pitch roofs.
THE MARLEY SOLARTILE® RANGE

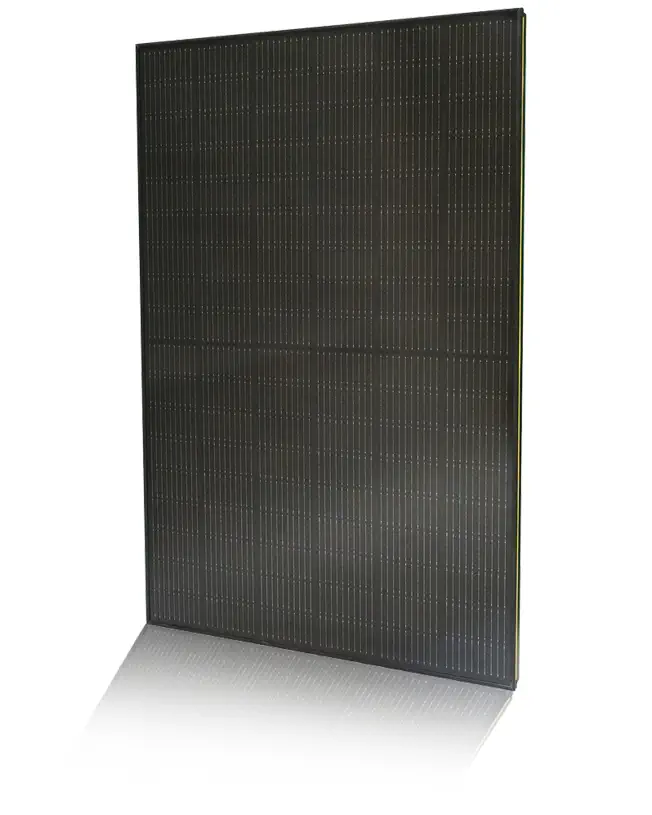

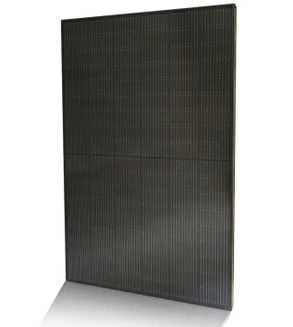

445WP ALL GLASS SOLAR PANEL
The 445Wp Marley SolarTile® photovoltaic roof panel provides a higher peak power output than the 335Wp panel, delivering up to 445Wp per tile.
This increased capacity allows homeowners to generate more electricity from the same roof area or install fewer tiles to achieve the desired system output. Utilising All Glass technology, the 44Wp panels feature N-type TOPCon cells encapsulated between two glass sheets, front and back, improving the panel lifetime by better protecting the cells from oxidation. As a result, the power output guarantee for the 445-AG is improved to 95% of rated power at 10 years and 87% at 30 years.
MECHANICAL SPECIFICATION (445WP)
- Characteristic wind resistance : 4.65kPa
- Positive design load (IEC 61215) : 5.40kPa
- Fire rating (EN 13501-5) : Broof (T1, T2, T3, T4)
- Standards : IEC61215, 61730, TUV, MCS05, MSC12
- Static roof loading (distributed) : 14.5kg/m² (distributed)
- Power warranty (% rated) : 95% - 10 years , 87% - 30 years
- Systems Warranty (compatibility/ weathertightness) : 15 years
- Weight : 28.3kg
- Thickness : 70mm
- Aperture area : 1.885m²
- Height (up roof) : 1722mm
- Width (across roof) : 1134mm
- Ultimate design load : 4.65kPa
ELECTRICAL SPECIFICATION (445WP)
- Safety classification : Class II
- Max. system voltage : 1000VDC
- Short circuit current (Isc) : 14.18A
- Max. power current (Impp) : 13.48A
- Open circuit voltage (Voc) : 39.90V
- Marley Product Code : MAPV445AG-M10
- Power temperature co-efficient : -0.29% /°C
- Current temperature co-efficient : -0.04% /°C
- Voltage temperature co-efficient : -0.25% /°C
- NOCT* : 42°C
- Efficiency : 23.6%
- No. of cells : 54x2
- Peak Power : 445Wp
- Model : PV445AG-M10
- Cell type : N-Type, TOPCon
- Max. power voltage (Vmpp) : 33.02V

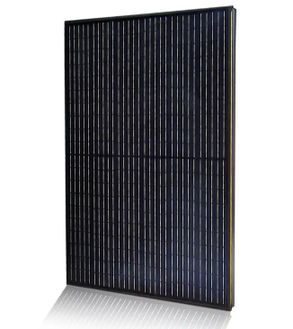

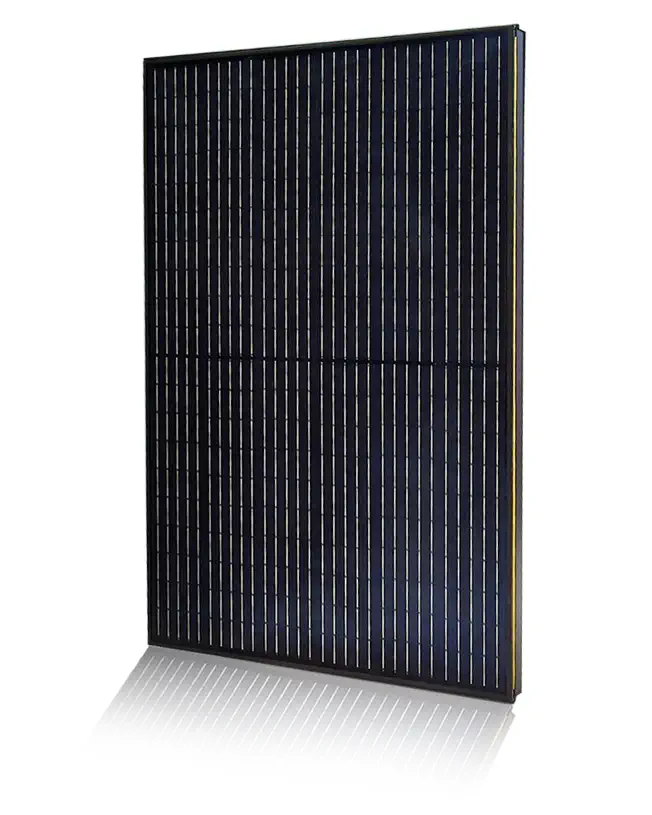

335WP SOLAR PANEL
The 335Wp Marley SolarTile® is recognised in the roofing industry for its straightforward installation and reliable performance and has been installed on projects across the UK and Europe. It can provide up to 33Wp of peak output per panel and can be installed in arrays of any shape or size.
It is well-suited to domestic properties with limited roof space or roof obstacles such as dormers or roof windows. Its integrated design means a flush fit with the roof plane, providing a reliable renewable energy source while maintaining the aesthetics of the roof, along with tested wind and fire performance.
MECHANICAL SPECIFICATION (335WP)
- Characteristic wind resistance : 5.32kPa
- Positive design load (IEC 61215) : 5.40kPa
- Fire rating (EN 13501-5) : Broof (T1, T2, T3, T4)
- Standards : IEC61215, 61730, TUV, MCS05, MSC12
- Static roof loading (distributed) : 12.9kg/m² (distributed)
- Power warranty (% rated) : 90% - 10 years , 80% - 25 years
- Systems Warranty (compatibility/ weathertightness) : 15 years
- Weight : 21.7kg
- Thickness : 69mm
- Aperture area : 1.622m²
- Height (up roof) : 1686mm
- Ultimate design load : 5.32kPa
- Width (across roof) : 1000mm
ELECTRICAL SPECIFICATION (335WP)
- Max. power current (Impp) : 9.7A
- Open circuit voltage (Voc) : 42V
- Short circuit current 9 (Isc) : 10.3A
- Cell type : Monocrystalline Silicon
- Marley Product Code : MAPV16-335-G1
- Power temperature co-efficient : -0.38% /°C
- Current temperature co-efficient : -0.05% /°C
- Voltage temperature co-efficient : -0.30% /°C
- NOCT* : 44°C
- Efficiency : 20.7%
- No. of cells : 60x2
- Peak Power : 335Wp
- Model : PV16-335-G1
- Safety classification : Class II
- Max. system voltage : 1000VDC
WHY CHOOSE MARLEY SOLARTILE®
WHY CHOOSE MARLEY SOLARTILE®
Marley SolarTile® combines the benefits of renewable energy generation and ease of installation with the durability, reliability and aesthetics of a fully integrated roof system.
Marley SolarTile® combines the benefits of renewable energy generation and ease of installation with the durability, reliability and aesthetics of a fully integrated roof system.
COMPLETE SOLAR ROOF SYSTEM - COMPLETE PEACE OF MIND

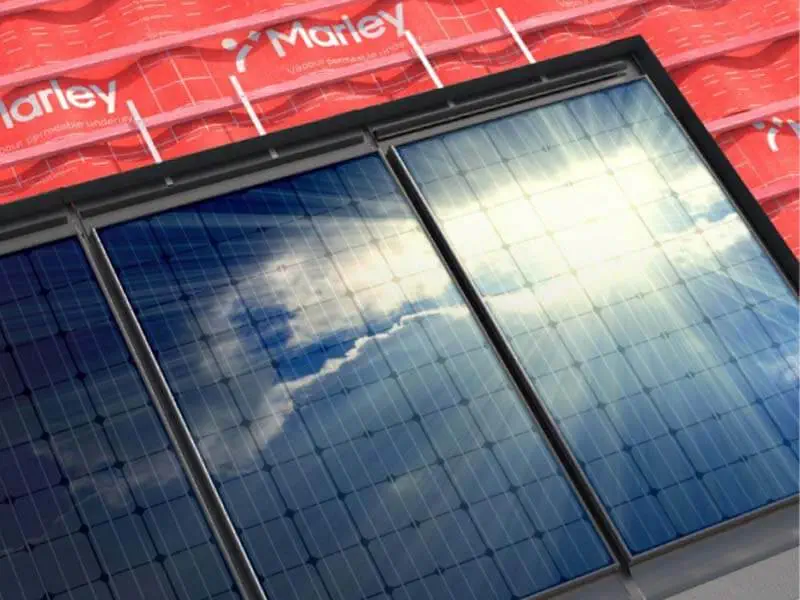

Marley SolarTile® can be specified as a standalone solar panel roof tile or as part of Marley’s complete Roof System. Each solar PV roof tile is supplied as a complete system, including all necessary fittings and flashings, for straightforward specification and installation. The result is a source of renewable energy that provides tested levels of wind resistance and fire performance.
When installed as part of the Marley Roof System, the Marley SolarTile® becomes an integral part of the roof covering, protecting the home from the weather while also generating power. Suitable for new-builds or re-roofing projects, all components of the Roof System are designed and tested to work together, from the battens and underlay to the roof tiles, fittings and solar tiles. This helps to simplify specification, reduce installation risks and support long-term performance of the complete roof.

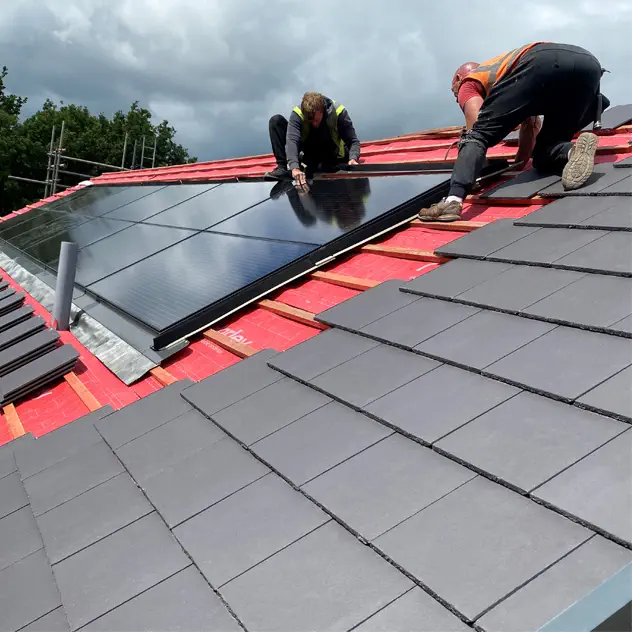

SOLAR PANEL ROOF TILES DESIGNED FOR QUICK AND EASY INSTALLATION
Marley SolarTile® has been designed for simple installation, helping contractors save time and ensure a high-quality finish. Colour-coded flashing kits remove guesswork, reducing the need for additional materials and minimising installation errors.

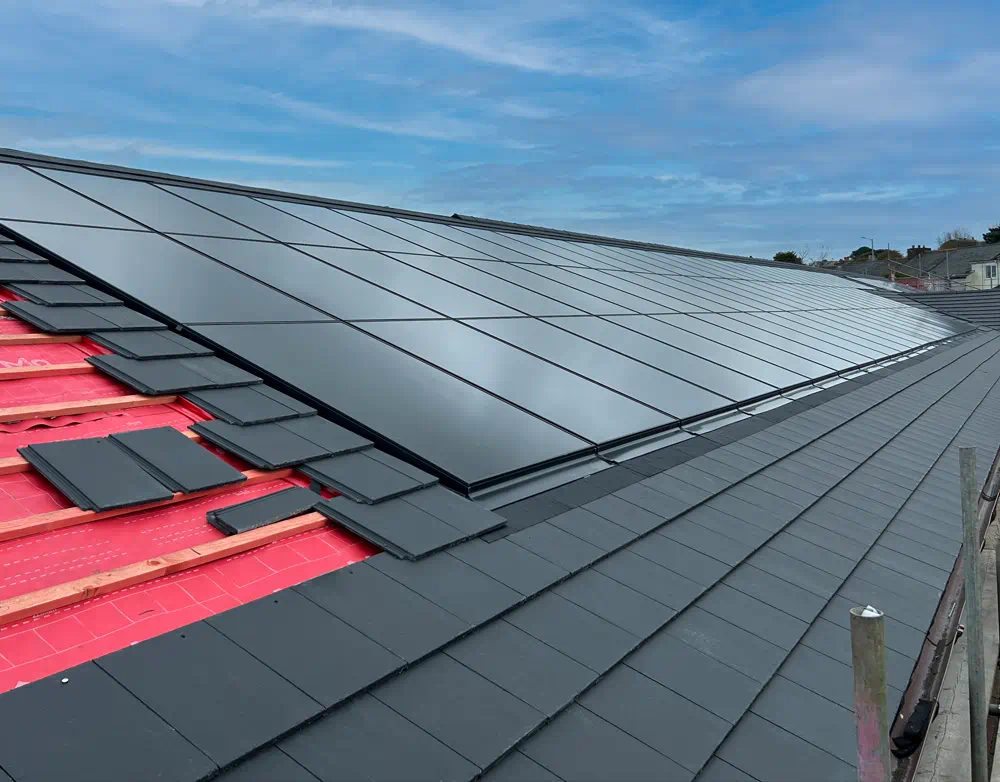

For new roofs or extensions to existing buildings, BS 5534:2014+A2:2022, the code of practice for slating and tiling for pitched roofs and vertical cladding, requires that all roof tiles must be mechanically fixed with nails or clips in line with building regulations. As a roof-integrated solar panel, Marley SolarTile® is installed directly onto the battens, with traditional roof tiles fixed around it.
