Glulam house building elements MM HBE: Solid walls, ceilings and roofs made of wood according to the building block principle.
With its MM HBE system made of profiled glued laminated timber, Mayr-Melnhof Holz offers a new solution for solid timber structures up to three storeys tall. The glulam house building element is based on the building block principle and works with just a few simple details.

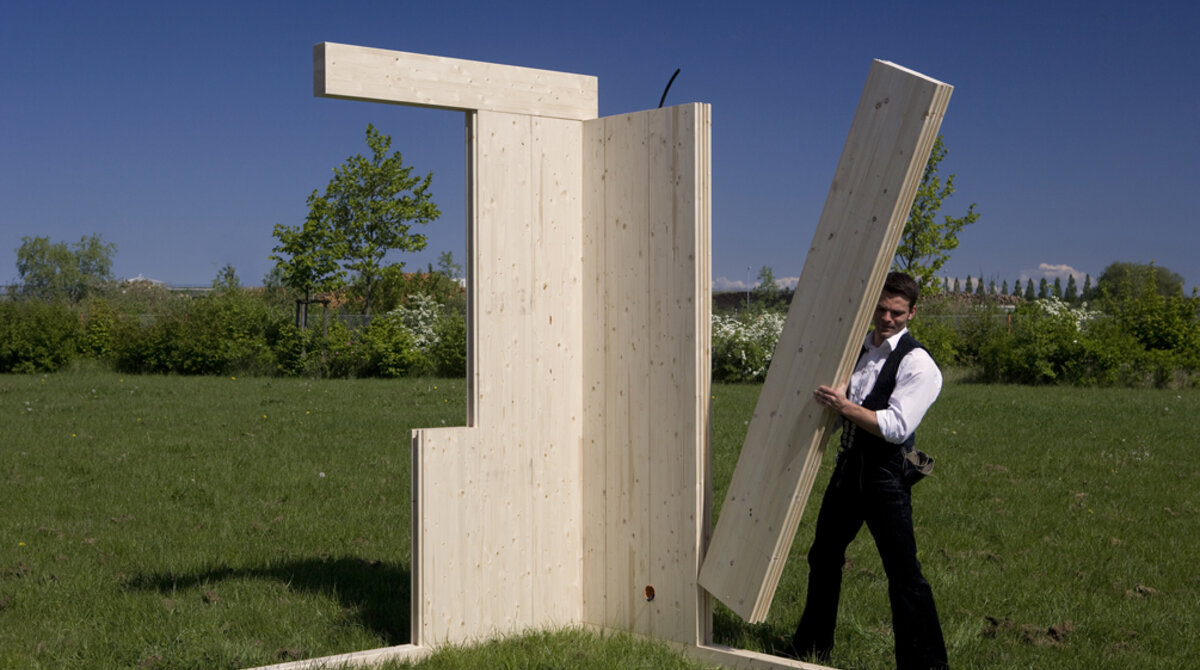

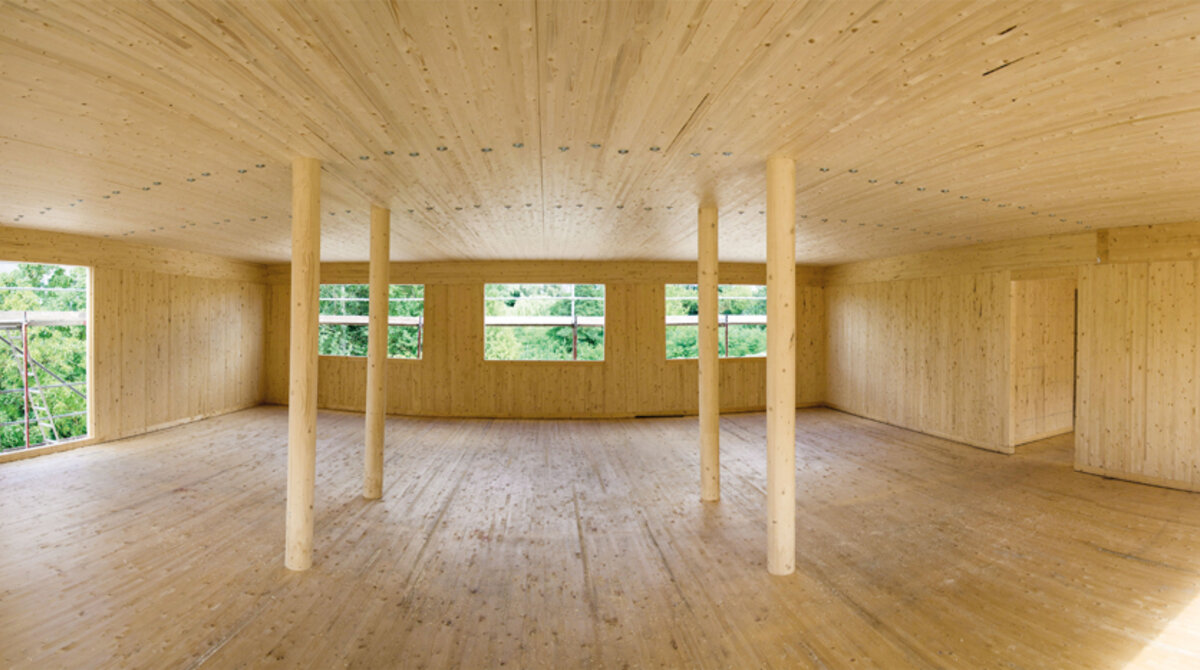

Using a single standardised building block allows you to create solid timber walls, ceilings and roofs. Simply screwed together to form a frame comprised of bottom beam and stiffening top beam, loads are structurally transferred in a linear fashion via panels.

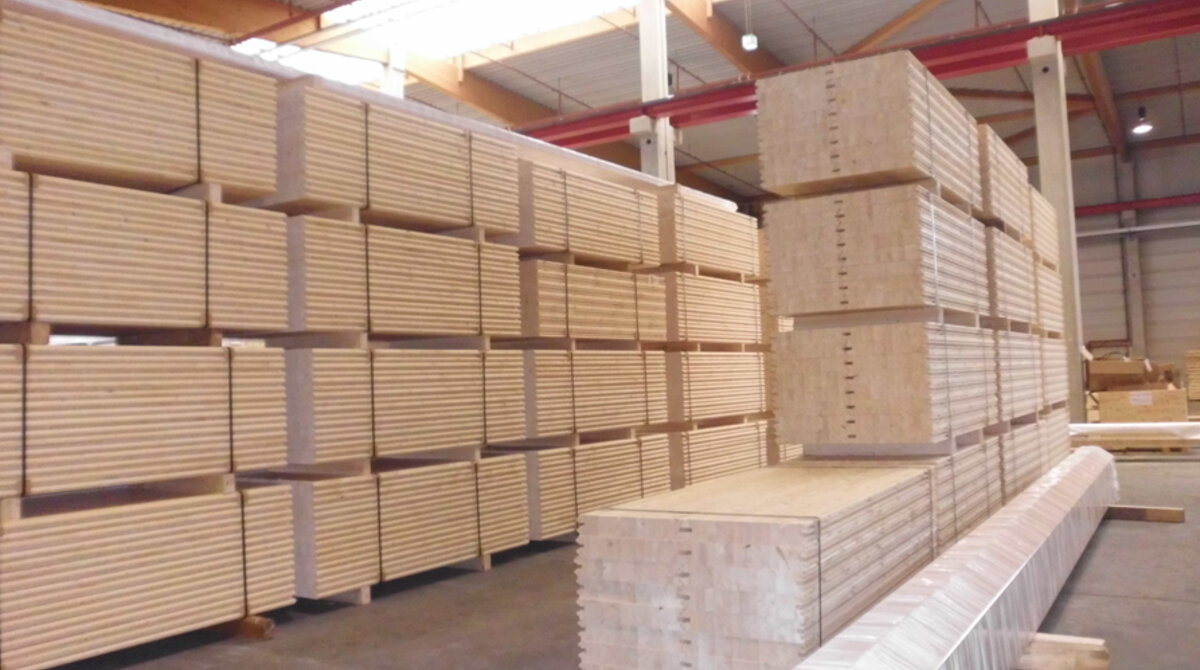

Especially when quick delivery, project flexibility and costs are paramount, you can rely on the MM HBE system. Stored elements are available at short notice
INFORMATION
COLLECTION
Glulam House Building Elements
BRAND
Mm-holz
PRODUCT TYPE
Timber
WOOD SPECIES
Spruce (Picea Abies)
STRENGTH CLASS
GL24h
MOISTURE CONTENT
12 % (± 2 %)
DENSITY
Approx. 430 kg/m³
QUALITY
- Visual (VI)
- Non-visible (NVI)
FIRE CLASS
D-s2, d0
USAGE CLASS
NKL 1+2
SURFACE

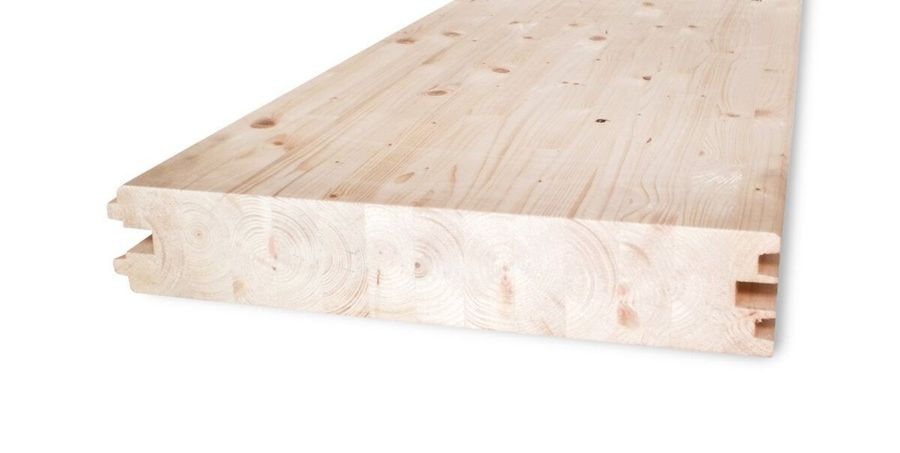

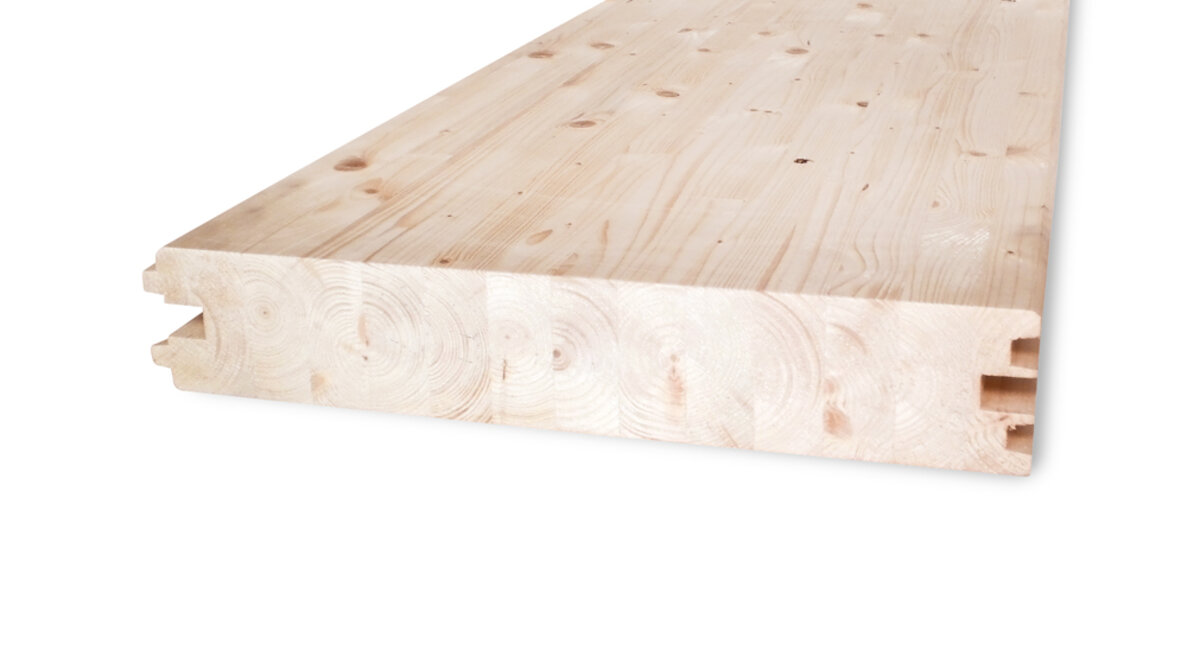

Planed on 4 or 2 sides, profiled on the sides and chamfered
PROFILES
15 mm double groove and tongue connection profile and
20 x 30 mm groove on both sides – in the middle in the form of an internal cable channel
DIMENSIONS
- Length : System lengths in storey height, for example 2.7 m or stock length of 13.5 m
- Width : Covered width 34.5 cm and 54.5 cm (element width 36 cm and 56 cm)
- Height : 10 cm (stock and system elements)
PRODUCT STANDARD
EN 14080:2013
CERTIFIED
PEFC certified
BUILDING COMPONENTS
- DIY
- Walls
- Roofs
- Ceilings
GLUING
MUF, EN 301-I-90-GP-0.3-S (melamine resin, bright glue joint, waterproof)
MM HBE: AREAS OF APPLICATION
-Module and temporary buildings -Single and multiple family homes -Commercial, office and industrial buildings -Hybrid construction combined with traditional brick and timber frame construction
DETAIL
Mm hbe, like all mayr-melnhof holz products, is pefc-certified. As a natural, regrowing building material that stores CO2, the use of mm hbe glulam house building elements makes an important contribution to active climate protection.
BENEFITS
MATERIAL BENEFITS
- Recyclable
- High earthquake safety
- Pleasant indoor climate
- High fire resistance class
- Surface finish of your choice
- High thermal insulation values
- Solid, value-retaining construction method
- High quality and precision thanks to industrial prefabrication
- Heat protection in the summer, protection from the cold in the winter
INSTALLATION BENEFITS
- Easy to process
- Quick installation
- Internal cable channel
- Suitable for structural panel formation
- Quick construction thanks to dry method
- Simple application thanks to system properties
CONSTRUCTION BENEFITS
- Low amount of waste
- High degree of standardisation
- Excellent inherent and dimensional stability
- Low dead weight in comparison with raw density
- Space savings thanks to low construction thickness
- Precise CNC machining services & finishing for mounting for individual project requirements
- High load-bearing capacity possible with simple wood screws – e.g. suspended kitchen cabinets
LOGISTICS SERVICES

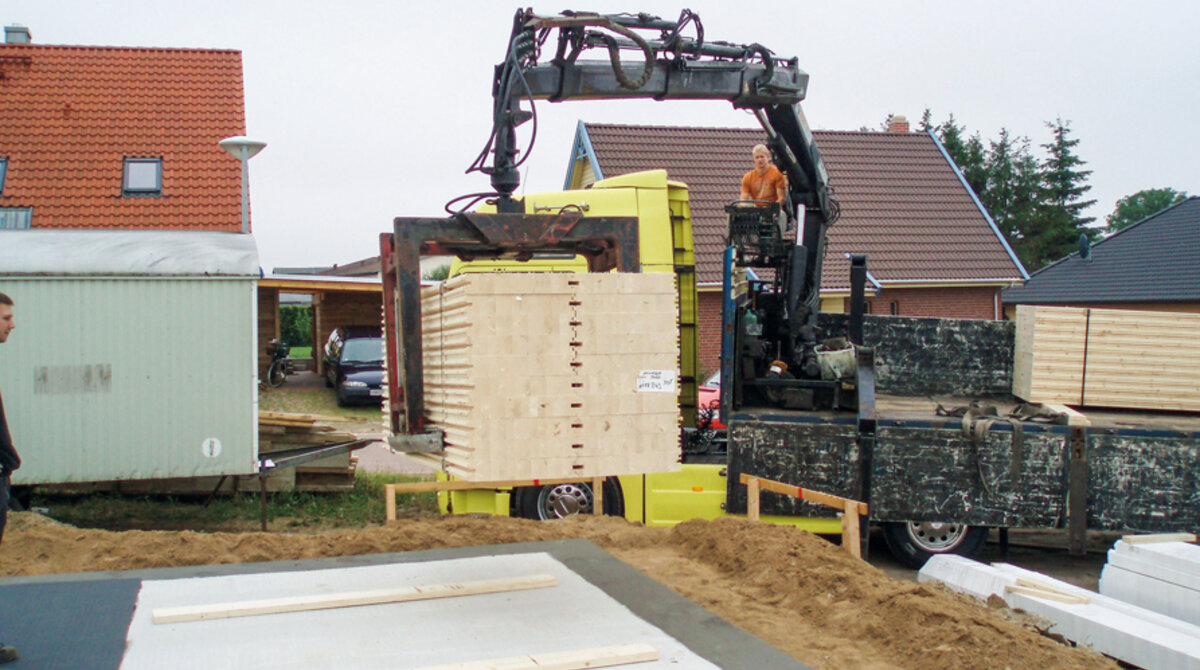

DELIVERY TO CONSTRUCTION SITES
Just-in-time deliveries to our cross-laminated and glulam construction sites.
A full range of modern transport solutions is offered as necessary:
- All-wheel drive trucks
- Narrow-access self-steering trailers
- Hydraulically steered trailers
- Solo vehicles with up to 10 m loading length for inner-city areas
- Covered loads up to 3,5 m wide
- Trailers with on-board forklifts
- Edscha sliding roof trailers for vertical access
ROAD
-Long-standing stable business relationships with a large number of logistics service providers in Europe. -We use digital platforms for fast communication with our transport service providers.
DOCUMENTATION
Together with our logistics partners we will provide you with professional documentation to enable you to cover all your export, import, and customs formalities without problems.
RAIL
- All Mayr-Melnhof Holz sawmills in Leoben (AT) & Paskov (CZ) as well as our timber processing plants in Gaishorn (AT) & Wismar (DE) are directly connected to national railway networks.
- We use both private & public rail service providers to transport goods in an environmentally friendly manner.
SEA
- Loading into shipping containers is possible at all sites.
- With trusted logistics partners we are able to offer fast and reliable container shipments worldwide.
- Subject inducement we can offer breakbulk shipments from the Adriatic, Baltic and North Seas.
- With our own port terminal in Koper, Slovenia, we have regular chartered services to southern Mediterranean ports & beyond.
