BUILDING ROOFS TEMPORARY ALUMINIUM ROOFS
BUILDING ROOFS TEMPORARY ALUMINIUM ROOFS

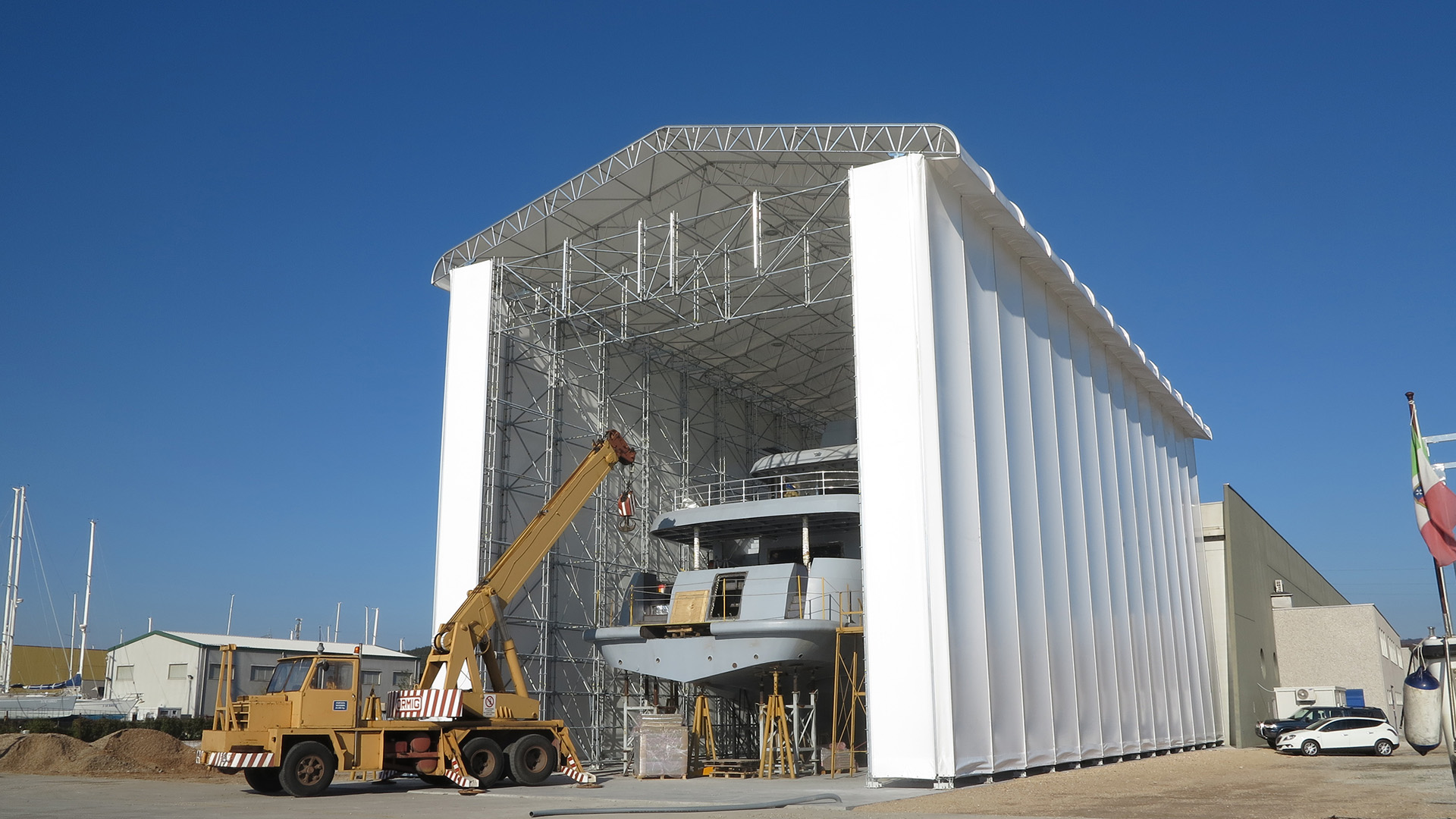

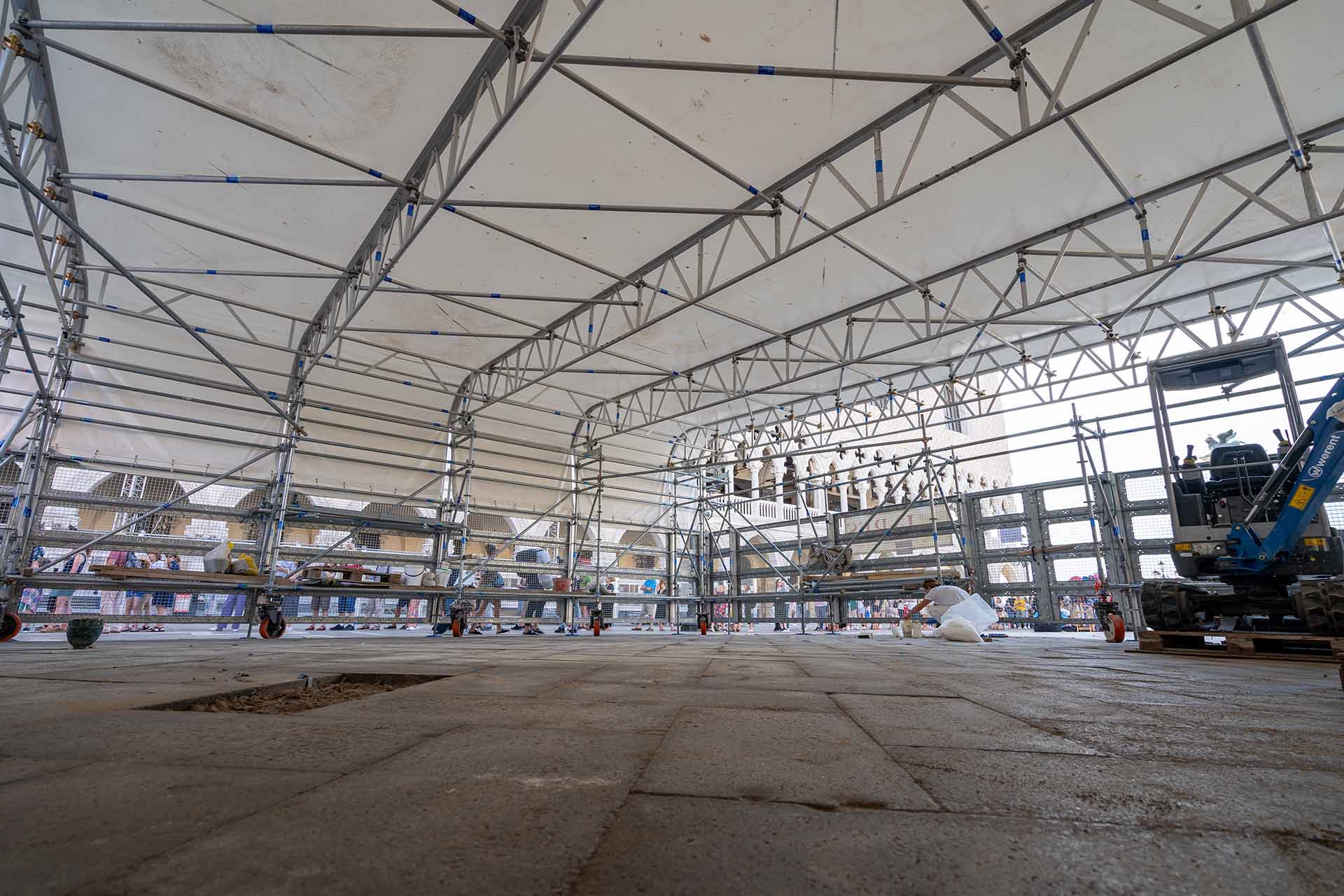

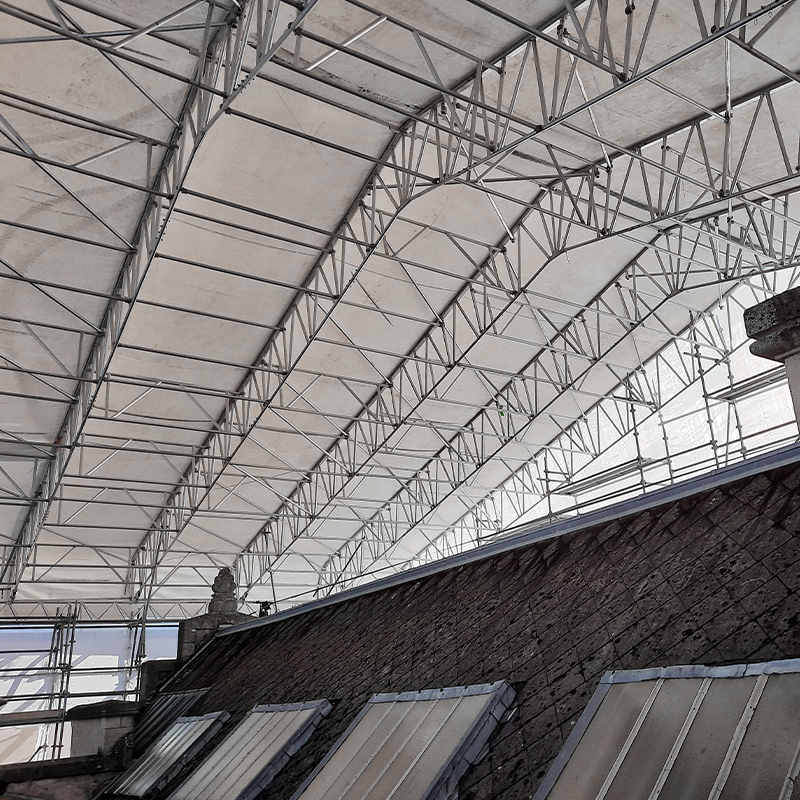

Building double-pitch roofs are temporary, lightweight and functional structures to protect any job-site from atmospheric agents and to safeguard the environment from possible dispersion of processing material, increasing the operability and safety of operators.

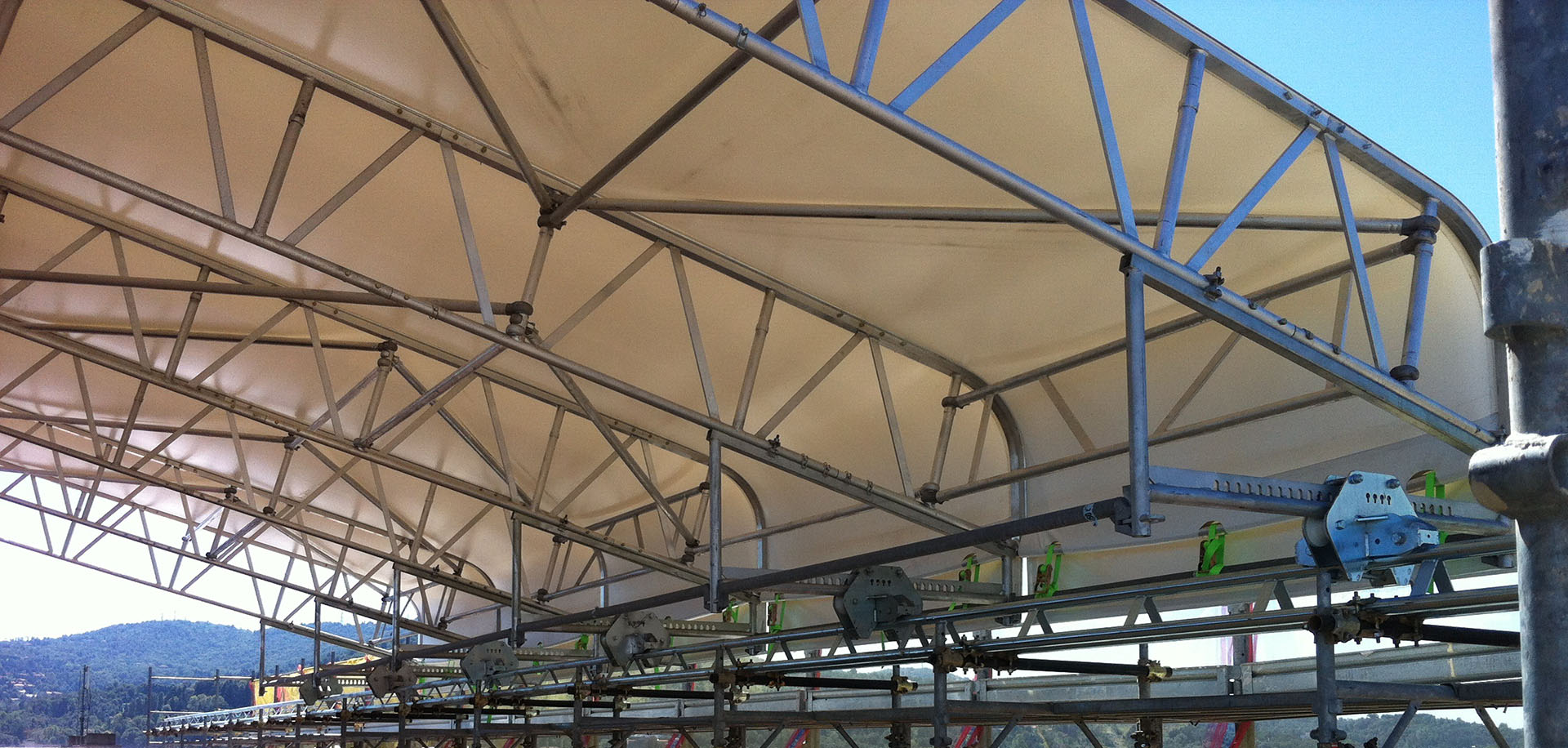

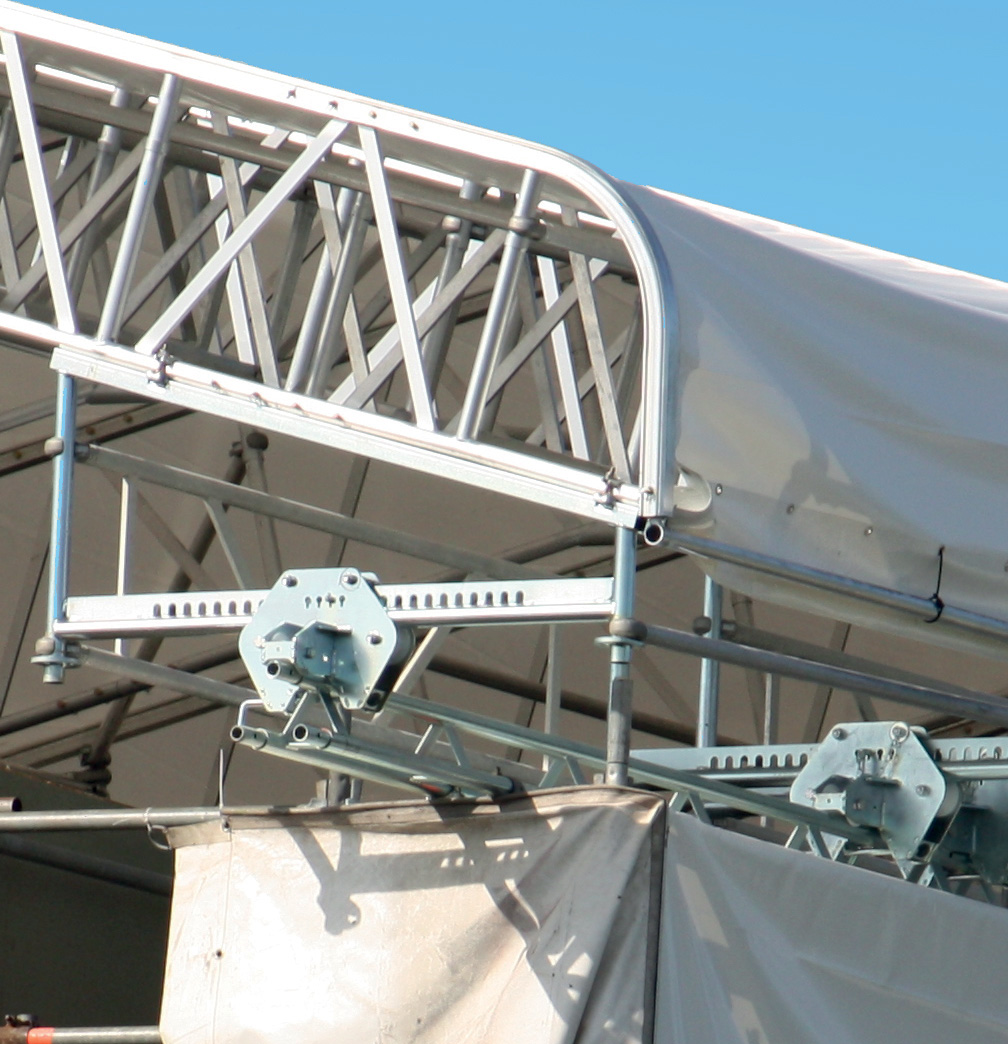

Double-pitch modular structure of aluminium lattice girders of different heights: h=74 cm, h=76 cm and h=120 cm
INFORMATION
BRAND
Pilosio
PRODUCTION
Made in Italy
PVC
Tarpaulin In Coated Polyester Pvc Measuring 650 G/M2
LEDGER

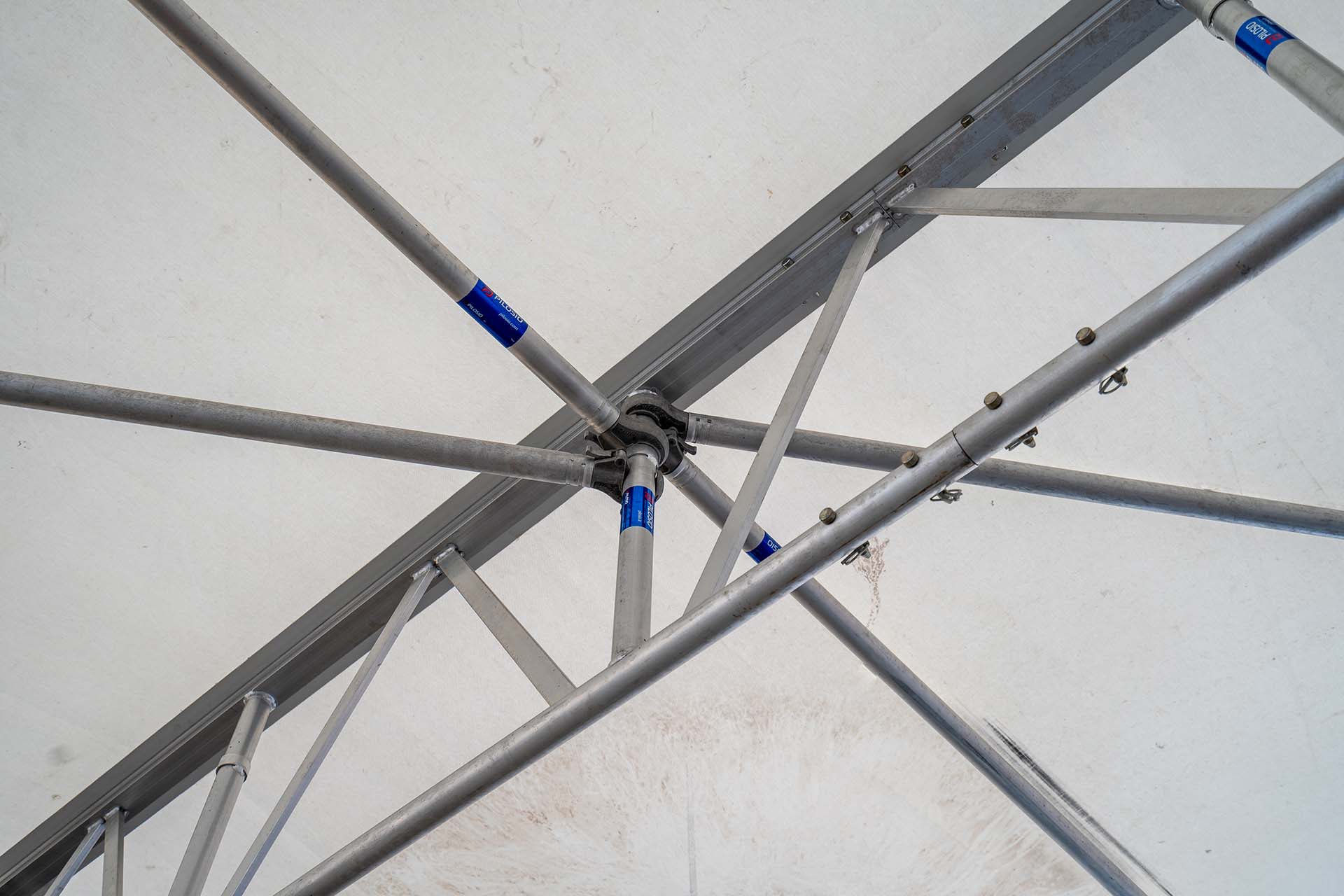

Connected with double-braced ledger stiffeners at constant intervals of 2.00 and 2.50 m.
COLLECTION
Building
PRODUCT TYPE
Aluminium Roofs
INCLINATION
Inclination of 15° or 27.5° (for T74 and T76)
STANDARD HEIGHT
Standard height of the girders: 74 cm (single PVC sheet rail), 76 cm and 120 cm with double PVC sheet rail
USE
Construction
ENVIRONMENT
Outdoor
ADVANTAGES
-Light weight aluminum -Easily lifted into place by crane -Can be fixed on all types of scaffolding -Great modularity of the components -Ledgers and braces equipped with quick clamp QUICK SYSTEM for easy and fast assembling that do not require the use of tightening wrench -Perfectly tensioned sheet covering -Lattice girder with double rails for PVC sheet optimize
CHARACTERSTICKS
-Two inclinations are available: standard 15° and 27.5° required for steeply sloping roofs -PVC sheets that slide inside the rails positioned on top of the profiles: T74 and T110 with single rail; T76 and T120 with double rail -The BUILDING temporary roof can slide on rails to optimize job-site work. -It is possible to create temporary warehouses and storage facilities with Building covers and MP Multidirectional scaffolding.
FRONTAL DIMENSIONS :
- From 8.9 to 44 m for T120 model
- From 8.9 m to 26.3 m for T74 and T76 models
APPLICATIONS
APPLICATIONS
Maintenance
Construction
Construction
