Alumil Sliding And Lift & Slide Insulated System Smartia S560 Windows
SLIDING AND LIFT & SLIDE INSULATED SYSTEM SMARTIA S560 WINDOWS
SLIDING AND LIFT & SLIDE INSULATED SYSTEM SMARTIA S560 WINDOWS

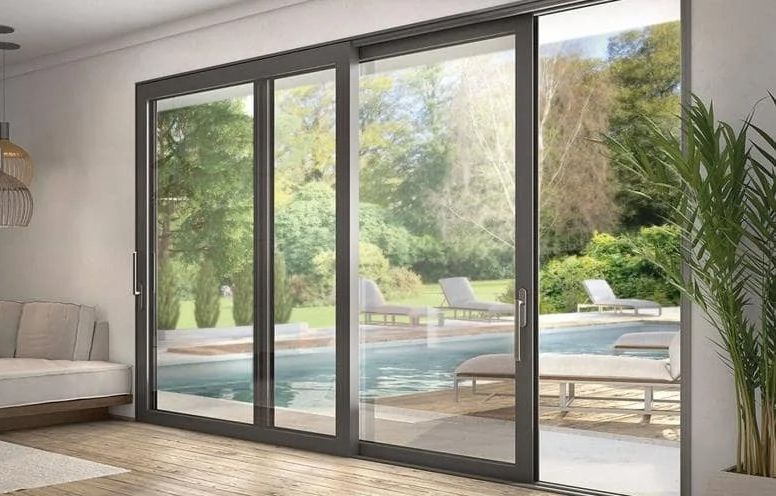

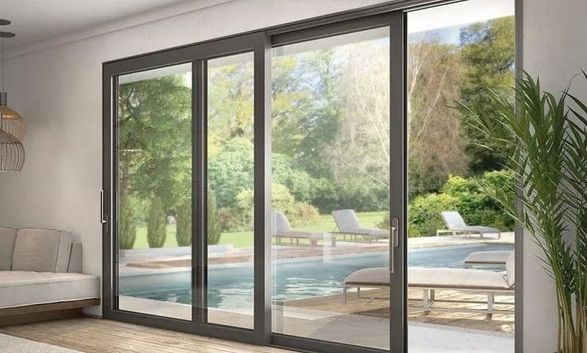

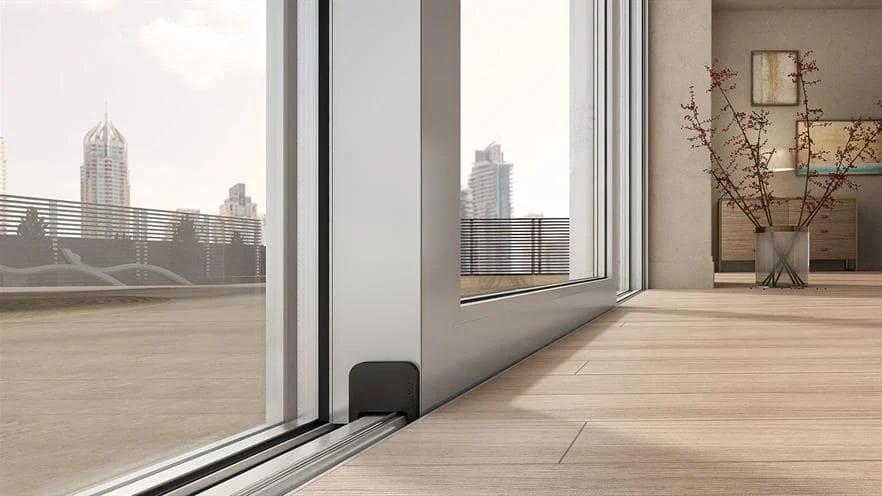

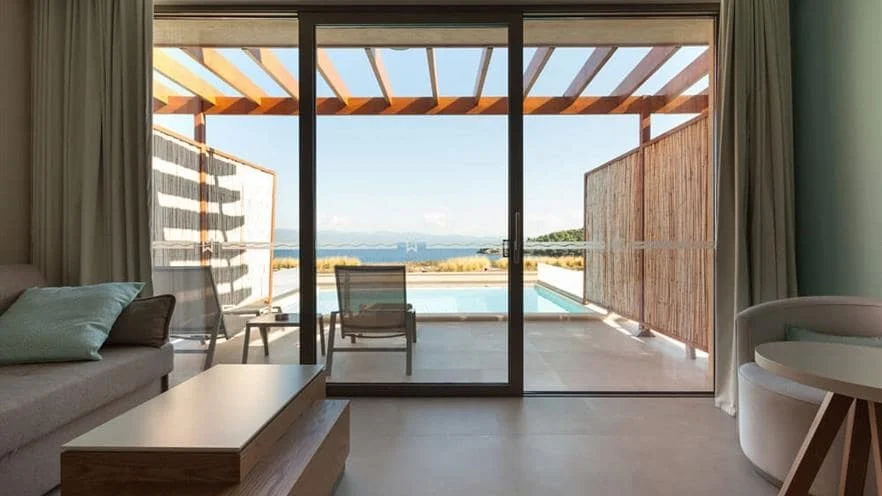

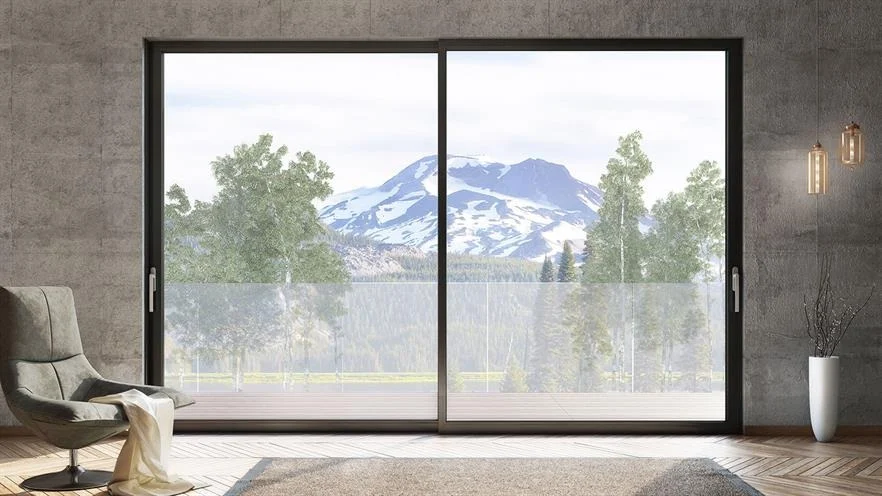

Smartia s560 is a robust, thermally insulated, lift & slide and regular sliding system, which provides high thermal performance, modern design and is ideal for constructions with wide spans.
INFORMATION
WINDOW TYPE
- Sliding
- Lift & Sliding
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
108.5 mm
BRAND
Alumil
PRODUCT TYPE
Windows
THERMAL INSULATION
Yes
UW
from 2,3 W/m²K
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
49 mm
MAXIMUM GLAZING THICKNESS
from 22 up to 45 mm
SASH DEPTH
56 mm
SASH WEIGHT
up to 300 Kg
GLAZING TYPE
Double - Triple
AIR PERMEABILITY
Class 4
SEALING METHOD
Continuous perimetrical tri fin in two levels brush and EPDM gasket
BURGLAR RESISTANCE
RC2
DESIGN
Minimal Aesthetics
MECHANISM
Slide / Lift & Slide mechanism
WATER TIGHTNESS
Class e1200
SOUND REDUCTION
42 dB
EXTERIOR SHAPE
Flat
TYPE OF THERMAL INSULATION
- Polyamides
- Insulation foam
- Thermoplastic
ADVANTAGES
- High quality with certified performance
- Ease of use and high functionality, even for large spans
- Wide variety of typologies, compatible with various mechanisms
- High energy savings, thanks to the system's remarkable energy efficiency
- Easy access with a low threshold, ideal for renovations (version SMARTIA S560 LT)
- Maximum natural light, with only 49 mm of visible aluminium face width at the interlocking profile
WIND LOAD RESISTANCE
C5/B5
MINIMUM THRESHOLD HEIGHT

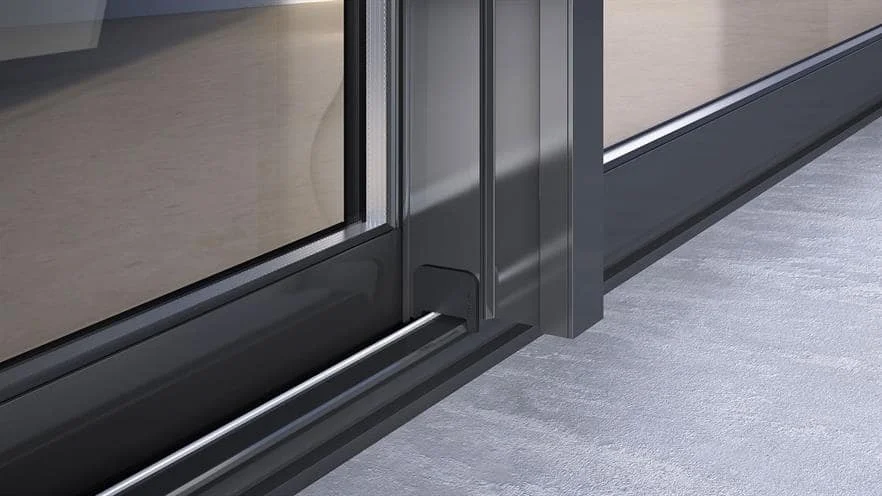

31 mm
TYPES OF TYPOLOGY
- Meeting style
- Pocket Sliding
- Corner Sliding
- Parallel sliding
- Multiple tracks
- Combinations with fly-screen and shutter/rolling shutter
SECTIONS & TYPOLOGIES
SECTIONS

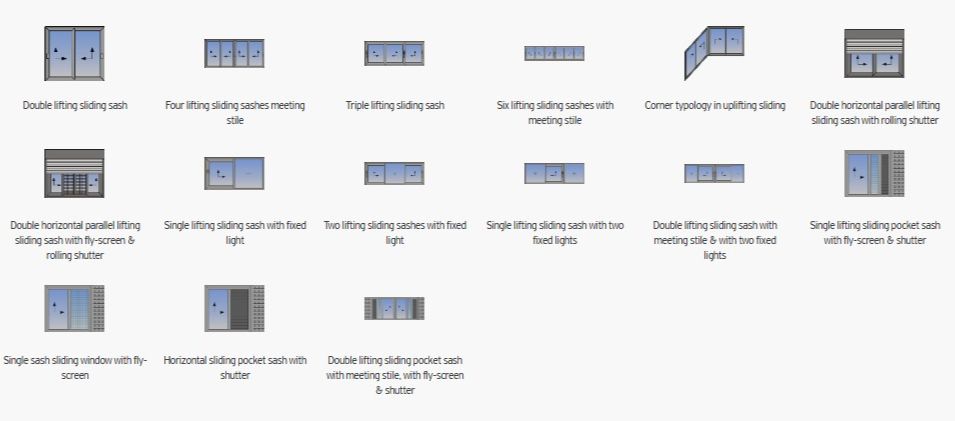

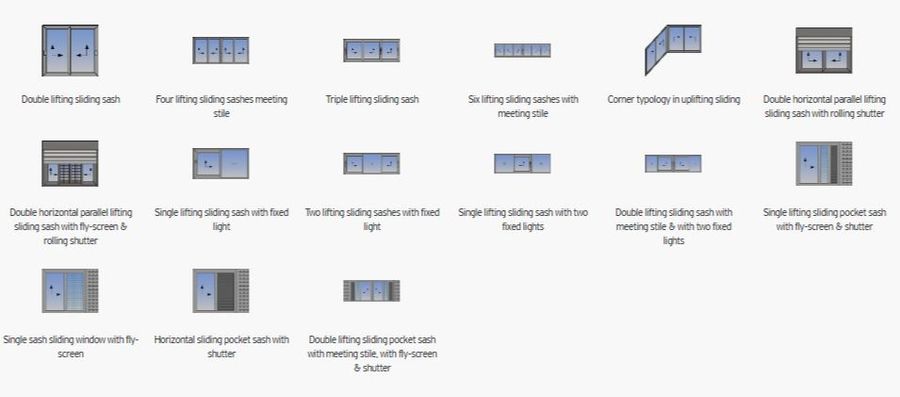

TYPOLOGIES
