PATHWAY® HD CODE COMPLIANT MODULAR PLATFORMS
PATHWAY® HD CODE COMPLIANT MODULAR PLATFORMS

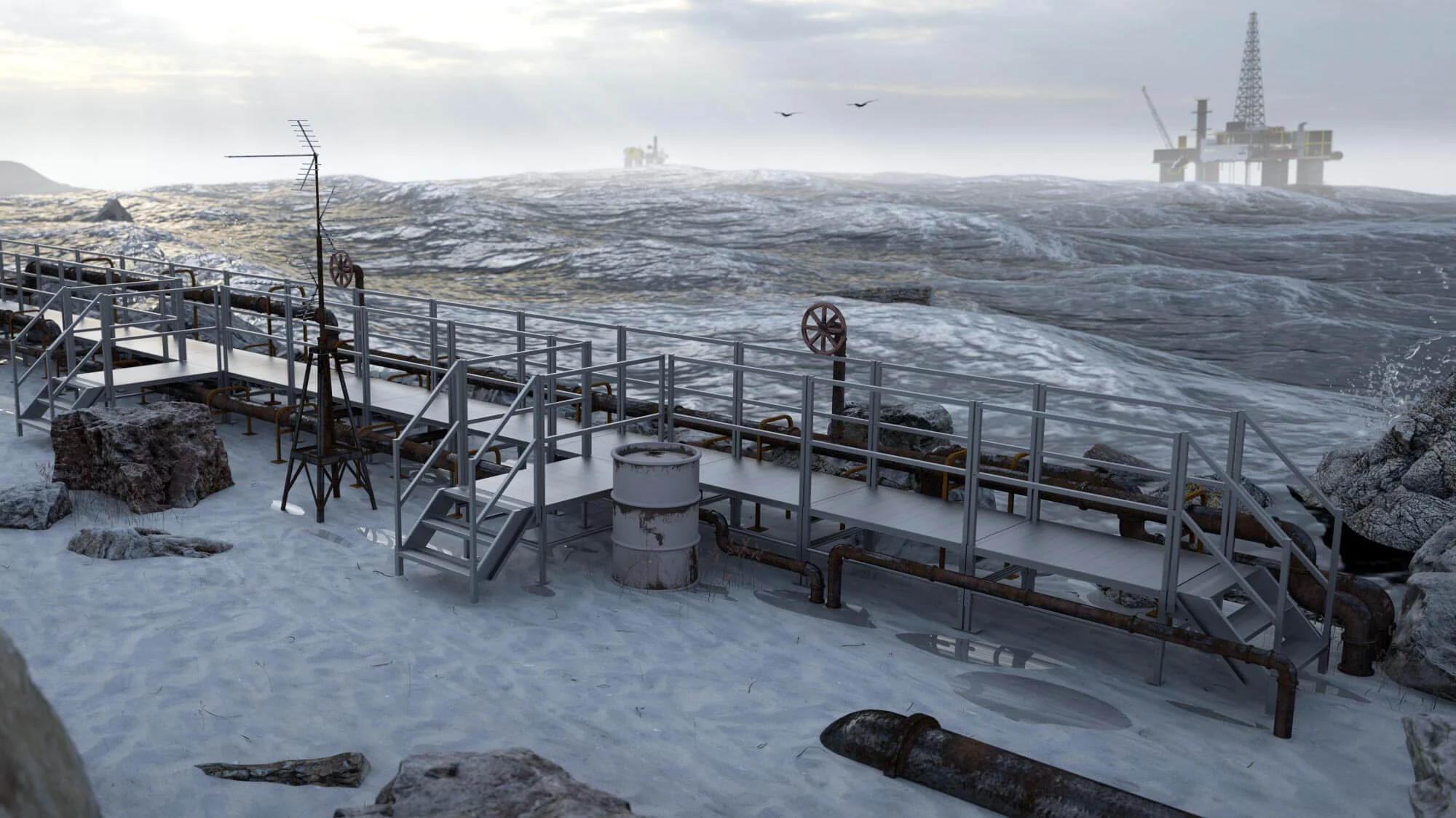

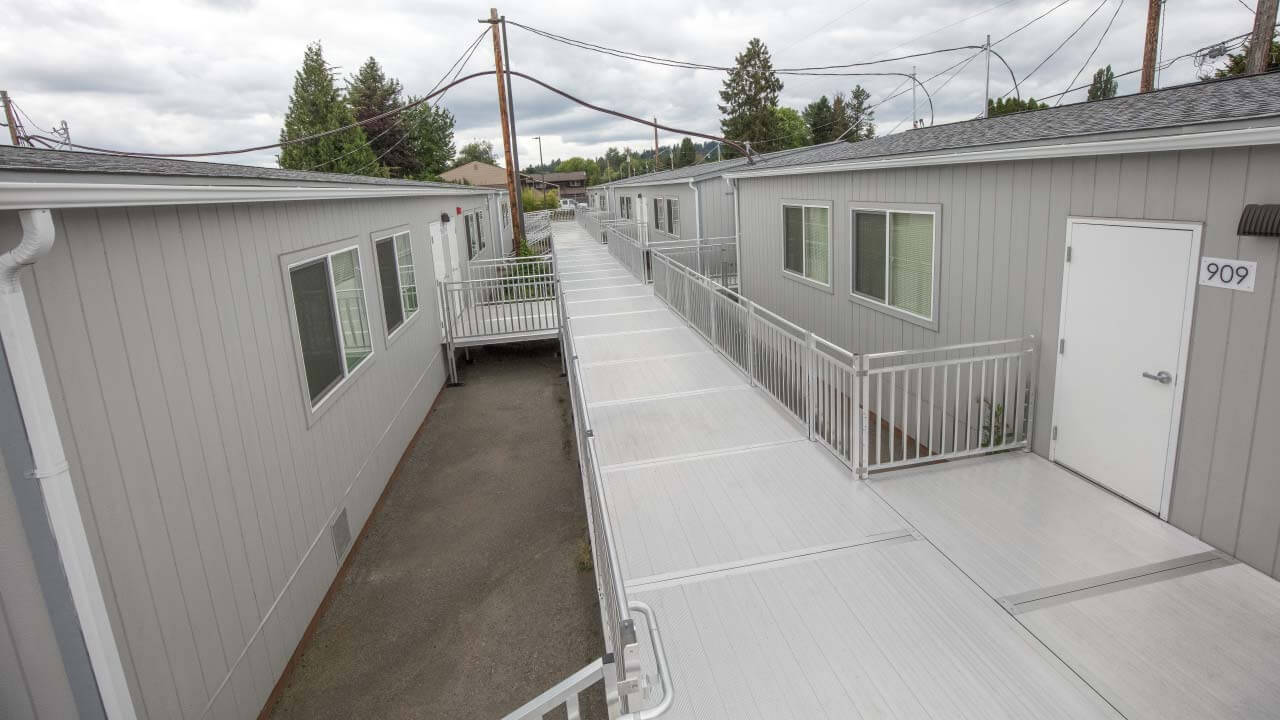

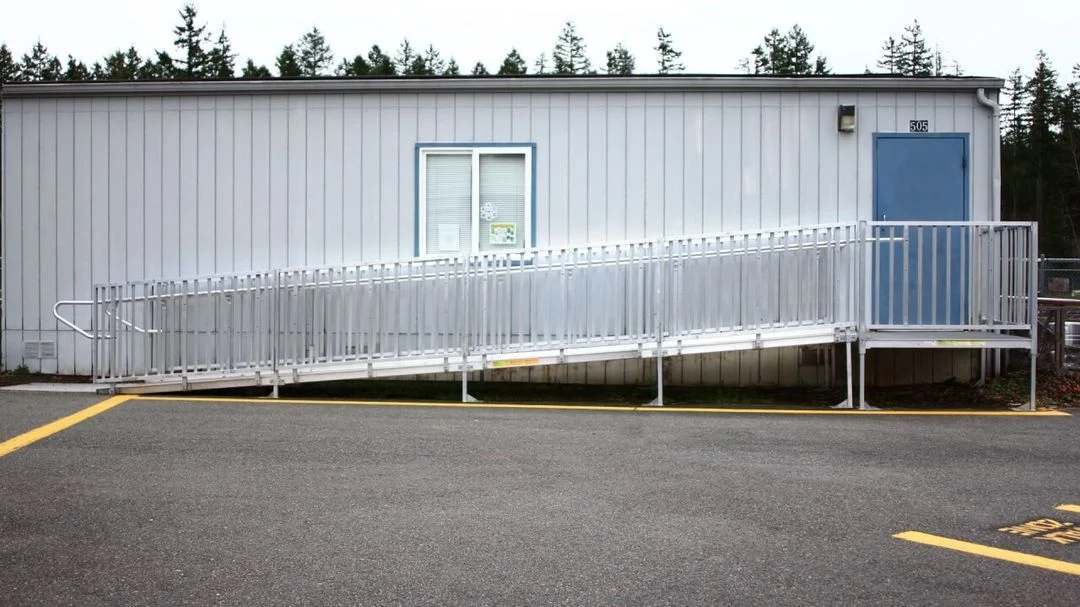

When a durable access solution is needed for temporary structures, permanent buildings, or machinery, the pathway® hd code compliant modular access system is the ideal choice.

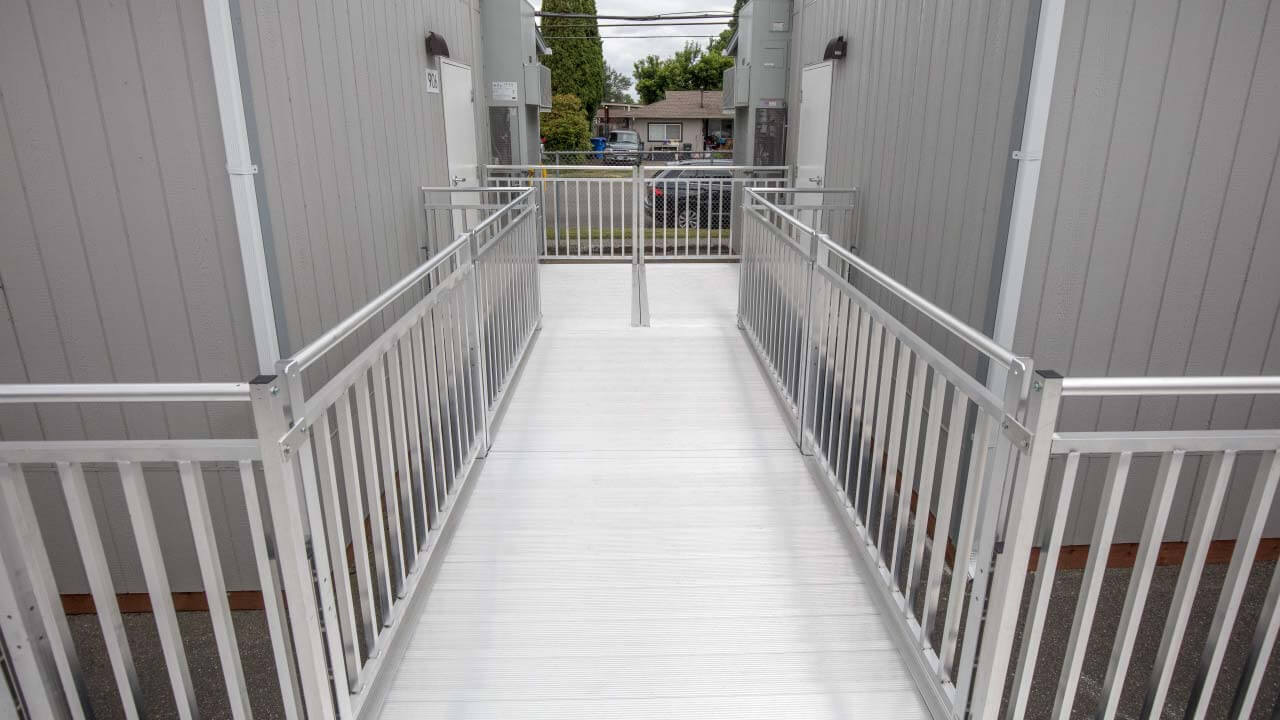

Combine ramps, platforms, and stairs to create the ideal system for your needs. Its field-proven design can be configured to fit most applications.
INFORMATION
BRAND
EZ Access
PRODUCT TYPE
Modular Platforms
MATERIAL
6000 series aluminum alloy with 6061-T6 or 6005-T5 used for structural components
SURFACE
Slip-resistant Gecko Grip® on walking surfaces. 1” safety tape standard, 2” safety tape available upon request.
STAIR UNIFORM LIVE LOAD RATING (DO NOT EXCEED)
100 lbs. per square foot (psf) and a concentrated vertical load of 300 lbs. over an area of 4 square inches
APPLICATION
Commercial
PRODUCTION
Made in USA
RAMP LENGTHS
2’, 3’, 4’, 5’, and 6’
RAMP WIDTHS
48” and 54” (clear width)
STAIR HEIGHTS WITH 6" RISER
- 18"
- 24"
- 30"
- 36"
- 42"
- 48"
- 54"
- 60"
PLATFORM SIZES
5' x 5', 5' x 6', 5' x 7', and 6' x 6' (clear width)
STAIR WIDTH
56" (usable)
PICKETED RAILS
42" Guard
TWO-LINE RAILS
42" Top Rail, 21.5" Midrail
DOWNLOADS
↓ Brochure
↓ Instructions
↓ Evaluation Form
↓ Instructions (Stairs)
↓ Technical Specifications
↓ Warranty (3-year Warranty)
↓ Pathway Hd Adjustable Stair
↓ Pathway Hd 30' Straight System
↓ Pathway Hd Left Corner Turn System
↓ Pathway Hd Straight With Resting Platform
↓ Pathway Hd Turn Back With (2) 5'x5' Platforms & Ramps
LEGS
4"
HANDRAILS (CHILD)
25"
HANDRAILS (STANDARD)
36"
COMPLIANT
- 48 in. useable width
- ADA, IBC, OSHA, and most local code guidelines
- Made of aircraft quality, corrosion-resistant aluminum, which stands up to the rigors of high-traffic use and harsh environments for years of maintenance-free access
- Universal components and pre-assembled sections make installation quick and easy without the need for expensive, heavy-duty equipment
- Ramps and platforms have independently adjustable legs to accommodate uneven ground conditions for simple, on-site leveling
DETAIL

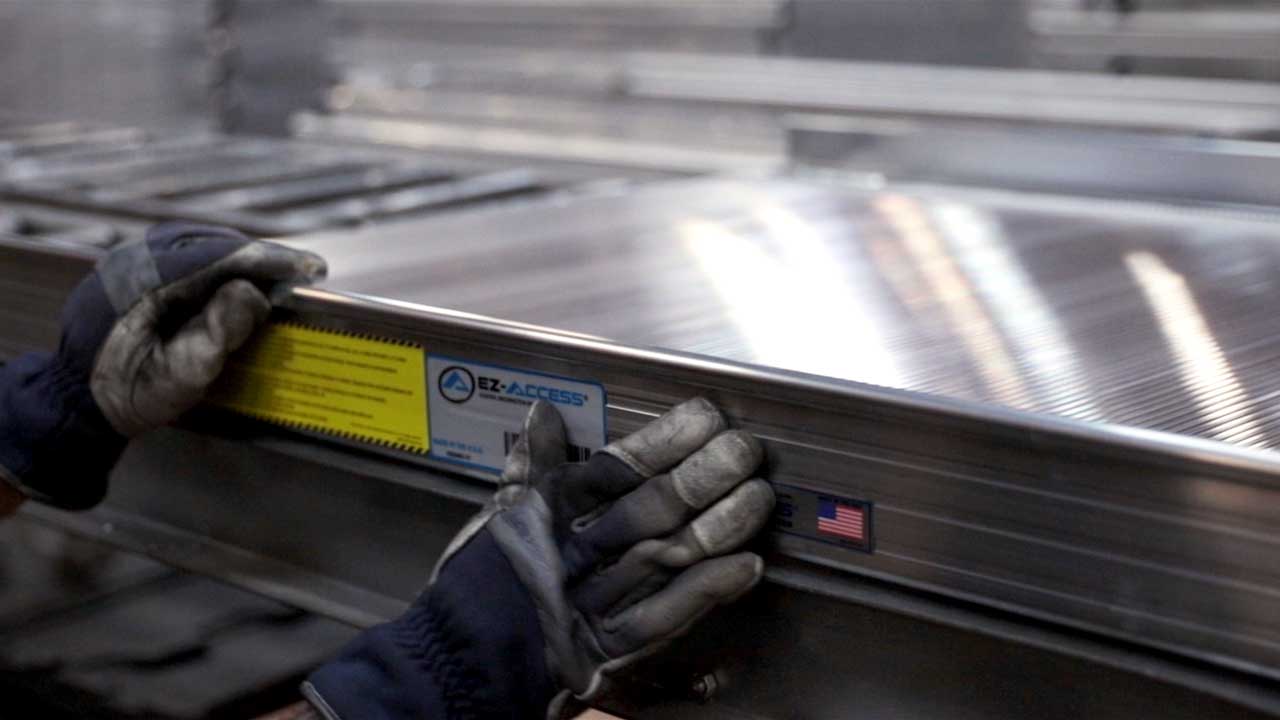

HIGH-QUALITY ALUMINUM
Made of corrosion-resistant aluminum for years of maintenance-free use. Naturally non-combustible.
EASY TO INSTALL
Universal components for quick and easy installation. The system can be reconfigured, relocated, and accommodates virtually any layout or lot configuration.
QUICK SHIP
Standard configurations ship within 24-48 business hours to help eliminate costly delays.

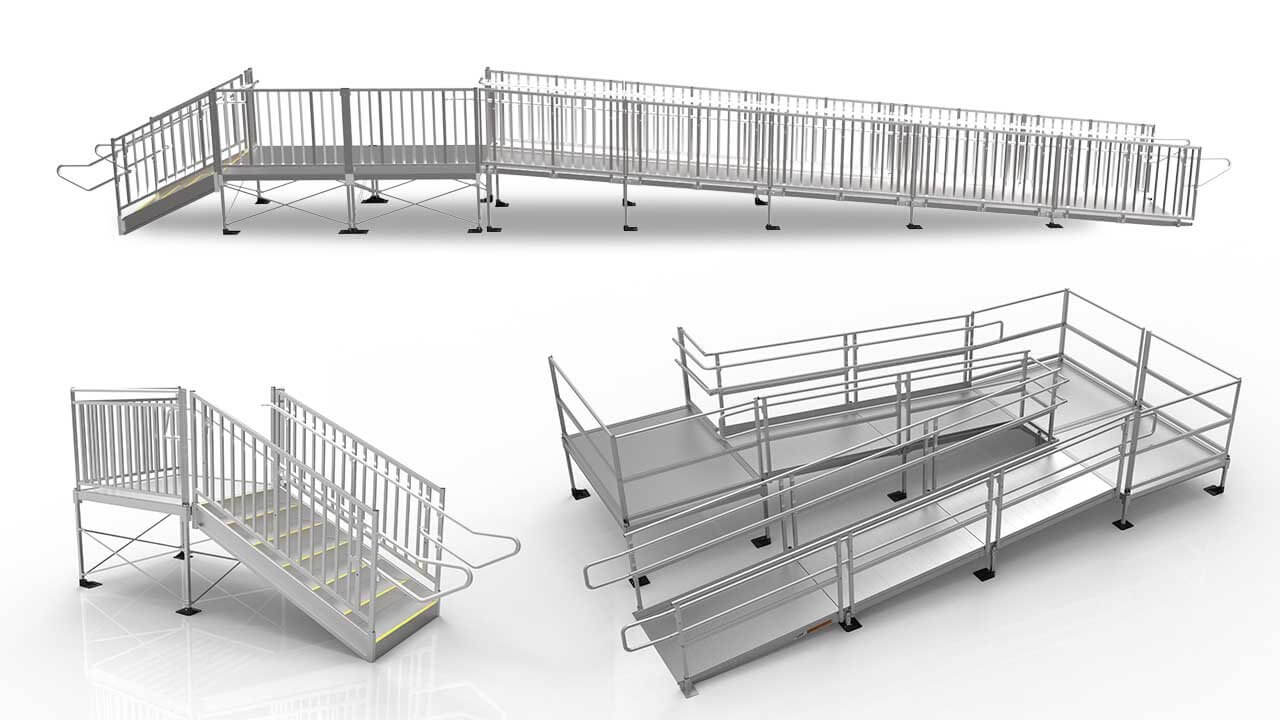

CUSTOMIZED CONFIGURATIONS
Site-specific stamped drawings available.

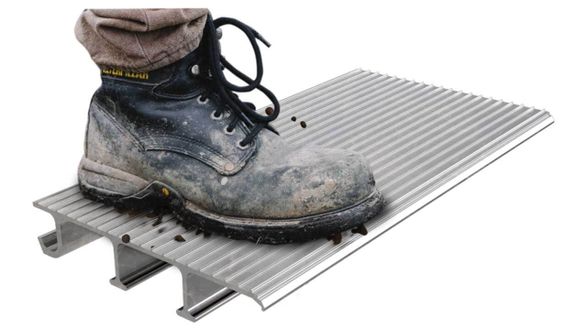

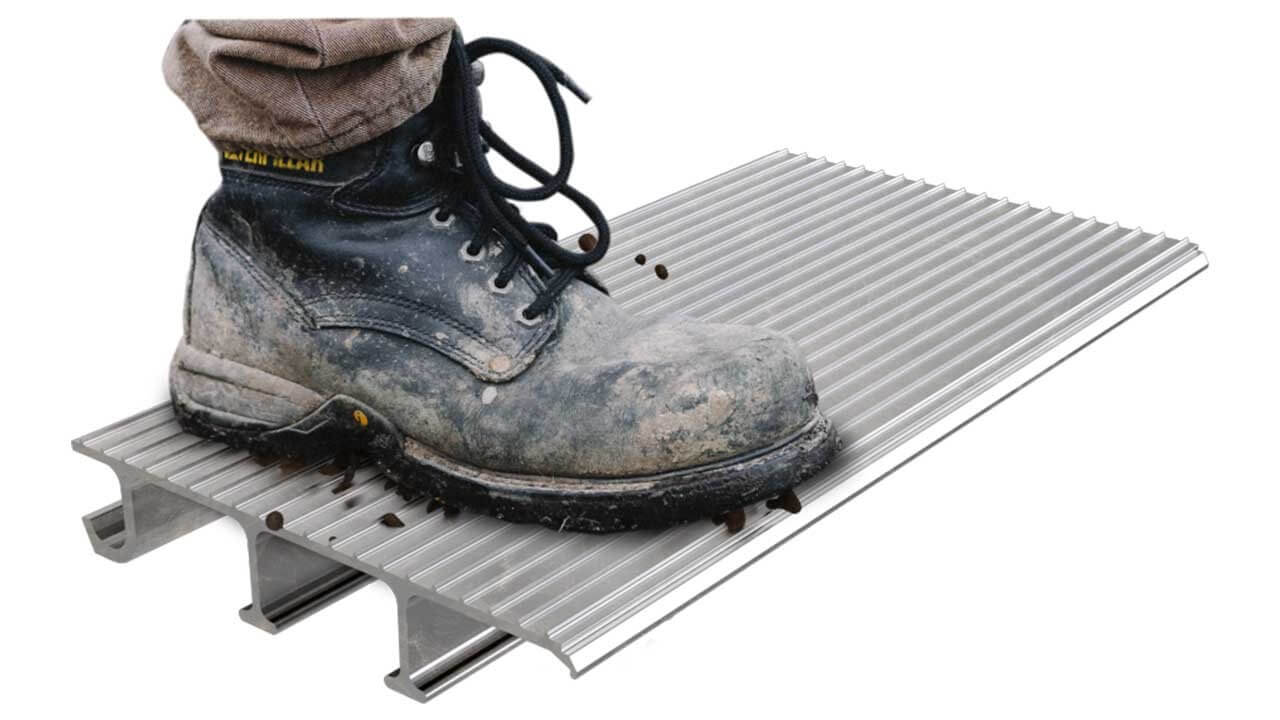

SLIP-RESISTANT TREAD
All walking surfaces on the PATHWAY HD feature Gecko Grip®, our patented, raised-rib tread featuring a 2-tier, 3-point gripping surface. The innovative design utilizes deep knurling, which provides enhanced cross-directional traction when entering and exiting the system. Our welded, extruded tread provides reinforced strength and a permanent slip-resistant surface.
