Pasquill JJI Joists Floor Solutions Beams
JJI JOISTS FLOOR SOLUTIONS BEAMS
JJI JOISTS FLOOR SOLUTIONS BEAMS

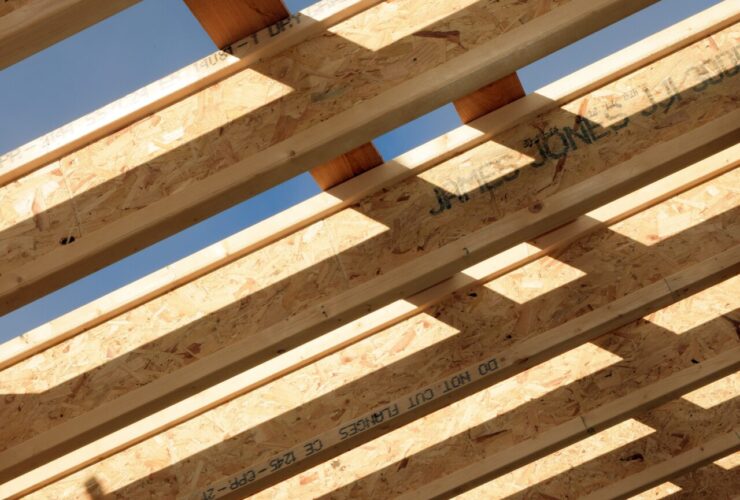

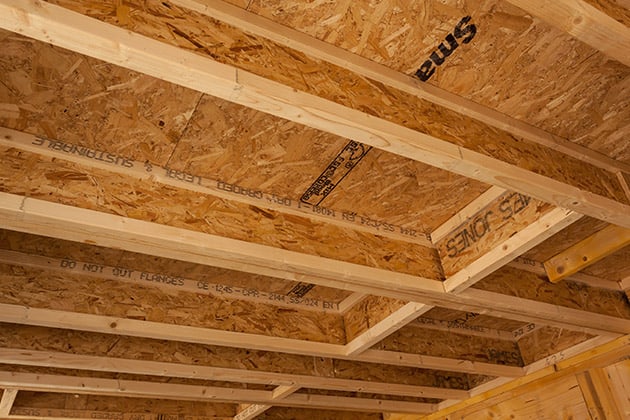

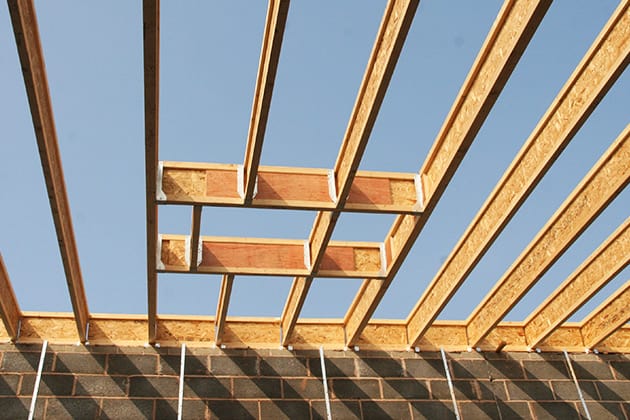

JJI-Joists, are beams with an I or H-shaped cross-section. Also known as I-Joists or I-beams. The horizontal elements are flanges, while the vertical element is called the web.
They are manufactured by James Jones & Sons for Pasquill to precise specification using high grade solid timber flanges bonded to an OSB web.
INFORMATION
BRAND
Pasquill
PRODUCT TYPE
Floor Solutions Beams
PART E COMPLIANT
Compliant with part E (Sound) legislation
COLLECTION
JJI Joists
PRODUCTION
Made in United Kingdom
220 MM SECTION
Section size matches typical blockwork coursing
SQUEAK FREE JOISTS
Structurally efficient profile also provides flat floors and ceilings
UNIFORM
More uniform in dimension than sawn timber joists
QUALITY ASSURED
Consistent performance ‐ ETA, CE mark
SUPPORTING UK MANUFACTURING
UK Manufactured
LIGHTER
Typically half the weight of traditional solid timber sections making them easier to handle and install
SUSTAINABLY SOURCED
Chain of custody certification and labelling
TECHNICAL SUPPORT
Full national coverage with local knowledge
IMPROVED SERVICE INSTALLATION

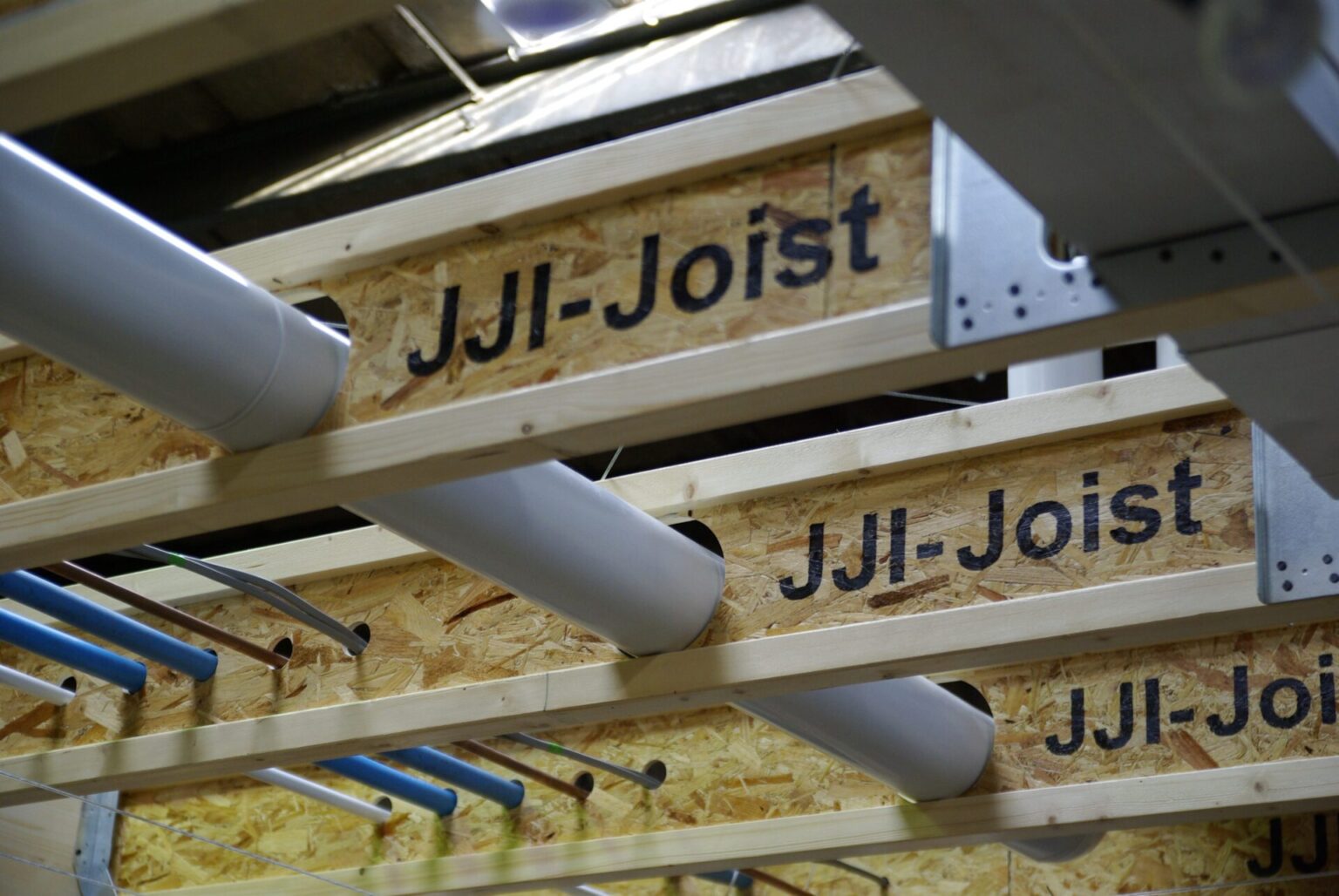

9mm OSB/3 web allows easy access for wiring, plumbing and mechanical ventilation & heat recovery systems. Able to accommodate large service holes (max 125mm)
ESTABLISHED SYSTEM
Established in the UK in 1998
FIRE SAFE
30 and 60 minute fire certificate
QUICKER TO INSTALL
Easier to install than a solid timber set: no herringbone strutting or blocking, no special tools required. Large flange profile enables ease of fixing. Saving you time on site, saving you money
USING JJI-JOISTS
Using JJI-Joists is a very efficient form for carrying both bending and shear in the plane of the web, their superior strength-to-weight ratio allows longer spans and easier handling.
Their shrink and warp resistance helps create ‘quiet’ floor solutions and consistent dimensions provide extra stability. JJI-Joists / I-Beams also have the benefit of not needing insulation to gain compliance with Building Regulation Part E (sound) when installed at 400mm centres and above.
