Cordivari Seven Lines Heating & Cooling Fan Coil Unit
SEVEN LINES HEATING & COOLING FAN COIL UNIT
SEVEN LINES HEATING & COOLING FAN COIL UNIT
Designed by Monica Alegiani & Vanessa Massacci
Seven Lines is the high-performance, high-efficiency design fan coil unit designed for operation with heat pump systems.

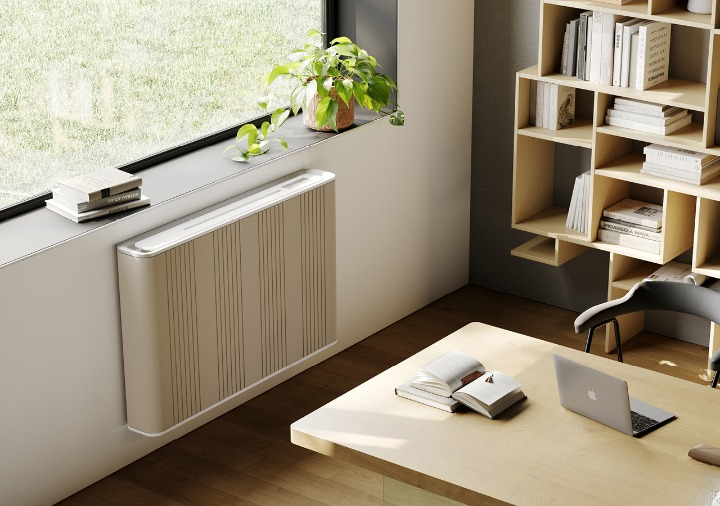

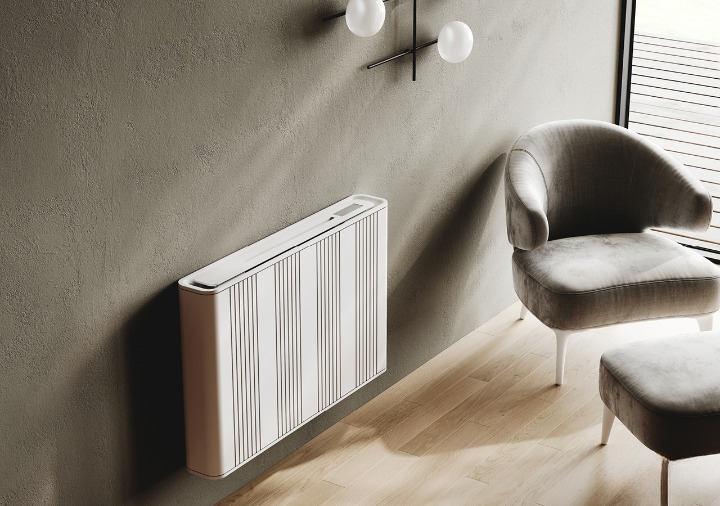

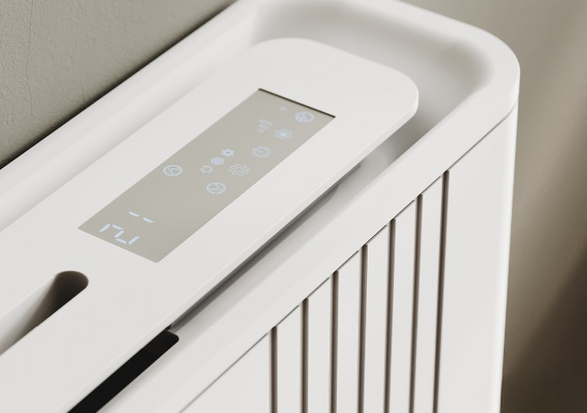

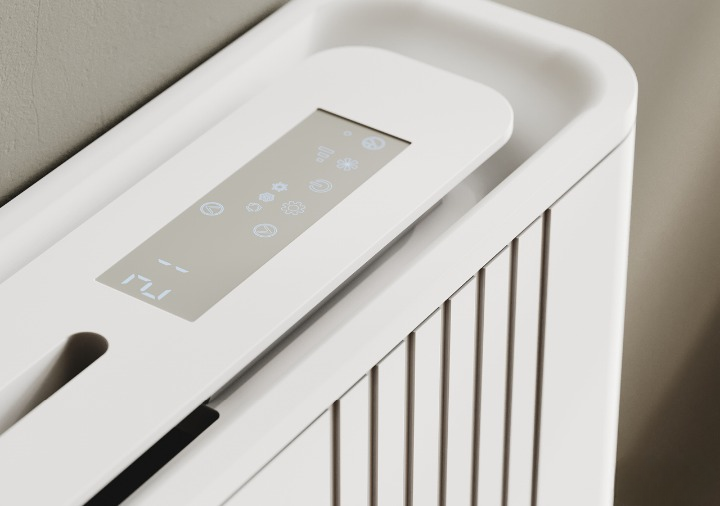

The unit can operate in heating and cooling mode. Touch control display. Integrated Wi-Fi module. Brushless DC inverter motors. Perimeter ventilation for maximum comfort. Recycled aluminium casing. ABS top and control unit.
INFORMATION
BRAND
Cordivari
PRODUCT TYPE
Fan Coil Unit
PAINTING PROCESS
Painted with ecological epoxy powders (Certificate DIN 55900-1,-2).
FIXING KIT
The kit includes plugs and screws for fixing, suitable for use on compact walls or hollow bricks.
DESIGNERS
- Monica Alegiani
- Vanessa Massacci
COLLECTION
Seven Lines
USE
Heating & Cooling
INVERTER MOTOR
Brushless DC inverter motors
SYSTEM
Suitable for traditional systems
ELECTRICAL SPECIFICATIONS
- Connectivity : Wi-Fi
- Electrical Class : Class I
- Tension : 230 [V] AC 50 [Hz]
- Cable : Schuko L > 1000 [mm]
- Other : 3 Way Bypass valve setting (optional)
DOWNLOADS
↓ Technical data Sheet
↓ Modbus rtu-knx interface library
↓ Use manual - modbus rtu-knx interface library
↓ Assembly instructions fixing kit - run/seven lines
↓ Use and maintenance manual - run/seven lines
↓ Assembly instructions floor fixing kit - run/seven lines
↓ Instructions for replacement - run/seven lines filter
↓ Assembly instructions - solenoid valve kit for run/seven lines
CLEANING
Filters are easily removable, washable or replaceable.
HEAT PUMP
Suitable for heat pump or low-temperature systems
PACKAGING
The Fan coil is protected with a recyclable cardboard box. Instructions for use and maintenance provided with the product. Always refer to the included installation notice.
HYDRAULIC SPECIFICATIONS
- Hydraulic connections : G1/2” male
- Working pressure : From 1 [bar] to 10 [bar]
- Water inlet temperature : From 6 [°C] to 75 [°C]
- Ambient operating temperature : From 5 [°C] to 32 [°C] – 60% RH
CONNECTIVITY
Connectivity via integrated Wi-Fi module and management through the Smart Life app. Ready for BMS integration via Modbus RTU – KNX protocol.

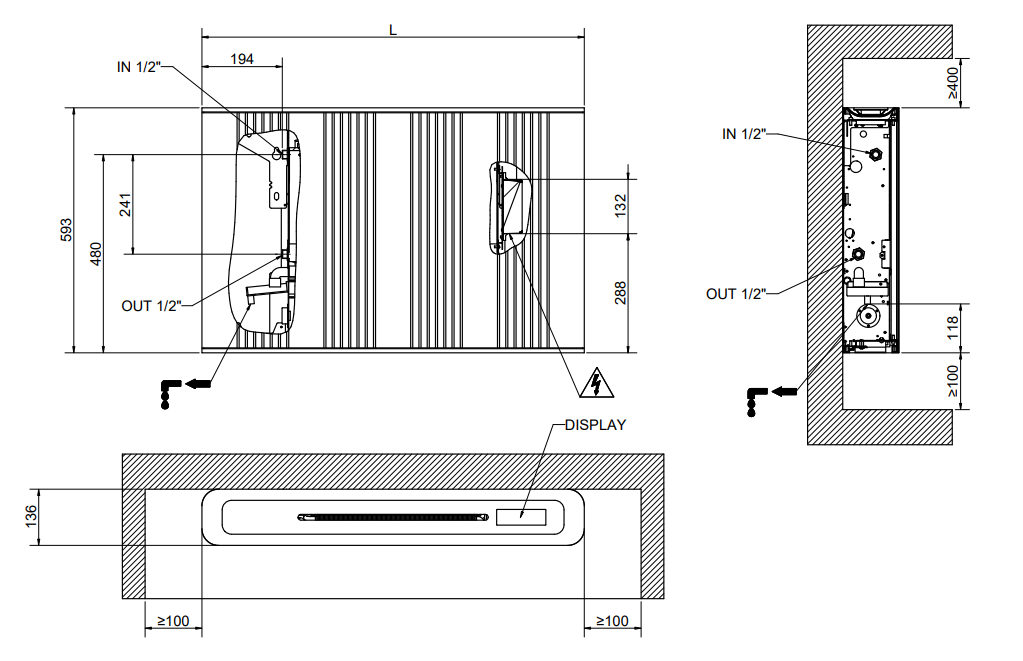

TECHNICAL DRAWING
TECHNICAL DATA
TECHNICAL DATA
| MODELS | UNITS | 2000 | 4000 | 6000 |
|---|---|---|---|---|
| Total Output In Heating Mode (1) | [W] | 720 | 1196 | 1738 |
| Water Flow Rate (1) | [l/h] | 122 | 205 | 297 |
| Water Pressure Drop (1) | [kPa] | 1.1 | 3.3 | 7.5 |
| Total Output In Cooling Mode (2) | [W] | 544 | 979 | 1539 |
| Sensible Output In Cooling Mode (2) | [W] | 426 | 774 | 1196 |
| Water Flow Rate (2) | [l/h] | 95 | 170 | 265 |
| Water Pressure Drop (2) | [kPa] | 0.9 | 2.8 | 7.3 |
| Minimum Speed Sound Pressure (3) | [dB(A)] | 41 | 41 | 42 |
| Maximum electrical power consumption (Minimum Speed) | [W] | 6 | 7 | 8 |
| Medium Speed Sound Pressure (3) | [dB(A)] | 46 | 46 | 47 |
| Maximum Electrical Power Consumption (Medium Speed) | [W] | 8 | 9 | 12 |
| Maximum Speed Sound Pressure (3) | [dB(A)] | 50 | 50 | 51 |
| Maximum Electrical Power Consumption (Maximum Speed) | [W] | 10 | 12 | 16 |
| Maximum Speed Maximum Air Flow | [m3 /h] | 130 | 250 | 370 |
SETTING AND CONNECTIVITY
CONNECTIVITY WITH MODBUS PROTOCOL
Run and Seven Lines fan coil units are designed for integration into BMS or supervision systems via Modbus RTU and KNX protocol on RS485 line, allowing for remote control and monitoring.
STAND-ALONE SETTING
All models can be managed in stand-alone mode through one of the available control thermostats. This is the simplest fan coil setting mode in which each terminal can be individually controlled, managed, and programmed independently of all the other terminals in the system.
IOT SETTING
Thanks to the Wi-Fi control thermostat on board, it is possible to manage the Run and Seven Lines models in IoT mode, through the Smart Life mobile application. This is the most advanced and smart configuration for home use and it allows you to operate all the functions and the programming of each terminal remotely through a stand-alone logics or creating groups or levels.
With the same mobile application it is possible to manage the Vestalis® heat pump system, the Ventana® terminals (Version with Wi-Fi control) and the Vnt Wi-Fi.
