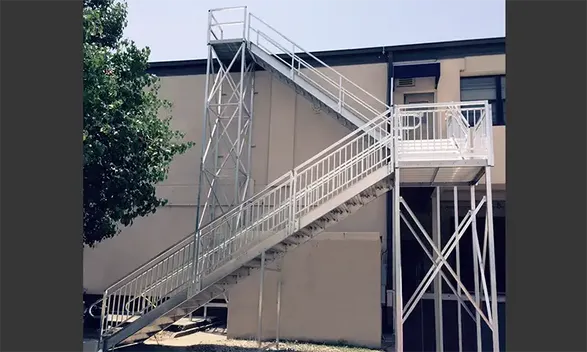

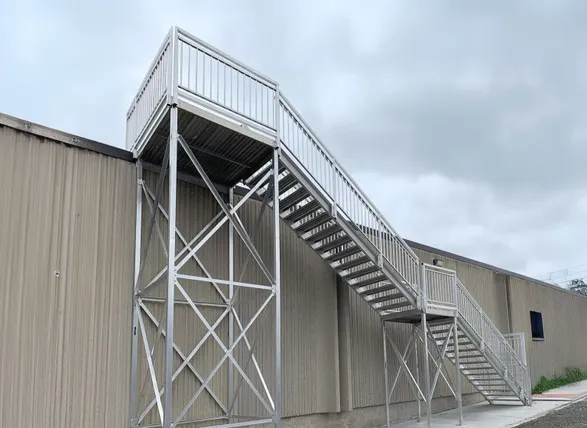

Upside Innovations Prefabricated Metal Stair Towers
PREFABRICATED METAL STAIR TOWERS
PREFABRICATED METAL STAIR TOWERS

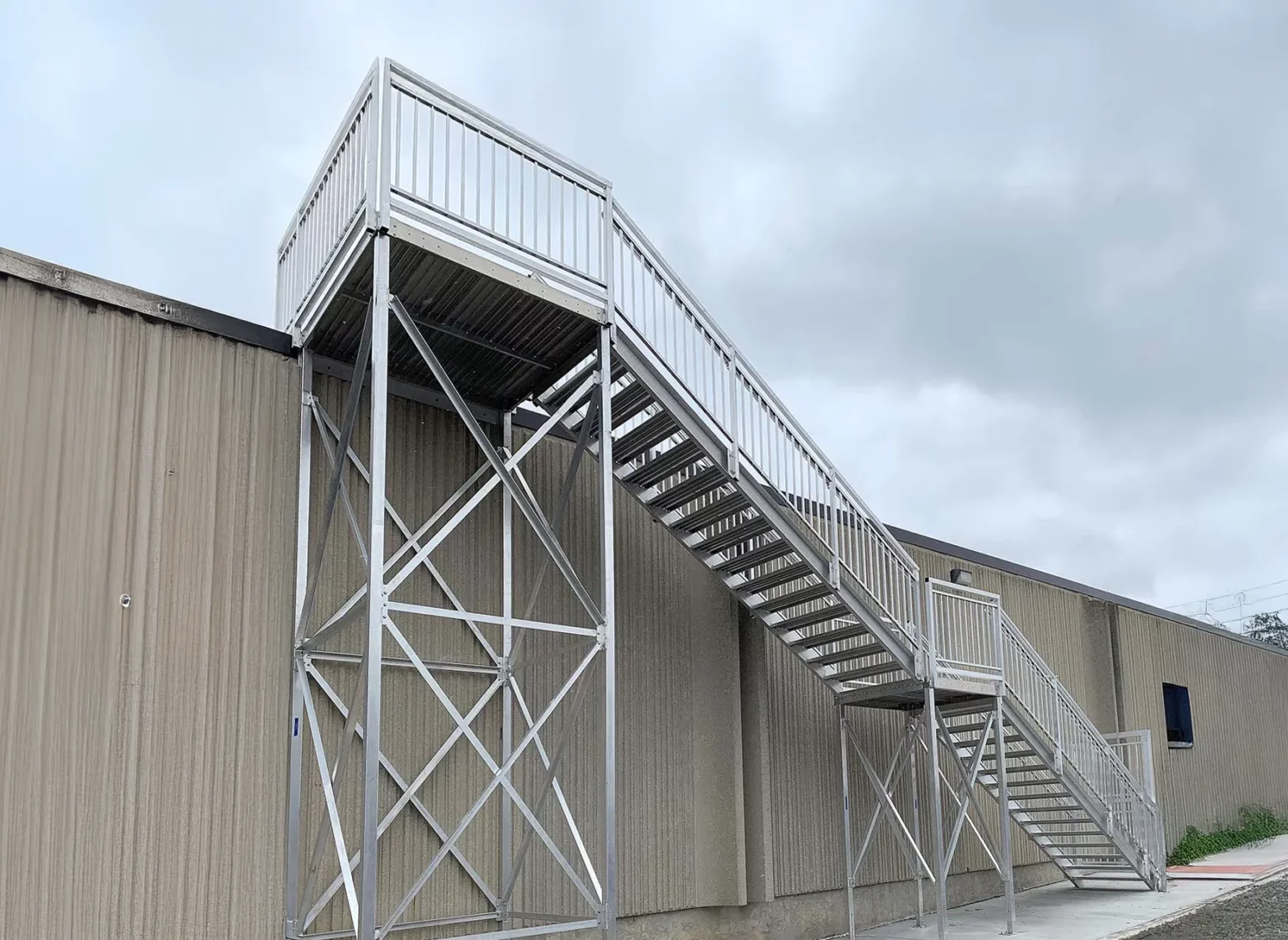

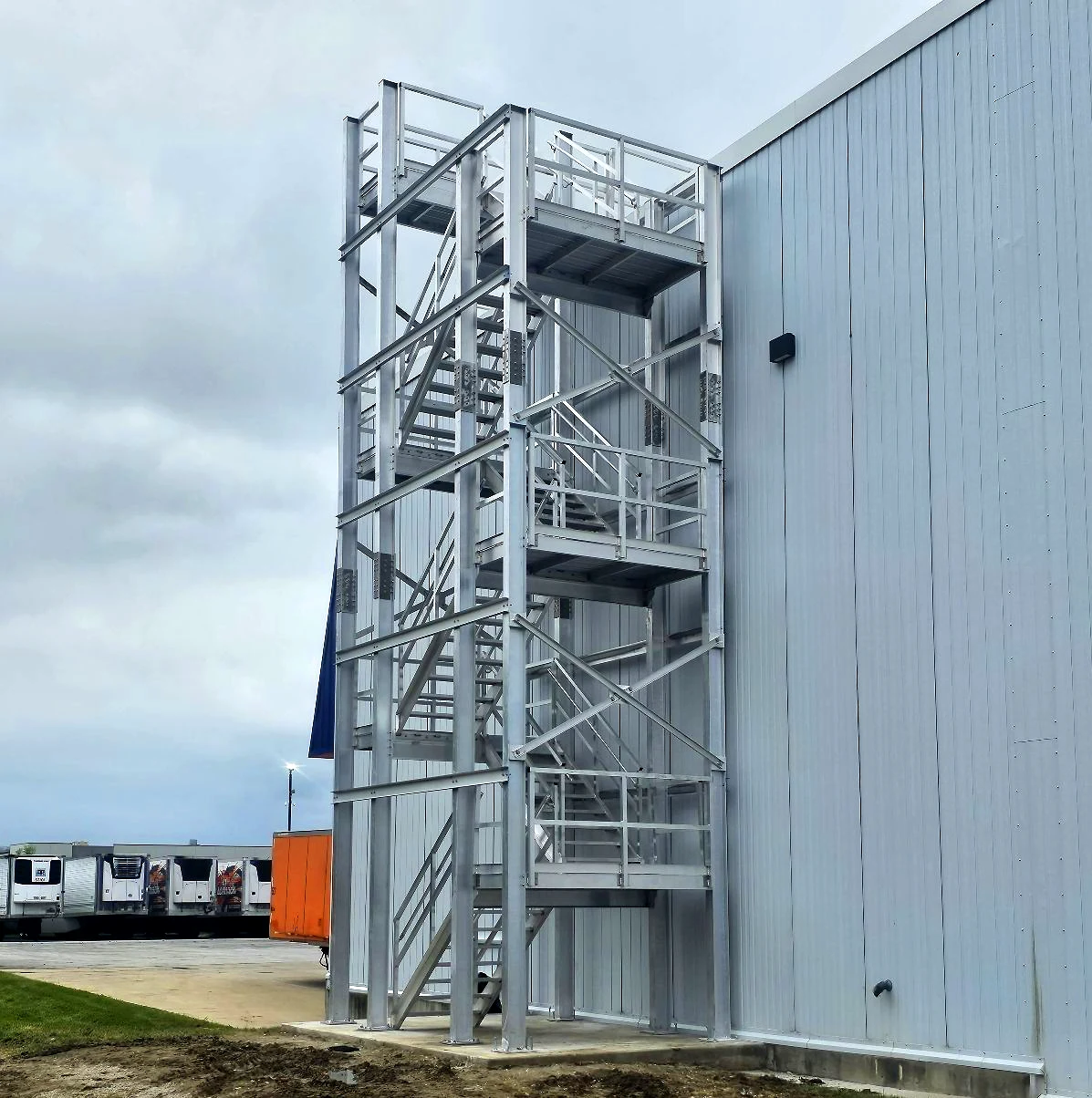

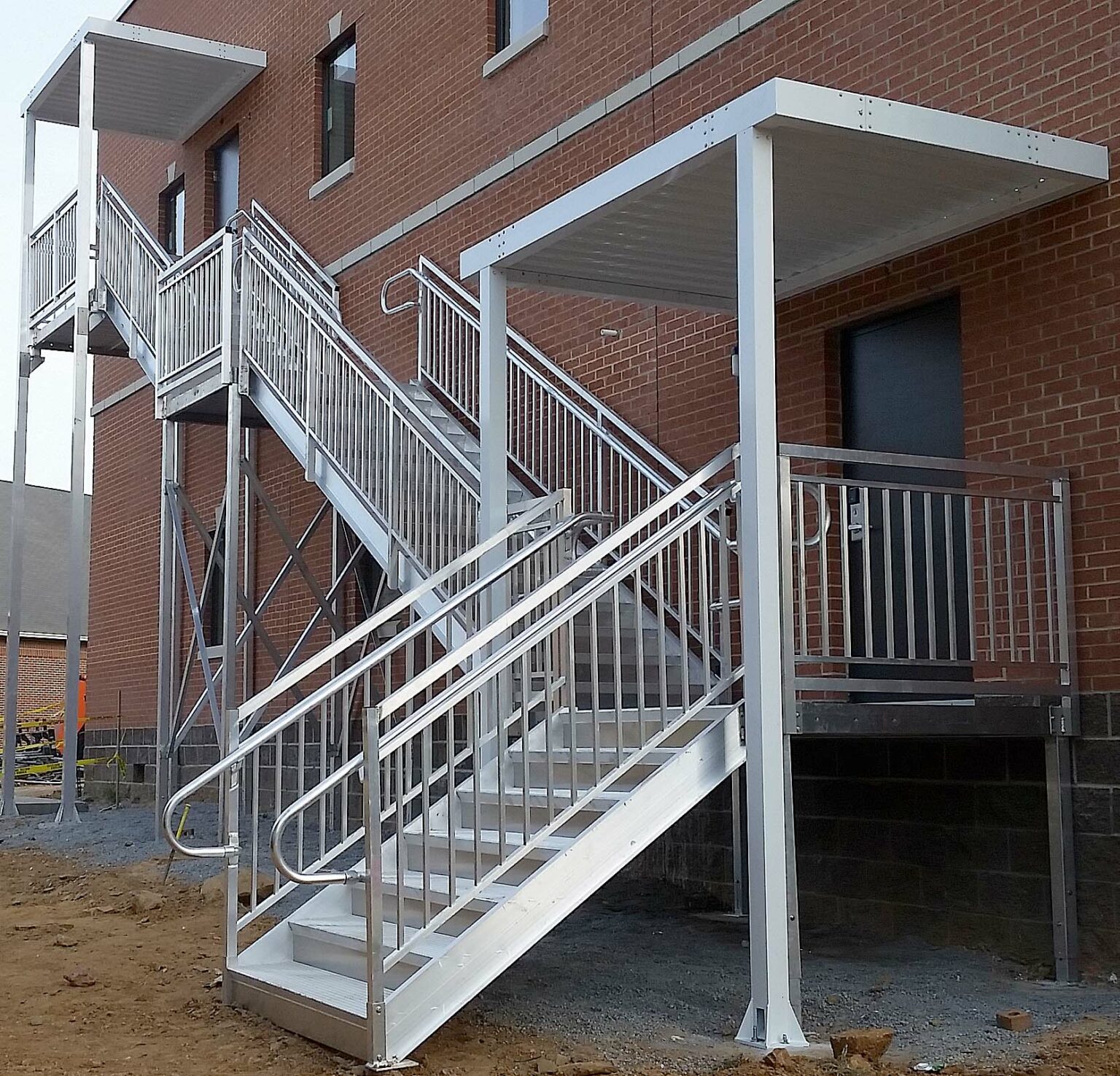

Designed to meet your exact specifications, our APEX stair towers come prefabricated and bolt together on-site.
There is no need for welding and our team can design stair towers to reach any height required. Our professional installation crew is on hand to ensure that your project goes as smoothly as possible.
INFORMATION
FAST INSTALLATION
Prefabricated and bolts together on-site with no welding required.
PRODUCT TYPE
Stairs
BALUSTERS (IBC)
Less than 4″ apart
WEIGHT CAPACITY
100 lbs/sqft live load, 300 lbs point load over a sqft area
MATERIAL
Mill finish aluminum extrusions and sheet
HANDRAIL
36″ High
GUARDRAIL
42″ High
DURABLE, LONG LIFECYCLE
100% industrial-grade aluminum that won’t rust, warp, or rot.
WE INSTALL
Our professional installation crew ensures that your project goes smoothly.
OSHA TREAD DEPTH
9 1/2″
OSHA WIDTH
- 48″ out-to-out
- 40″ between the guardrail
ADA TREAD DEPTH
12″ (11″ + 1″ nosing)
ADA/IBC WIDTH
- 60″ out-to-out
- 48″ between the handrail
HEIGHT
We use 6″-8″ rises between the treads to reach any height
PLATFORM SIZES
- 64″ x 64″
- 64″ x 96″
- 48″ x 96″

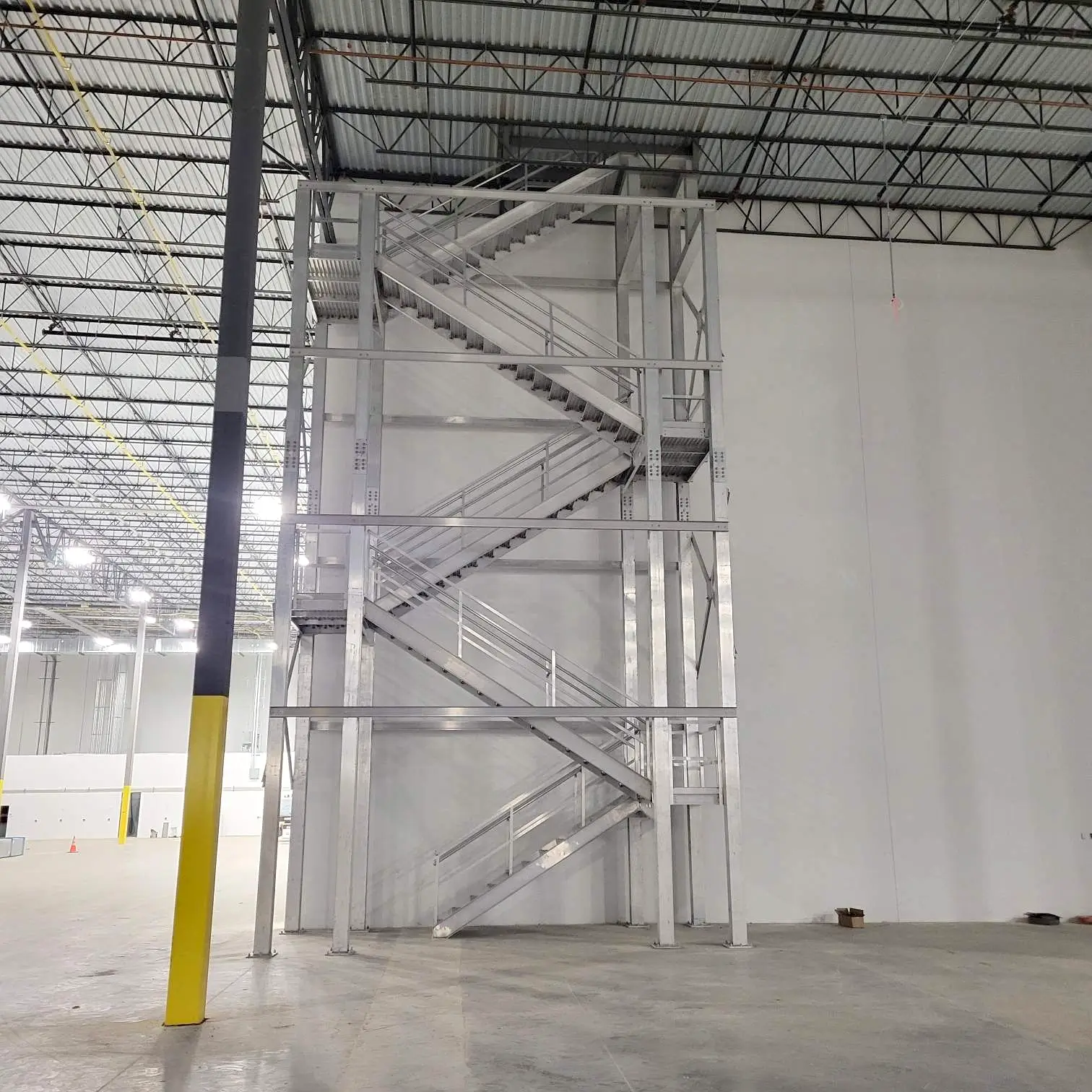

REACH ANY HEIGHT
Our team can design modular stairs to reach any height that you need.
ADA & IBC-COMPLIANT OR OSHA COMPLIANT
Designed to your needs. ADA, IBC, or OSHA and local building codes.
INFINITE CONFIGURATIONS
Modular design combined with experienced engineers means that we can configure solutions for the most challenging projects.
DECKING OPTIONS
FEATURES
CODE COMPLIANT
Our stair towers comply with the Americans with Disabilities Act (ADA) and International Building Code (IBC) and can meet local building codes.
RECONFIGURABLE
Because the system is modular, ramps, stairs, and railings can be reused or reconfigured as your needs change.
MODULAR DESIGN

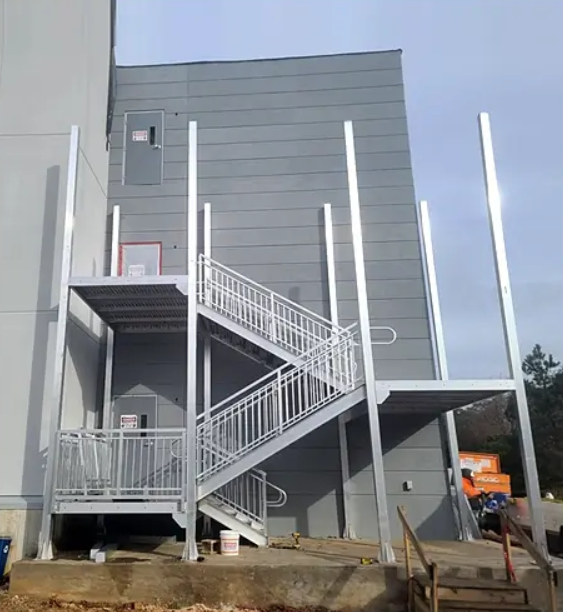

Modular stair towers, platform landings, legs, and handrails bolt together without any on-site welding.
CUSTOM LAYOUTS
Our team of engineers will design a stair configuration layout just for you. Professional engineer stamps are available.
LEVELING LEGS
Platform legs have 8” of adjustability for uneven ground or ongoing adjustments.
100% ALUMINUM – LONG LASTING
The entire line of APEX products will never rust, warp, or rot. All components are low maintenance and will last much longer than wood or steel.
SLIP-RESISTANT DECKING
Apex stairs come standard with an aggressive, heavy-duty 3” channel grip strut grating that provides maximum, multi-directional slip resistance. Other decking options are also available.
EASY INSTALLATION
Our stair towers are modular and bolt together seamlessly.
HPD/LEED/ESG
Because our products are modular, repurposable, and contain 32.5% to 75% recycled content, including 50% to 65% pre-consumer and up to 20% post-consumer recycled scrap, they can help contribute to several LEED v4.1 credits and other green building rating systems.
