Marley Wessex Interlocking Roof Tile
WESSEX INTERLOCKING ROOF TILE
WESSEX INTERLOCKING ROOF TILE
The low profile Wessex is at the forefront of low pitch performance: designed to shed water efficiently with clean, simple lines and a minimalist style
INFORMATION
BRAND
Marley
PRODUCT TYPE
Roof Tile
COVERING CAPACITY
- 9.7 tiles/m2 at 75mm headlap
- 10.5 tiles/m2 at 100mm headlap
BATTENS REQUIRED
- 2.9 lin.m/m2 at 75mm headlap
- 3.1 lin.m/m2 at 100mm headlap
FIXING CLIP
- Eaves
- Verge
- Tile Clips
MINIMUM PITCH
15°
MAXIMUM PITCH
44°
MINIMUM HEADLAP
75mm
MAXIMUM GAUGE
345mm
BATTEN SIZE RECOMMENDED
- 38 x 25mm for rafters/supports not exceeding 450mm centres
- 50 x 25mm for rafters/supports not exceeding 600mm centres
WEIGHT OF TILING
- 50 kg/m2 (0.49kN/m2) at 75mm headlap
- 53 kg/m2 (0.52kN/m2) at 100mm headlap
COVER WIDTH
298mm (nominal)

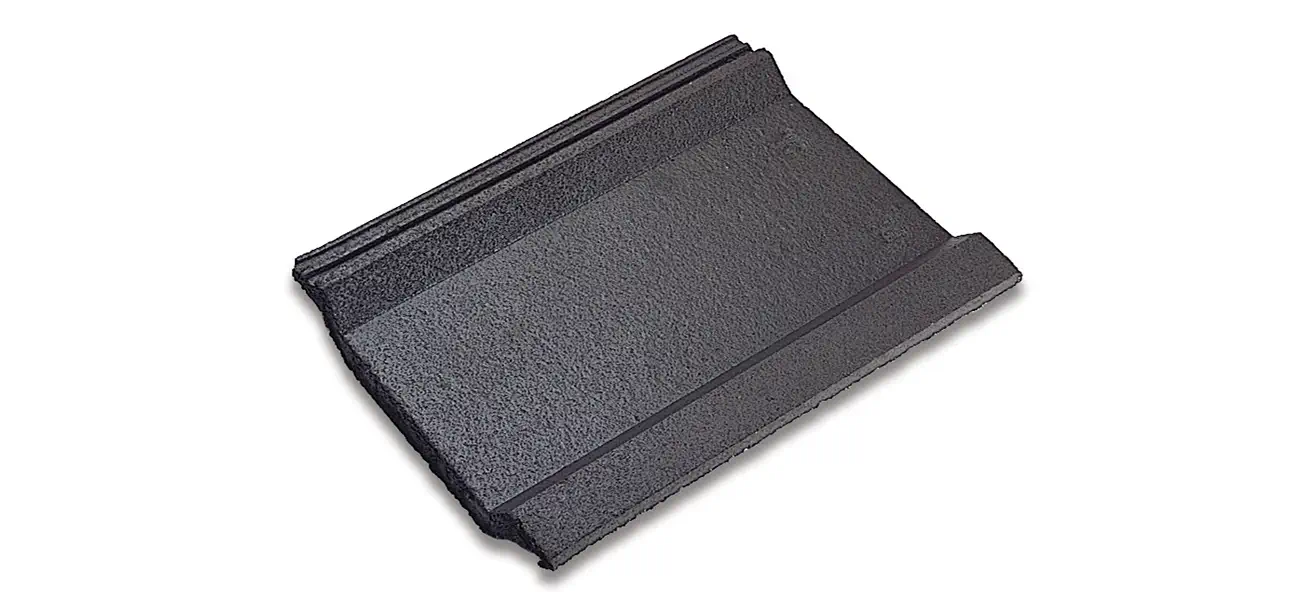

SIZE OF TILE
420mm x 330mm
A+ ENVIRONMENTAL RATING
All of our concrete interlocking tiles can achieve an 'A+' rating (which has the lowest environmental impact) in the Building Research Establishment's Green Guide to Specification.
BES 6001 CERTIFIED
Accreditation to the BES 6001 framework standard for 'Responsible Sourcing' means that projects using our concrete interlocking slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).
EFFICIENT WATER SHEDDING
Designed to shed water efficiently at pitches down to 15°, the Wessex interlocking tile has clean, simple lines and a pleasing minimalist style.
COMPATIBILITY, FUNCTIONALITY AND BEAUTIFUL AESTHETICS FOR THE PERFECT FINISH ACROSS EVERY ROOF STYLE
Our extensive range of roof fittings and accessories work with all elements of the full Marley Roof System, ensuring product specification and installation is quicker and easier. What's more, a complete Marley Roof System comes with a 15 year guarantee for further security and peace of mind. Take a look at our full range of roof fittings and accessories.
HANGING LENGTH
403mm
DOWNLOAD
↓ Specifications
TECHNICAL DETAIL
SUPERFICIAL CRACKS – NO PERFORMANCE IMPACT
NB. The Wessex interlocking tile may exhibit superficial, non-continuous cracks on the interlocking channels, as a result of the manufacturing process. These do not affect the long term performance and durability of the Wessex interlocking tile.
The products are CE Marked and conform in all respects to the requirements of BS EN 490 ‘Concrete roofing tiles and fittings for roof covering and wall cladding — Product specifications’, when tested in accordance with BS EN 491 ‘Concrete roofing tiles and fittings for roof covering and wall cladding – Test methods’, including transverse strength, water impermeability and freeze/thaw cycles.

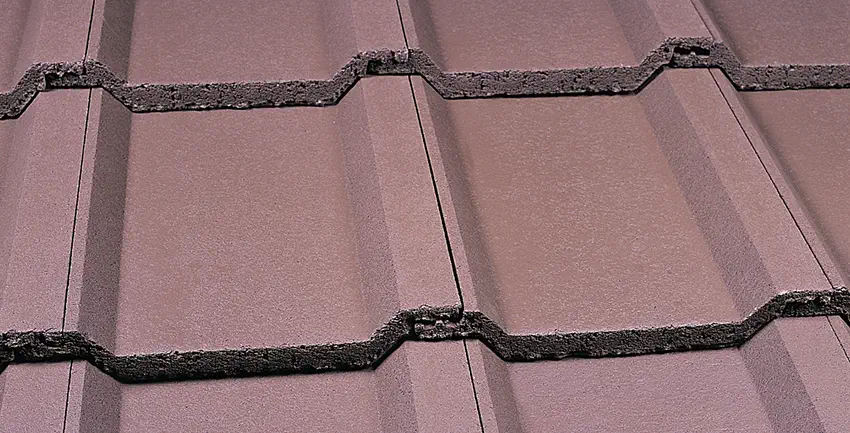

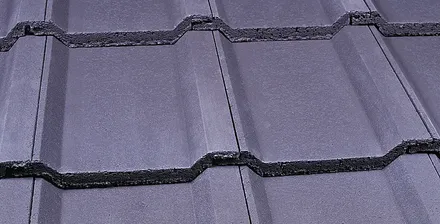

COLORS
2 bold colours that complement the smooth finish and angular lines of the tiles profile
