GLUED LAMINATED TIMBER
GLUED LAMINATED TIMBER
High load-bearing capacity, dimensionally stable and lightweight.
Glulam MM masterline, the right solution for every building project.

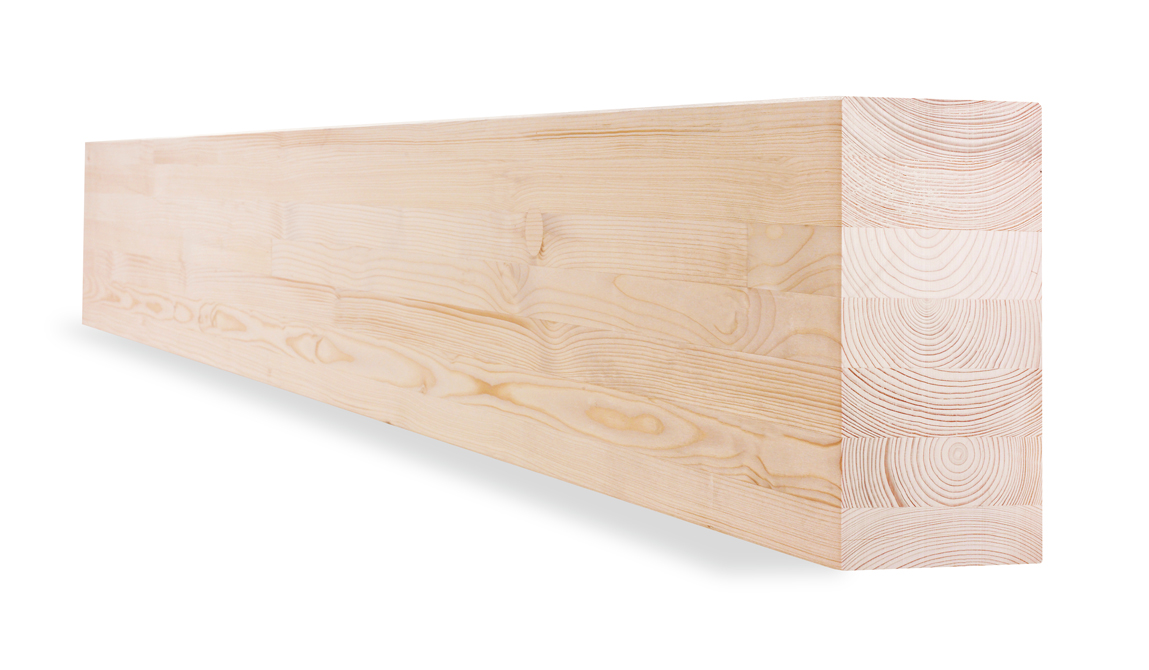

MM masterline is the international quality brand for glulam beams from the Mayr-Melnhof Holz Group. It is engineered from individually strength-graded lamellas, which are planed & parallel-glued.
These glulam elements offer a competitively priced solution to applications where high load-bearing capacity, outstanding dimensional stability, as well as design versatility are needed.
The possibility to combine high-quality straight, curved, and customized load-bearing components allows architects unlimited freedom of design. Mayr-Melnhof Holz offers a full range of glulam products from standard stock goods through to complicated special components.
MM masterline glulam beams, like all the products in our range of engineered timber, are produced under strict quality control and are PEFC certified. As a natural and renewable building material that stores CO2, the use of MM Masterline makes an important contribution to active climate protection.
INFORMATION
WOOD SPECIES
- Spruce (Picea Abies)
- Larch (Larix)
BRAND
Mm-holz
PRODUCT TYPE
Timber
COLLECTION
Glued
PRODUCT STANDARD
14080:2013N
QUALITY
visual (VI), non-visible (NVI)
STRENGTH CLASS
GL24 – GL28 – GL30 homogeneous or combined, GL32 on request
FIRE CLASS
D-s2, d0
MOISTURE CONTENT
12 % (± 2 %)
MM MASTERLINE: AREAS OF APPLICATION
- Specialist bridging structures
- Single and multi-family houses

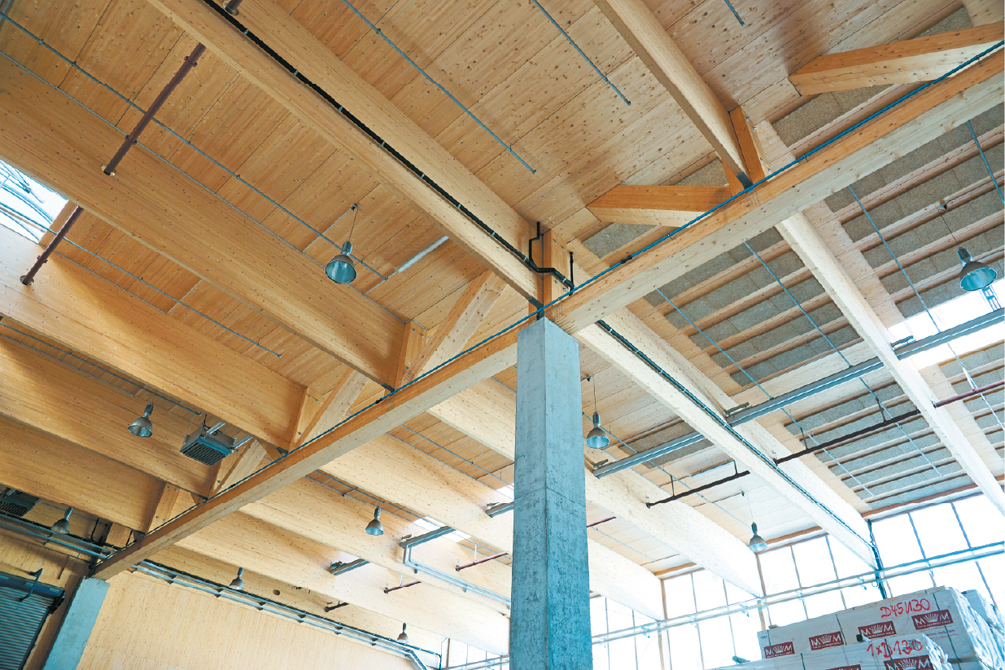

- Warehouses and exhibition halls
- Churches and religious buildings

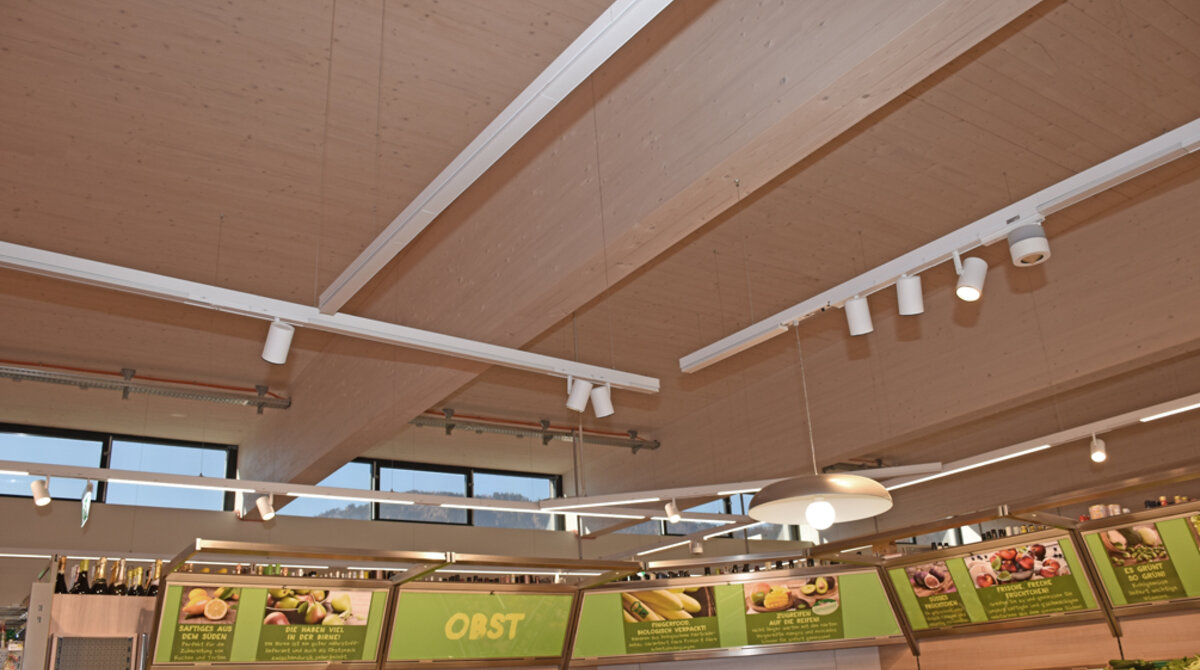

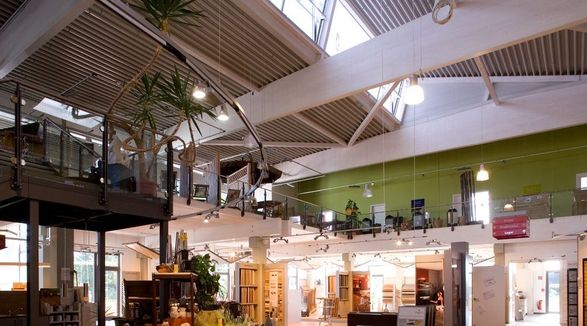

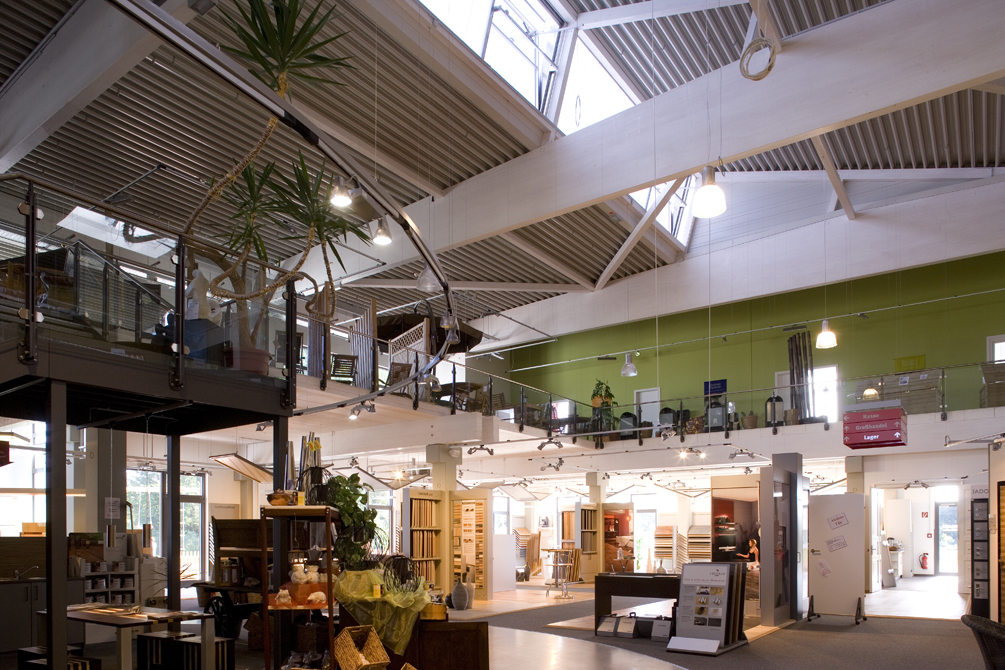

- Commercial, office and industrial buildings
- Buildings for tourism, such as hotel and restaurant buildings

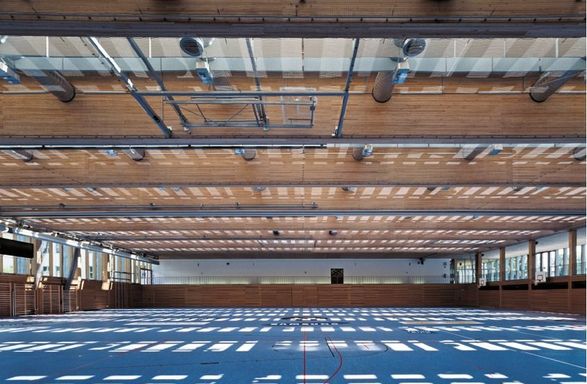

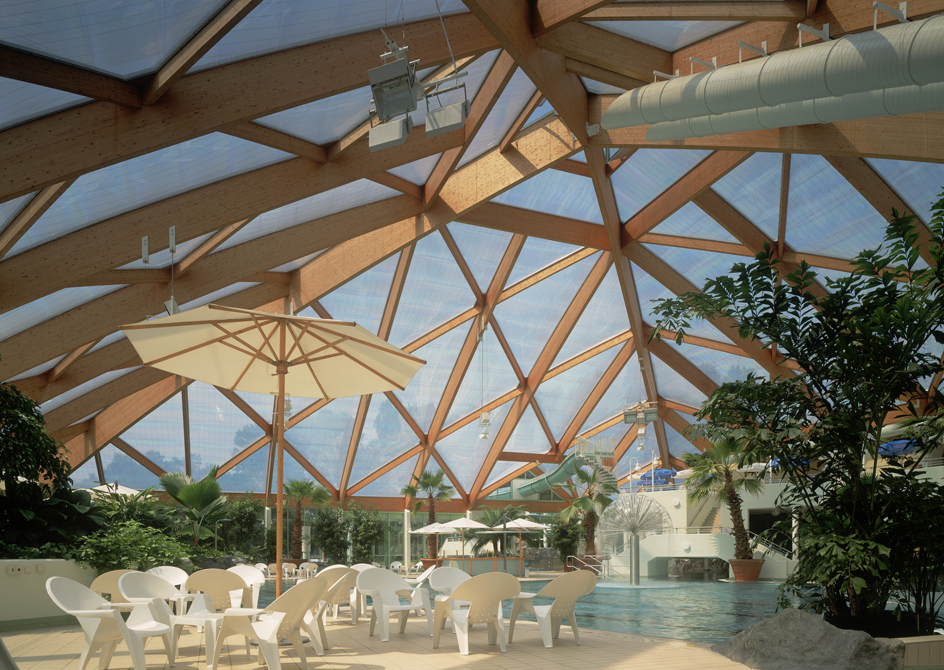

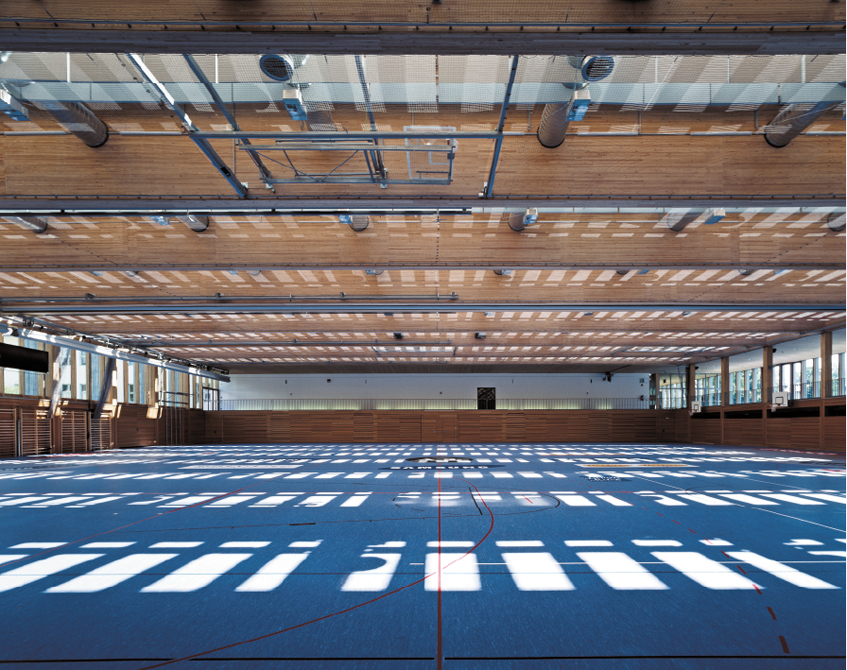

- Buildings for recreation, such as sports halls, swimming pools
- Municipal buildings, such as kindergartens, schools and nursing homes
DIMENSIONS
- Width : 6 cm - 28 cm (Bearing cross sections up to 20 cm)
- Height : 10 cm - 220 cm (Reuthe: up to 200 cm, Gaishorn: up to 208 cm)
- Length : 4 m - 32 m (Bearing length up to 23 m)
MM MASTERLINE: APPLICATIONS
- Walls

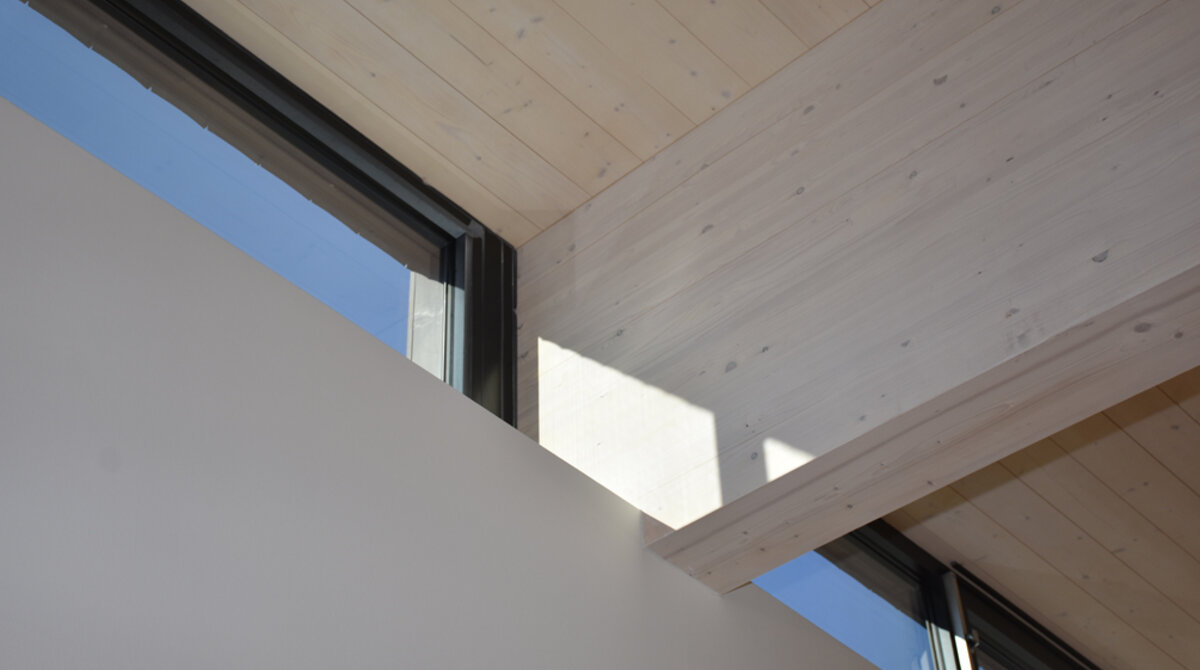

- Ceilings

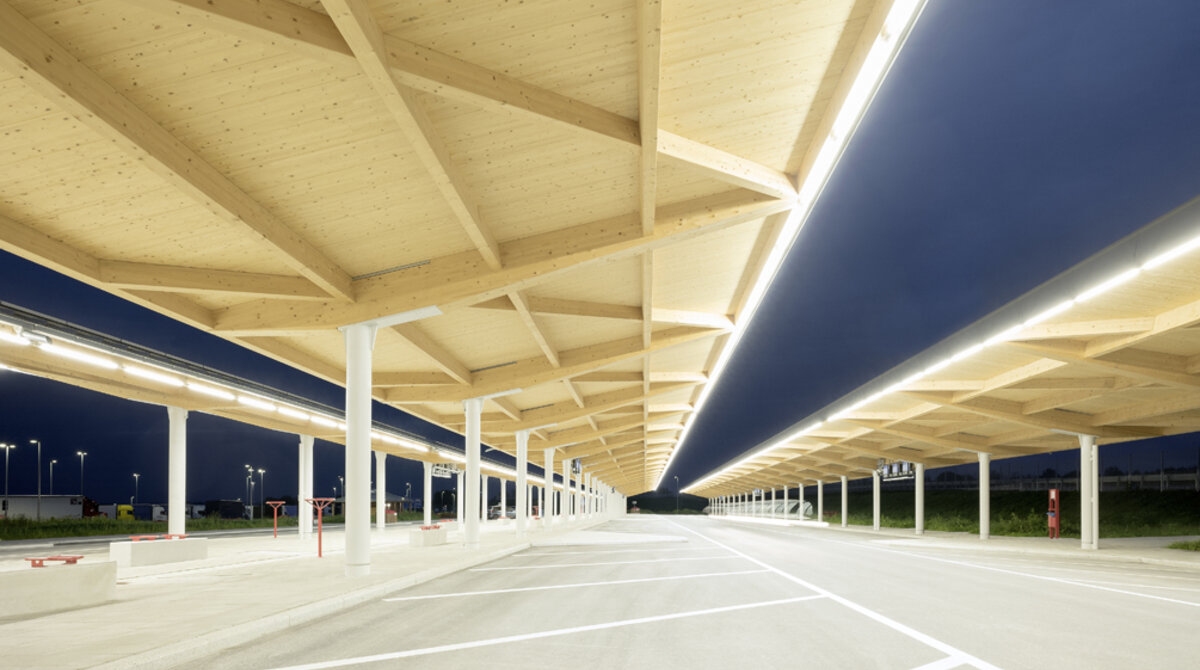

- Roof structures

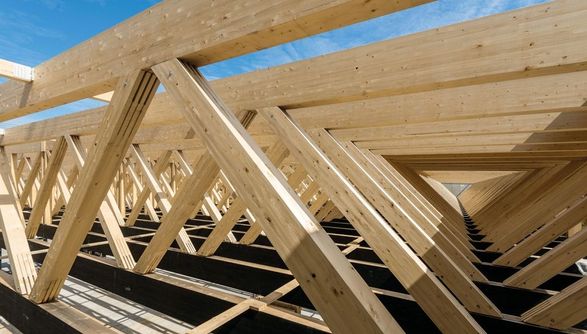

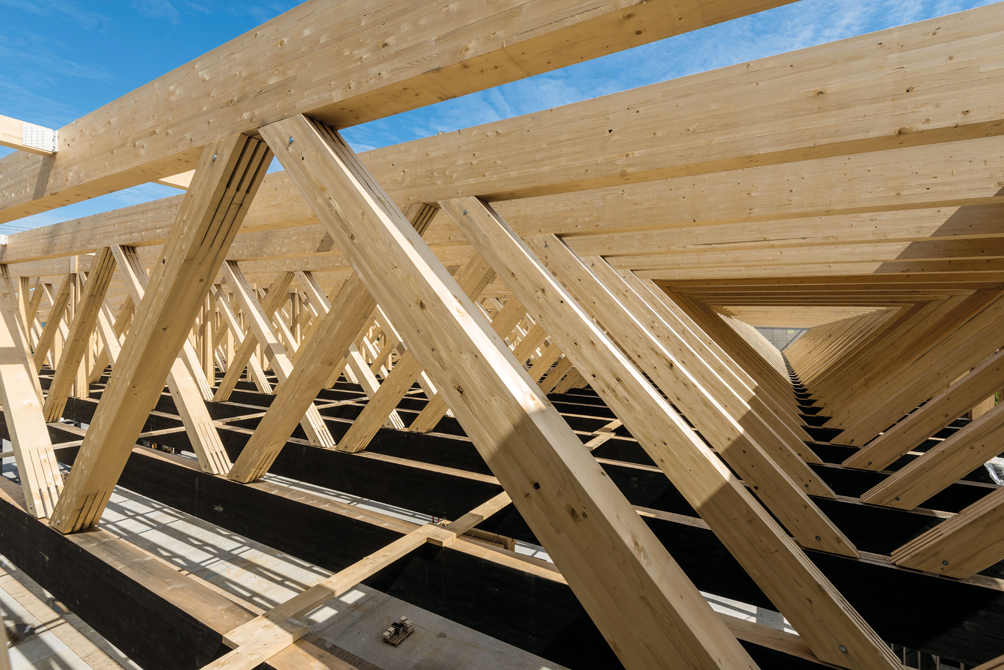

- Roof trusses

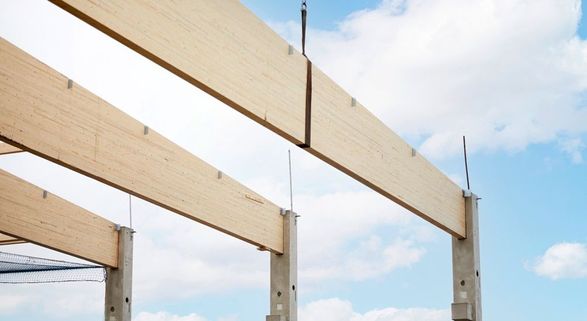

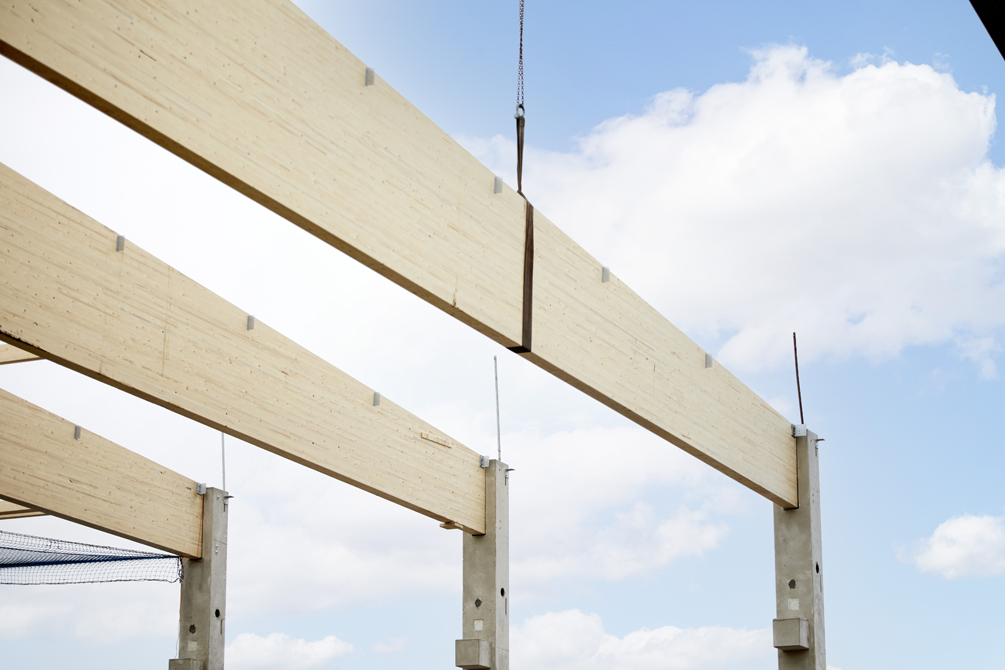

- Beams
- Supports
SERVICE CLASS
SC 1+2, SC 3 on request
QUALITY
Visual (VI), non-visible (NVI)
GLUING
MUF, EN 301-I-90-GP-0,3-S (Melamine resin glue, light-coloured glue joint, waterproof)
DENSITY
Approx. 430 kg/m³ (spruce) or according to strength class – see product standard
SHAPES
- Straight
- Tapered
- Cylindrical

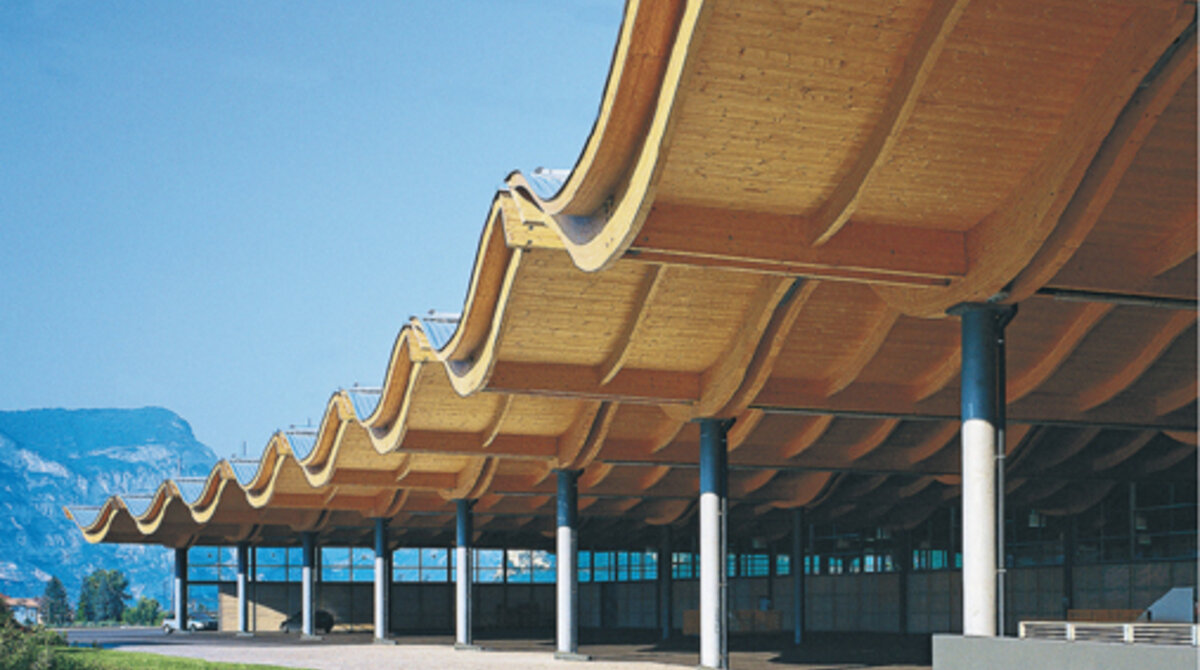

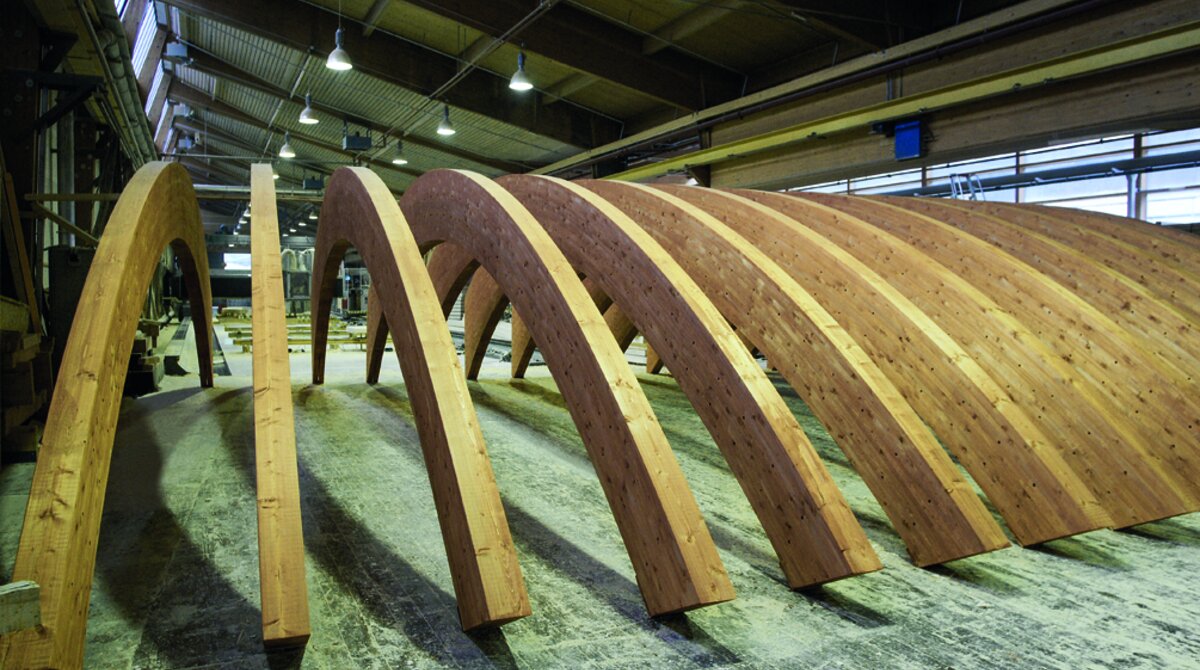

- Curved
LOGISTICS SERVICES
SEA
- Loading into shipping containers is possible at all sites.
- With trusted logistics partnerss we are able to offer fast and reliable container shipments worldwde.
- Subject inducement we can offer breakbulk shipments from the Adriatic, Baltic and North Seas.
- With our own port terminal in Koper, Slovenia, we have regular chartered services to southern Mediterranean ports & beyond.
DOCUMENTATION
Together with our logistics partners we will provide you with professional documentation to enable you to cover all your export, import, and customs formalities without problems.
RAIL
- All Mayr-Melnhof Holz sawmills in Leoben (AT) & Paskov (CZ) as well as our timber processing plants in Gaishorn (AT) & Wismar (DE) are directly connected to national railway networks.
- We use both private & public rail service providers to transport goods in an environmentally friendly manner.
ROAD
- Long-standing stable business relationships with a large number of logistics service providers in Europe.
- We use digital platforms for fast communication with our transport service providers.

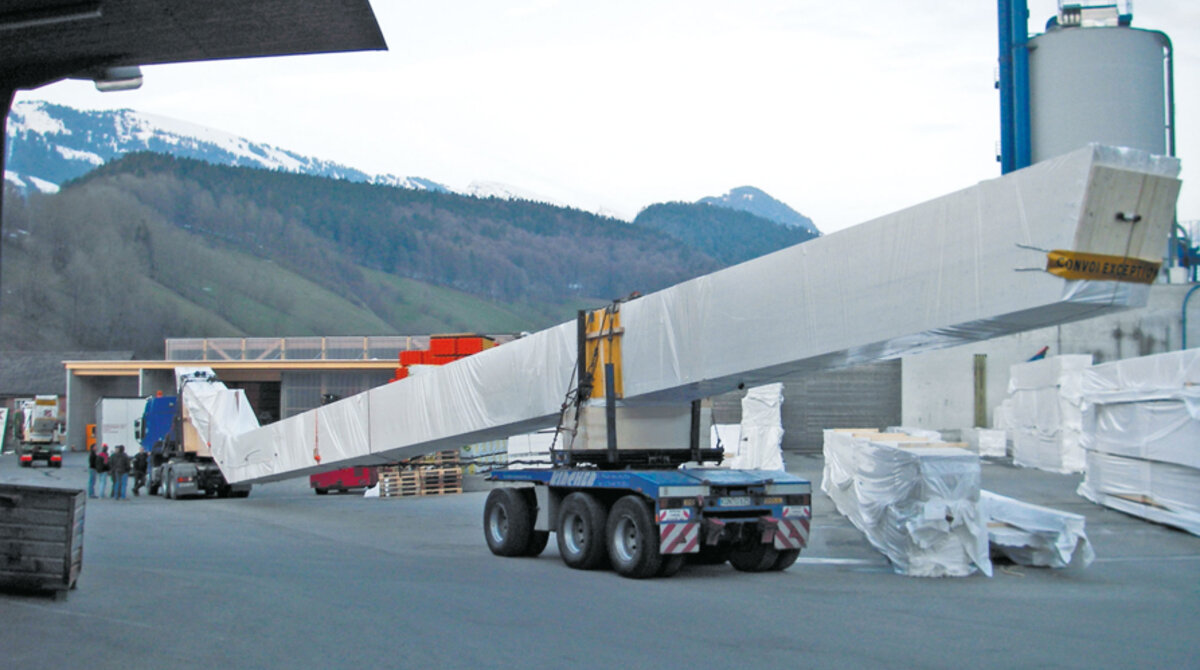

DELIVERY TO CONSTRUCTION SITES
Just-in-time deliveries to our cross-laminated and glulam construction sites.
A full range of modern transport solutions is offered as necessary :
- All-wheel drive trucks
- Loads up to 52 m length
- Hydraulically steered trailers
- Trailers with on-board forklifts
- Covered loads up to 3,5 m wide
- Narrow-access self-steering trailers
- Edscha sliding roof trailers for vertical access
- Solo vehicles with up to 10 m loading length for inner-city areas
MM MASTERLINE: BEAMS SYSTEMS
BEAM DIMENSIONS
d = lamination thickness
l = Span
h = Height
b = Width
Ü = Camber
*recommended roof inclination
with fingerjointed frame corners
with curved frame corners
with external post-tensioning
with straight lower boom
with external post-tensioning
