SMARTIA PG160P SANTORINI BIOCLIMATIC PERGOLA
SMARTIA PG160P SANTORINI BIOCLIMATIC PERGOLA
Smartia pg160p santorini, a system for outstanding bioclimatic pergolas, is characterized by the high durability and the innovations it incorporates, offering ideal shading solutions for outdoor applications.

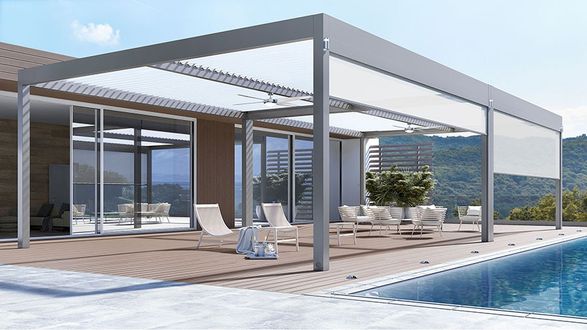

It is probably the only pergola system that can cover in free-standing typologies (without wall mounting) a surface of up to 50 m2 with only four columns.
The possible covered surface can be even doubled by adding just two more columns (i.e. 100 m2 with only 6 columns), without affecting the elegant and minimal design of the pergola.
INFORMATION
BRAND
Alumil
PRODUCT TYPE
Peragola
PRODUCTION
Made in Greece
AESTHETICS
Minimal
DETAIL
The rotating louvers for adjustable shading and protection from bad weather conditions, as well as the plethora of the available equipment, reflect the system’s bioclimatic philosophy and guarantee excellent living conditions all year round.
FUNCTIONALITY
- Bioclimatic
- Motorized Louvers
USE
- Adjustable Shading
- Controlled Living Conditions
COLUMN DIMENSION
160 x 160 mm
LOUVERS
190 mm with special gasket
LIGHTING

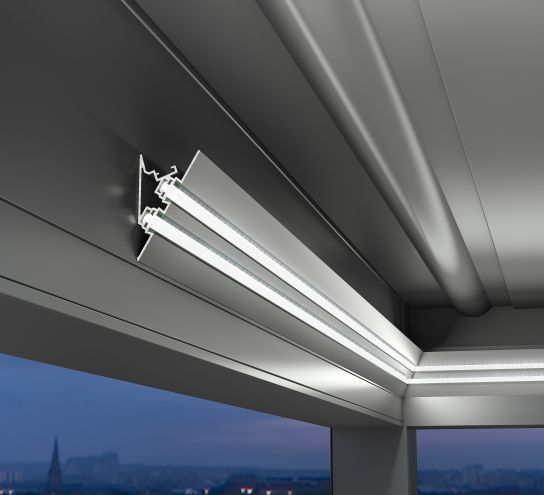

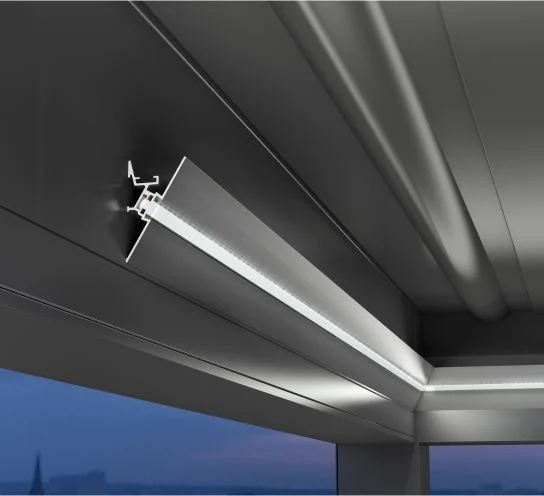

linear tape integrated at louvers and transoms
ENVIRONMENT
Outdoor

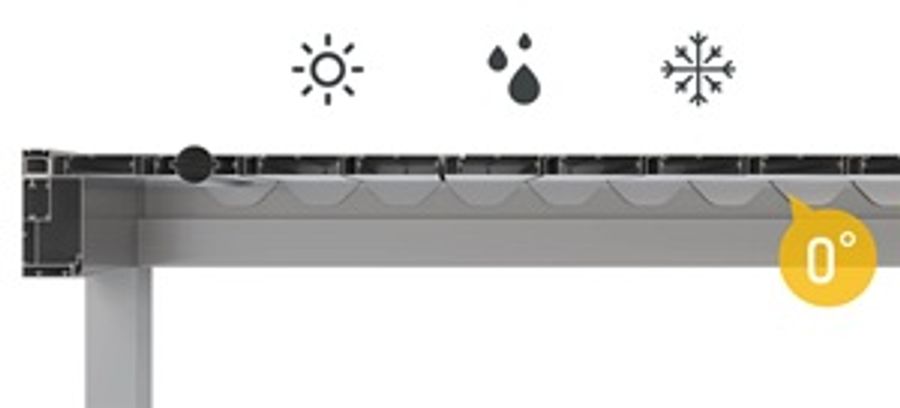

LOUVERS ANGLE
0-135° degrees, all day shading
PLACEMENT - INSTALLATION
Easy Modular Assembling
ADDITIONAL FEATURES
- LED Lighting

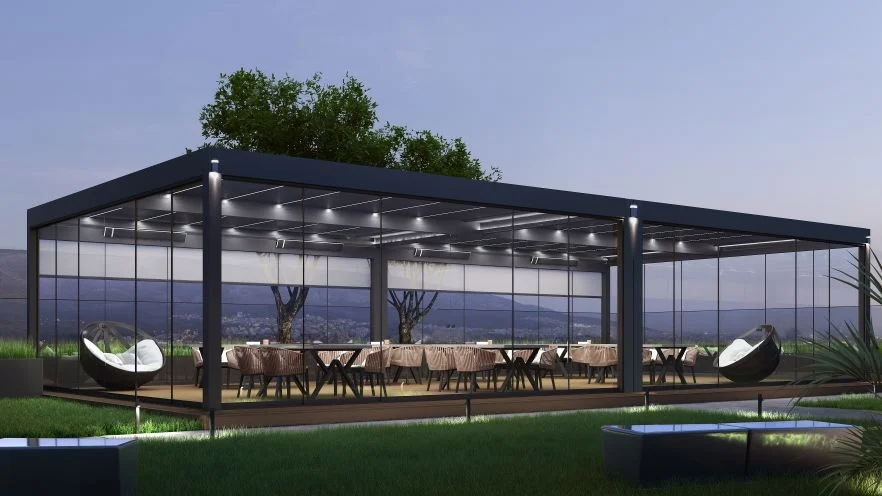

- Glass Sliding System
- Rolling Shading Fabric (ZIP)
- Heating And Sound Devices

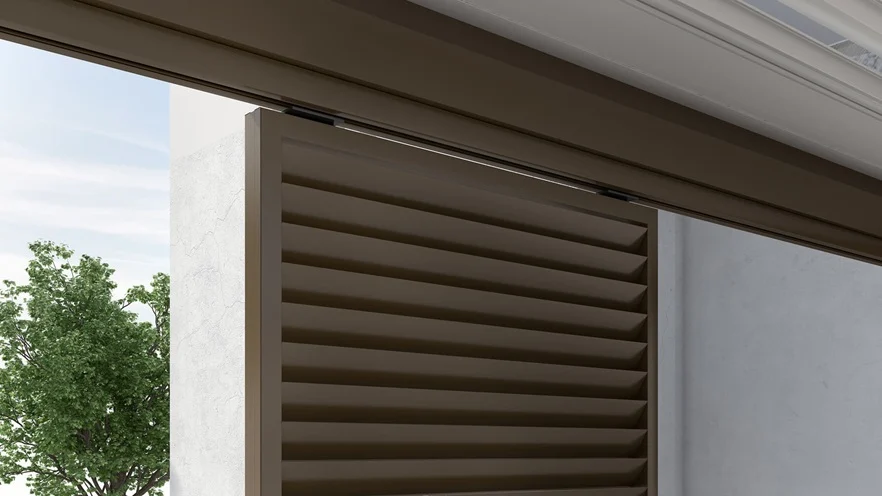

- Top-hung Aluminium Shutters
MECHANISM
Concealed
SNOW WEIGHT
up to 300 Kg/m2 or 2.0 m of snow
AUTOMATION
- Smart Apps
- Remote Control
- Weather Sensors
MAXIMUM DIMENSIONS
- Width : 7.5 m
- Height : 3.0 m
- Length : 7.5 m
APPLICATIONS

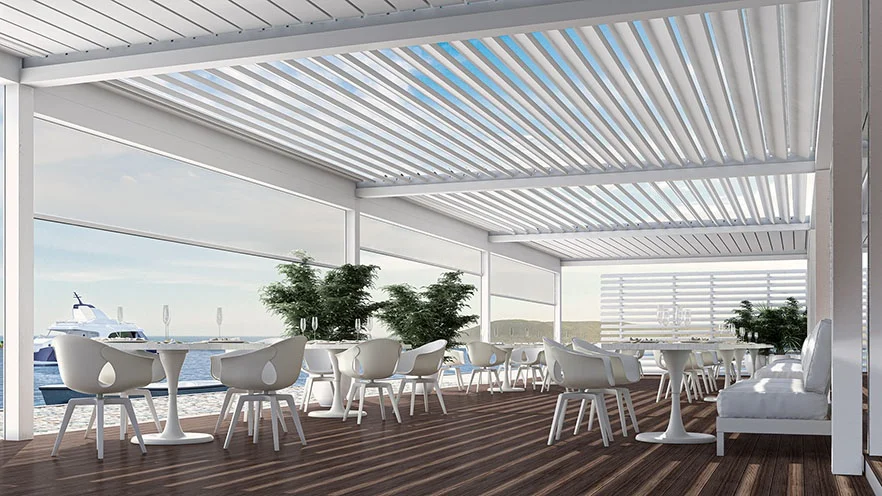

Adjustable shading in luxury residences, hotels, roof gardens, commercial spaces, restaurants, lounges and dining places
RAIN PROTECTION

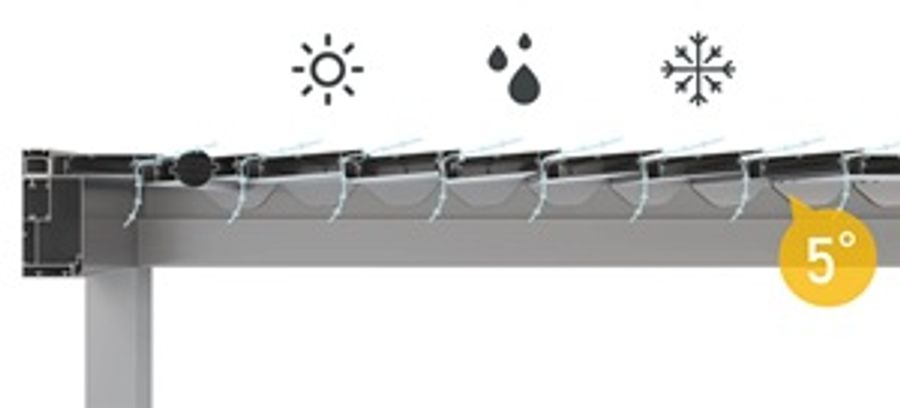

Special sealing and water drainage system, which guides the rain water from the roof to bottom of the posts.
SHADING SCREEN
2.8 x 6.0 m
SLIDING SYSTEM
4-sash and 4+4-sash typologies
SURFACE TREATMENTS
seaside resistance without coating peeling off thanks to the possibility of pre-anodising, use of extruded aluminium fittings for enhanced protection against corrosion.
ADVANTAGES
-Efficient protection against sunlight, rain, snow and other weather conditions -Controlled living conditions due to the bioclimatic philosophy and side elements integration, such as sliding glass system, rolling shading ZIP-screens, shutters, LED, etc.
-Extremely robust constructions, which allows very wide dimensions up to 7.5 x 7.5 m with just four columns -State-of-the-art fittings, e.g. the patented concealed and noiseless mechanism and the integrated automation systems -High aesthetics and minimal design with emphasis on detail, e.g. no visible fixation points -Vast range of solutions and possibility of full customization and expandability to meet every need
SECTIONS & TYPOLOGIES
SECTIONS

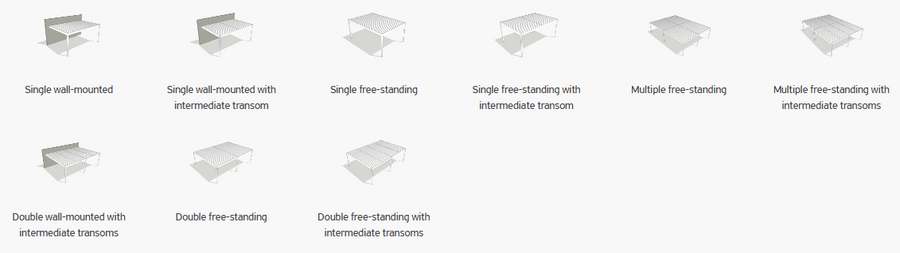

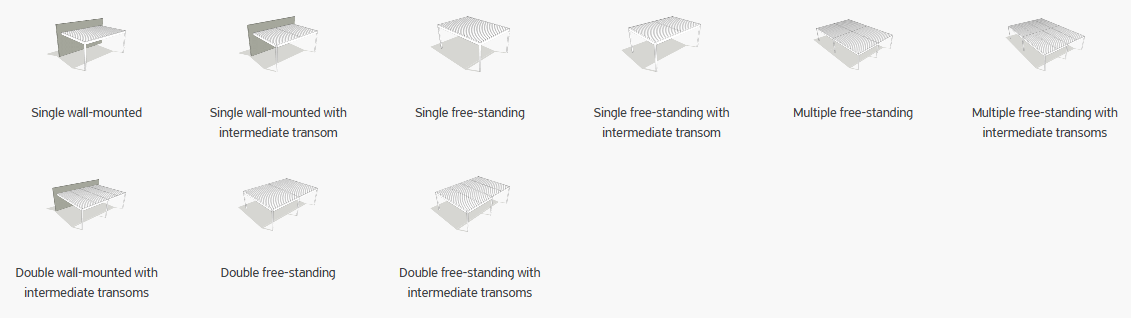

TYPOLOGIES (ALL AVAILABLE TYPOLOGIES)
