Serge Ferrari Defender 7763 & 7772
DEFENDER 7763 & 7772
DEFENDER 7763 & 7772
Durability – High level of protection – Flexibility
INFORMATION
FIRE RESISTANCE
M2/ NF P 92-507
BRAND
Sergeferrari
PRODUCT TYPE
Protect Mesh
MAKING GUIDELINES
Hot air recommended or gluing
COMPLIANCE WITH STANDARDS FIRST
Defender 7763 integrates seamlessly into the Defender range alongside Defender 7772. They comply with EN ISO 2286-2 (weight), and fire reaction rating M2 according to NF P 92-507—ensuring safety and quality.
COLLECTION
Defender
TOLERANCE
+/-5% tolerance
COLORS
A RELIABLE ANTI-INTRUSION MESH RANGE
Defender is a range of anti-intrusion mesh solutions developed by Serge Ferrari for security-focused professionals in transport, storage, industrial, and agricultural sectors. It combines a hardened steel cable structure with a composite membrane—delivering enhanced protection against break-ins while maintaining the flexibility and aesthetics of the material.
QUALITY
ISO 9001
ENVIRONMENT
ISO 14001
EXTREME WORKING TEMPERATURES DIN EN 1876-1
-30°C/+70°C • -22°F/+158°F
AVAILABLE COLORS
Two
FINISH
Anti-corrosion treatment
RESISTANCE TO LACERATION NF F00-201/NF F31-118
No metal cable sheared
DURABILITY – HIGH-LEVEL PROTECTION – FLEXIBILITY
The Defender range includes two products: Defender 7763 and Defender 7772. It offers an optimized combination of strength, durability, and performance for demanding applications. These meshes are made with hardened steel cables featuring anti-corrosion treatment for superior resistance.
MAIN ADVANTAGES
- High flexibility and protection
- Galvanised anticorrosion steel cable
- Resistance to laceration (NF F00-201/NF F31-118 standards)

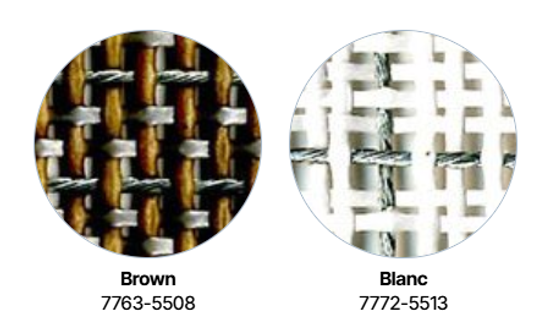

COLORS
- Brown (7763-5508)
- Blanc (7772-5513)
WIDTH
180 cm (70.9 in)
WEIGHT EN ISO 2286-2
620 g/m² (18.3 oz/sq. yd)
TENSILE STRENGTH (WARP/WEFT) EN ISO 1421
250/270 daN/5 cm (562/607 lbs/2 in)
ENERGY
ISO 50001
AVAILABLE APPLICATION
3
FIRE RESISTANCE
- B1/DIN 4102-1
- M2/NF P 92-507
- NFPA 701 Method 2
MAIN APPLICATION
- Protection against vandalism

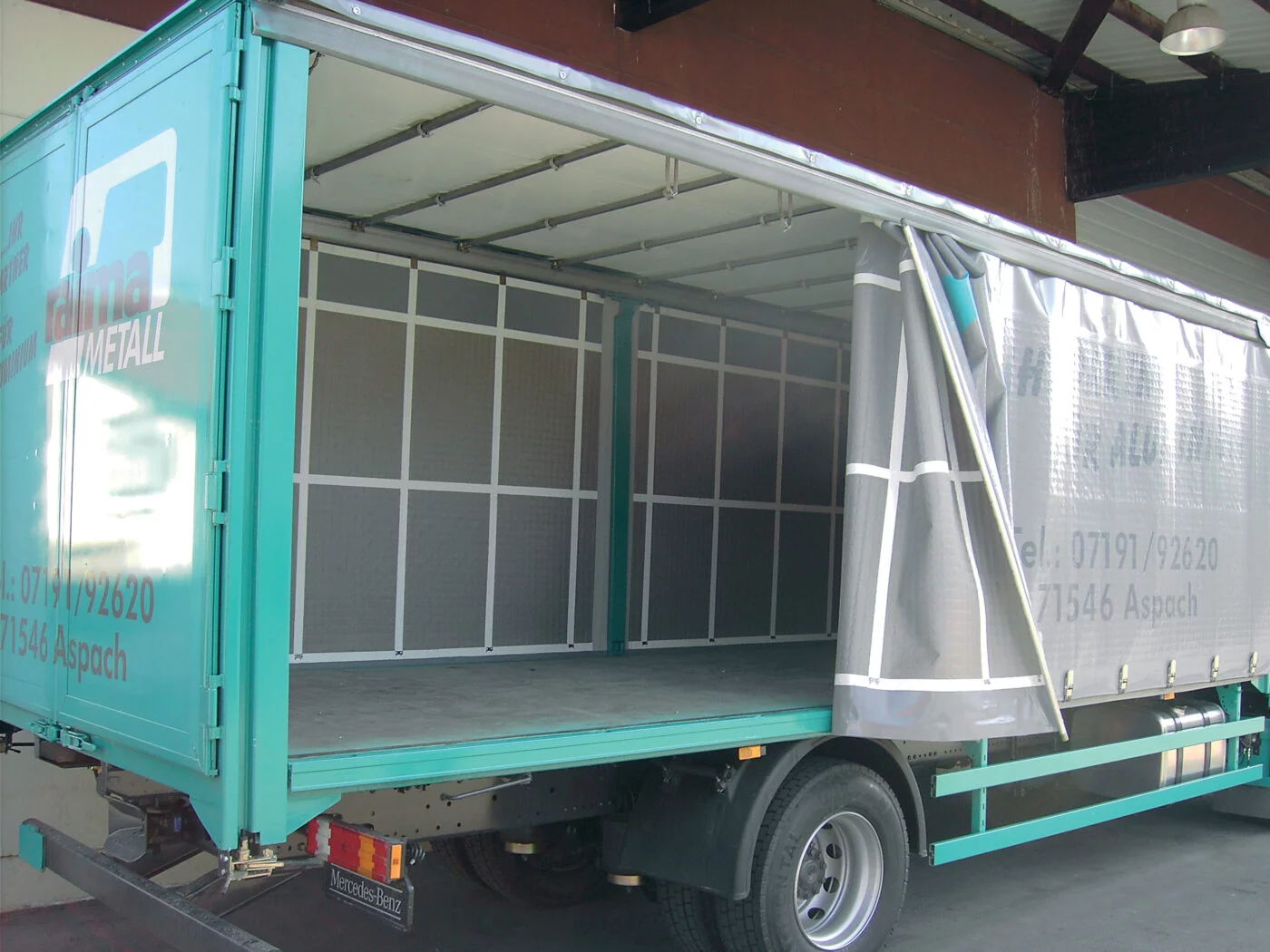

- Theft and intrusion (trucks, tents, tennis courts...)
ELONGATION AT RUPTURE (WARP/WEFT)
- 20%/20%/5 cm synthetic weave
- 2%/2%/5 cm metallic weave
STANDARD FORMAT LENGTH
±30 lm (±32.81 yd)
DENSITY OF METAL CABLES PAIRS (WARP/WEFT)
25/25 pairs/lm
MAXIMUM PROTECTION COMBINING STRENGTH, FLEXIBILITY, AND LONGEVITY
Choosing Defender means enhanced security: the steel cables provide high resistance to intrusion, while the membrane ensures visual appeal and ease of use. This range is designed to perform in harsh environments, withstanding temperatures from -22°F to +158°F (-30°C to +70°C). In addition, customization options (calendering) allow seamless integration into both existing and new structures while maintaining visual consistency.
BASE CLOTH
PES/extruded PVC + hardened steel cable Type 4x3x0.15 (4 strand of 3 wires) with galvanised anticorrosion treatment
COATING
Extruded PVC
DOWNLOAD
↓ Brochure
TTENSILE STRENGTH (WARP/WEFT)
EN ISO 1421
- 200/200 daN/5 cm (450/450 lbs/2 in on synthetic weave)
- 120/80 daN/5 cm (270/180 lbs/2 in on metallic weave)
MESH COMBINING DURABILITY WITH A HIGH LEVEL OF PROTECTION
- Durability
- Corrosion Resistant
- Anti-intrusion
- Increased Flexibility
- High Resistance
