Marley Duo Edgemere Interlocking Concrete Slate
DUO EDGEMERE INTERLOCKING CONCRETE SLATE
DUO EDGEMERE INTERLOCKING CONCRETE SLATE

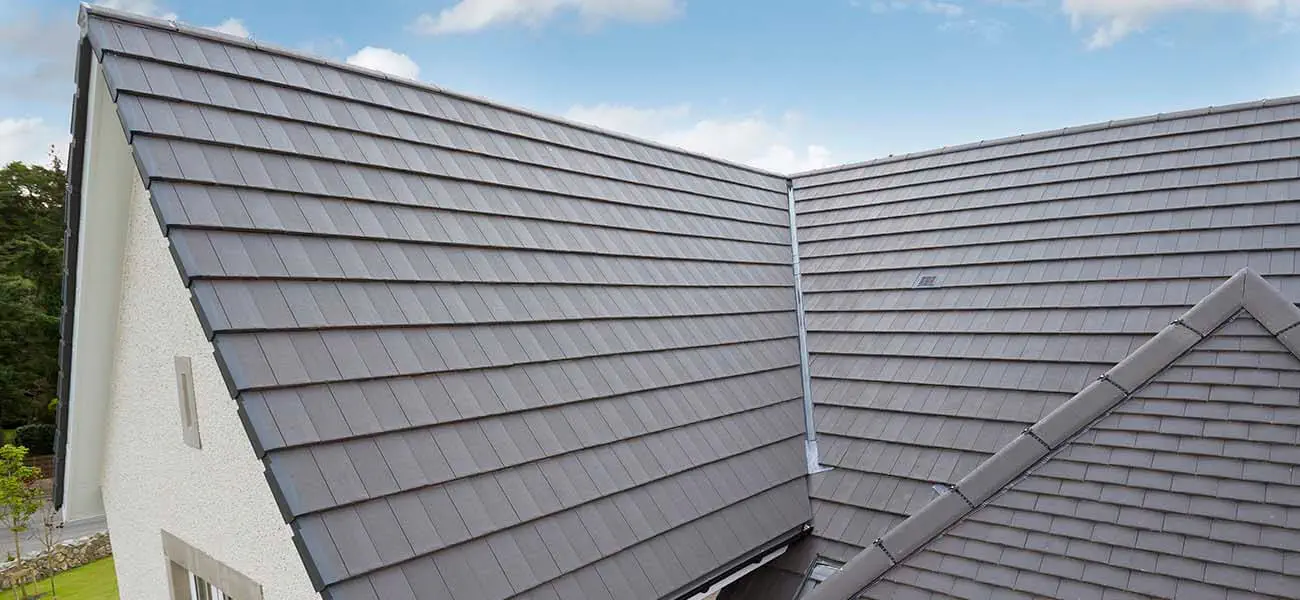

Concrete interlocking slates designed with a mock bond creates small-format, slate-like appearance with a great covering capacity.
INFORMATION
PRODUCT TYPE
Concrete Slate
BRAND
Marley
TILE THICKNESS
18 (nominal)
TILE NAILS
Slate nails 45mm x 3.35mm
HANGING LENGTH
395mm (nominal)
MINIMUM HEADLAP
- 75mm (22.5° and above)
- 100mm (below 22.5°)
BATTENS REQUIRED
- 2.9 lin.m/m² at 75mm headlap
- 3.1 lin.m/m² at 100mm headlap
MINIMUM PITCH
- 22.5° Smooth (75mm headlap)
- 17.5° Smooth (100mm headlap)
MAXIMUM GAUGE
345mm
COVER WIDTH
298mm (nominal)
ROOF FITTINGS AND ACCESSORIES
Our extensive range of roof fittings and accessories work with all elements of the full Marley Roof System, ensuring product specification and installation is quicker and easier. What's more, a complete Marley Roof System comes with a 15 year guarantee for further security and peace of mind. Take a look at our full range of roof fittings and accessories.
COVERING CAPACITY
- 9.7 slates/m at 75mm headlap
- 10.5 slates/m at 100mm headlap
AUTHORITY
BS EN 490
DOWNLOAD
↓ Data sheet
FIXING CLIPS
- Eave
- SoloFix
- Verge and tile clips
EDGEMERE FITTINGS
Available in all colours to matchmain slates.
PRODUCTION
Made in United Kingdom
MAXIMUM PITCH
90°
FIXINGS
Slate nails (45 x 3.35mm)
SIZE OF TILE
420mm x 330mm
DUO EDGEMERE
The addition of a mock bond down the centre of the tile, creates the appearance of a small format slate.
FORMAT SLATE
Now available in 4 colours, Duo Edgemere slates offer sleek aesthetics while appearing as a smaller format slate.
COLORS

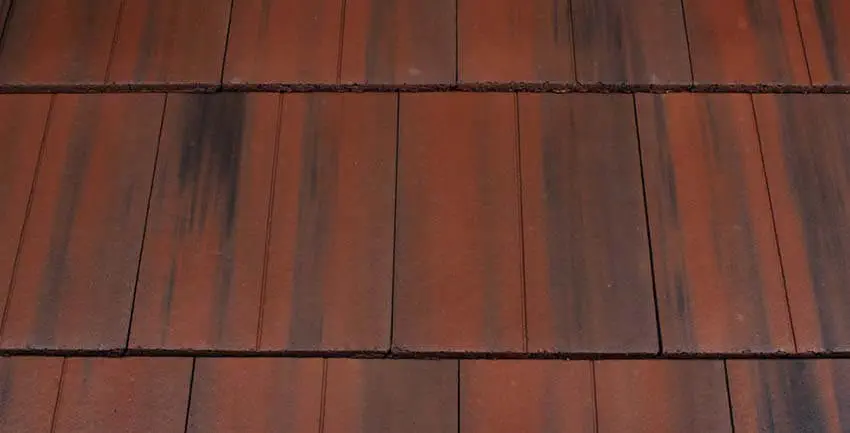

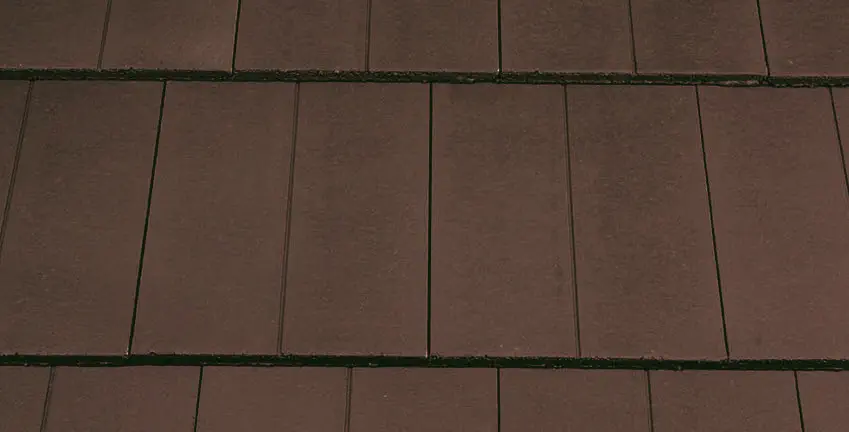

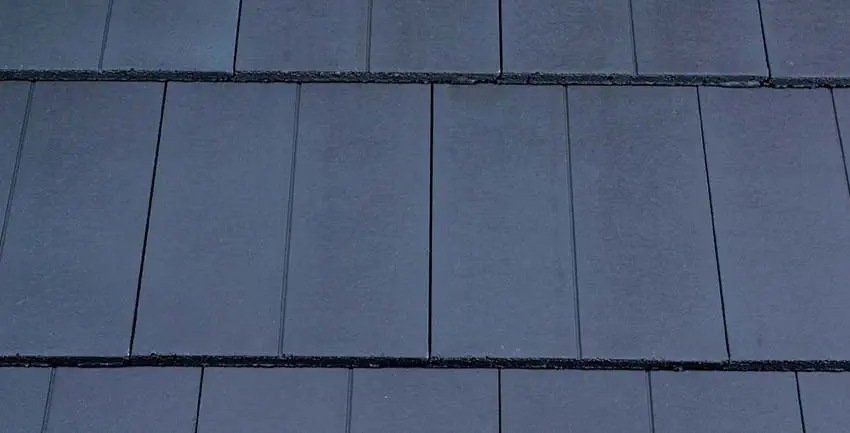

-Anthracite -Old English Dark Red -Smooth Brown -Smooth Brown
WEIGHT OF TILING
- 44kg/m² (0.43kN/m²) at 75mm headlap
- 47.5/m² (0.47kN/m²) at 100mm headlap
TEXTURES AND COLOURS
Experiencing the vast variety of textures and colours that our roof tiles provide up close, can guide you in the decision making process when selecting roof coverings. Our efficient sample service can help you in this process.
BATTEN SIZE RECOMMENDED
-38 x 25mm for rafters/supports not exceeding 450mm centres
-50 x 25mm for rafters / supports not exceeding 600mm centres
TECHNICAL DETAIL
DETAIL
Laying smaller format slates can be very expensive and time-consuming, but with Duo Edgemere you get the same visual impact with the ease of installation provided by standard interlocking tiles. With only 9.7 tiles per square metre and great performance at pitches as low as 17.5°, Duo Edgemere is versatile enough to be used on a wide range of roof types.
All of our concrete interlocking tiles can achieve an 'A+' rating (which has the lowest environmental impact) in the Building Research Establishment's Green Guide to Specification. Accreditation to the BES 6001 framework standard for 'Responsible Sourcing' means that projects using our concrete interlocking slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM). If you like the clean, precise appearance of Edgemere, but would prefer a smaller format slate, then Duo Edgemere could offer you the perfect solution.
