Carmix 45 EVO Cement Silos
CARMIX 45 EVO CEMENT SILOS
CARMIX 45 EVO CEMENT SILOS
Smart mobile concrete plant
Mycarmix : App and on board heavy duty tablet to control and manage mix design, engine diagnostic, geolocation and cloud technology
INFORMATION
CARMIX CONTROL (FOR STAGE V VERSION)
Load cells weighing system scale with dedicated app for Bluetooth transfer and print, diagnostic of main engine datas, geolocation. Easy control and managing of different mix-design, production and components in cloud.
BRAND
Carmix
PRODUCT TYPE
Cement Silos
AVAILABLE ENGINES
- Perkins Stage V - Tier 4F 904J-E36TA Turbo-diesel, 90 Kw (120 Hp)
- Perkins Stage III - Tier 3A 1104D-44TA Turbo-diesel, 4 cylinders, 83 kW (111 HP)
DRUM CAPACITY
6050 liters
CONCRETE DRUM OUTPUT
4,5 m3
TANKS CAPACITY - DIESEL
130 liters
CABIN
Closed cab ROPS FOPS (UNI 11023) complete with air conditioning and front camera. Reversible driving seat 180° with automatic inversion of hydraulic steering circuit. Rear camera version Stage III on request.
TANKS CAPACITY - WATER TANK
2 x 600 liters
MODEL
45EVO
WATER SYSTEM
Self-contained. Hydraulic driven water pump, water meter, washing outlet.
STEERING
Hydrostatic. 3-way steering. Radius: internal mm 1800 - external mm 3800.
TRANSMISSION
Hydrostatic Bosch-Rexroth. Heavy duty differential axles with planetary reducers. Front axle swinging and steering. Rear axle fixed.
SIZE
- Height with shovel : 4054 mm
- Height without shovel : 3140 mm
- Length (without loading shovel) : 5943 mm
SPEED
Working speed from 0 to 9 Km/h, road transfer from 0 to 25 Km/h. Electric servo control.
AXLES
Comer with oil bath disc brakes and planetary reducers.
SAFETY
Machine equipped with checking and block valves for maximum safety of the operator.
CHUTE
Slewing and hydraulically tilting. 2 extra chutes included.
WEIGHT
In running order 7.000 Kg, equally distributed on both axles.
BRAKES
Oil bath disc brakes inside differential axles. Twin indipendent circuits. Negative hydraulic parking brake.
LOADING SHOVEL
Effective capacity per load 600 liters, complete with hydraulic opening gate.
MIXING UNIT
Drum capacity 6050 liters, Concrete drum output: 4,5 m3 . Double mixing screws, cover for emergency unloading. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed indipendent from r.p.m. of diesel engine. Discharging by reversing drum.
TYRES
Off road industrial type 405/70 - 20 PR18.
TANKS CAPACITY - HYDRAULIC OIL
80 liters
JOYMIX
All hydraulic functions of shovel controlled by a single - fully servo controlled Joystick.
ELECTRIC SYSTEM
12 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off.
ACCESSORIES ON DEMAND
- Spare wheel
- Rear camera
- High-pressure washing pump
TANKS
Water : 2x600 liters. Diesel: 130 liters. Hydraulic oil 80 liters.
CHASSIS
Steel profile specially engineered for off-road operations.
CATALOGUE
The machine is equipped with Use and Manteinance and Spare Parts manuals according to CE regulations.
GRADIENT
Fully loaded 30%.
DOWNLOAD
↓ Data Sheet
HYDRAULIC SYSTEM
3 indipendent circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation. 2 pump for services. Inlet and outlet filter. Heat exchanger water/oil-air type.

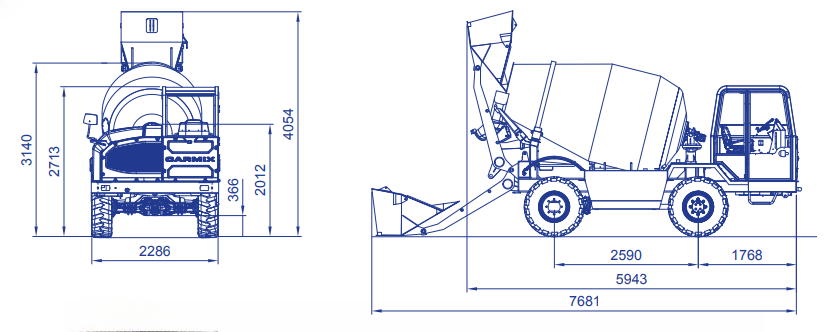

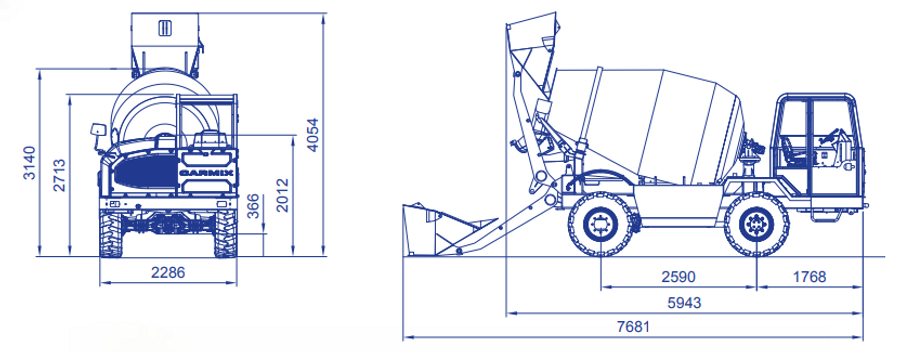

TECHNICAL DRAWING
