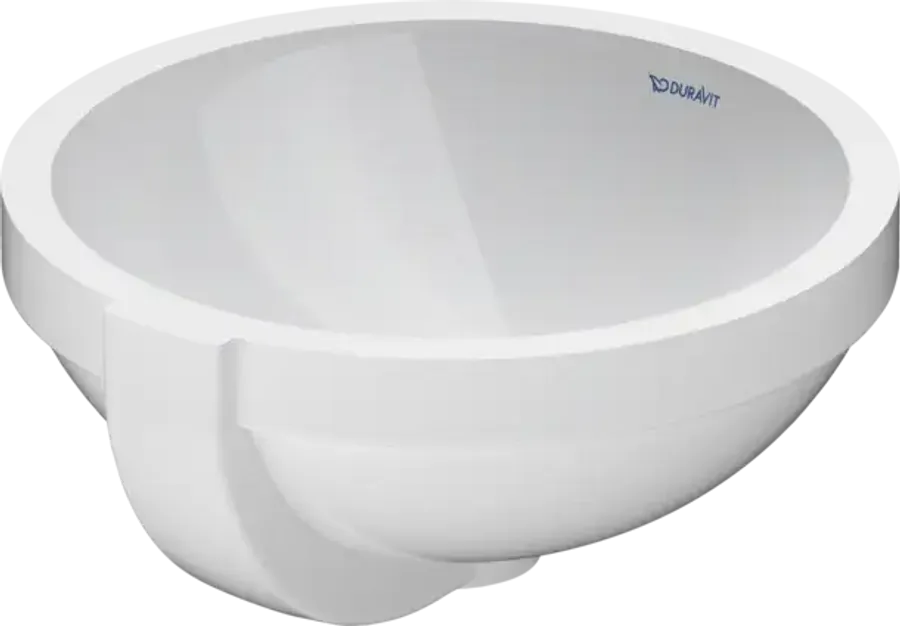

Duravit Architec Undercounter Built-In Basin
ARCHITEC UNDERCOUNTER BUILT-IN BASIN
ARCHITEC UNDERCOUNTER BUILT-IN BASIN
Designed by Frank Huster
The basic architectural elements of circles and squares were sufficient to create a straightforward, modern design language and to design a rich product range for practically every application, whether private, public, or barrier-free.
Bathroom hygiene is the result of aesthetics and functionality.Developed by Prof. Frank Huster, the Architec ceramic series takes this idea into account.
Designer
FRANK HUSTER
Frank Huster, born in 1939, studied architecture and interior design in Stuttgart.
In his office together with Peter Hübner, he developed, among other things, toys made of cardboard, folded plate constructions and cardboard paravents for the Munich Olympics from 1970 to 1978.
In his own architecture and development firm, he focused on prefabricated construction systems made of steel and plastic, then on prefabricated bathroom pods, sustainable product concepts and barrier-free construction.
As part of his professorship at the Wiesbaden University of Applied Sciences, Department of Design, he gave lectures on construction-related design and technical development from 1985 to 2006.
In 1993, Frank Huster designed the still successful and constantly expanding Architec ceramics program for public and semi-public areas for Duravit. The floor-level Duraplan shower tray program followed in 2009.
INFORMATION
BRAND
Duravit
PRODUCT TYPE
Basin
SCOPE OF SUPPLY
- Incl. ceramic drain cover : No
- Incl. slotted waste : No
- Incl. overflow clip : No
- Incl. push-open waste : No
COLLECTION
Architec Undercounter
MODEL
#0319320000
NUMBER OF FAUCET HOLES PER WASH AREA
0
SHAPE
Round
COLOUR
White High Gloss
LIFETIME WARRANTY
Duravit attaches great importance to precision and sustainability in development and production. We are so convinced of the quality of our products that we provide a lifetime warranty on our ceramics.
GLOSS LEVEL
High Gloss
MATERIAL TYPE
Sanitary ware

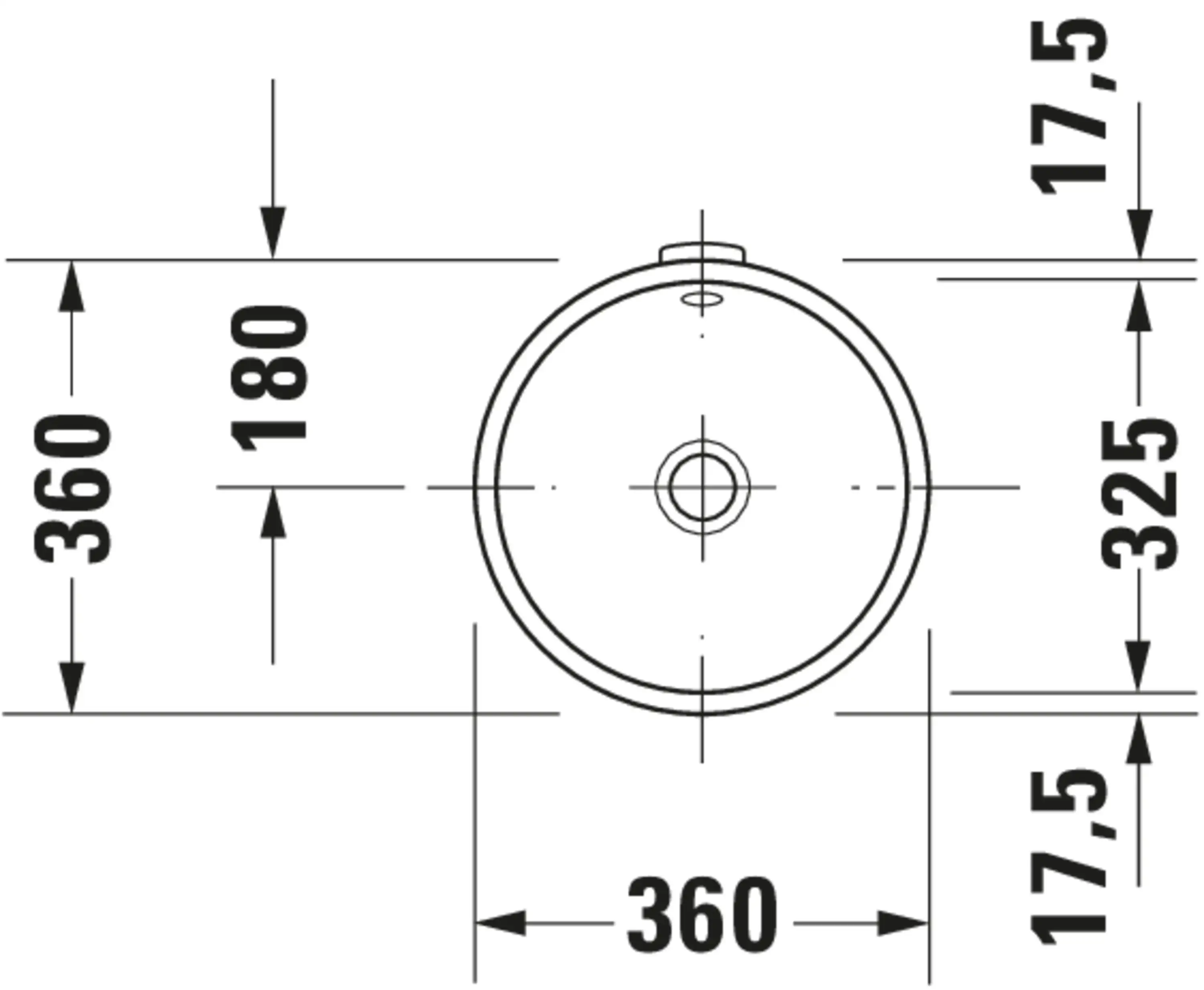

DIMENSIONS
- Basin Depth : 325 mm
- Basin Width : 325 mm
- Depth/Width : 360 mm
- Width/length : 360 mm
- Internal diameter : 325 mm
FEATURES
- Ground : No
- Back side glazed : No
- Underside glazed : Yes
- Tap hole platform : No
- Suitable for furniture : Yes
ARTICLE WEIGHT
4.9 kg
COLLECTION
Architec
TYPE OF MOUNTING
undercounter
NUMBER OF WASHING AREAS
1
BASIN POSITION
Middle
OVERFLOW
Yes
MATERIAL
Ceramic
DESIGNER
Frank Huster
CERTIFICATES / APPROVALS
- CE label 1 : EN 14688
- CE Marking : CL 25
FAUCET HOLE POSITION
Without
SOAP DISPENSER POSITION
Without
DETAIL
- 1 washbasin
- 1 washing area
- With overflow
- Suitable for installing with furniture
- Made of high-quality, long-lasting sanitary ceramic : particularly rugged, scratch-resistant material with a high degree of hardness, easy-clean and hygienic surface
- Underside fully glazed for better hygiene and is therefore also perfectly suitable as a wall-mounted alone solution
