OMNI STEP PORTABLE STAIRS
OMNI STEP PORTABLE STAIRS
Adjustable osha-compliant aluminum stairs

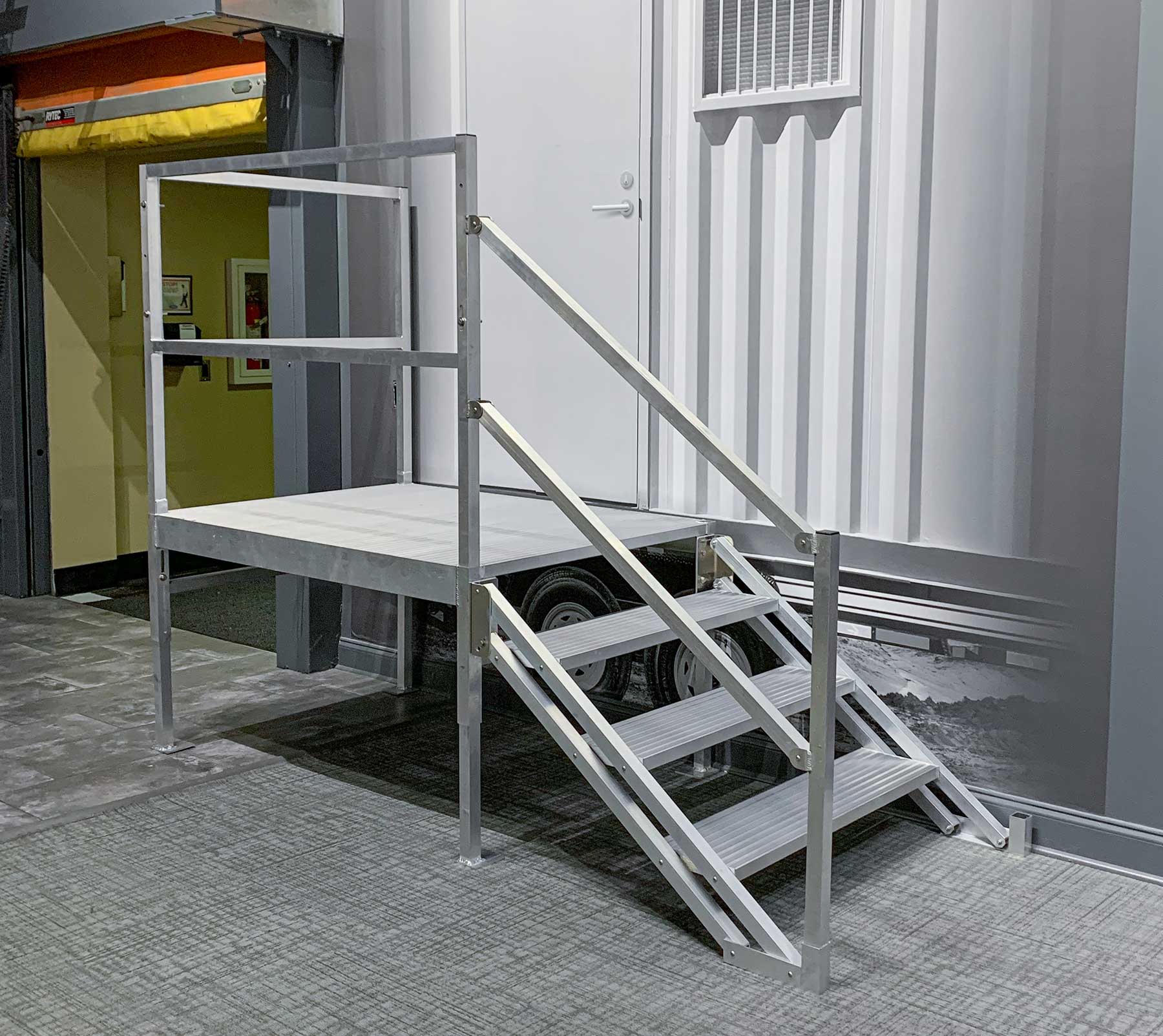

The Omni Step uses a pivoting riser assembly to adjust the step to any height within the two outer limits as the individual step heights grow or shrink equally.

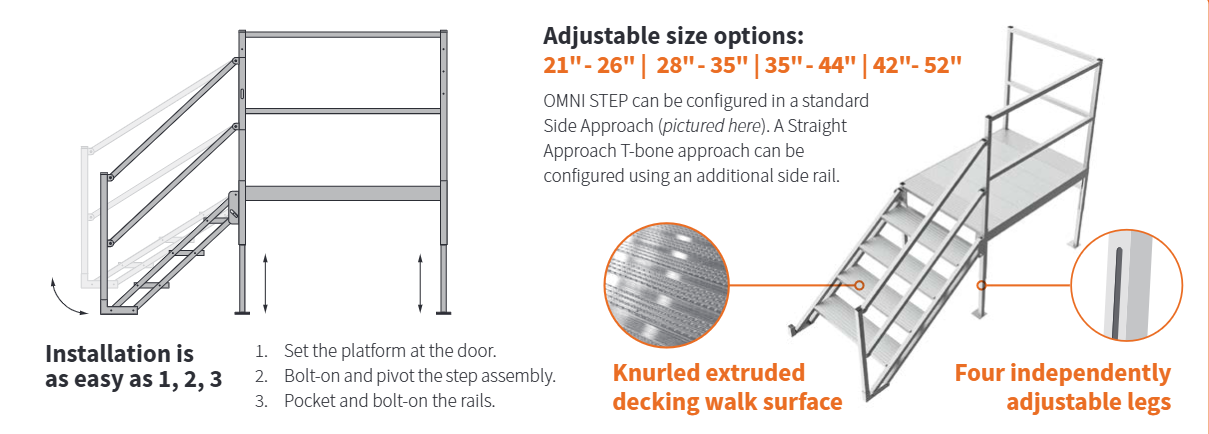

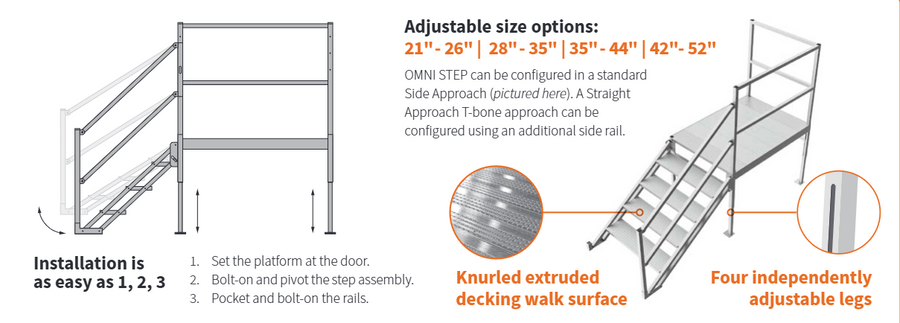

Set the adjustable platform at the threshold, attach the step riser to the platform, and let the step pivot down to the ground.
FEATURES
LEVELING LEGS
Platform legs have 8” of adjustability for uneven ground or ongoing adjustments.
PIVOTING RISERS
Our stairs feature adjustable risers that pivot to ensure a secure and stable footing on any surface. Up to ± 2 feet for our two-story size.
EASY INSTALLATION
The Omni Steps consist of a platform and staircase that simply bolt together for fast installation.
100% ALUMINUM – LONG LASTING
Our aluminum portable stairs will never rust, warp, or rot. The stairs are low maintenance and will last much longer than wood or steel.
OSHA-COMPLIANT
Our portable Omni Step maintains OSHA compliance as they adjust by utilizing a pivoting step riser.
EASILY REPURPOSED
OMNI steps portable stairs bolt together without any on-site welding. This means that our portable stairs are truly portable and can be reconfigured and relocated as needed
SLIP-RESISTANT DECKING
Our portable steps come standard with aggressive slip-resistant serrated ridges that channel away water and provide maximum, multi-directional slip resistance. Other decking options are also available.
HPD/LEED/ESG
Because our products are modular, repurposable, and contain 32.5% to 75% recycled content, including 50% to 65% pre-consumer and up to 20% post-consumer recycled scrap, they can help contribute to several LEED v4.1 credits and other green building rating systems.
INFORMATION
ADJUSTABLE PORTABLE STAIR FEATURES
Omni Step portable stairs are adjustable work platforms with rails that are fully adjustable. For example, the 21″ – 26″ step system can be set to meet any threshold height within that range. Our Second Story Omni Steps are explicitly designed for stacked modular buildings and adjustable between 8.5 feet and 10.5 feet. The steps can be easily adjusted as site and ground conditions change or repurposed as needed throughout your facility.
BRAND
Upside Innovations
PRODUCT TYPE
Stairs
MATERIAL
Mill finish aluminum extrusions and sheet
WEIGHT CAPACITY
100 lbs/sqft Live Load, 300 lbs over a sqft area
PRODUCT RESOURCES
- Product Info & Tech Specs
- BIM/CAD Files
- Specifications (CSI Spec)
- Elevation/Plan Views
- Environmental/LEED/HPD
TREAD DEPTH
9 1/2”
GUARDRAIL
42″ high
WIDTH
37 5/8” between handrails (or one handrail and the building), 41” out-to-out
RISER HEIGHT
7” – 8 13/16” (gets smaller or bigger as threshold height lowers or raises)
HEIGHT
- 21”-26”
- 28”-35”
- 35”-44”
- 42”-52”
- Two-story : 8.5’-10.5’
TECHNICAL DATA
HANDRAIL
36″ high
PLATFORM
56 3/4” x 41”
DURABLE, LONG LIFECYCLE
100% industrial-grade aluminum that won’t rust, warp, or rot.
OSHA-COMPLIANT

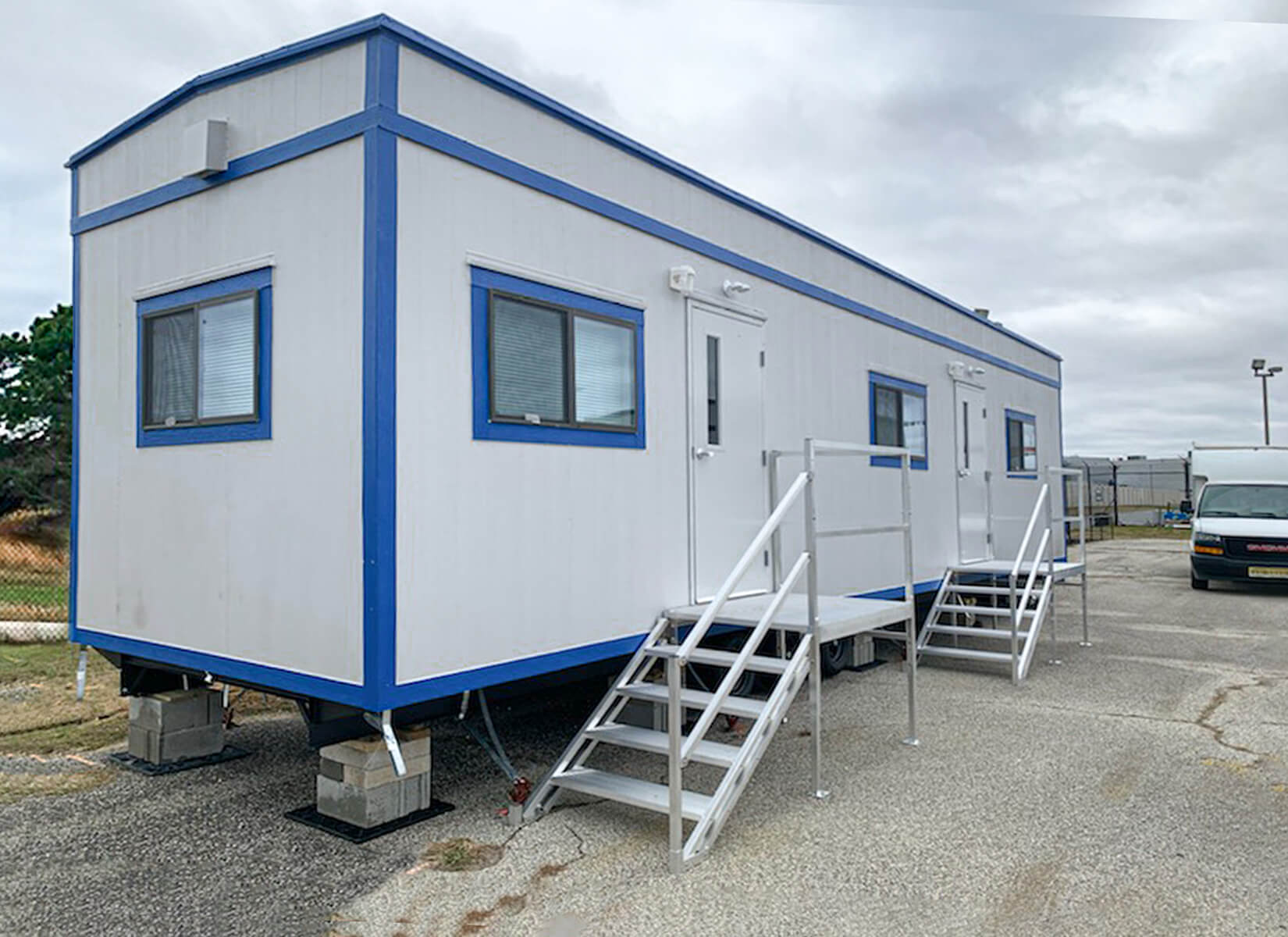

Our steps are always OSHA-compliant to give safe access into mobile offices and trailers.
PREFABRICATED
No welding, special tools, or heavy equipment. Ships ready to install.
REACH ANY HEIGHT
With a range of products, our portable steps can reach heights of over 10’.
FAST INSTALLATION
Prefabricated and bolts together on-site and assembled for your mobile office trailer in about 10 minutes.

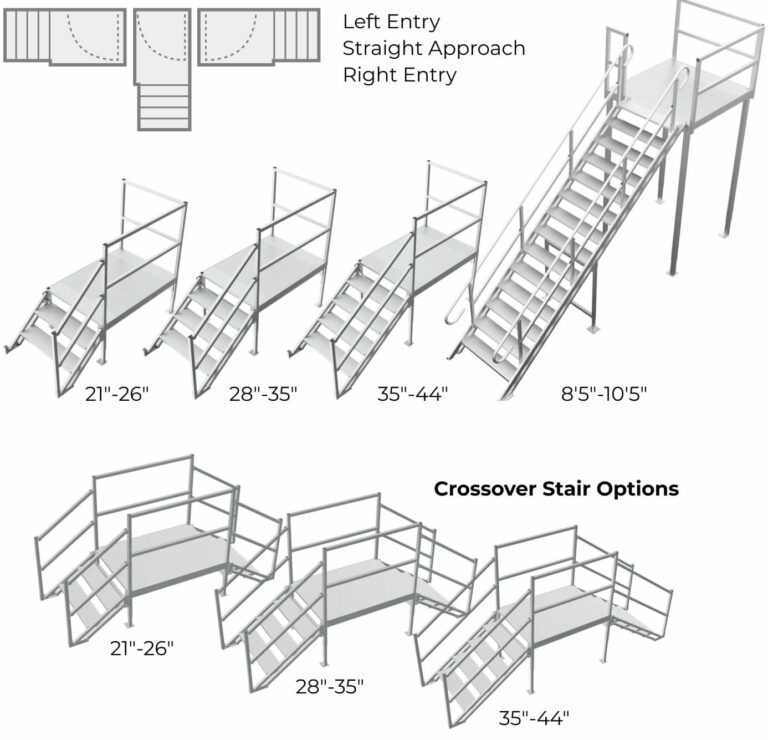

SIZES AND ORIENTATION OPTIONS
REUSABLE
With adjustable legs and pivoting risers, our portable stair system is ideal to reuse and repurpose.
TECHNICAL DROWING
SPECS ON THE TWO-STORY OPTION
ADJUSTABLE LEGS AND PIVOTING RISERS
With adjustable legs and pivoting risers, our portable stairs are adjustable up to ± 2’ for our two-story size.
