Vivid facade slats made of glassfibre reinforced concrete

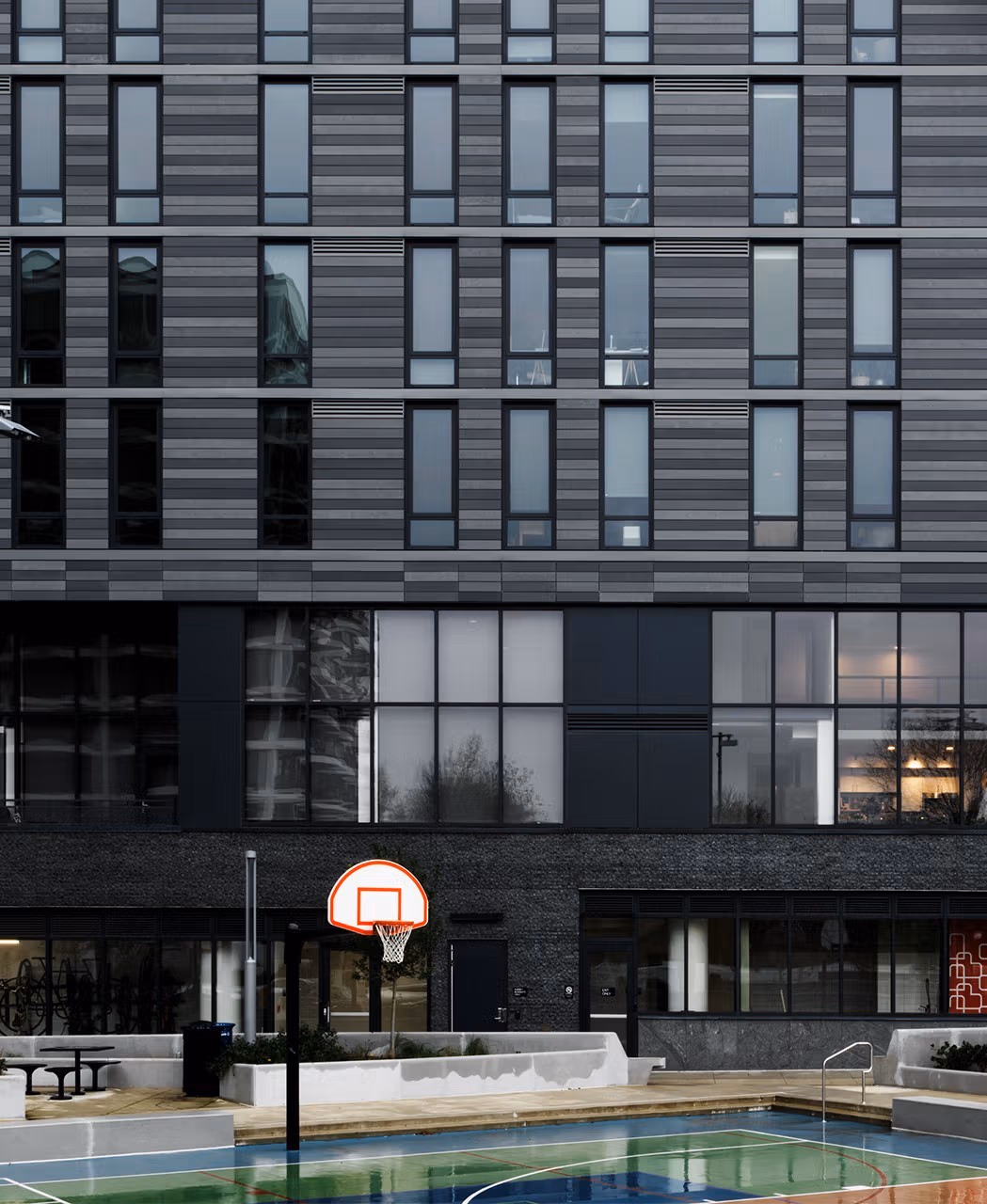

With öko skin, Rieder offers slatted concrete facades. The various surface design options create a vibrant play of colours.
The slats can be installed with little effort and unlike wood, never need to be painted or sanded.
INFORMATION
BRAND
Rieder
PRODUCT TYPE
Panels
MATERIAL
Concrete
PRODUCTION
Made in Austria

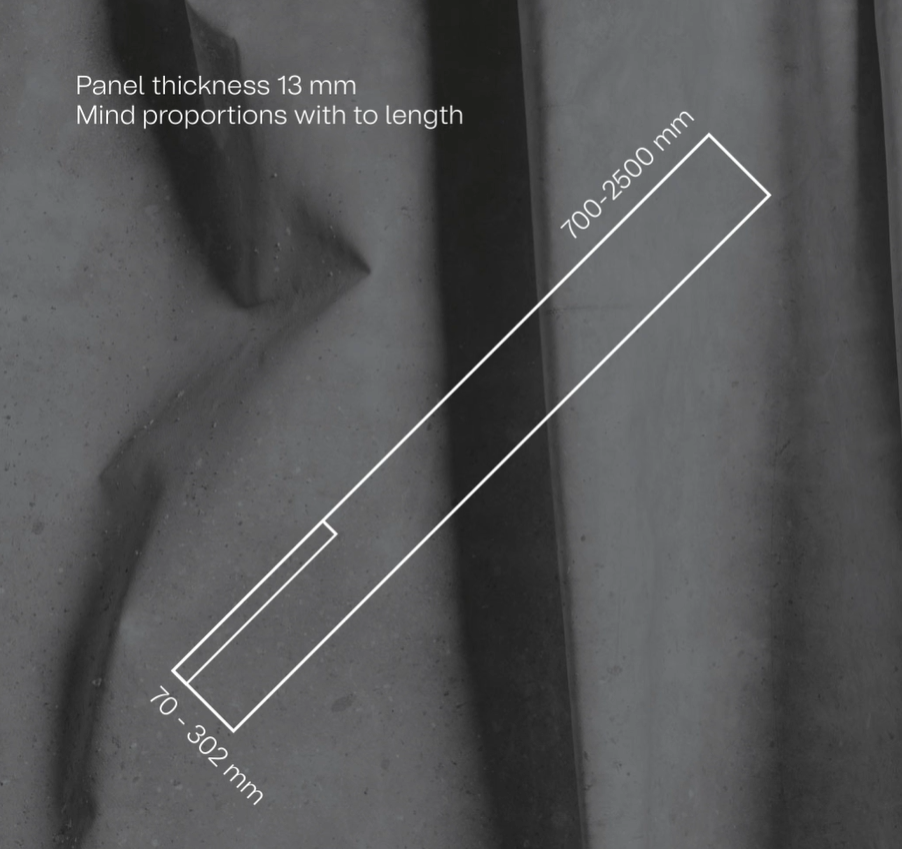

THICKNESS
13 mm
FORMATS
- Öko skin format
- Öko skin individual
INSTALLATION

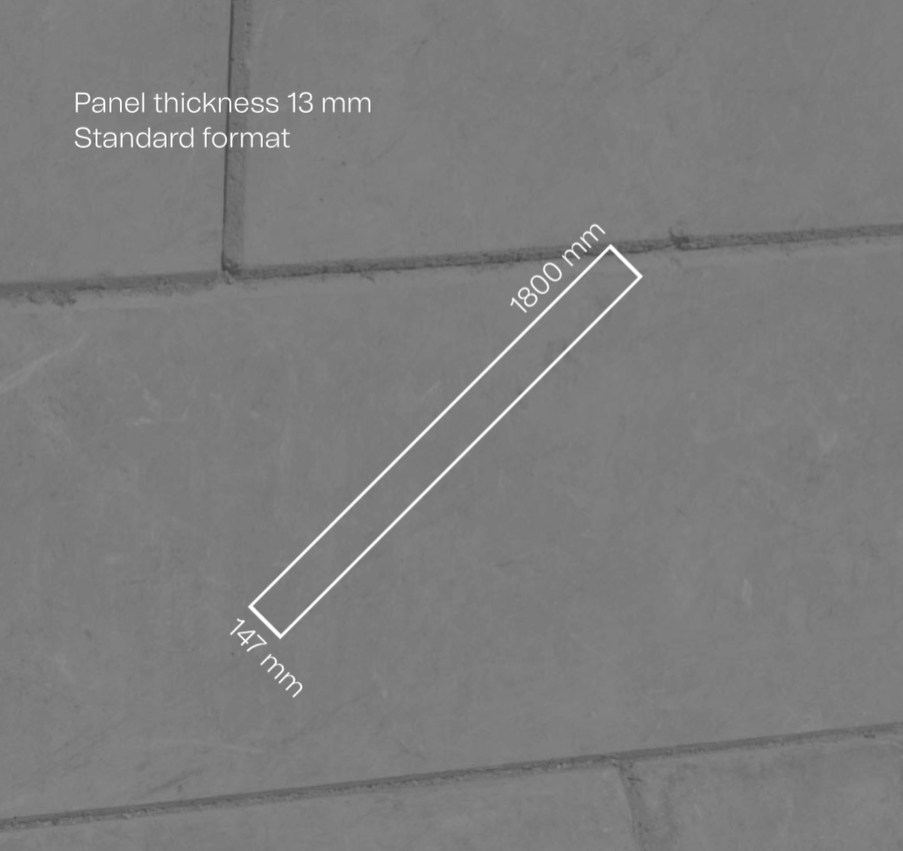

The further refined invisible fastening system hidden fix for öko skin facade slats with the format 147 x 1800 mm enables quick and easy installation.
With the concealed attachment, the öko skin slats are even more effective, since the overall appearance is not marred by rivets or screws. Rieder supplies all fastening components as well as the öko skin slats. The slats can also be mounted with rivets, screws (on a wooden substructure), undercut anchors, the Rieder Power Anchor.
DESIGN
DESIGN
With its well curated range of colours, bricky, timber, pietra and greyscale, Rieder offers a selection of coordinated shades to create the most authentic facades possible in harmony with nature and their surroundings.
The different surfaces, textures and formats lend the building envelope vibrancy and depth and give architects free reign for their ideas. Colour variations within a colour tone areintended and enhance the liveliness of the building material, concrete.

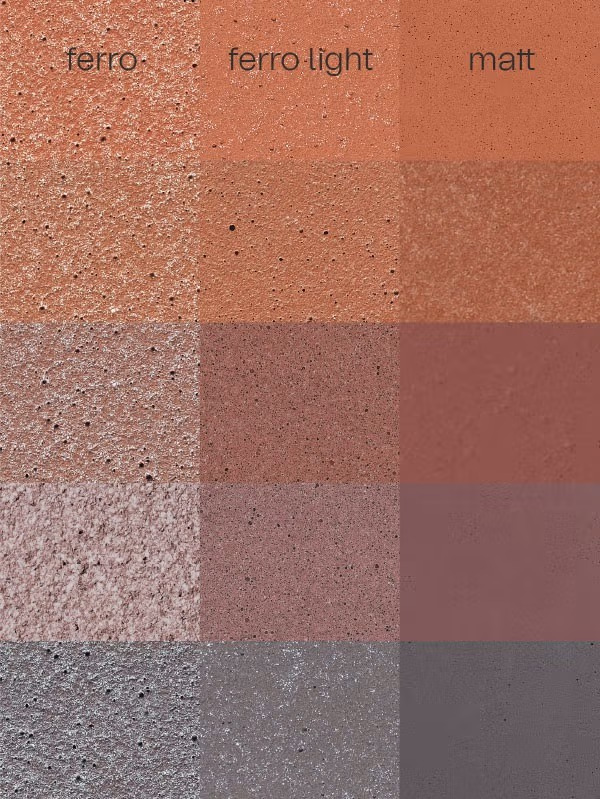

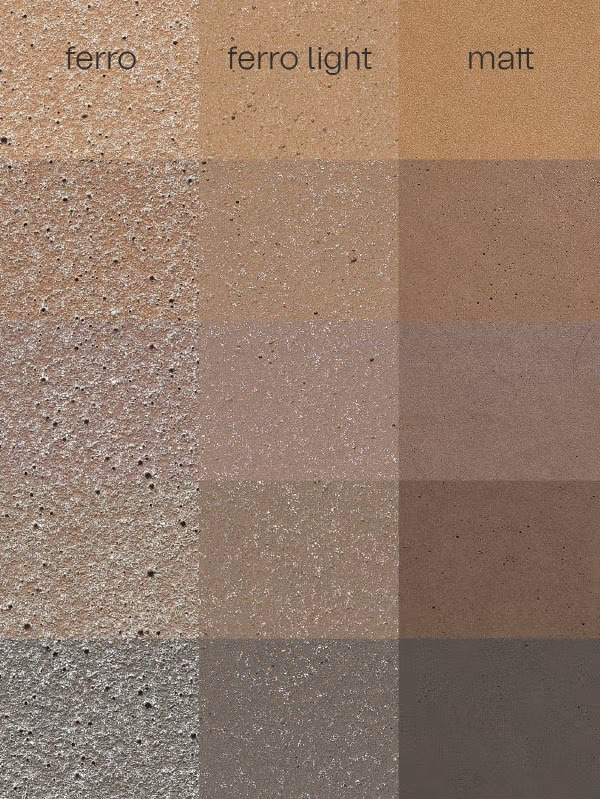

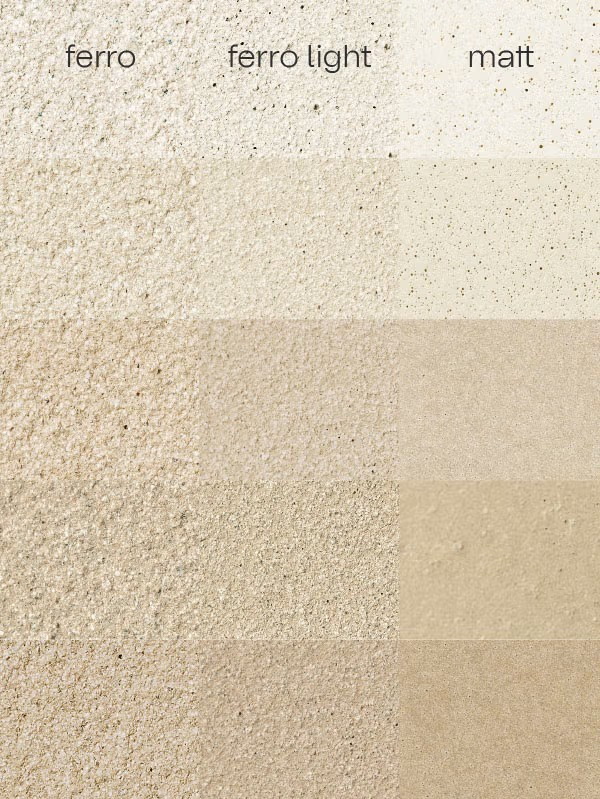

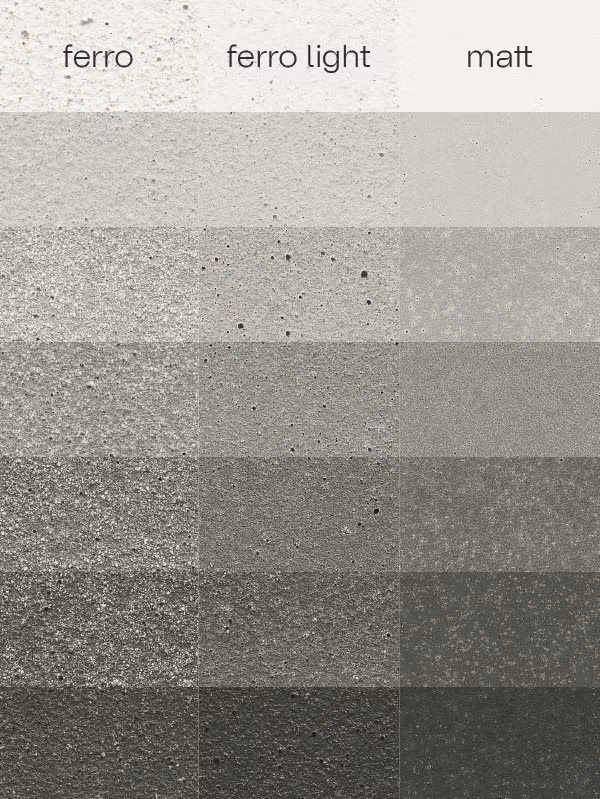

Each colouris available in the surfaces ferro, ferro light and matt. Inspired by the traditional construction method, using wood, natural stone and brick, the new colour collections have been created.
DESIGN COLORS
CHARACTERISTICS
DURABILITY
öko skin creates facades that require minimal maintenance. Due to their robust properties, the slats are weatherproof and have a long service life.
FIRE SAFETY
Products made of fibreC guarantees absolute fire resistance: fire rating A1 - “non-combustible“ approx. according to BBA Agrément Certificate 16/5362 for Great Britain and A2-s1,d0 - “non-combustible“ approx. according to abZ Nr. Z-31.4.166 for Germany.
VIBRANCY
Depending on how the concrete surface is treated, the material is given an individual character both visually and to the touch. Colours on matt surfaces appear more saturated, while blasting makes them less intense.
SUSTAINABILITY
With its ISO 9001 and ISO 14001 certifications, Rieder sets itself high standards for environmental protection. The environmental product declaration, EPD, gives precise indicators for the life cycle assessment.
INSTALLATION
Thanks to the manageable format, the slats can be mounted and processed further directly on the construction site - by the specialist processor, carpenter, or a skilled "do it yourself" handyman.
FLEXIBILITY

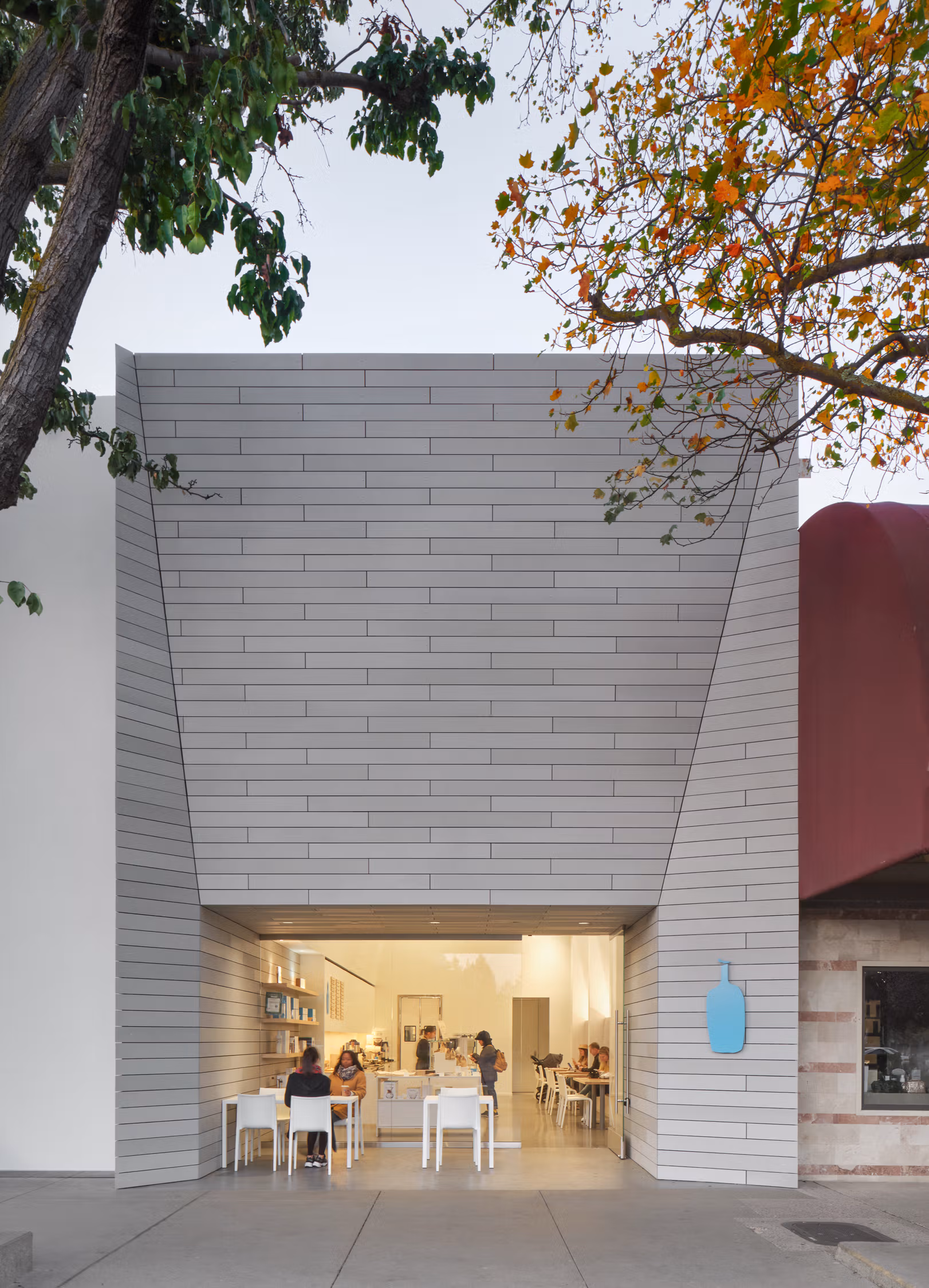

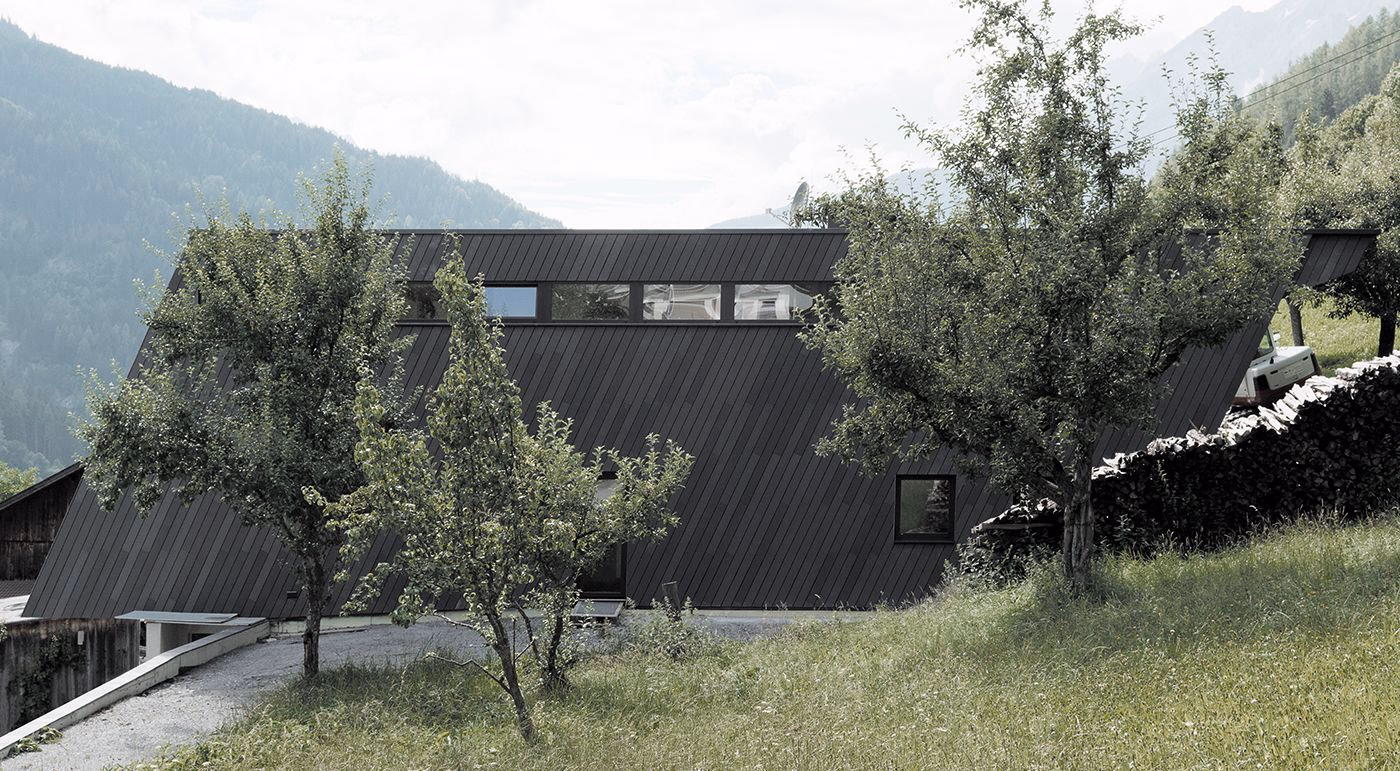

Öko skin is excellently suited for cladding large building facades. But also, for small projects, such as porches, conservatories, summer houses, garages or fences, öko skin with its versatile textures and the matt, ferro and ferro light surfaces, is a proven product.
DETAIL

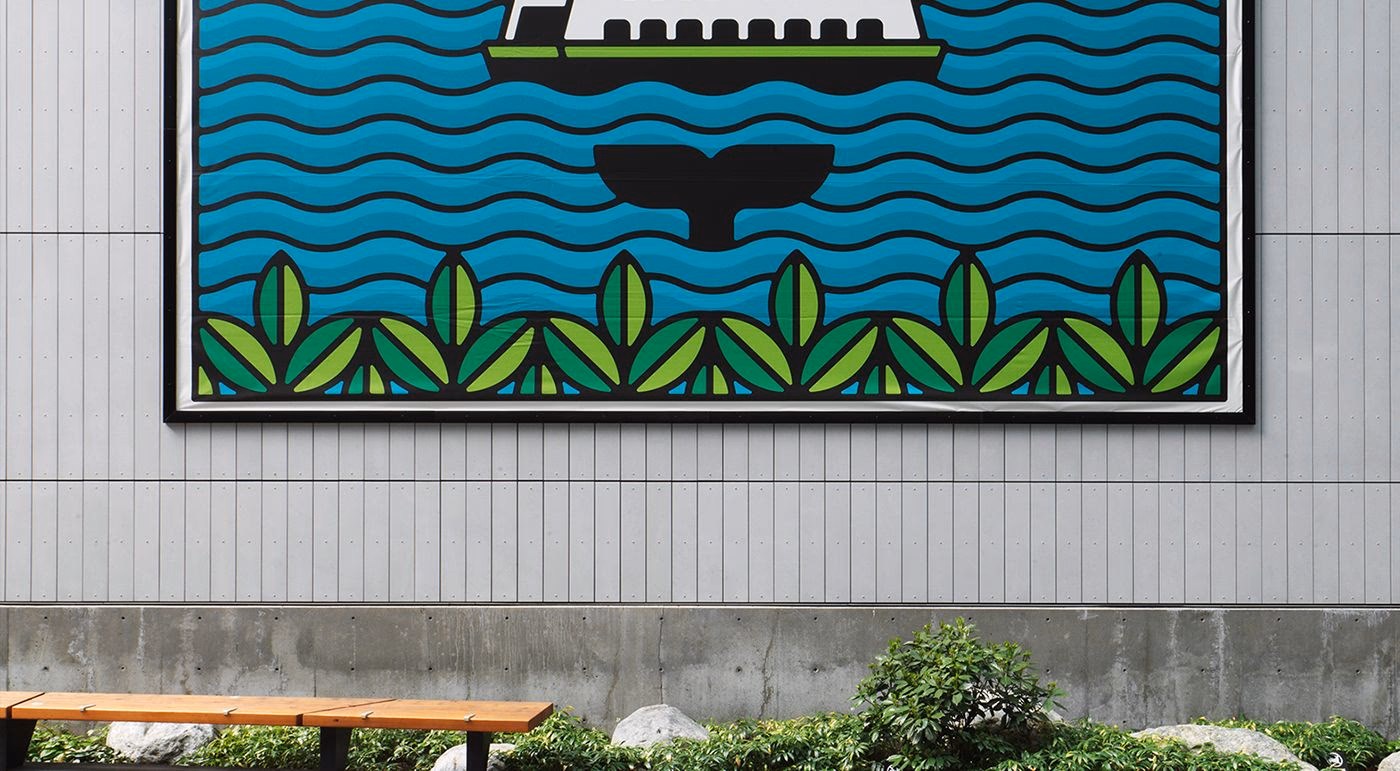

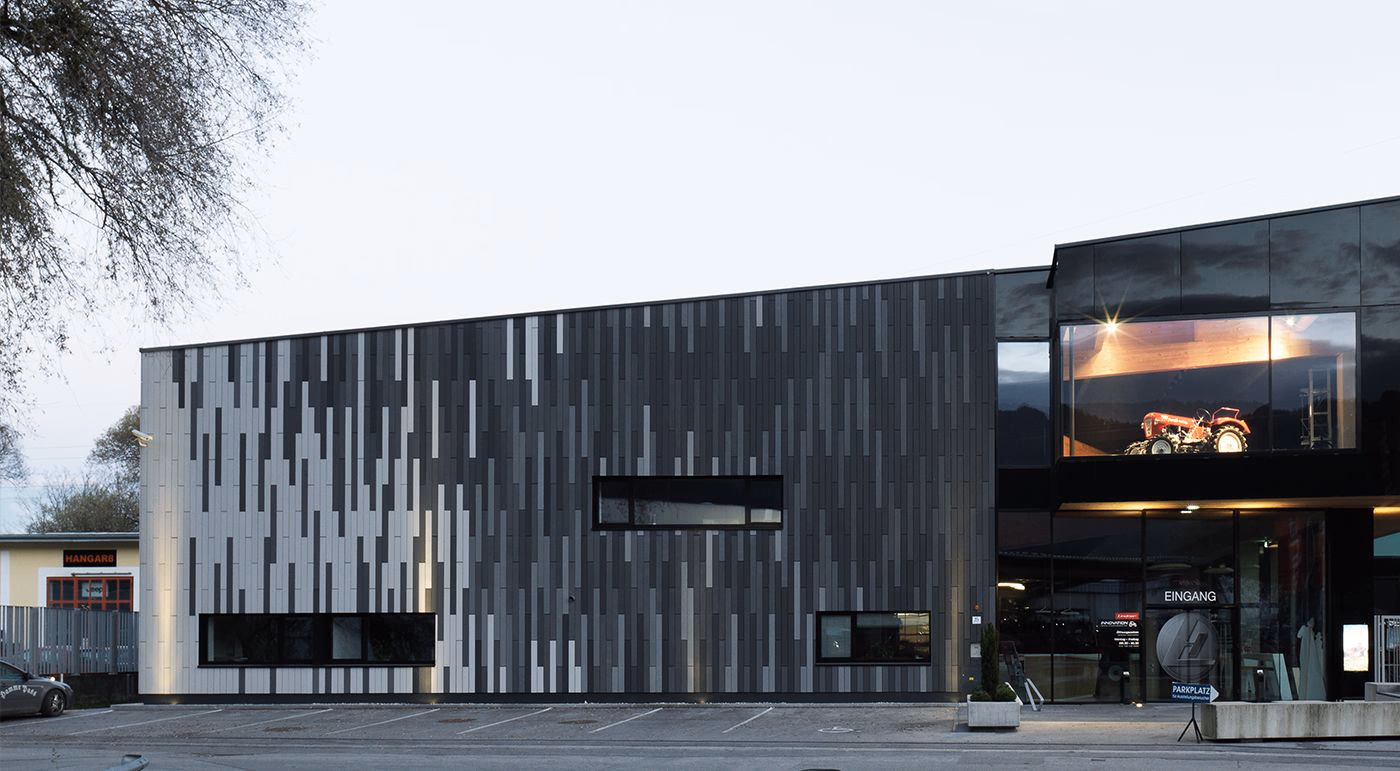

CONTRAST-RICH BUILDING ENVELOPE
The multi-contrast created by the different surfaces generates an exciting interplay of colours as well as a diverse spectrum of optical impressions and tactile experiences. This enhances the visibility of the glassfibre reinforced concrete elements.
