Mm-holz Formwork Panels
FORMWORK PANELS
FORMWORK PANELS
High load-bearing capacity, extreme stability and strength
Mayr-Melnhof Holz formwork panels guarantee many usage cycles at construction sites.

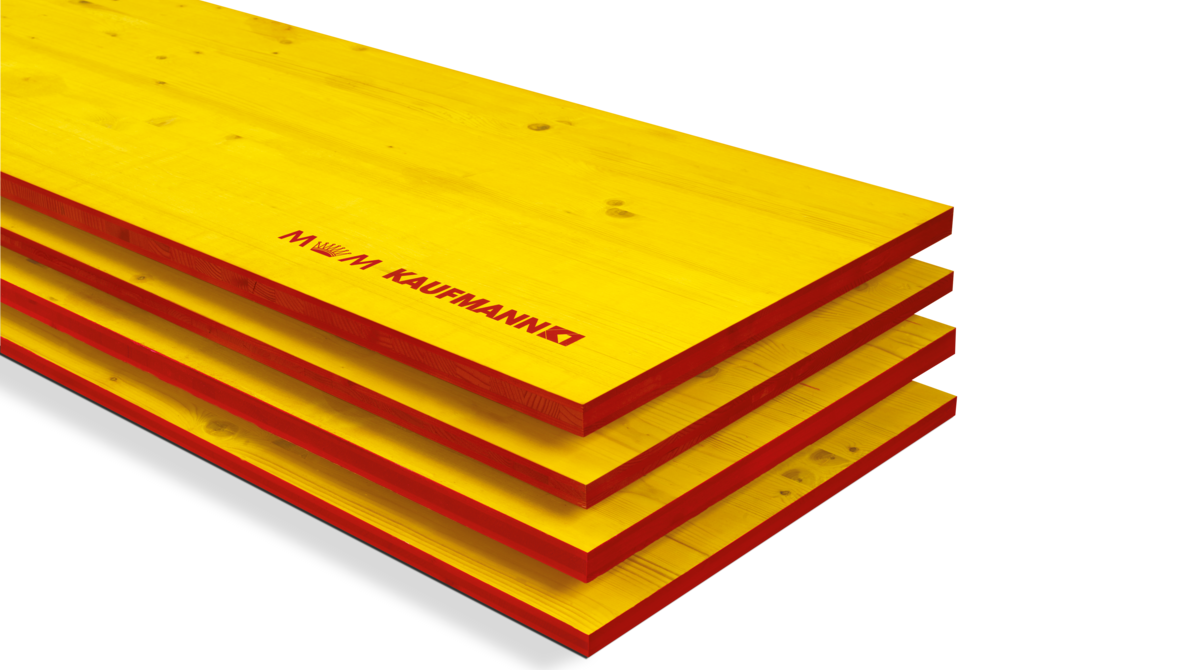

The K1 yellowplan formwork panel from Mayr-Melnhof Holz is a proven and continuously improved timber formwork product for concrete construction. This internationally established formwork panel is used wherever quality, long service life and variable use are required.
INFORMATION
K1 YELLOWPLAN: BENEFITS
- High dimensional stability thanks to solid, laminated cover and middle layers
- Stable longitudinal edges thanks to closely bonded middle layers
- Optimal pore structure thanks to completely sanded surface and high-quality melamine resin coating
- PU edge sealing prevents moisture ingress and concrete sludge adhesion (upon request)
BRAND
mm-holz
PRODUCT TYPE
Panels
EDGE COATING
- Grey, yellow or red water-based edge paint
- PU edge sealing, red upon request
K1 YELLOWPLAN: PRODUCT STANDARDS
- ON B3023 Solid wood panels: 3-ply formwork panels
- EN 13353 Solid wood panels (SWP): Requirements
In terms of building law, formwork panels do not require marking.
We print the production code visibly onto every K1 yellowplan formwork panel.
COLLECTION
Formwork
FIRE CLASS
D-s3, d0
CALCULATED VALUES
Mechanical properties acc. to ÖN B 3023 for nominal thicknesses of 21 mm and 27 mm
The calculated values apply to a wood moisture of 12 %. In case of strong moisture saturation up to the fibre saturation point, the values for bending strength and flexural modulus may be reduced by up to 30 %.
DESIGN
- 3-ply structural panel, glued crosswise
- Completely and evenly sanded cover and middle layers
- Closely bonded middle layer resulting in stable longitudinal edge
- Laminated cover and middle layer, no edge bands
- Sturdy melamine resin coating
MEAN MODULUS OF ELASTICITY
10,000 N/mm²
MOISTURE CONTENT
12 % (± 3 %)
PRODUCT STANDARD
- ÖN B 3023,
- EN 13017-1 Tab. 1
- ÖN B 3023 smooth (GL)
- EN 13354
- EN 13353

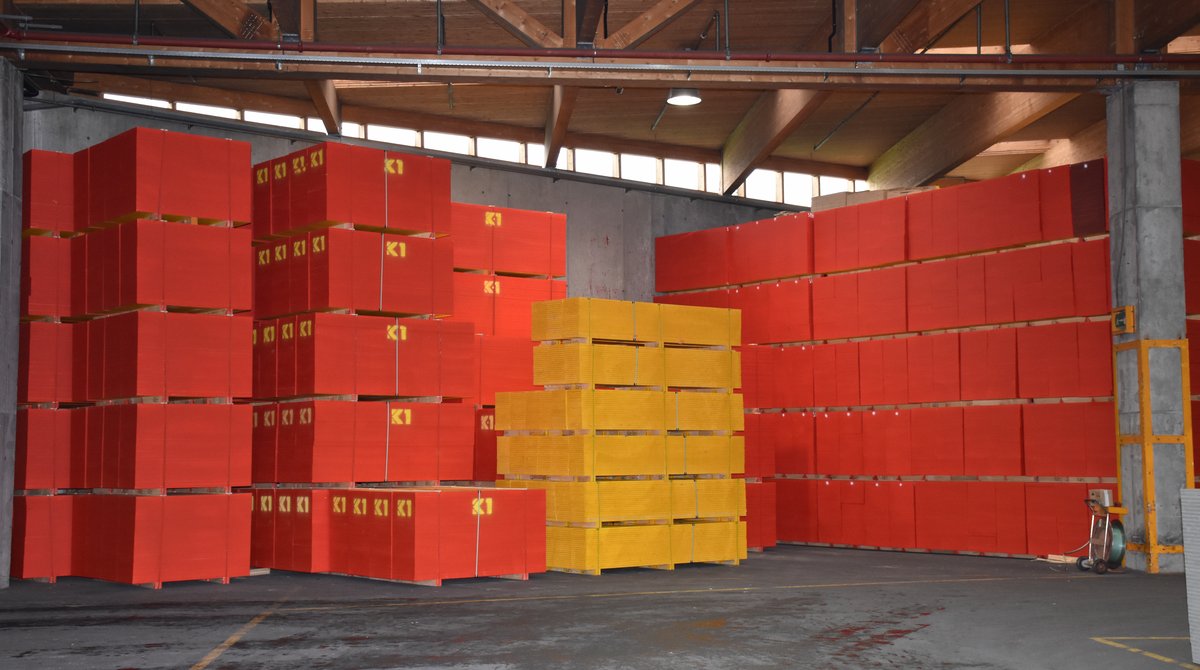

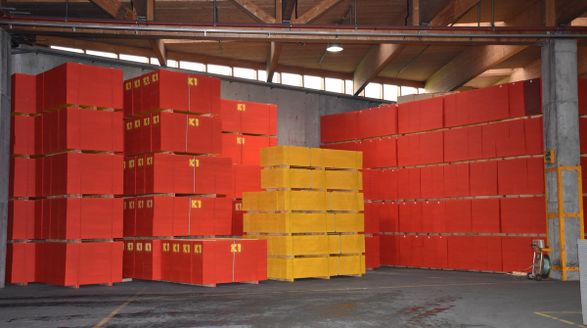

PACKAGING
- Packages: 50 units of 21 mm or 40 units of 27 mm thickness
- Delivered together with supporting timber for stacking at the construction site
- Packaging units for large format panels as per arrangement
WOOD SPECIES
Spruce (Picea Abies), Fir (Abies)
DOWNLOADS
↓ Brochure
GLUING
Alkali-, water- and weatherproof bonding according to ON B 3023
SURFACE
Completely sanded surface
Sturdy melamine resin coating
DIMENSIONS
STANDARD FORMAT
| LENGTH | WIDTH |
|---|---|
| 100 cm | 50 cm |
| 150 cm | 50 cm |
| 200 cm | 50 cm |
| 250 cm | 50 cm |
| 300 cm | 50 cm |
LARGE FORMATS
| LENGTH | WIDTH |
|---|---|
| 200 cm | 100 cm / 150 cm / 200 cm |
| 250 cm | 100 cm / 150 cm / 200 cm |
| 250 cm | 100 cm / 150 cm / 200 cm |
| 300 cm | 50 cm / 100 cm / 150 cm / 200 cm |
| 400 cm | 50 cm / 100 cm / 150 cm / 200 cm |
| 500 cm | 50 cm / 100 cm / 150 cm / 200 cm |
| 600 cm | 50 cm / 100 cm / 150 cm / 200 cm |
TOLERANCES
| DATA | MEASUREMENT 1 | MEASUREMENT 2 |
|---|---|---|
| Thickness | 21 mm and 27 mm | ± 1 mm |
| Widths | 50 ≤ 200 cm | ± 1 mm |
| Length | 100 ≤ 250 cm | ± 1 mm |
| Length | 300 ≤ 600 cm | ± 2 mm |
| Longitudinal curvature | 100 ≤ 300 cm | ± 1 mm |
| Longitudinal curvature | 301 ≤ 600 cm | ± 1.5 mm |
| Longitudinal curvature | Widths < 50 cm | ± 1 ‰ |
LOGISTICS SERVICES
SEA
- Loading into shipping containers is possible at all sites.
- With trusted logistics partnerss we are able to offer fast and reliable container shipments worldwide.
- Subject inducement we can offer breakbulk shipments from the Adriatic, Baltic and North Seas.
- With our own port terminal in Koper, Slovenia, we have regular chartered services to southern Mediterranean ports & beyond.
ROAD
- Long-standing stable business relationships with a large number of logistics service providers in Europe. - We use digital platforms for fast communication with our transport service providers.
DOCUMENTATION
Together with our logistics partners we will provide you with professional documentation to enable you to cover all your export, import, and customs formalities without problems.
RAIL
- All Mayr-Melnhof Holz sawmills in Leoben (AT) & Paskov (CZ) as well as our timber processing plants in Gaishorn (AT) & Wismar (DE)are directly connected to national railway networks.
- We use both private & public rail service providers to transport goods in an environmentally friendly manner.

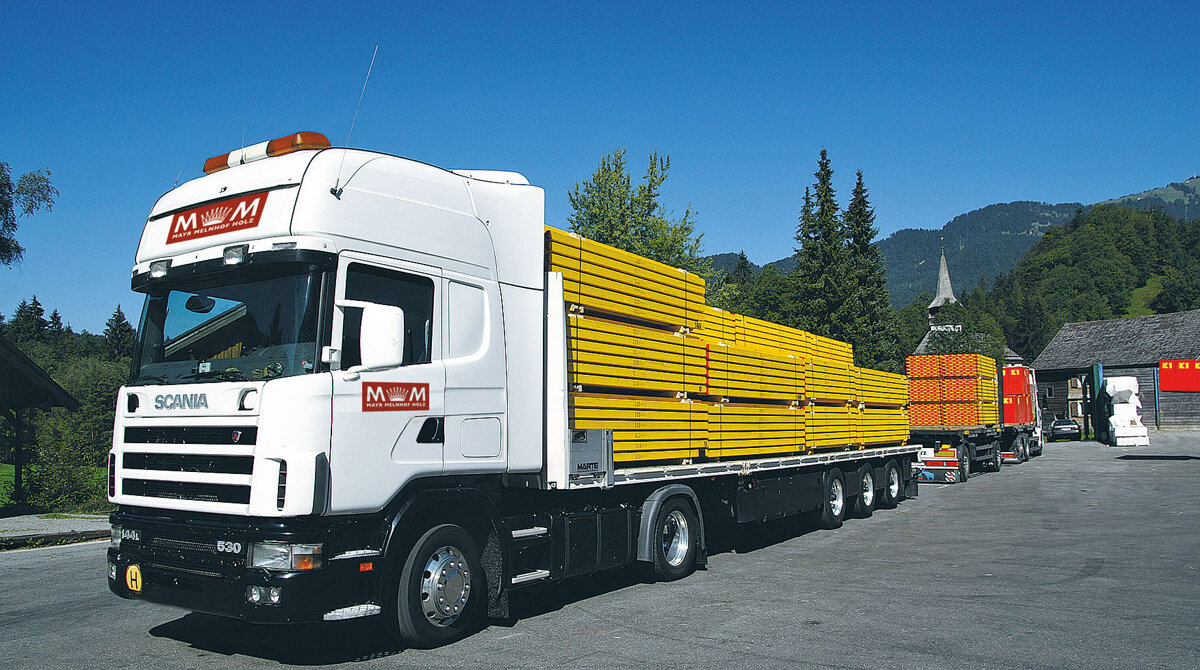

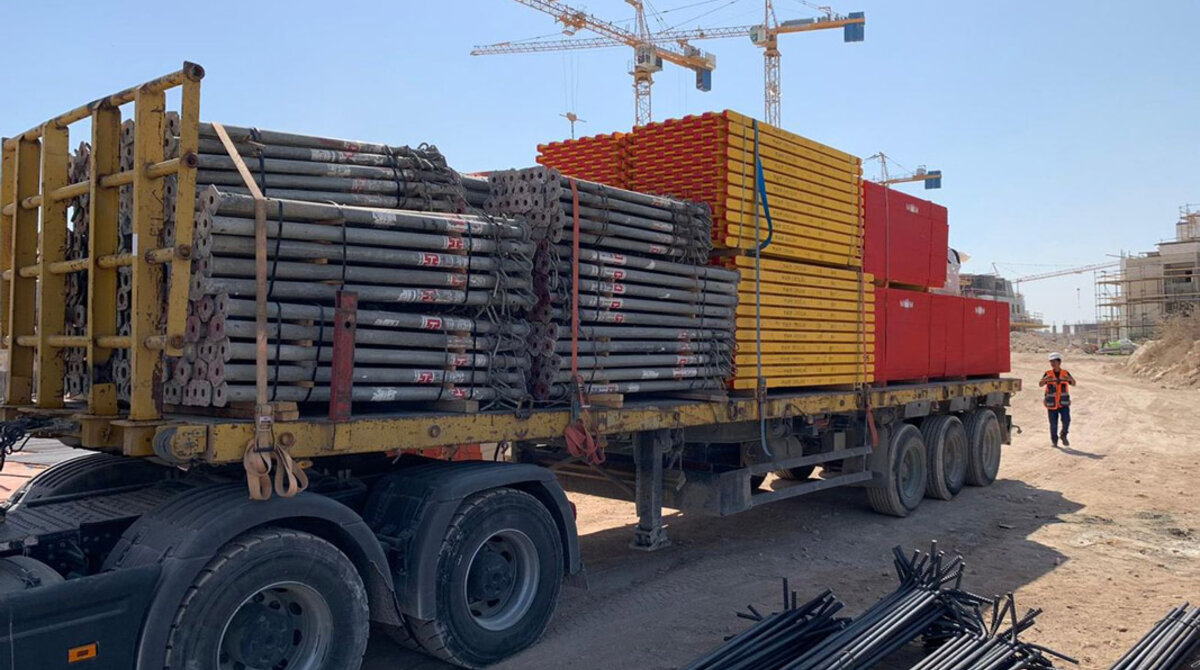

DELIVERY TO CONSTRUCTION SITES
- Just-in-time deliveries to our cross-laminated and glulam construction sites.
- A full range of modern transport solutions is offered as necessary :
- All-wheel drive trucks
- Narrow-access self-steering trailers
- Hydraulically steered trailers
- Solo vehicles with up to 10 m loading length for inner-city areas
- Covered loads up to 3,5 m wide
- Loads up to 52 m length
- Trailers with on-board forklifts
- Edscha sliding roof trailers for vertical access
