INEO BATHROOM RADIATOR
INEO BATHROOM RADIATOR

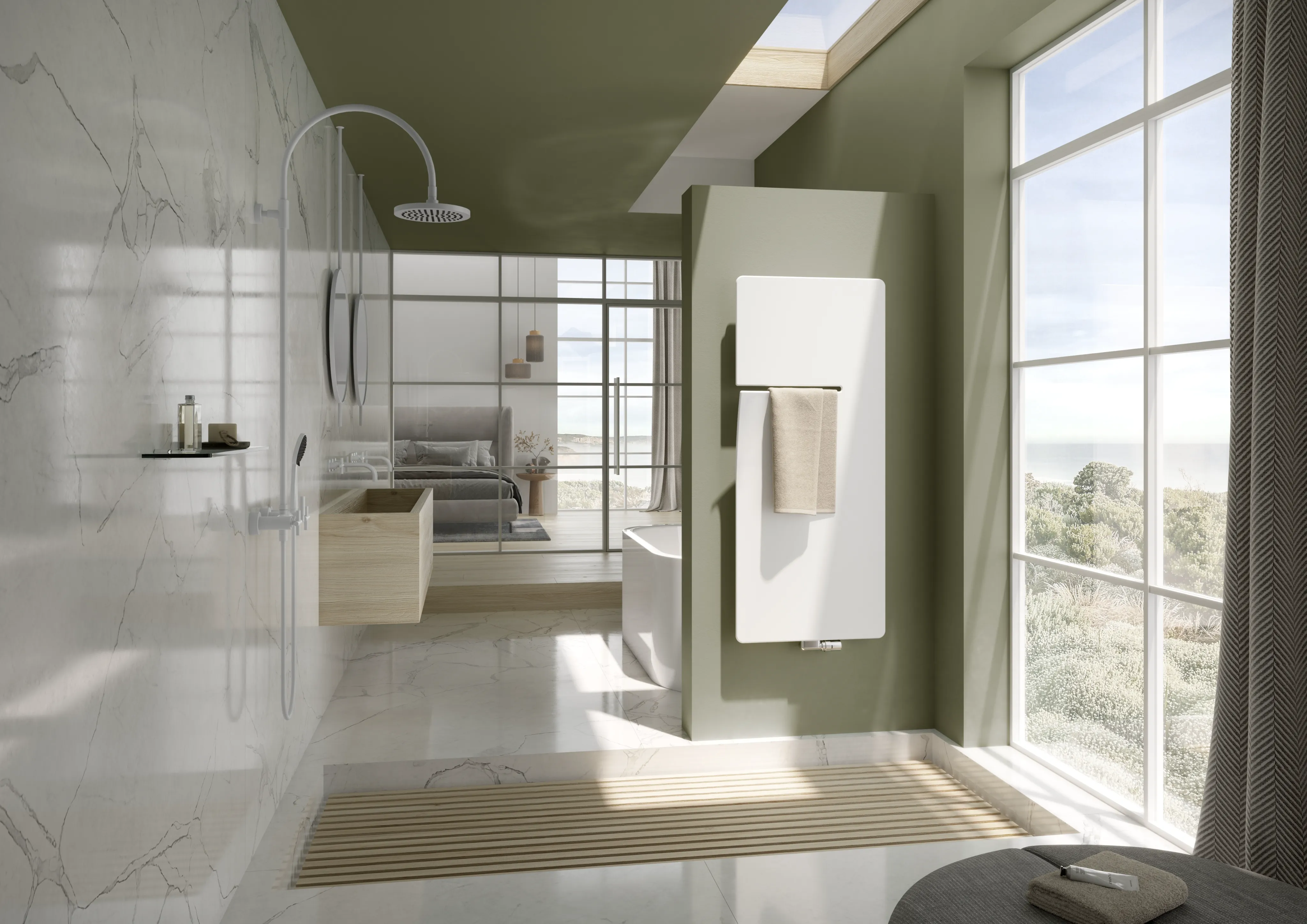

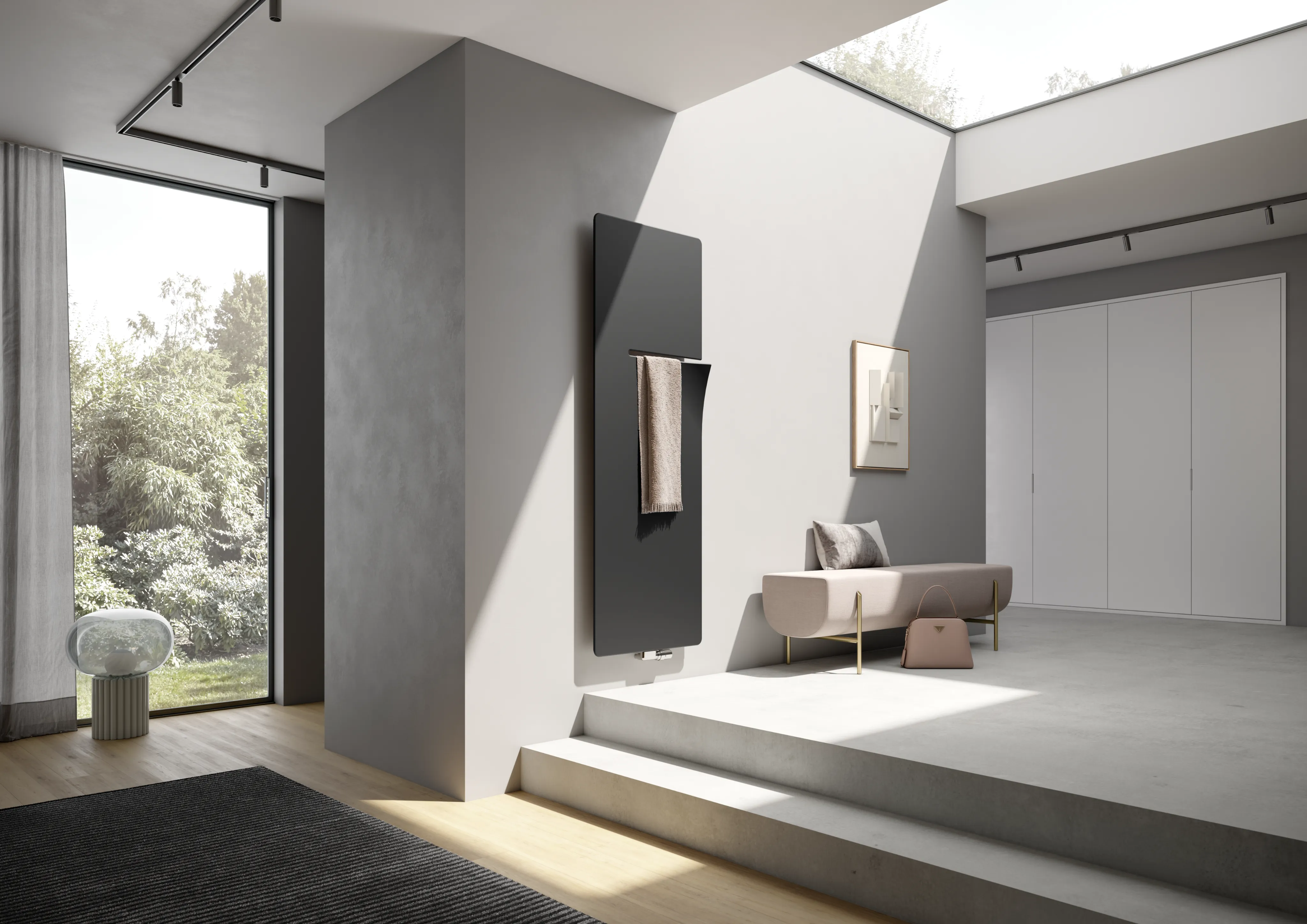

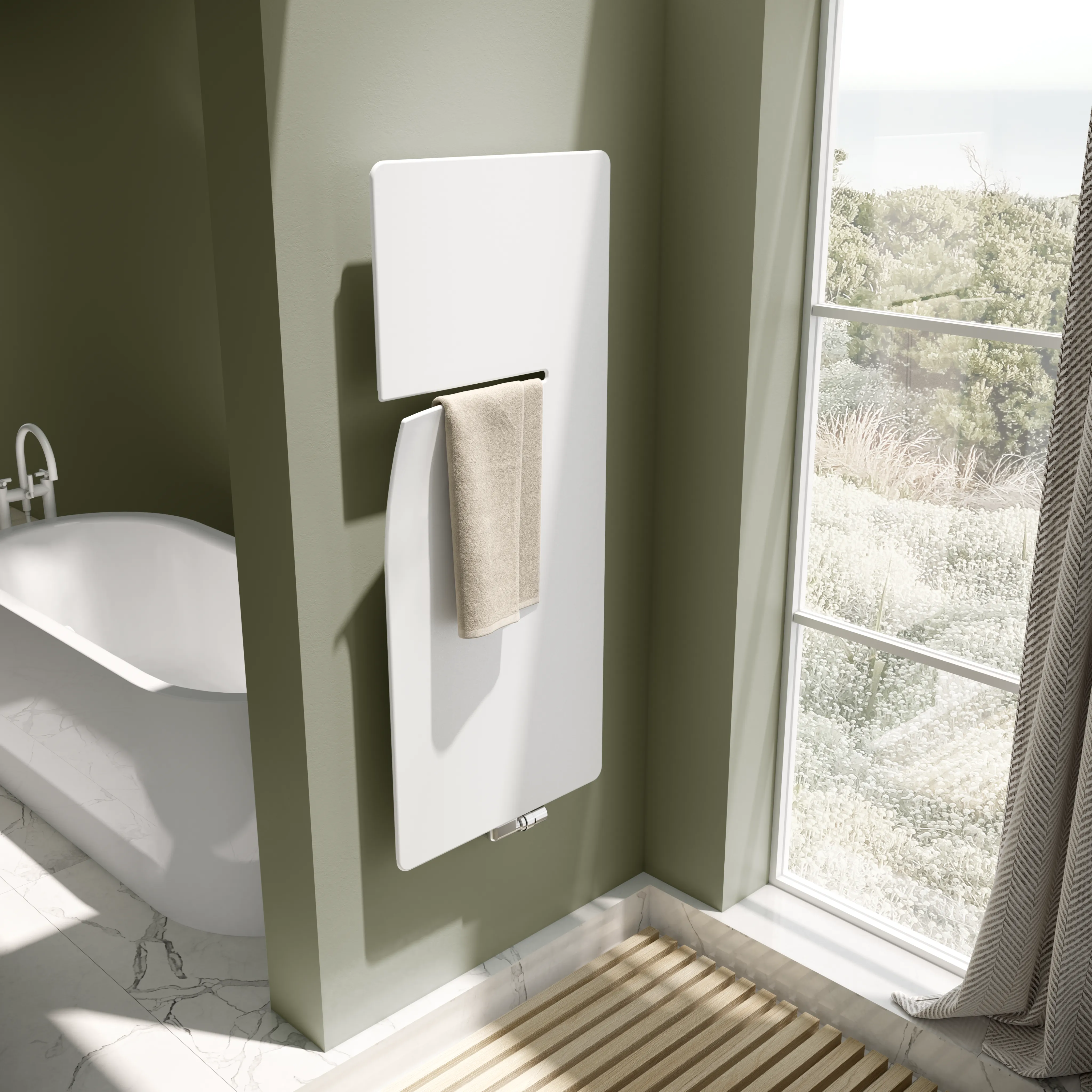

The vasco ineo is a designer aluminium radiator with a sleek, flat design and rounded corners.
The ultra-thin front panel contains an integrated copper tube for optimum heat conduction.
The radiator has a practical cut-out about 2/3 of the way up, ideal for hanging towels. The sides are subtly curved towards the front, giving the radiator an elegant and functional appearance. Available in 6 modern colours.
INFORMATION
BRAND
Vasco
PRODUCT TYPE
Radiator
HOT WATER
Compact design for hot water use
LEFT OR RIGHT TOWEL OPENING
Cut-out for towels possible on the left or right side
COLLECTION
Ineo
PRODUCTION
Made in Belgium
MATERIAL
Aluminium
AVAILABLE COLORS
6
CORNER
Rounded Corners
ORIENTATION
Vertical
DESIGN
Sleek & Flat design
INSTRUCTIONS FOR USE
SAFETY INSTRUCTIONS
- The radiator's surface can heat up to 110 °C (230 °F).
- Be careful when touching the radiator.
DISPOSAL
Recycle or dispose of disused radiators, including accessories, properly. Observe local regulations.
CLEANING
Use only mild, non-abrasive cleansing agents.
MAINTENANCE
Vent the radiator after commissioning and following lengthy interruptions of operation.
INSTALLATION AND REPAIRS
Have the installation and repairs performed by a specialized tradesman so that your claims under warranty are not forfeited.
PERMISSIBLE USE
The radiator may only be used for heating interior spaces and for drying textiles washed in water. Any other use is contrary to the intended purpose and therefore not permissible.
INSTALLATION
INSTALLATION
The radiator may only be installed by a specialized tradesman.
FOR INSTALLATION IN A ONE-PIPE HEATER
Use connection fitting with integrated, adjustable bypass.
SAFETY INSTRUCTIONS
-Read these instructions for installation and use thoroughly prior to installation/commissioning. -After installation, pass the instructions on to the end user.
TECHNICAL FEATURES
- Operating pressure : Max. 6 bar
- Test pressure : 1.3 x operating pressure
- Flow temperature : Hot water up to 110 °C (230 °F)
CONNECTION
-If necessary, remove and dispose of existing paint plugs. -Connect radiator with commercially available fittings upstream.
DIRECTIONS FOR INSTALLATION NUMBER OF ATTACHMENT POINTS
Requirement class 2 according to VDI 6036 only permissible if the recommended guideline values for displacement and withdrawal forces in usual connection situations are observed.
- Observe the dimension and position of the connections.
- The number of attachments points was determined and checked on vertically cored lightweight brick T14.
- If necessary, mount additional bracket and liftout / shift restraint device (refer to manufacturer's documentation).
- Refer to the respective instructions or manufacturer's documentation for the number and arrangement of separate fastening elements.
OPERATING CONDITIONS
- Use radiator only in closed heating systems.
- Store and transport radiator only in the protective packaging.
- Observe limitations of use in damp locations according to DIN 55900 "Coatings for radiators".
- To prevent any risk to small children, install the radiator so that the lower edge is at least 600 mm above the floor.
-Observe operating conditions for water heating installations according to DIN 18380 "VOB German Construction Contract Procedures".
- Observe water's condition according to VDI [Association of German Engineers] 2035 "Prevention of damage in water heating installations".

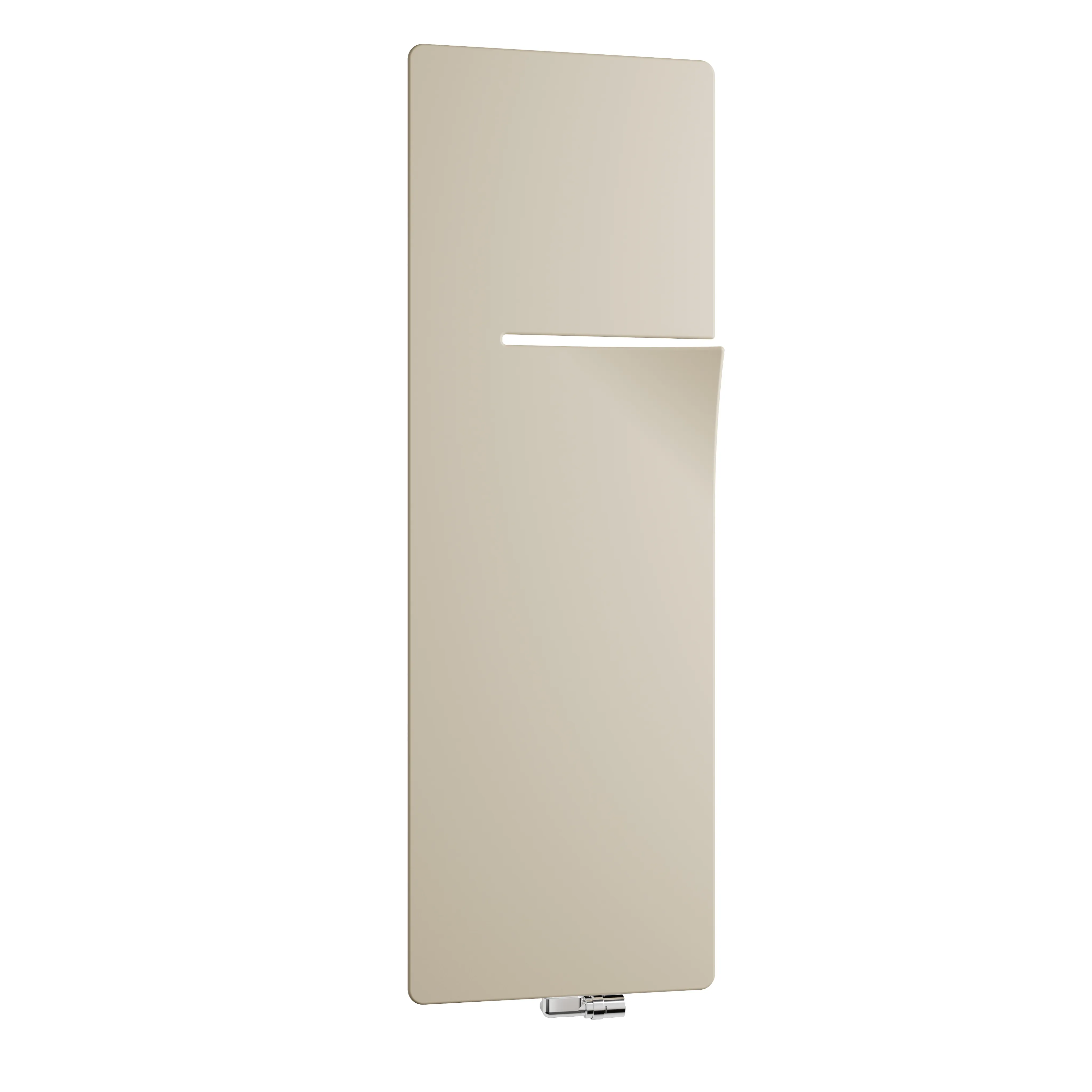

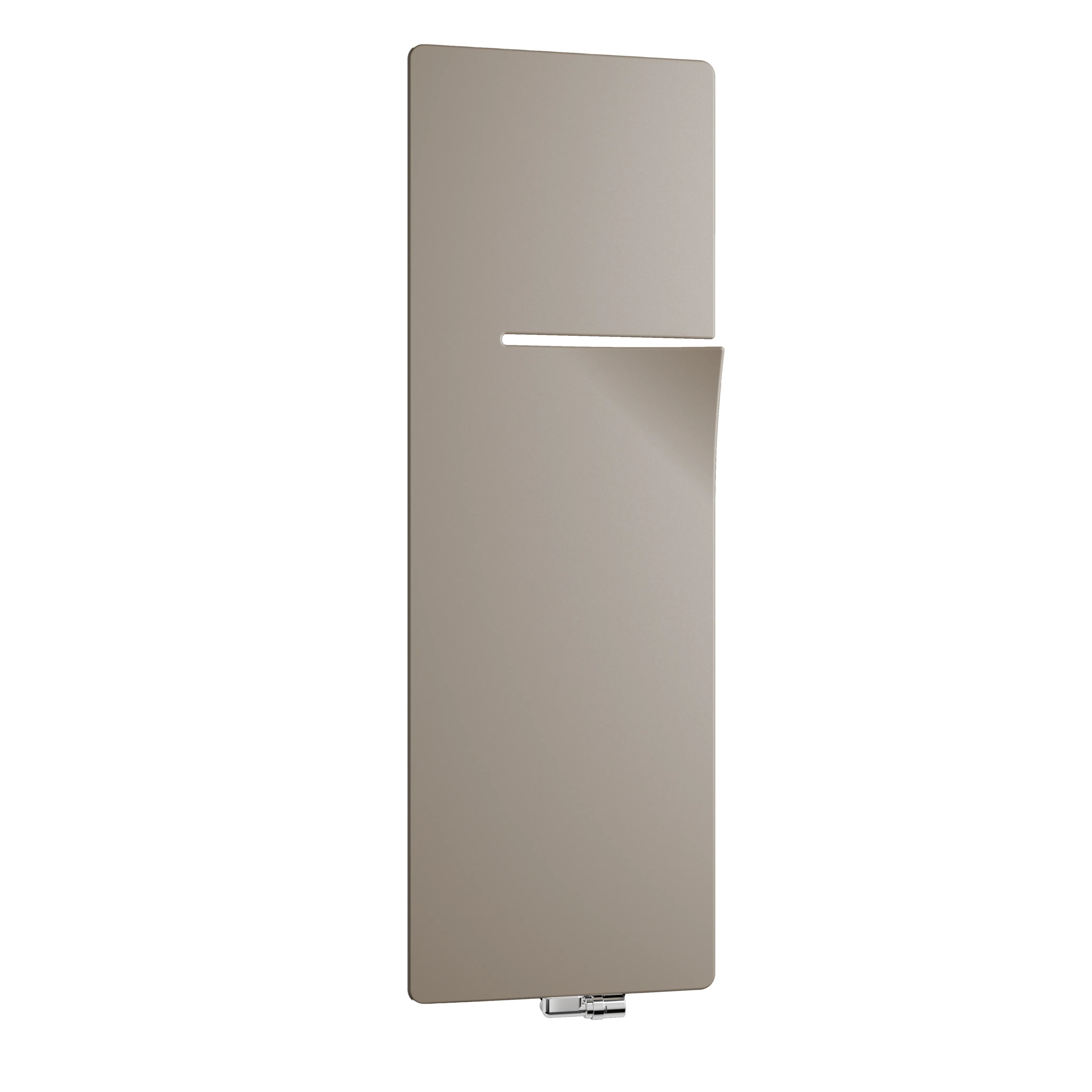

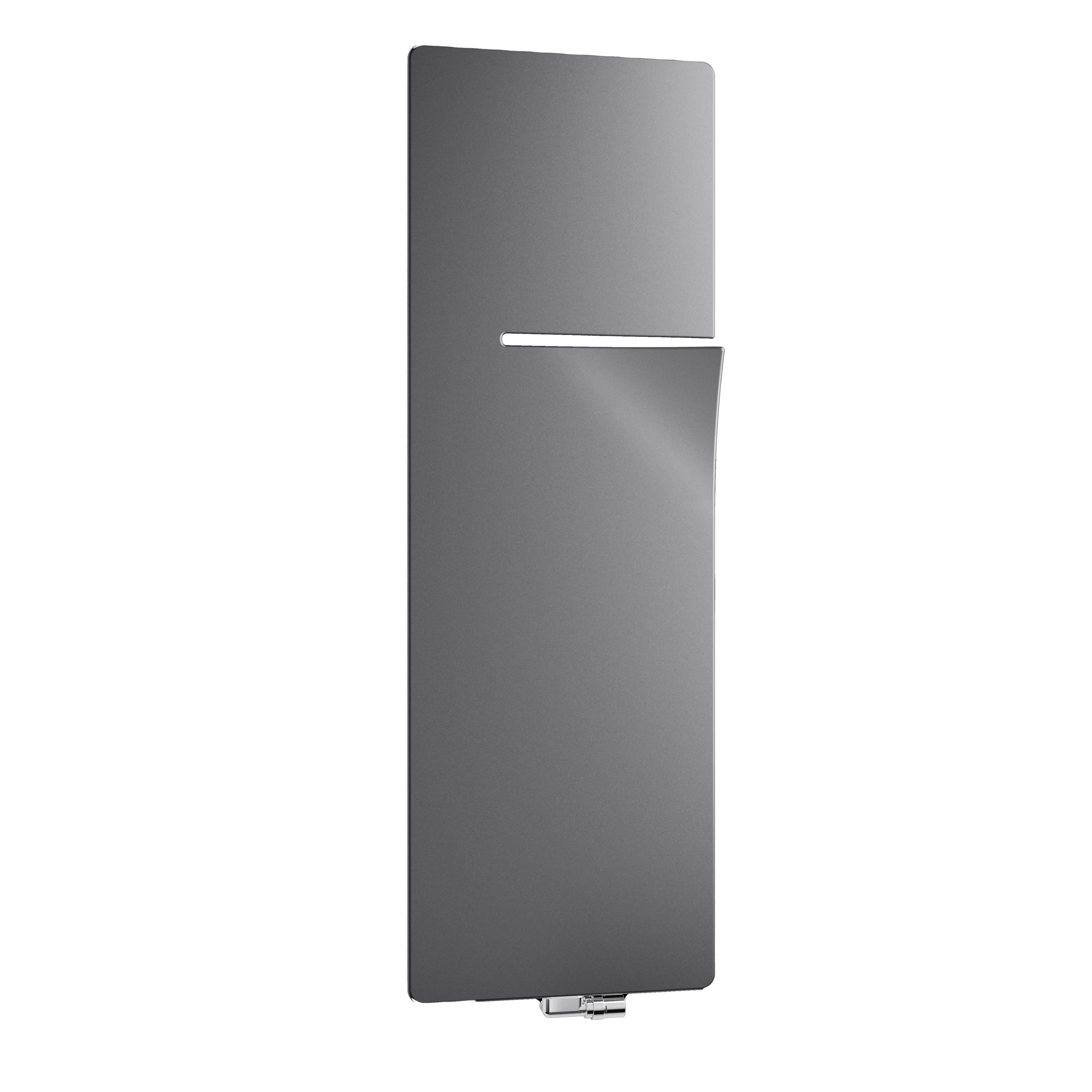

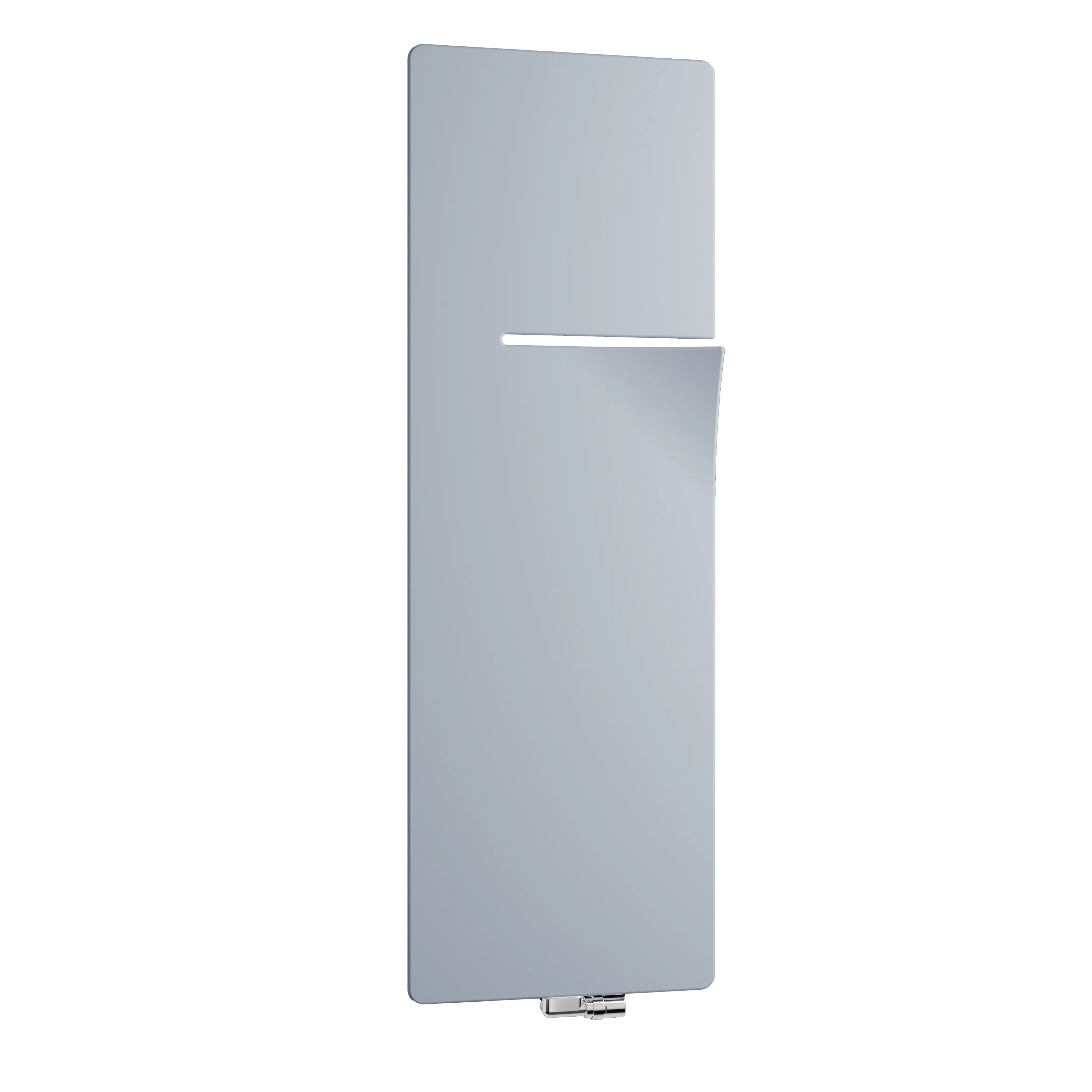

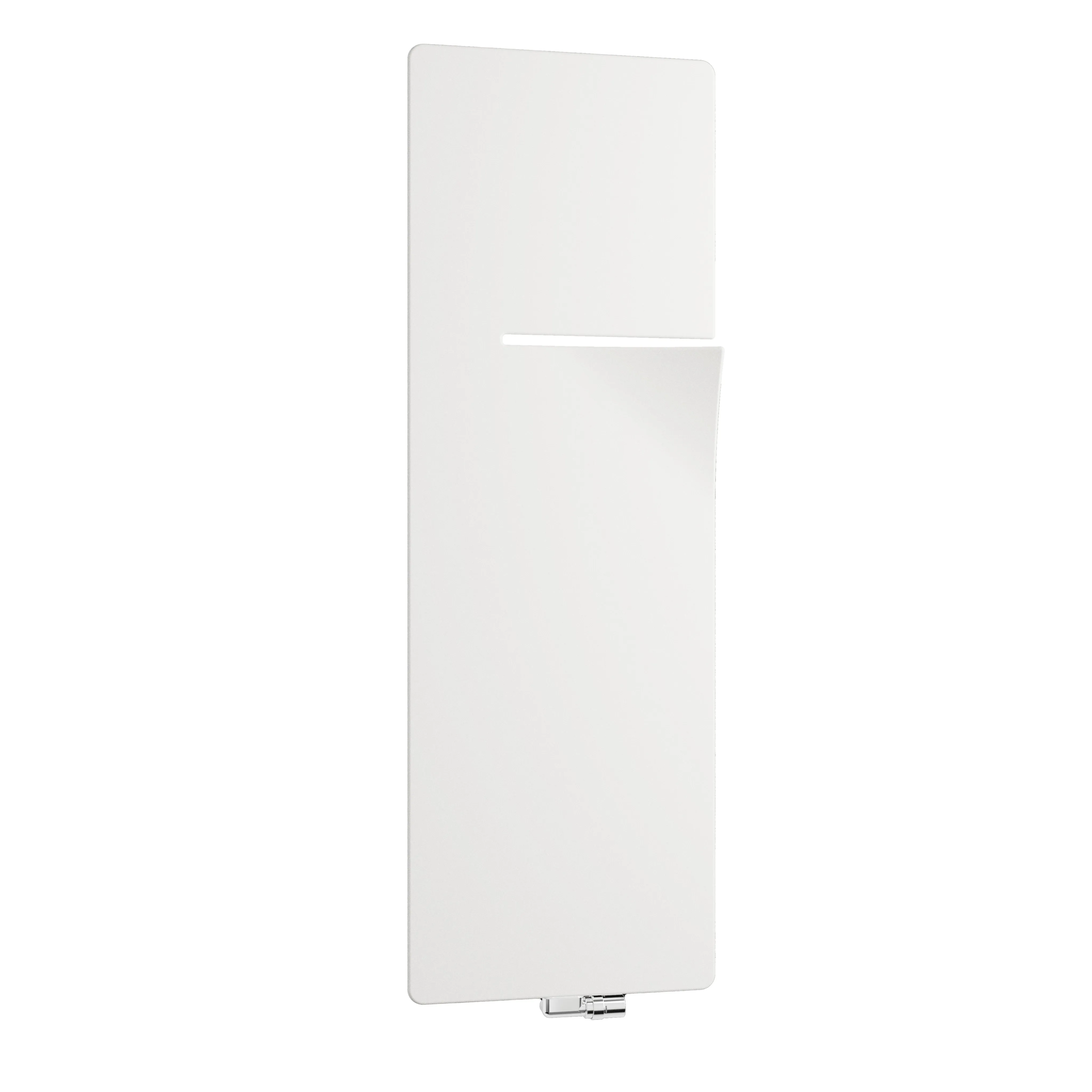

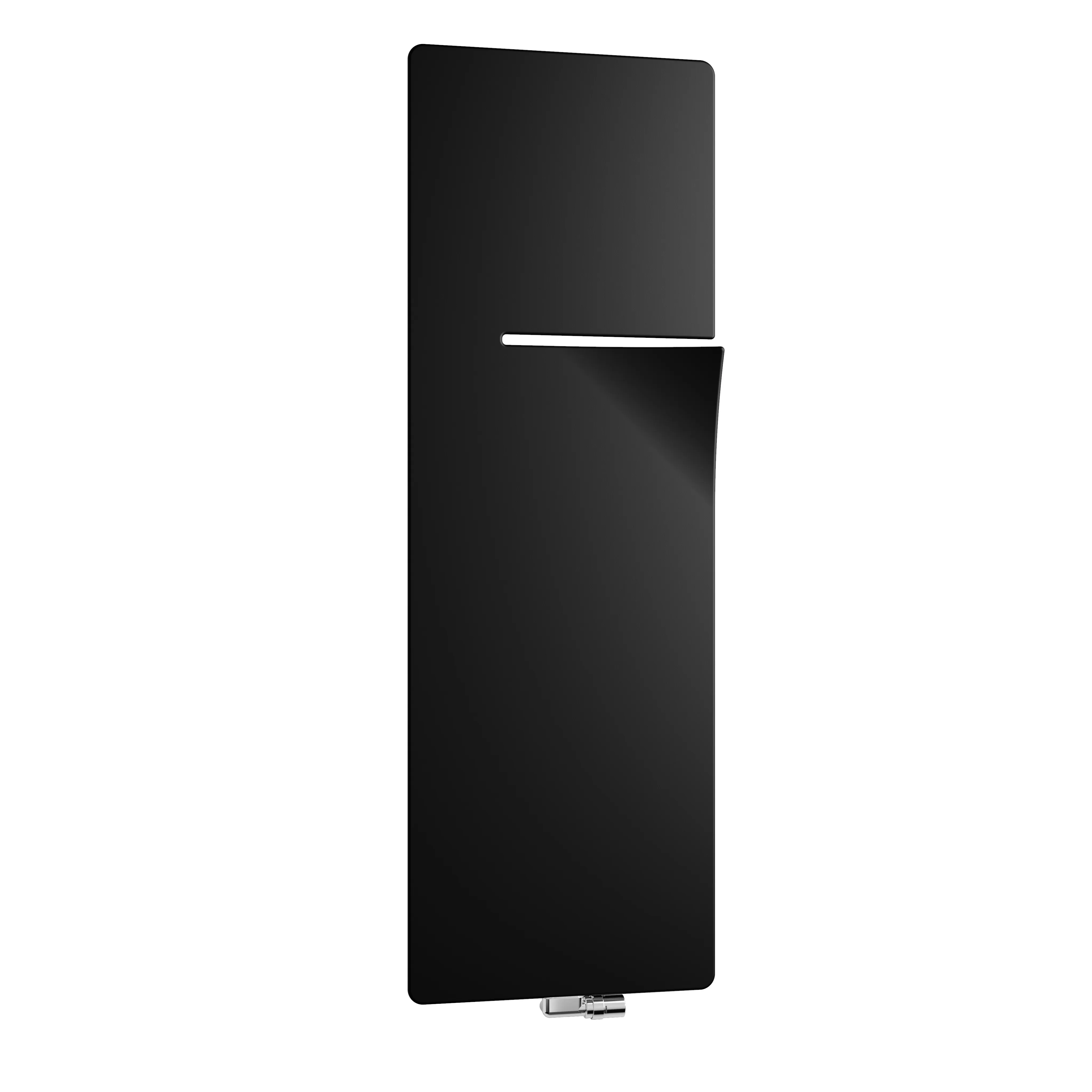

COLORS
ALL COLORS
