883 - ARCHED DOOR
883 - ARCHED DOOR

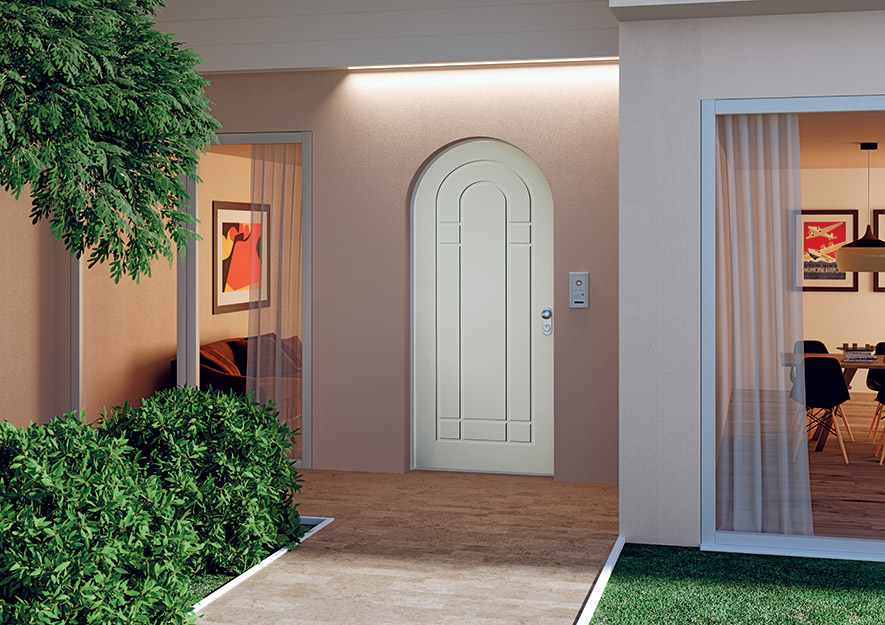

The security door to customize
883 is the anti-intrusion class 3 security door which can be totally customized according to the customer need and style.
INFORMATION
BRAND
Dibi
PRODUCT TYPE
Door
THERMAL TRANSMITTANCE
- 1.26 W/m²K with external panel 4mm thick
- 1.13 W/m²K with external panel 20mm thick
ACOUSTIC INSULATION
- 30 dB with external panel 4mm thick
- 31 dB with external panel 10mm thick
DIMENSIONS 1 - SINGLE-LEAF DOOR
- Width : 70–100 cm
- Height : 190–260 cm
- Adjustment Increment : 1 cm
DIMENSIONS 2 - DOUBLE-LEAF DOOR (SYMMETRIC & ASYMMETRIC)
- Width : 100–200 cm
- Height : 190–260 cm
- Adjustment Increment : 1 cm
ANTI-INTRUSION
Class 3
PRODUCTION
Made in Belgium
OPENING
Push & Pull
THERMAL INSULATION
1.13 - 1.26 W/m²K
ACOUSTIC INSULATION
30-31 dB
RESISTANCE TO WIND LOAD
Class 5
INSTALLATION
Security doors for external installation

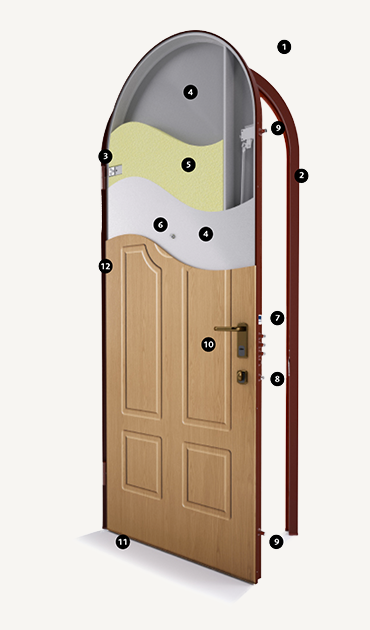

TECHNICAL FEATURES
- 1. Subframe made with 20/10 thick galvanized steel with 12 anchors to wall
- 2. Frame made with 20/10 thick galvanized steel, painted brown Ral 8017 and complete with plastic covers, gasket and footers
- 3. Adjustable hinges on 3 axes with brown hinge covers
- 4. Doorleaf made of two galvanized steel sheets 16/10 thick. Gasket in the perimeter of the leaf
- 5. Thermal insulation with high density polyurethane
- 6.Wide-angle peephole
- 7. Security locking system with master core + core with double bitted key with 5 user keys equipped with drill-proof manganese cover
- 8. Opening limiter and inside service lock
- 9. Lateral deadbolts
- 10. Handle set in bronzed aluminium (inside handle + outside fixed knob. Upon request, ouside turning knob or inside+outside handle)
- 11. Weatherstrip bar or standard bottom rebate of the door threshold
- 12. 5 fixed deadbolts on the hinge side
PANELS
The 883 arched door has the same technical features of single and double leaf 883 door, and it can be presented with all the finishing panels from Una Volta collection, in different materials: from polymer-veneered to aluminium panels, to all types of wooden panels.
AIR PERMEABILITY
Class 3
WATERTIGHTNESS
Class 9
DOWNLOADS
↓ Form Installation Check
↓ Guarantee for Di.Bi. products
↓ Certification 883 - Anti-intrusion
↓ Technical drawings for 883 door leaf
↓ Checklist for taking dimensions of security doors
↓ Installation manual for Dibidoku Handle Accessories Kit
↓ Installation instructions for Electric device for remote opening
↓ Certification 883 - Anti-intrusion
↓ Certification 883 - Thermal insulation
↓ Certification 883 - Resistance to wind load
↓ Certification 883 - acoustic insulation 883 model
↓ Certification double leaf security door - Acoustic insulation
↓ Certification double leaf security door - resistance to wind load
↓ Certification for double leaf security door - Thermal insulation. Frame with top window - 1,5
LOCKING SYSTEM
EUROPEAN CYLINDER YALE
European locking system with a set of 5 user keys. (outside: cylinder, inside: service lock with little knob).
DOUBLE BITTED KEY
Locking system with double bitted key complete with core with master double bitten key and changeable core with 5 keys. Drill-proof manganese cover to protect internal mechanism of the locking system.
LOCKING SYSTEM WITH EUROPEAN CYLINDER 1+5
European cylinder locking system with 1 red master key + 5 black keys (1 master key for each cylinder) with card for key duplication. The lock is equipped with a service lock inside and it is protected inside by a hardened steel drill-proof plate. Outside, patented Rolly magnetic defender, drill-proof, dust-proof, with tear-proof base.
OMEGA PLUS LOCKING SYSTEM
Triple bitted 3 points locking system with 5 folding keys with a green insert + card; 1 folding key with yellow insert + card with a code to create another change key with red insert. The master key is included and upon request it is possible to have keyed alike configuration. Opening limiter and inside service lock is included. The triple bitted locking system has reversible function, with 4 bolts 18 mm diameter and 1 latch 20 mm diameter.
TOP SECURITY EUROPEAN CYLINDER EVVA 3KS
3KSplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3KSplus the locking elements move along the curves on the key and are not driven against a spring force.
The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3KS ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HIGH SECURITY EUROPEAN CYLINDER EVVA ICS
ICS offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection.
It is produced in modular design and can be adapted to the door requirements directly on-site. The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.

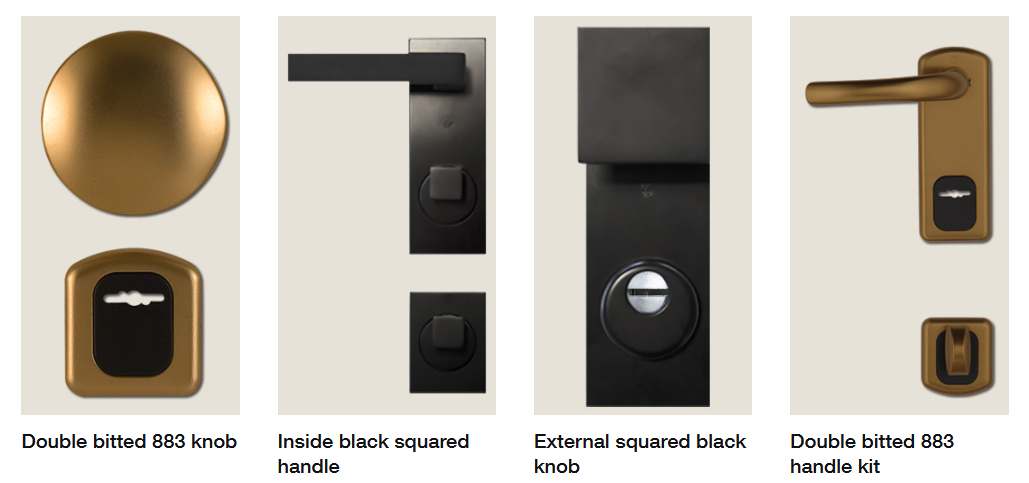

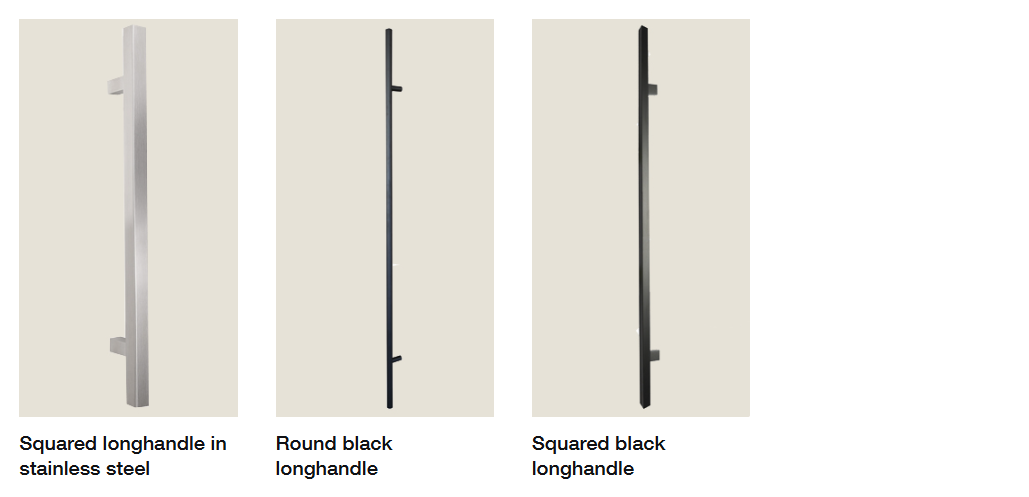

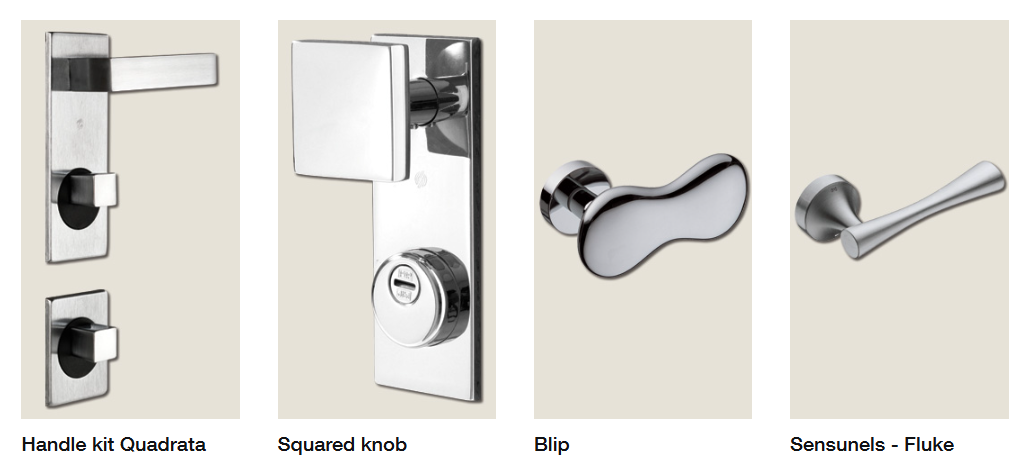

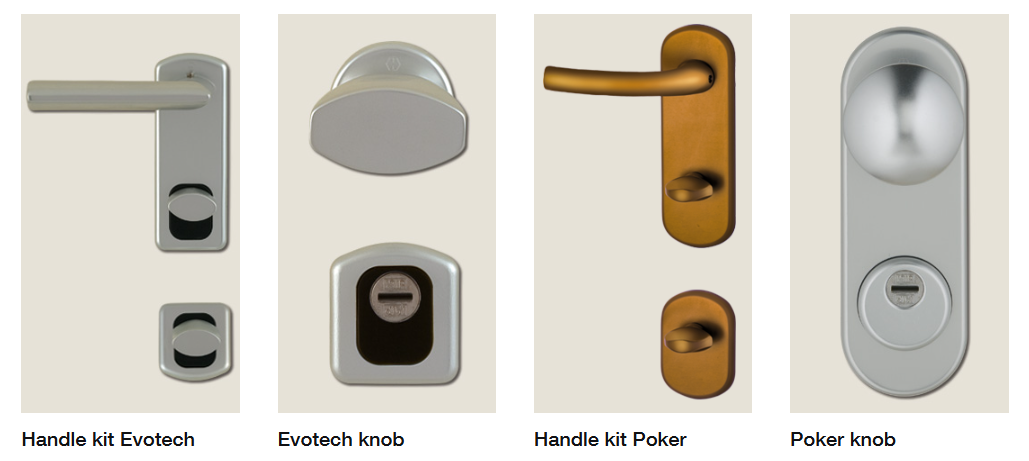

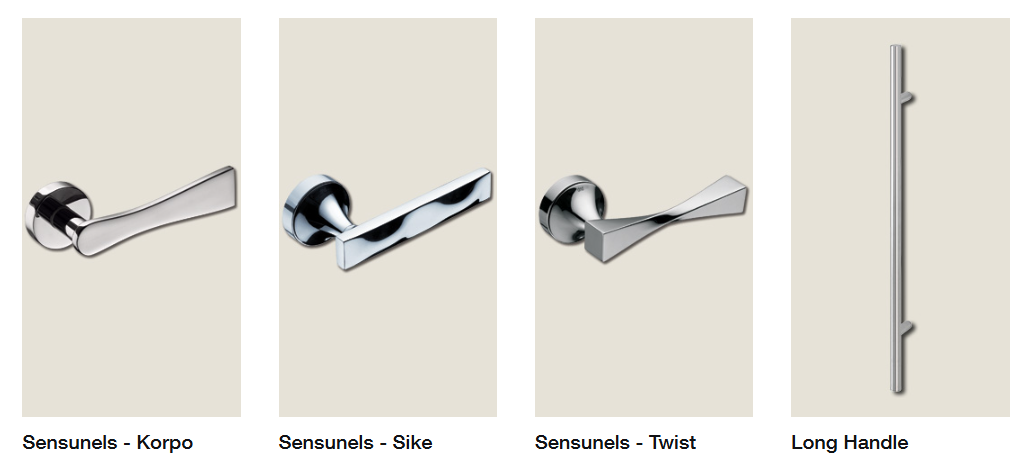

HANDLES
ALL HANDLES
ACCESSORIES
ACCESSORIES
- Letter Box
- Double Peephole
- Mechatronic Lock Bblock
- Magnetic Defender Key Protector
- Magnetic Defender Key Protector (For Double Bitted Key)
