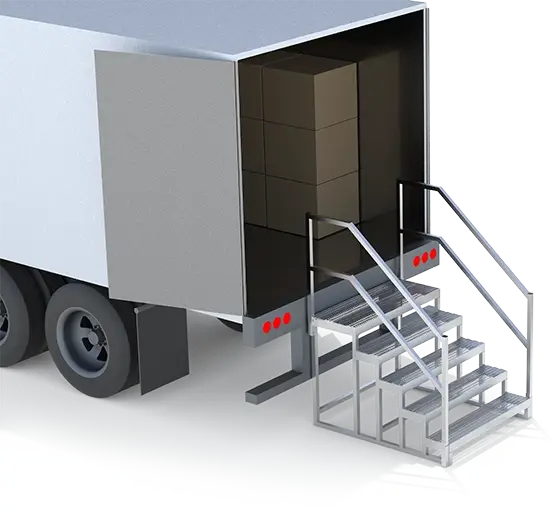

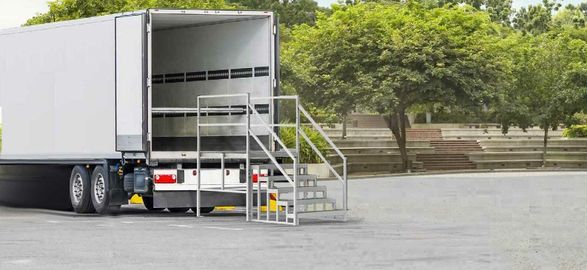

Semi-truck steps for loading semi and flatbed trailers
Our truck steps are designed to meet current OSHA safety standards and provide secure access when loading and unloading trucks and semi-trailers.
Our steps are constructed with durable and lightweight aluminum, and feature slip-resistant treads for a secure footing, making it easy and safe to load and unload your trailer.
FEATURES
OSHA-COMPLIANT
Our SEMI trailer steps are always OSHA-compliant. Heavy-duty railings on both sides ensure worker safety and stability while loading and unloading truck trailers.
RELOCATED AND REUSE
While rigid and sturdy, Upside’s SEMI steps are lightweight, weighing approximately 100 lbs. They can be easily moved or lifted into trailers.
100% ALUMINUM – LONG LASTING
Our aluminum SEMI-step stairs will never rust, warp, or rot. They are low-maintenance and will last much longer than wood or steel.
SLIP-RESISTANT DECKING
SEMI step decking features an aggressive heavy-duty 3” channel grip strut grating that provides maximum, multi-directional slip resistance.
INFORMATION
MANUFACTURE
We manufacture three different styles of semi-trailer steps for 48″ tall trucks.
BRAND
Upside Innovations
PRODUCT TYPE
Stairs
SEMI STEP PRODUCT LINE
The standard Upside SEMI Step is 4’ wide, allowing two-way foot traffic. Stairs are 40” high, so the last 8″ step up into the 48” trailer. The trailer steps can have either a single top step, a double top step, or a 48” x 57” platform.
DURABLE, LONG LIFECYCLE
100% industrial-grade aluminum that won’t rust, warp, or rot.
DOUBLE TOP STEP (OPTIONAL)
Additional 9.5″ to depth of standard top step for a total of 19″
PLATFORM (OPTIONAL)
48″ X 57″ (W x L in the direction of travel)
WIDTH
48″ between handrails, 51″ out-to-out
STEP TYPE

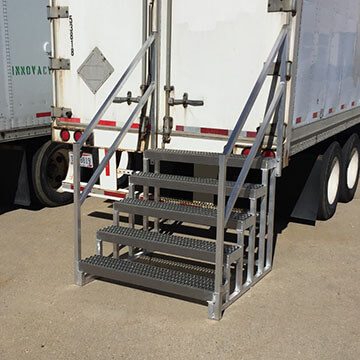

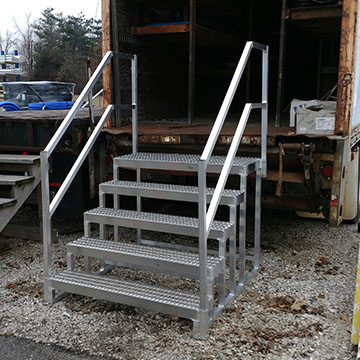

- Standard Trailer Step
- Double Top Trailer Step

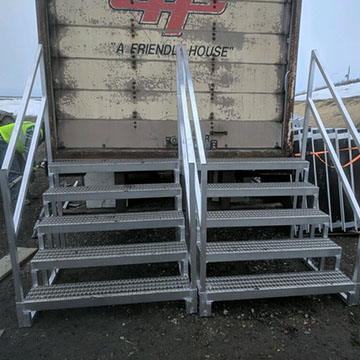

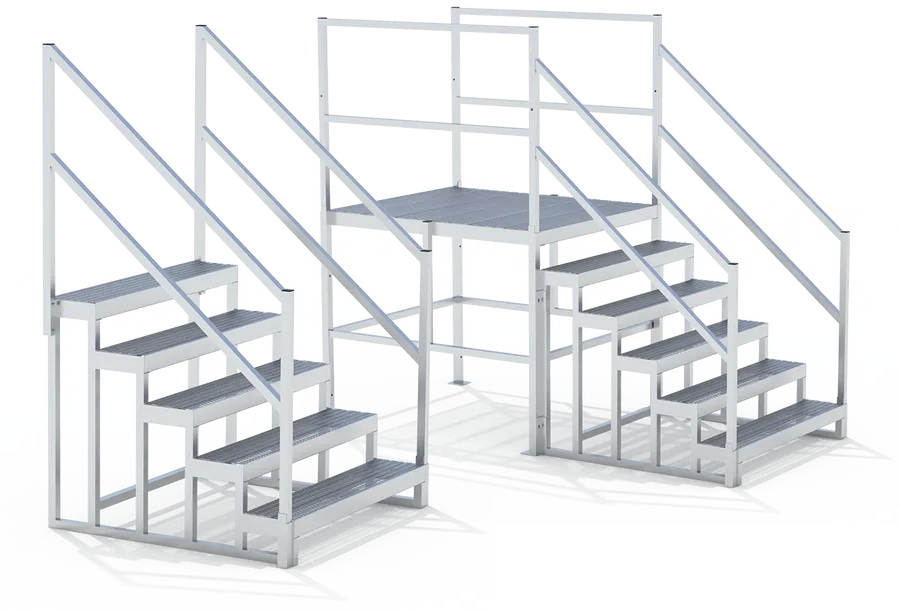

- Trailer Step side-by-side
STEP GUARDRAIL
36″ high
PLATFORM GUARDRAIL
42″ high

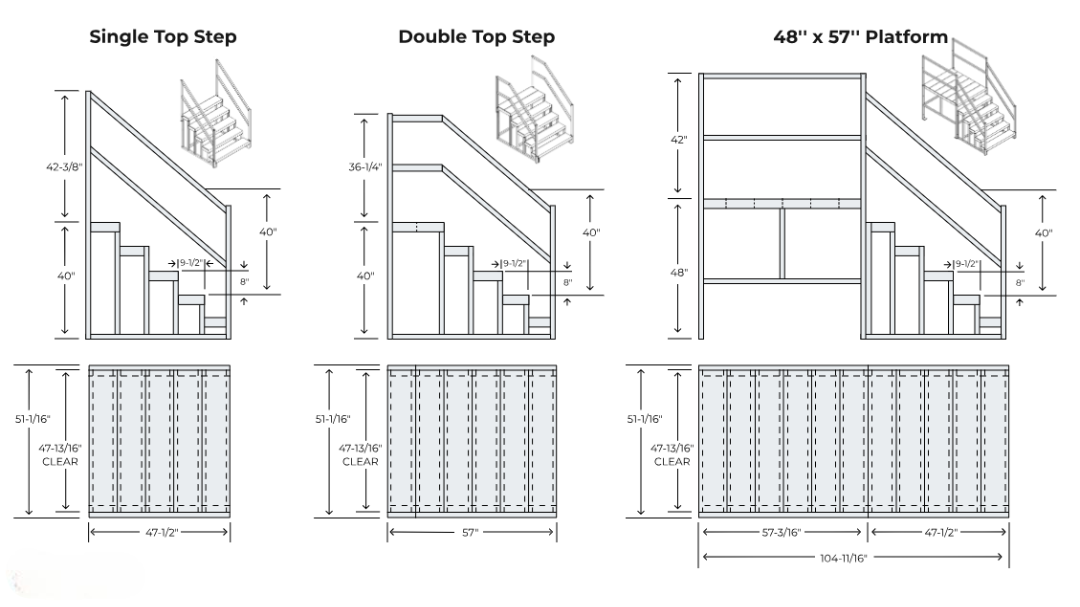

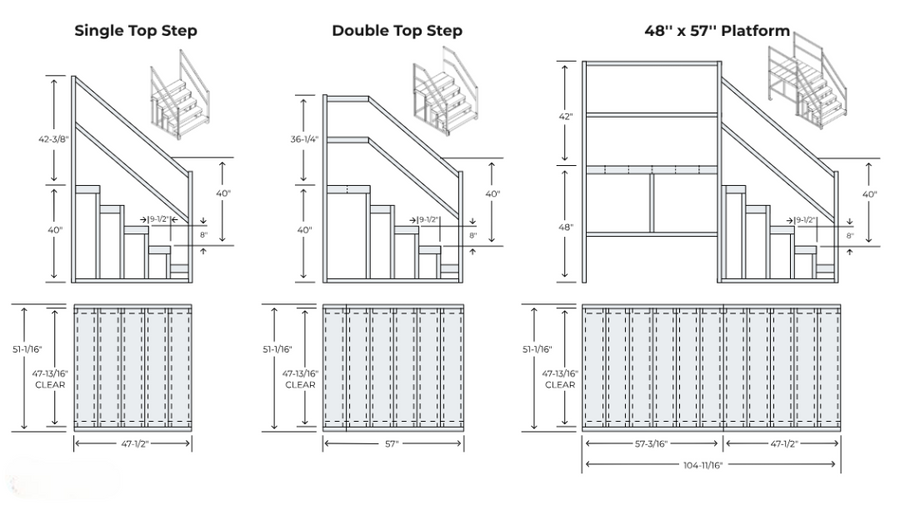

TECHNICAL DROWING
WEIGHT CAPACITY
Live load: 100 lbs. per sqft ; Point load: 300 lbs over a sqft area
HEIGHT (WITH PLATFORM)
48″ (platform is flush with the back of trailer)
AGGRESSIVE TREAD
Heavy-duty 3” grip strut channel decking.
RISER HEIGHT
8″
TREAD DEPTH
9.5″
MATERIAL
The trailer steps are lightweight aluminum, so they can be easily moved when not in use.
EASILY RELOCATE
Weighing only 95 lbs, truck steps can be easily moved or lifted into the trailer.
COLLECTION
SEMI
USE
Load And Unload
OPTIMAL WIDTH
Wide 4’ clearance allows for two-way traffic and provides enough room to load bulky items
SAFE DESIGN
Always OSHA-compliant. Heavy-duty railing on both sides protects from trips and falls.
HEIGHT (WITHOUT PLATFORM)
40″ tall to accommodate 48″ trailer (last step up into trailer)
LAYOUT
LAYOUT DRAWINGS

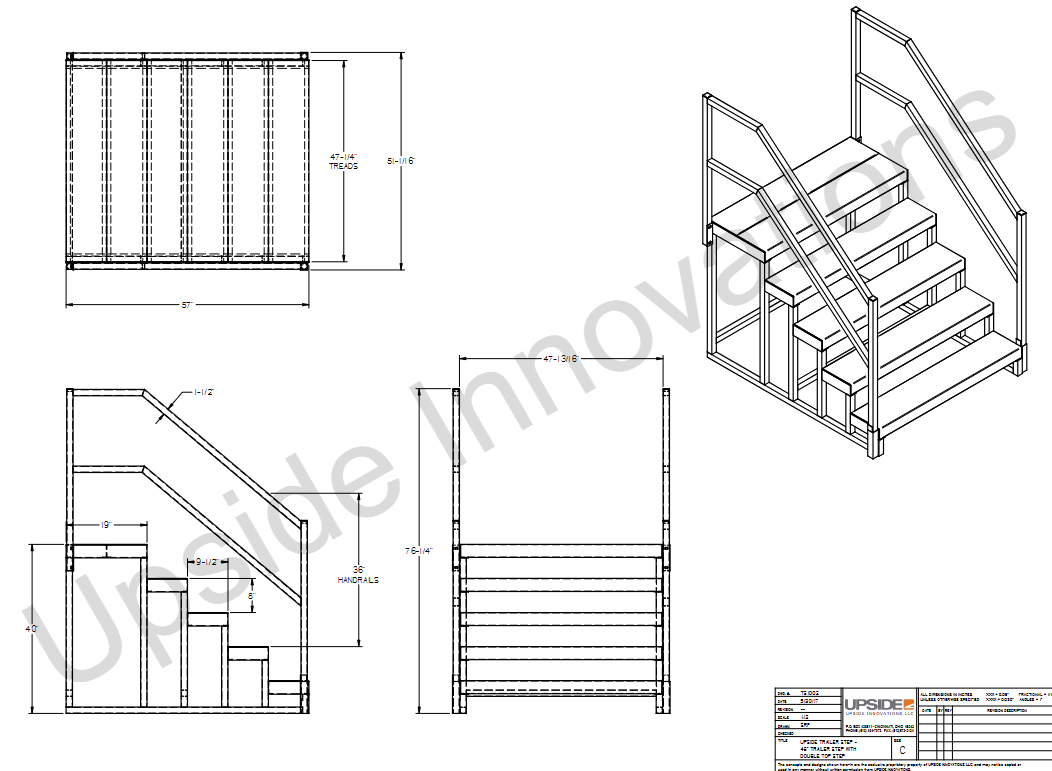

- SEMI Step double-top-step

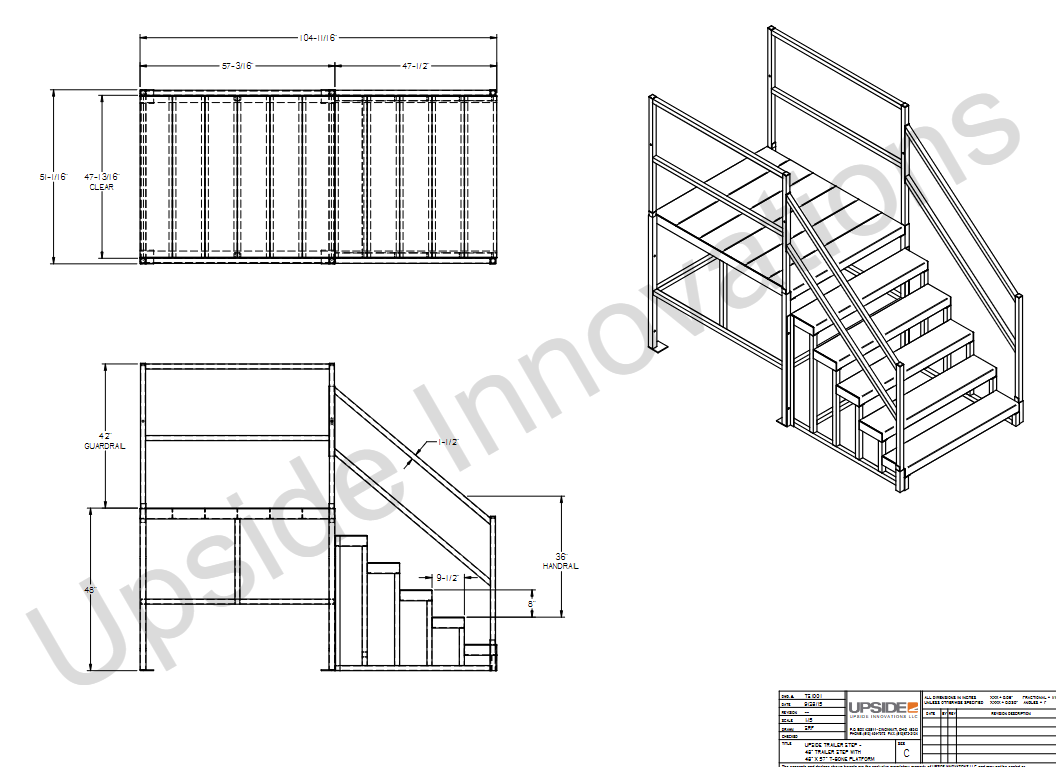

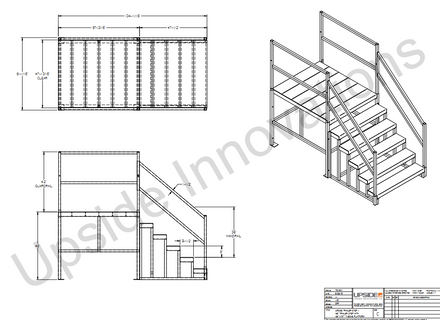

- SEMI Step with-platform

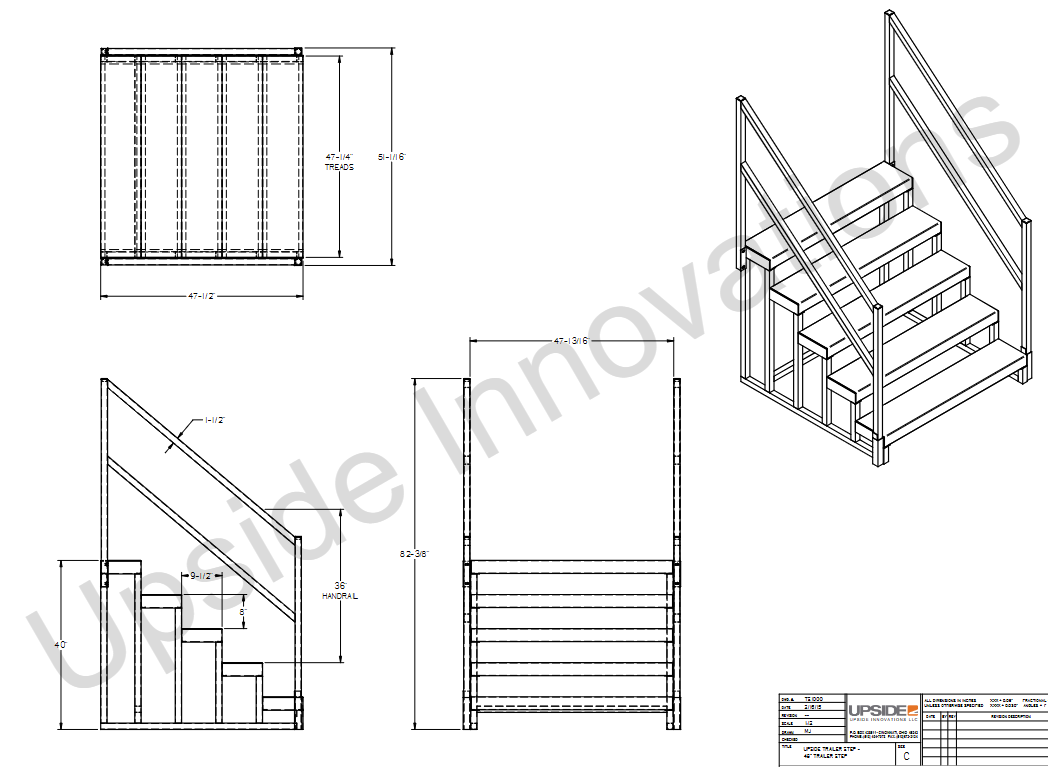

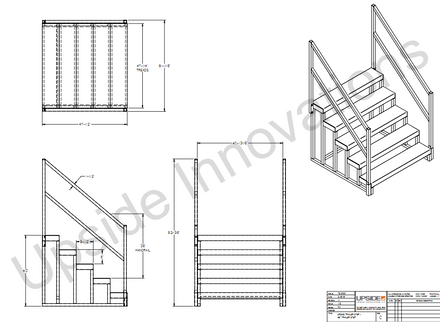

- SEMI Step standard-trailer-step
