FORMWORK BEAMS
FORMWORK BEAMS
High Load-bearing Capacity, Long-lasting And Used All Over The World Mayr-melnhof holz’s formwork beams are renowned for their high re-usability and reliable load bearing.
HT 20plus is the international brand for formwork beams from Mayr-Melnhof Holz. High-quality raw material, technically perfect processing and the proven protective plastic cap system give the HT plus formwork beams their long service life.
The webs, made of thoroughly glued 3-ply wooden panels, guarantee a high load-bearing capacity in all climates. The flanges are made from mechanically strength-graded and finger-jointed timber.
The web and flanges are bonded together with an extremely strong finger-joint connection. Mayr-Melnhof Holz formwork beams are renowned for their re-usability.
INFORMATION
MM PROFIDECK : BENEFITS
- Flanges made of selected solid wood cross-sections
- Proven load-bearing capacity even after multiple use in all climates
- Flanges and webs permanently bonded by means of finger-jointed connections

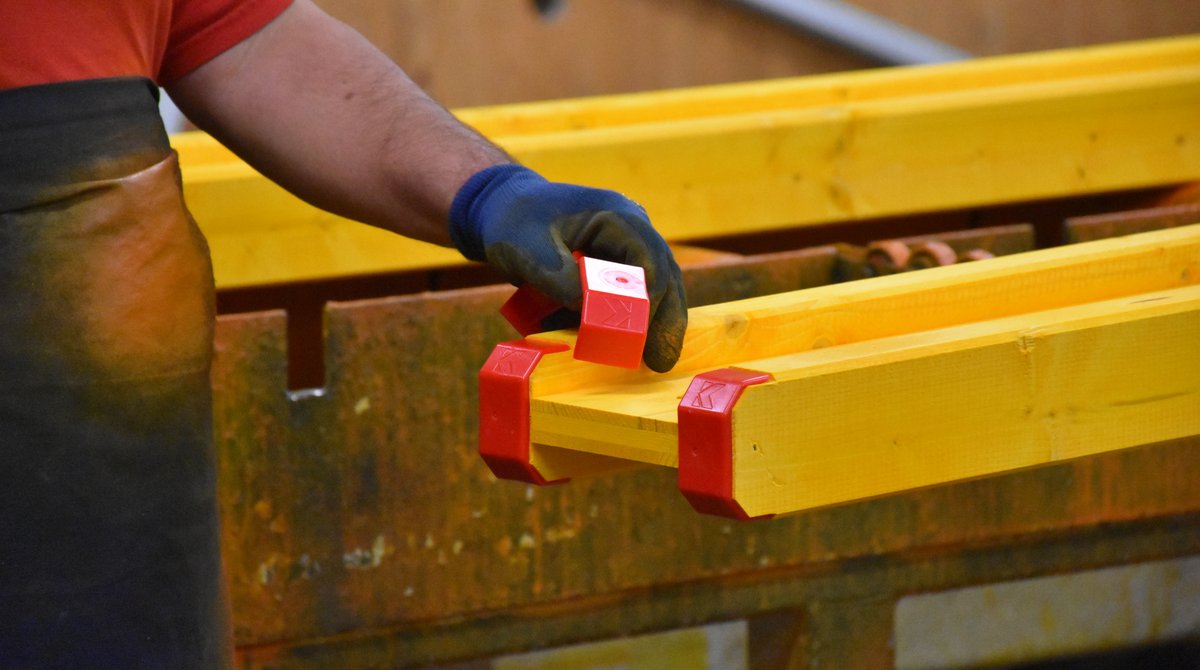

- Plastic cap to protect the flange ends from splintering further increase the beams’ service life
BRAND
mm-holz
PRODUCT TYPE
Beams
SURFACE
Planed, Entire Beam Impregnated Using Water-based Colour Stain
HT 20PLUS FORMWORK BEAMS: PRODUCT STANDARDS
- EN 13377 pre-fabricated timber formwork beams: Requirements, classification and verification
- According to German regulations, HT plus formwork beams are labelled with an inspection mark.
- DIN 20000 – T2 Use of building products in construction works – Part 2: Pre-fabricated timber formwork beams
FIRE CLASS
D-s2, d0
MOISTURE CONTENT
12 % (± 3 %)
PRODUCT STANDARD
- EN 13377
- EN 13377 and DIN 20000-2
Inspection mark
GLUING
Adhesive type I acc. to EN 301 (melamine resin based adhesive)
CALCULATED VALUES
- Mk characteristic moment value : 10.9 kNm
- Vk characteristic shear force value : 23.9 kN
- Rb,k characteristic reaction force value : 47.8 kN
- EI modulus of elasticity- x moment of inertia : 486 kNm²
- Eflange modulus of elasticity flange (C24) : 11.000 N/mm²
- Eweb modulus of elasticity web (3S panel) : 6.700 N/mm²
PRODUCT DIMENSIONS
- Beam Height : 200 mm (± 2.0 mm)
- Flange Height : 40 mm (40 mm - 1.5 %)
- Flange Width : 80 mm (80 mm - 1.5 %)
WEIGHT
4.4 kg/m
TOLERANCE
Web Thickness : 24 mm (24 mm ± 0.5 mm)

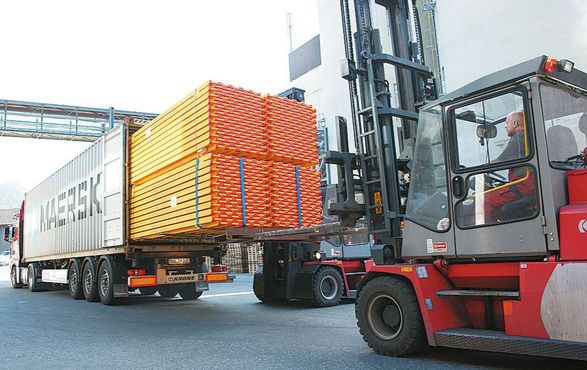

LOGISTICS SERVICES
RAIL
- We use both private & public rail service providers to transport goods in an environmentally friendly manner.
- All Mayr-Melnhof Holz sawmills in Leoben (AT) & Paskov (CZ) as well as our timber processing plants in Gaishorn (AT) & Wismar (DE) are directly connected to national railway networks.
SEA
- Loading into shipping containers is possible at all sites.
- Subject inducement we can offer breakbulk shipments from the Adriatic, Baltic and North Seas.
- With trusted logistics partnerss we are able to offer fast and reliable container shipments worldwide.
- With our own port terminal in Koper, Slovenia, we have regular chartered services to southern Mediterranean ports & beyond.

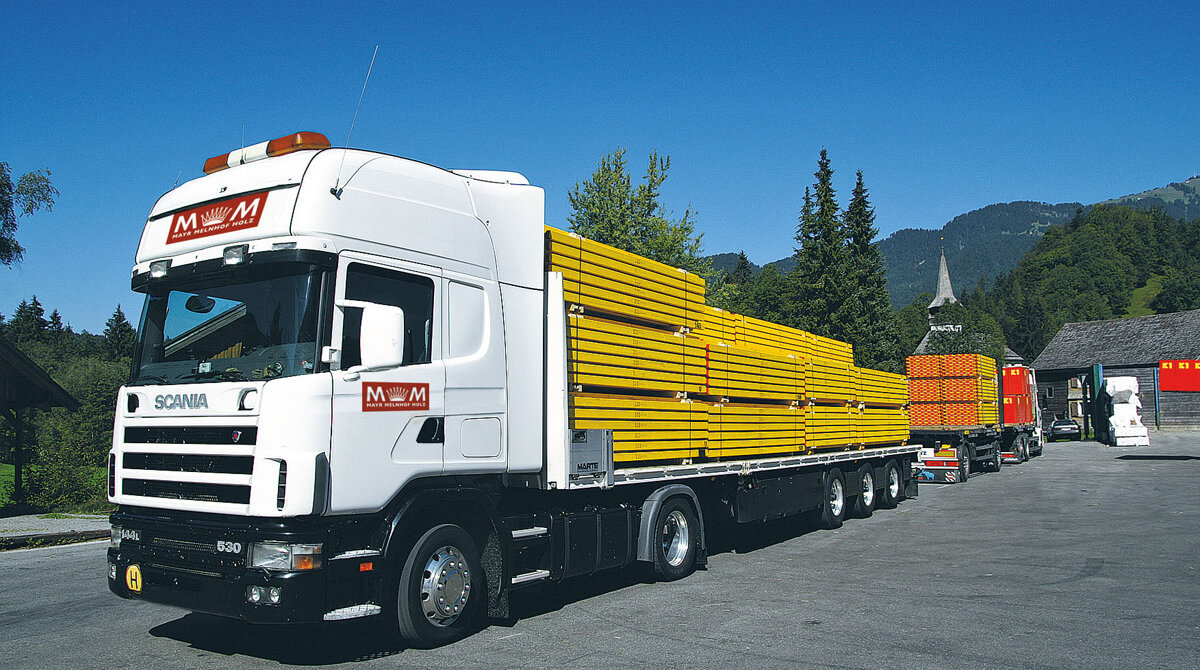

ROAD
- We use digital platforms for fast communication with our transport service providers.
- Long-standing stable business relationships with a large number of logistics service providers in Europe.

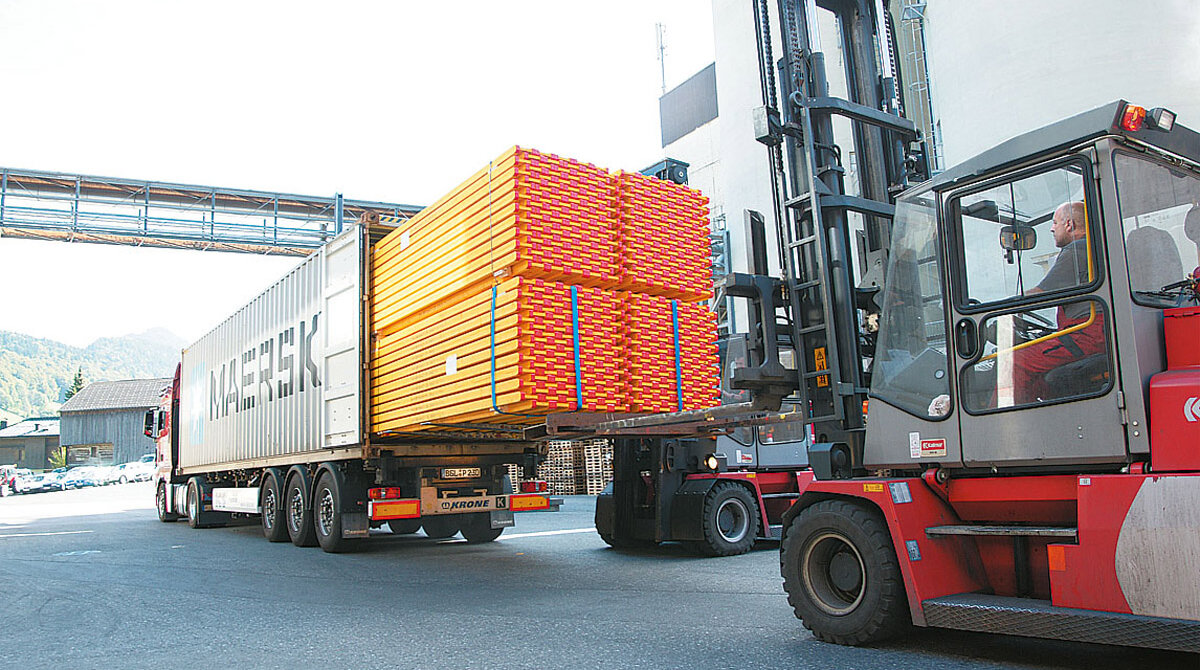

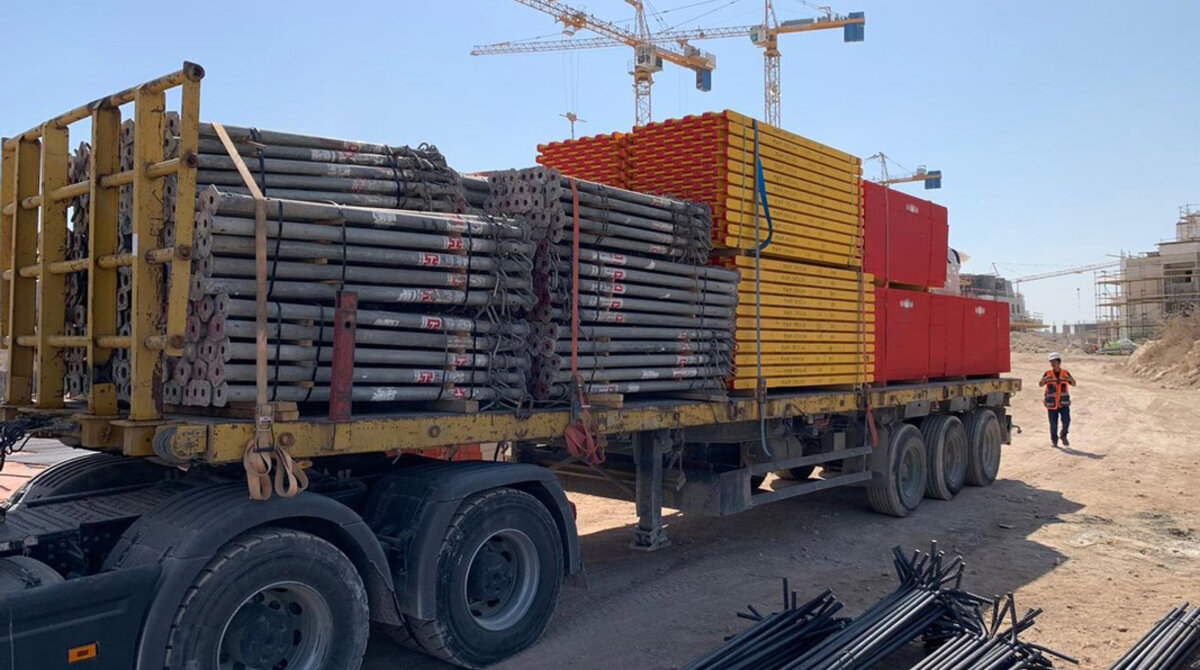

DELIVERY TO CONSTRUCTION SITES
Just-in-time deliveries to our cross-laminated and glulam construction sites. A full range of modern transport solutions is offered as necessary :
- All-wheel drive trucks
- Loads up to 52 m length
- Hydraulically steered trailers
- Trailers with on-board forklifts
- Covered loads up to 3,5 m wide
- Narrow-access self-steering trailers
- Edscha sliding roof trailers for vertical access
- Solo vehicles with up to 10 m loading length for inner-city areas
DOCUMENTATION
Together with our logistics partners we will provide you with professional documentation to enable you to cover all your export, import, and customs formalities without problems.
