Extending Grille Briareo

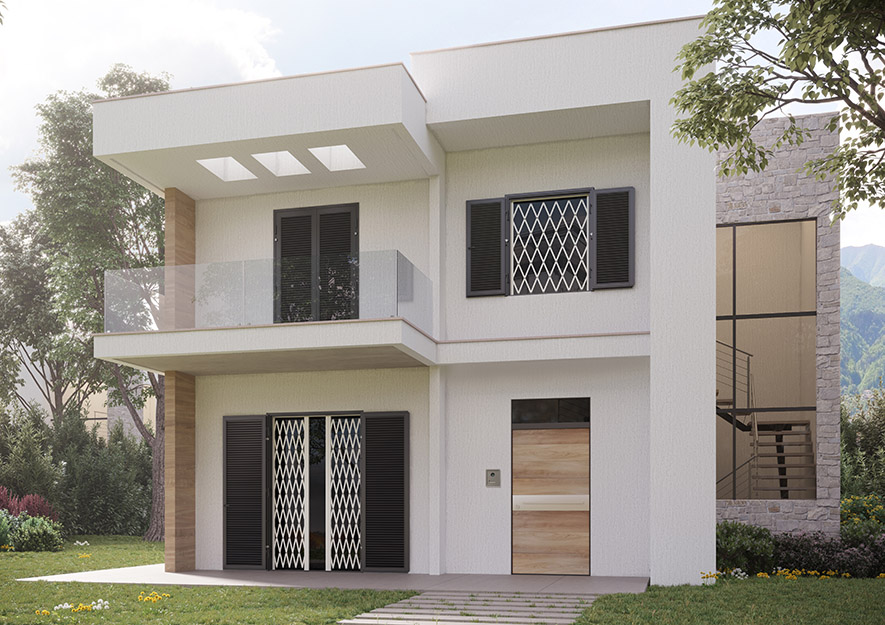

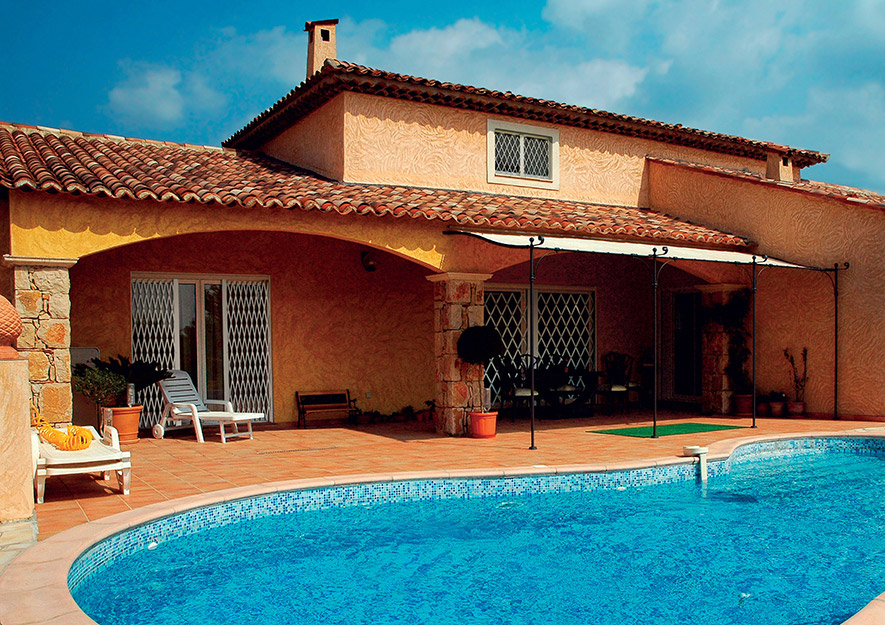

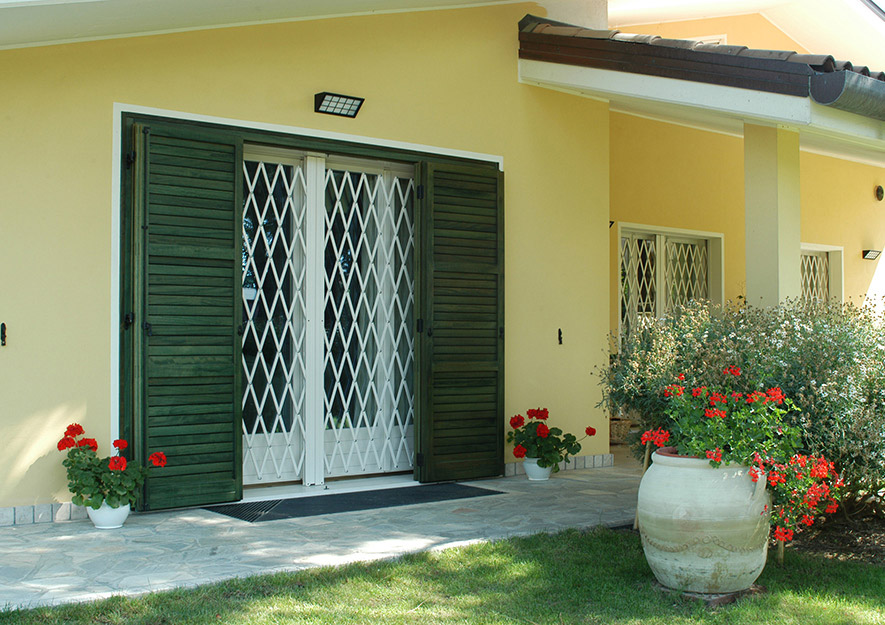

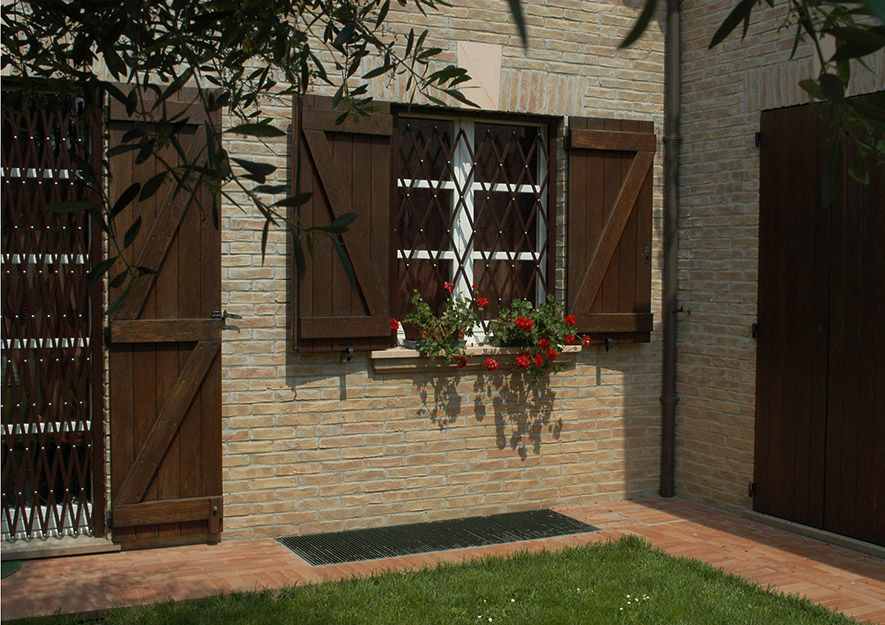

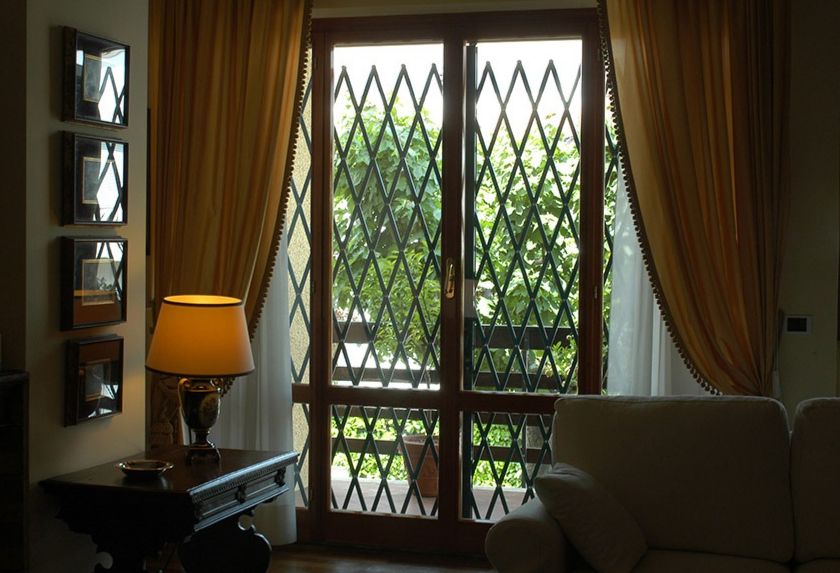

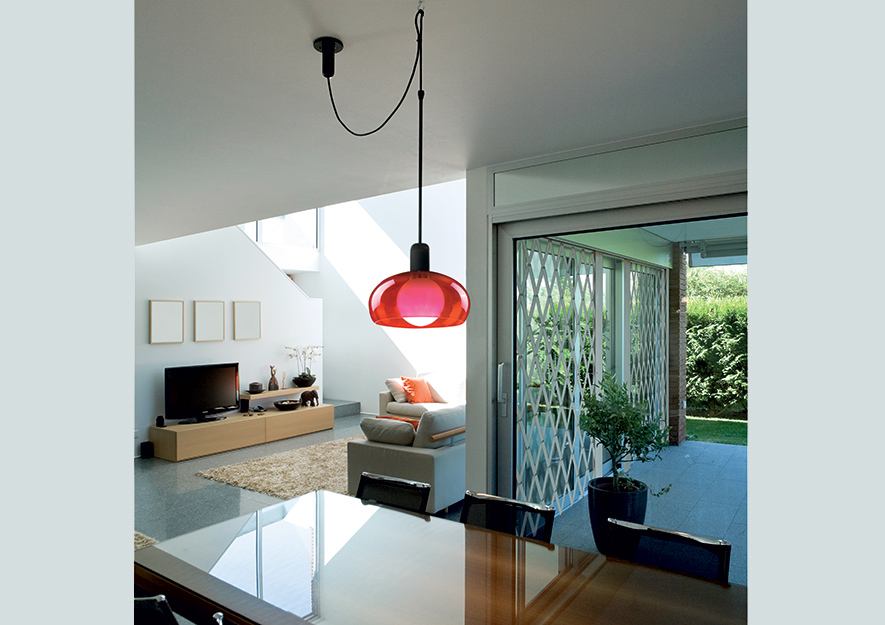

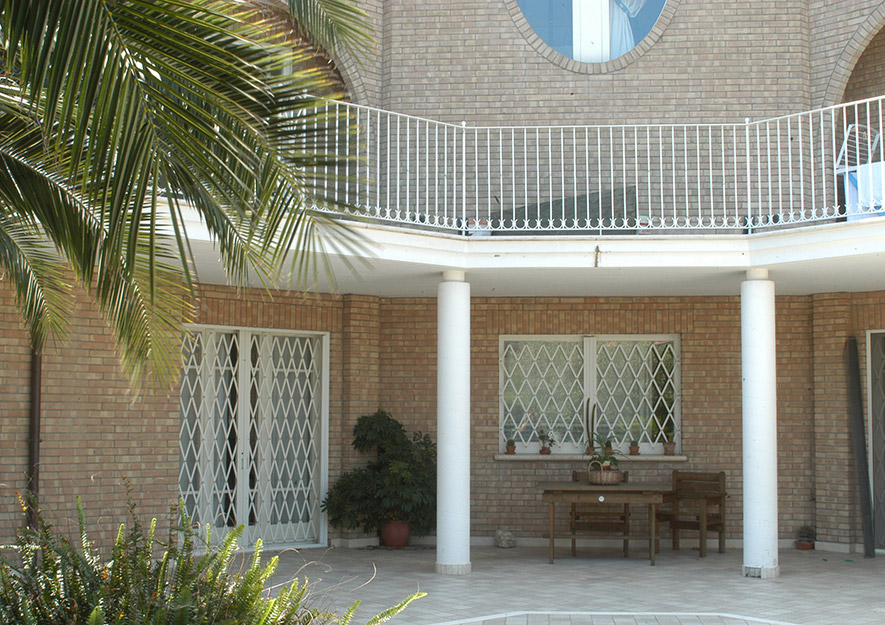

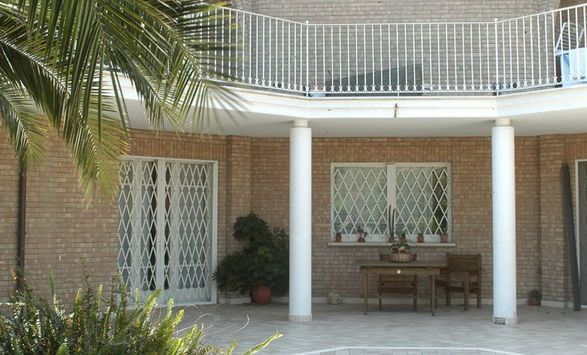

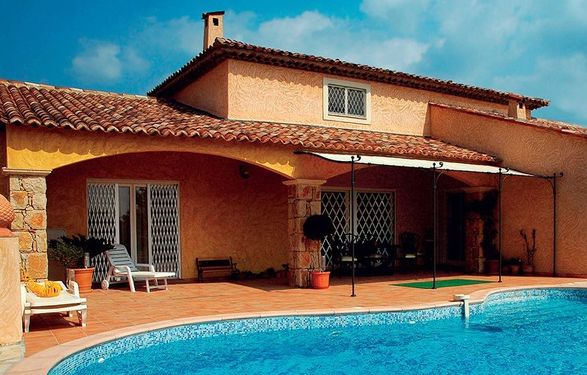

Briareo is the first patented folding grille, easy to open and close thanks to its "accordion. Particularly strong being manufactured with full steel bars, it is mechanically operated and suitable for installation on any type of windows or balcony door.
Briareo is the only product of this kind that does not need a bottom guide rail: the look of the fitting is therefore not altered and it allows an easy installation avoiding any difference in level and keeping the passage free.
It is available in the colours of Vesta shutter, and in stainless steel, it is also available ad single or double leaf and with external or walled frame.
INFORMATION
EUROPEAN CYLINDER LOCKING SYSTEM
Locking system in the semi-fixed jamb with European cylinder.
EXTERNAL SUPPORT FRAME
Mechanical "accordion-like" structure with external or walled frame.
BRAND
Dibi
PRODUCT TYPE
Windows
MATERIAL
Steel
GRILLS
Folding Grille
PRODUCTION
Made in Italy
RAIL
No bottom guide rail
DIMENSIONS 1 - LEAF FOR WINDOW
- Width 1 : 600 to 1200 mm
- Width 2 : 1200 to 2400 mm
- Height : 600 to 1839 mm
DIMENSIONS 2 - LEAF FOR FRENCH WINDOW
- Width 1 : 600 to 1200 mm
- Width 2 : 1200 to 2400 mm
- Height : 1840 to 2789 mm
LOCKING SYSTEMS
Briareo locking systems
PERFORMANCE
Anti-intrusion : Class 3

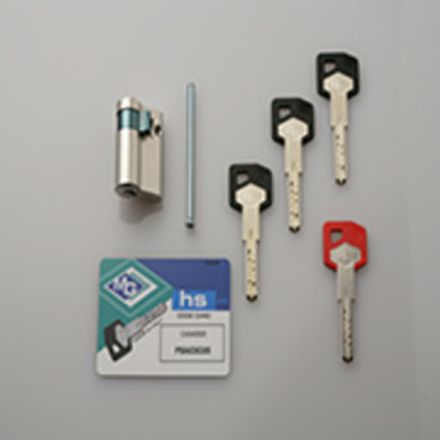

EUROPEAN CYLINDER
European cylinder with 3/5 key whose code can be changed (1+3 keys for orders up to 5 grilles; 1+5 keys for orders of more than 5 grilles).
SURFACE TREATMENT OF BARS & JAMBS
Cataphoresis treatment & painting with epoxy powders.
MAINTENANCE
Maintenance is needed with specific cleaner WD40, especially close to marine areas.
STEEL & ALUMINIUM GUIDE SYSTEM
Inverted U section made of steel sheet with aluminium guide rail and sliding carriage.
HEAVY-DUTY STEEL JAMBS
Jambs made of 20/10 thick steel sheet to fix in the wall with wall anchors with chemical resin (not provided).

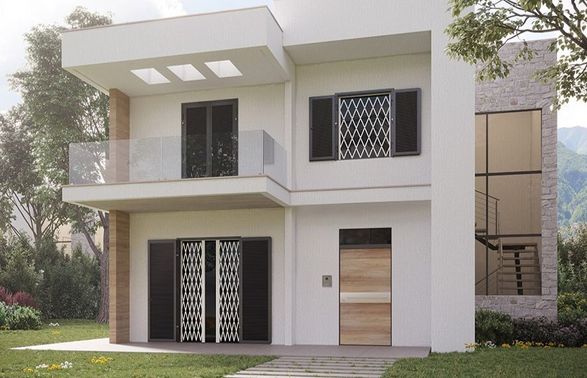

AVAILABLE IN SINGLE OR DOUBLE LEAF
Available as single leaf or double leaf for window and French window.
FLUSH PULL HANDLE DESIGN
Inside flush pull handle, black colour, keyhole inside the house (upon request, passing through key and handle).
INSTALLATION

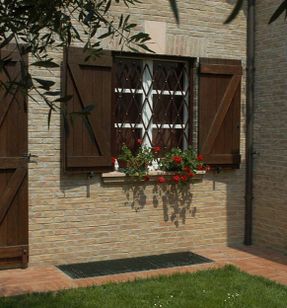

- Windows
- Balcony Door
CERTIFIED
Briareo extending grill is certified in class 3 anti-intrusion.
BRIAREO LOCKING SYSTEMS
DOWNLOADS
COLORS
COLORS -
- Grey Ral 7042
- Ivory 9001
- Grey 7016
- White 9010
- Black 9005
- Brown 8017
- Green 6005
