DTBS-4X TRIMLESS SWITCHES
DTBS-4X TRIMLESS SWITCHES

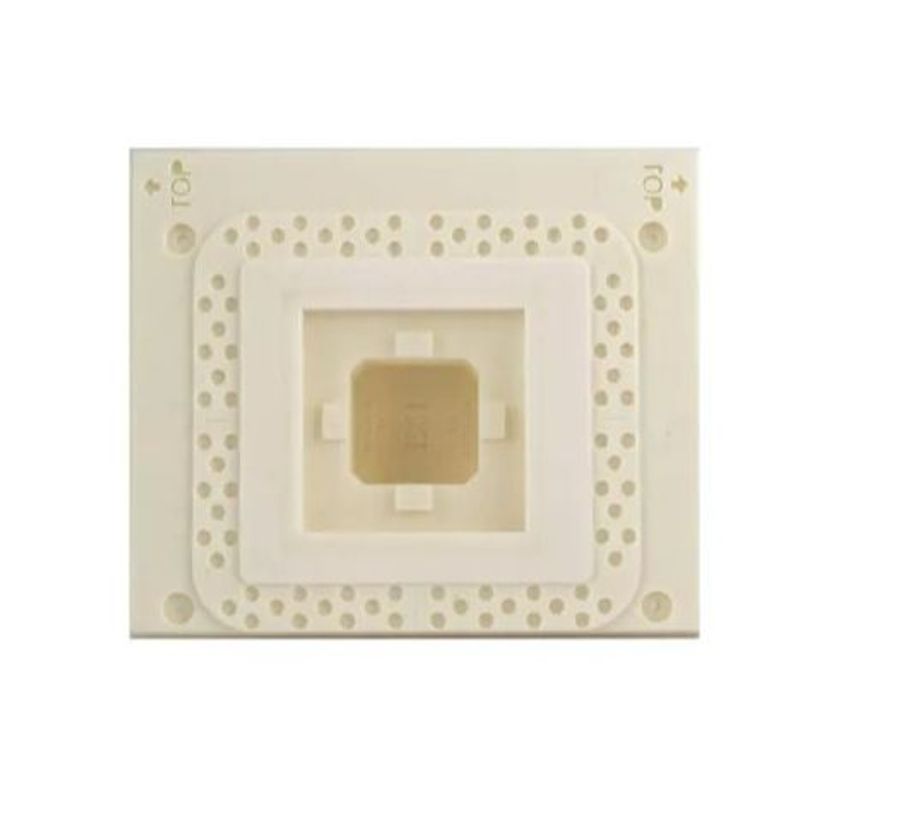

Trimless bus touch switch, flush-mounted into the wall
Our switches are all handmade, making each switch unique in every interior. In addition, they can be recessed into the wall using a mounting solution from our sister company, Xillo Recessed Solutions.
They developed a recessed mounting frame that allows whatever the customer wishes to integrate (speaker, lighting, switch, socket, etc.) to be installed in such a way that no visible edge remains. It is also stronger, more robust, and finished perfectly according to the customer’s wishes.
The material can be painted or plastered, ensuring perfect integration into any interior. Any switch can be fully recessed into the wall in the desired finish and color. Simply share your preference and we will prepare a tailored quotation.
INFORMATION
BRAND
Duotecno
PRODUCT TYPE
Switches
CUT OUT
- MCW : 85 x 85 mm
-Plasterboard (PB) : 182 x 204 mm
COLLECTION
Trimless
PRODUCTION
Made in Belgium
DETAIL
Xillo offers the highest level of finishing and is suitable for all surfaces (plasterboard – 12.5 mm & brick walls – 6 mm), creating a seamless and modern finished look in your home.
DIMENSIONS
- Width: 84 mm
- Height : 84 mm
TOUCHBUTTON
Detector
FLUSH MOUNTING BOX
DTBS-W4
FINISH
- Paintable
- Patented composite
FEATURES & FUNCTIONALITIES
- Standard white LEDs,
- Flush mounting box: DTBS-W4,
- Automatically illuminated LEDs,
- Optional programmable RGB LEDs (directly on the bus),
- Optional temperature sensor (temperature registration and readable on the touchscreen or app)
OPENING
- Paintable
- Natural White
FITTING
Suitable for one 4F switch, 4F room controller or wall
TOTAL DEPTH
- Concrete (BC) : 61 mm
- Concrete (BC) : Ø 110 mm
- Plasterboard (PB) : 54.5 mm
MATERIAL
- Metal
- Corian®
- Wood
DOWNLOADS
↓ Xillo technische fiche trimless switch inv mcw 17032026 tp
↓ Xillo technische fiche trimless switch4 v gs 17032026 tp
↓ Xillo technische fiche trimless switch4 v mcw 17032026 tp
↓ Xillo technische fiche trimless switch8 v mcw 17032026 tp
↓ Xillo technische fiche trimless switch8 v gs 17032026 tp
USE
House
ENVIRONMENT
Indoor

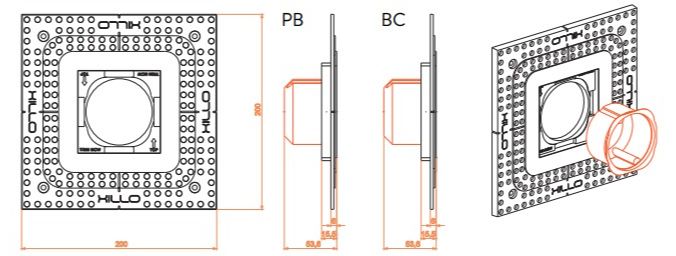

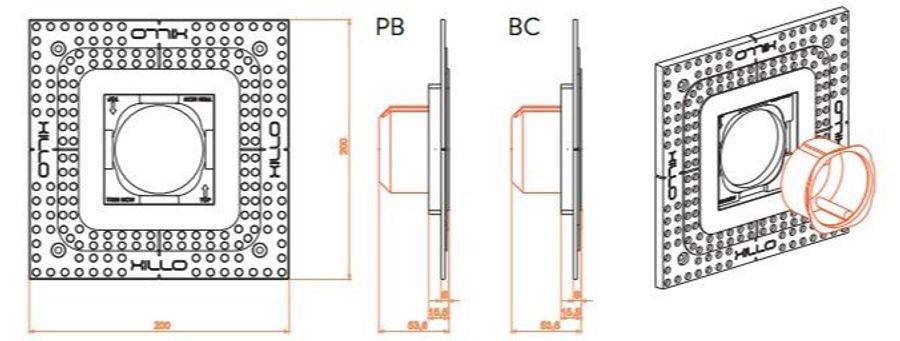

TECHNICAL DRAWINGS
