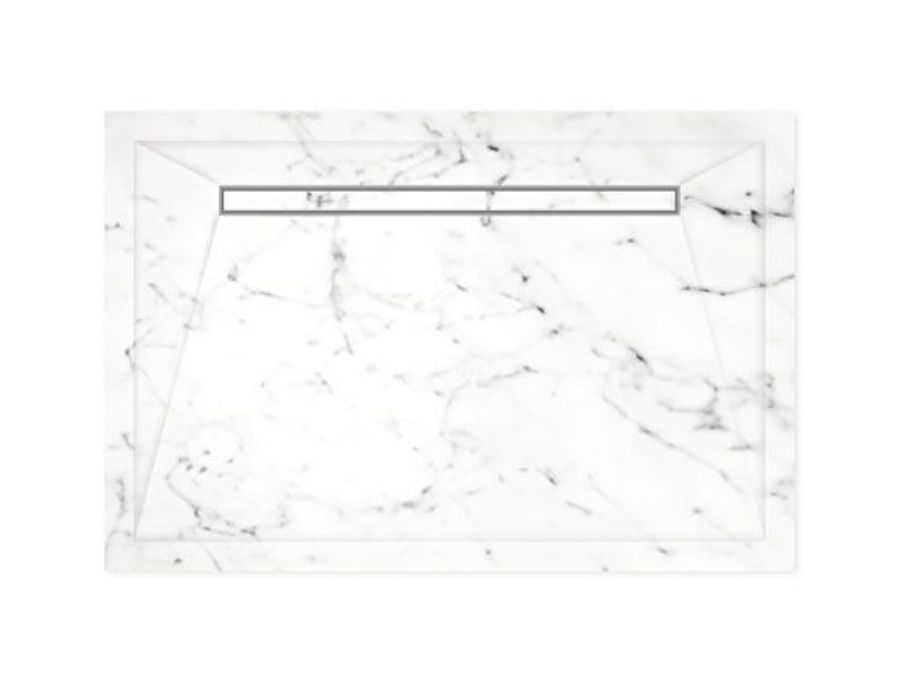

Devon & Devon Elegance Shower Tray - Rectangle
ELEGANCE SHOWER TRAY - RECTANGLE
ELEGANCE SHOWER TRAY - RECTANGLE

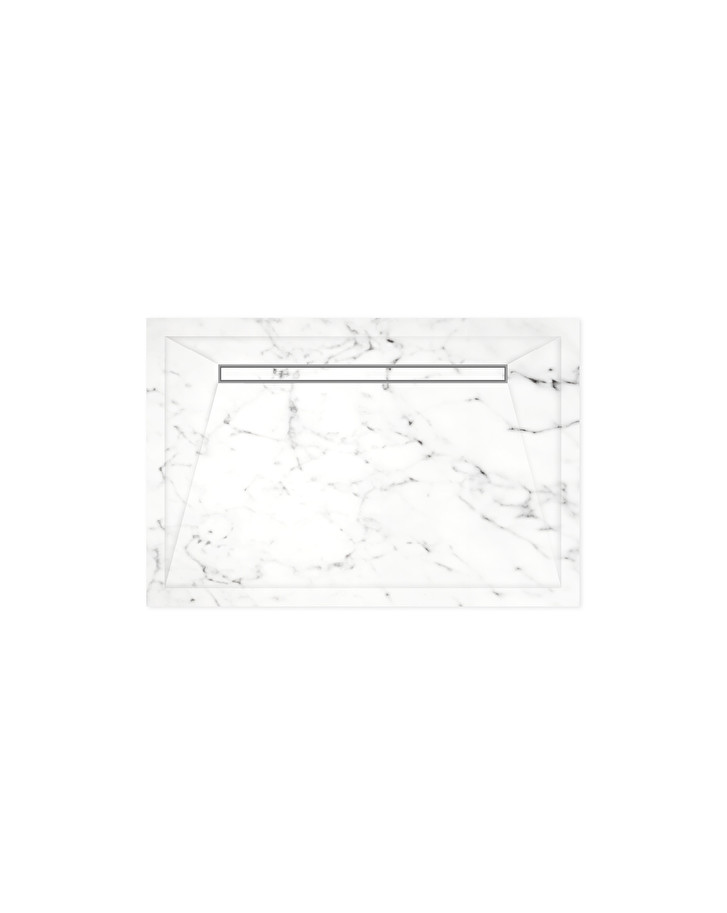

An exquisite collection of Bianco Carrara marble shower trays that combine sophisticated classical inspiration and maximum versatility for a perfect result.

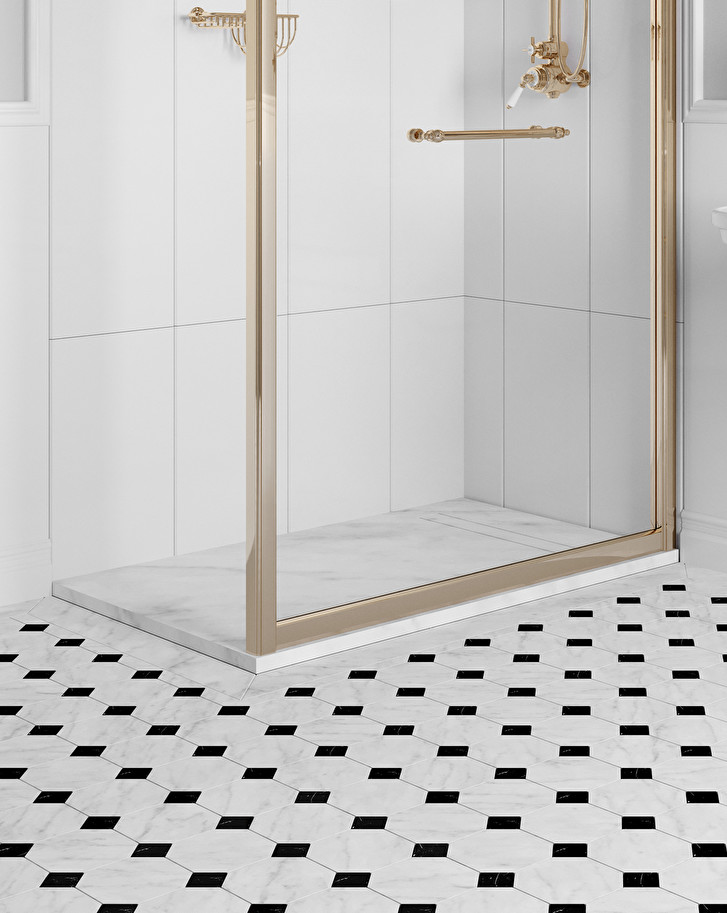

Available in three formats (square, rectangular or pentagonal) of different sizes, they adapt to any contemporary living requirement and can be freely co-ordinated with the walk-in shower doors and walls.
INFORMATION
BRAND
Vasco
PRODUCT TYPE
Shower Tray
SKU
ELEG_RT120X80_BCA
PRODUCTION
Made in Itay
TOTAL WEIGHT
189.5 Lbs
SHAPE
Rectangle
DESIGN
Ufficio Stile
FINISH
Matt
MATERIAL
Marble
PRODUCT DIMENSIONS
- Height : 3 cm
- Depth : 80 cm
- Length : 120 cm
PACKAGING SIZE
- Height : 13 3/8"
- Width : 35 3/8"
- Length : 53 1/8"

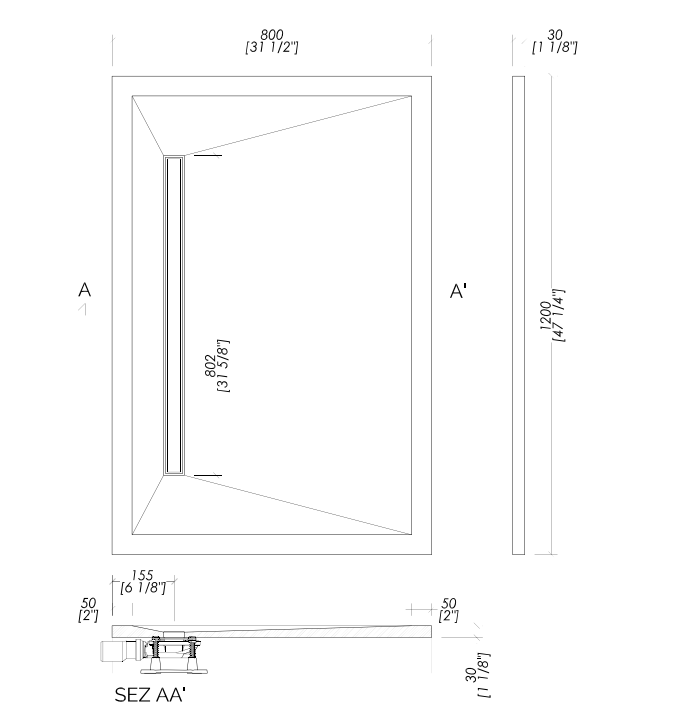

TECHNICAL DRAWINGS

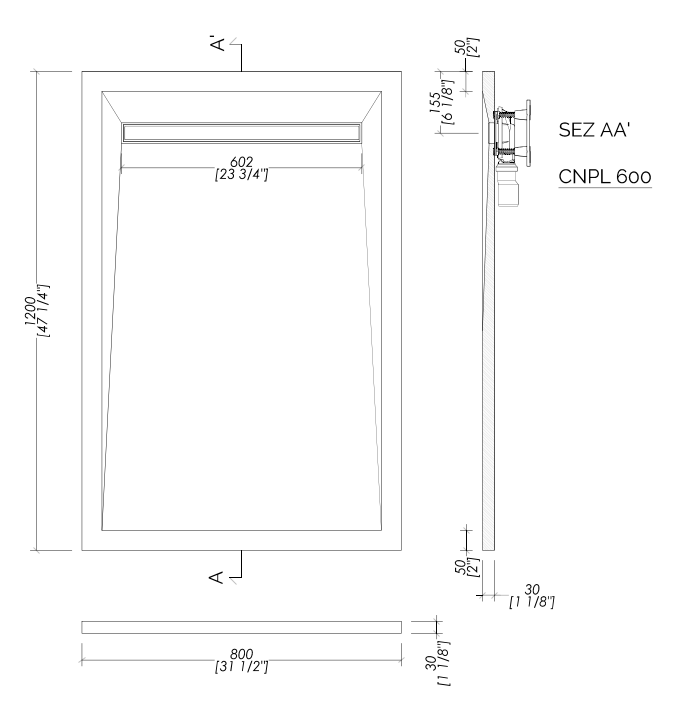

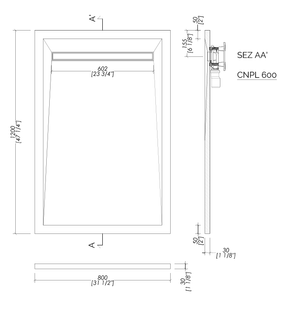

-Cnpl 400/600/1000 can be also mounted on the long side -Cnpl 400/600 can be also mounted on the short side -Cnpl 400 can be mounted on the short side
DETAIL
-The 2D and 3D files available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances.
-For exact sizes, we recommend measuring the finished product. Devon&Devon reserves the right to make amendments and variations without forewarning to these files, also due to the handcrafted processing.
ACCESSORIES
- Pencil
- Level
- Drill bit
- Hammer
- Paintbrush
- Paint roller
- Pointing trowel
- Construction spatula
- Silicon
- Concrete
- Adhesive tape
- Margin trowel
- Bucket of water
- Measuring tape
- Flat-tip screwdriver
- Electric screwdriver
TOLERANCE
± 3 %
MARMO
White Carrara
INSTALLATION
-The marble shower tray must be installed by a qualified technician. Please refer to the weights described in the technical notes on the website to evaluate the personnel to be involved in assembling and handling the product. -Check that the drain is compatible with the shower tray and the relative plumbing. The installer is solely responsible for its installation.
-The installer must comply with the installation regulations in force in the country where he operates. -Verify the presence of all items inside the package using the Packing List included in the following page. Also verify that none of the components show visible defects.
-Care should be taken to avoid damage when installing or servicing the towel rails by ensuring tools do not come into direct contact with the product service. -If you should notice any defects please contact Devon&Devon immediately.
-Devon&Devon retains the right to modify the product for technical or production reasons. We will not be held responsible for any inconveniences caused by the abovementioned changes.
