Leeboy Nb15 Brooms
NB15 BROOMS
NB15 BROOMS

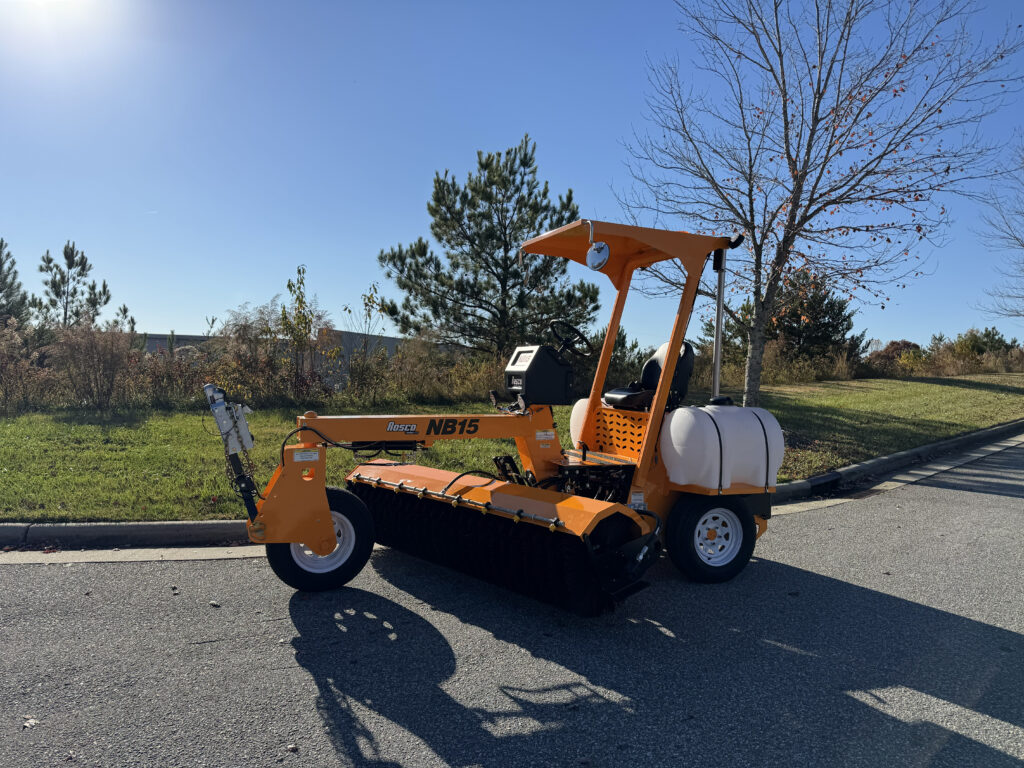

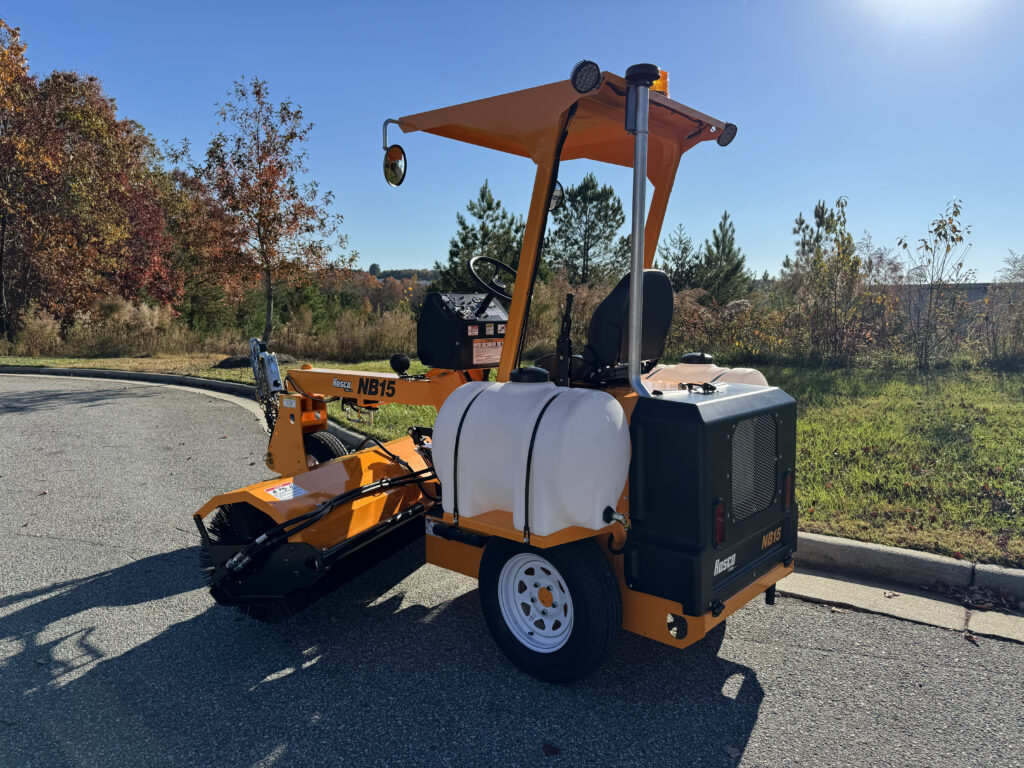

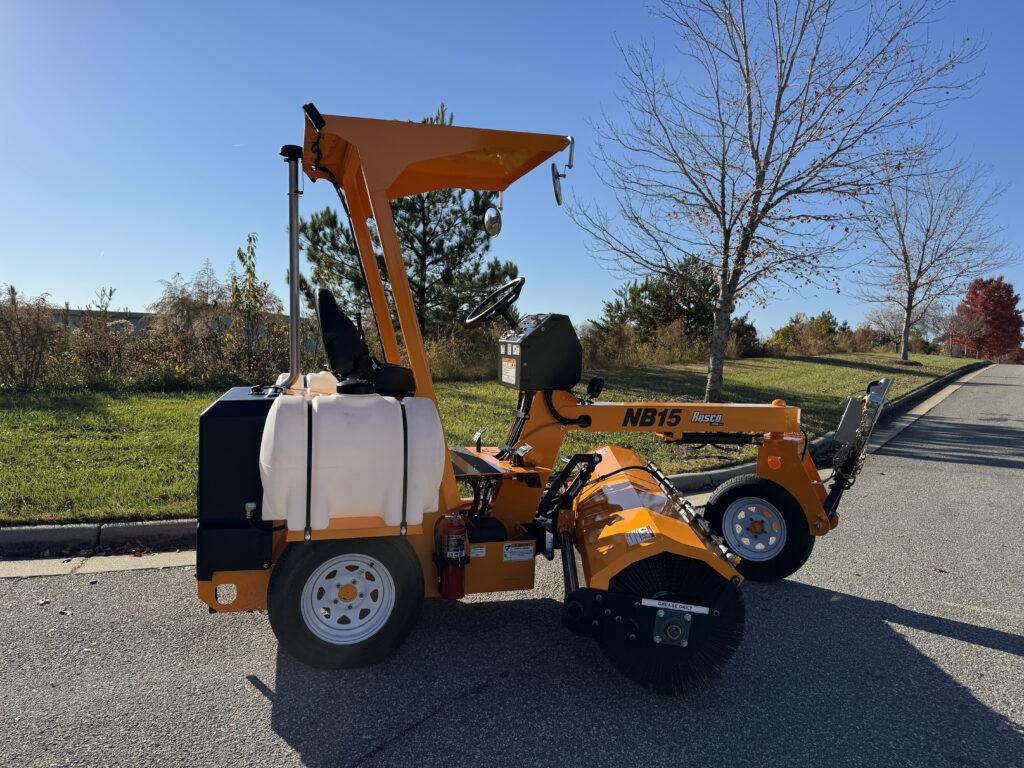

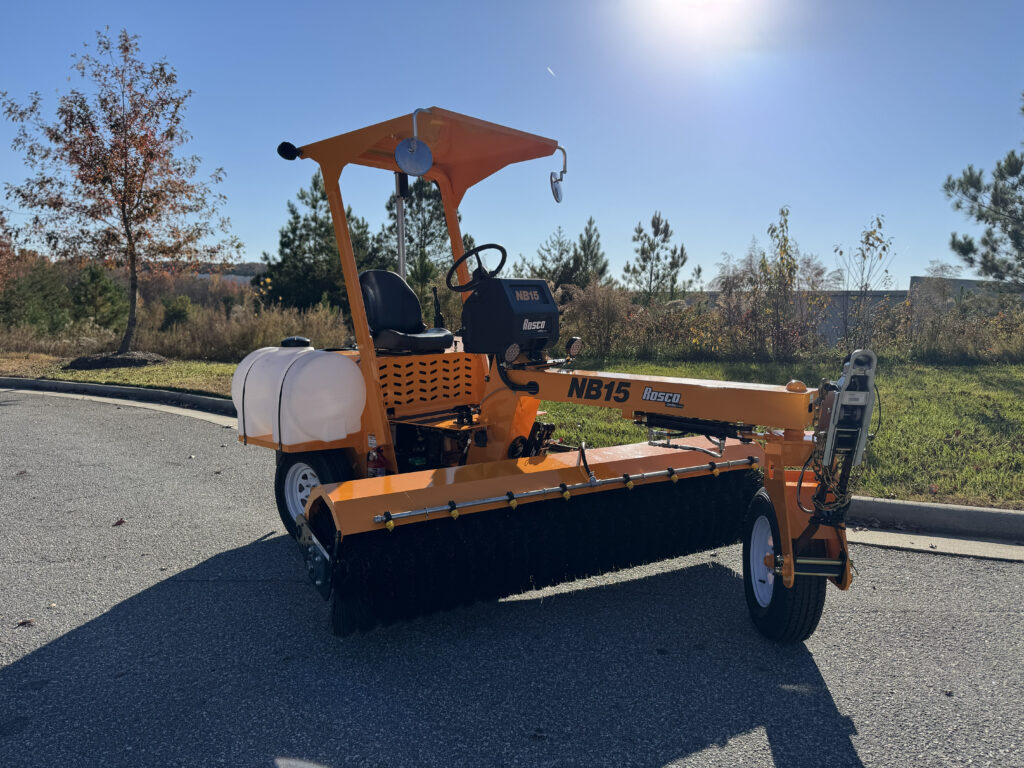

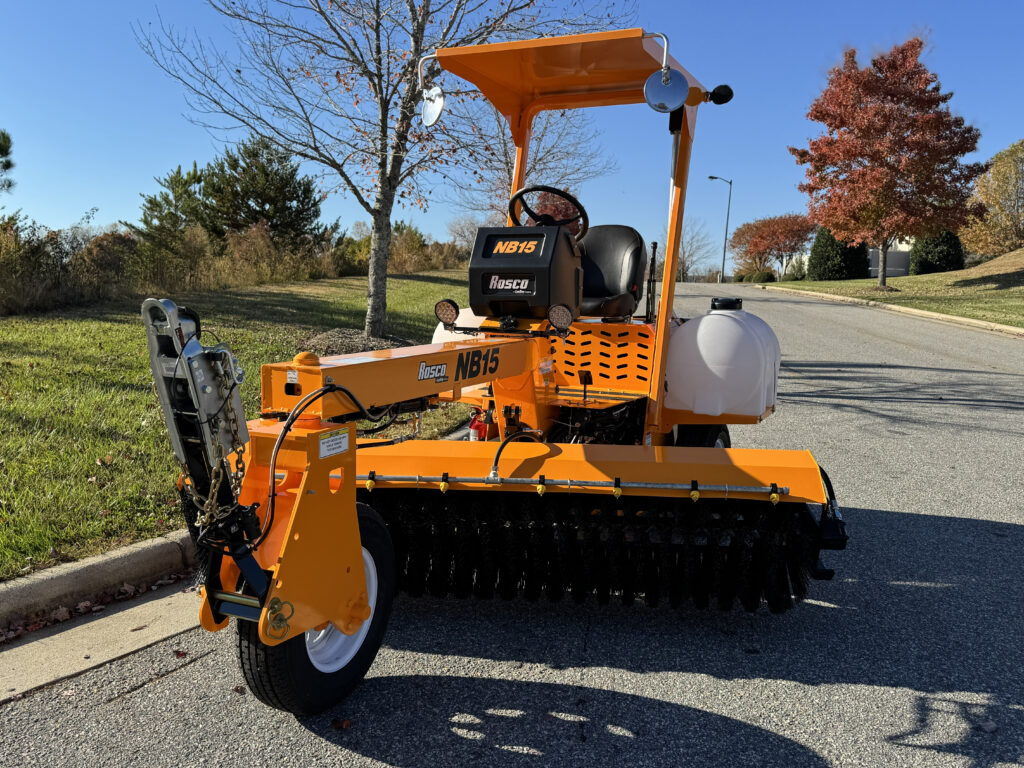

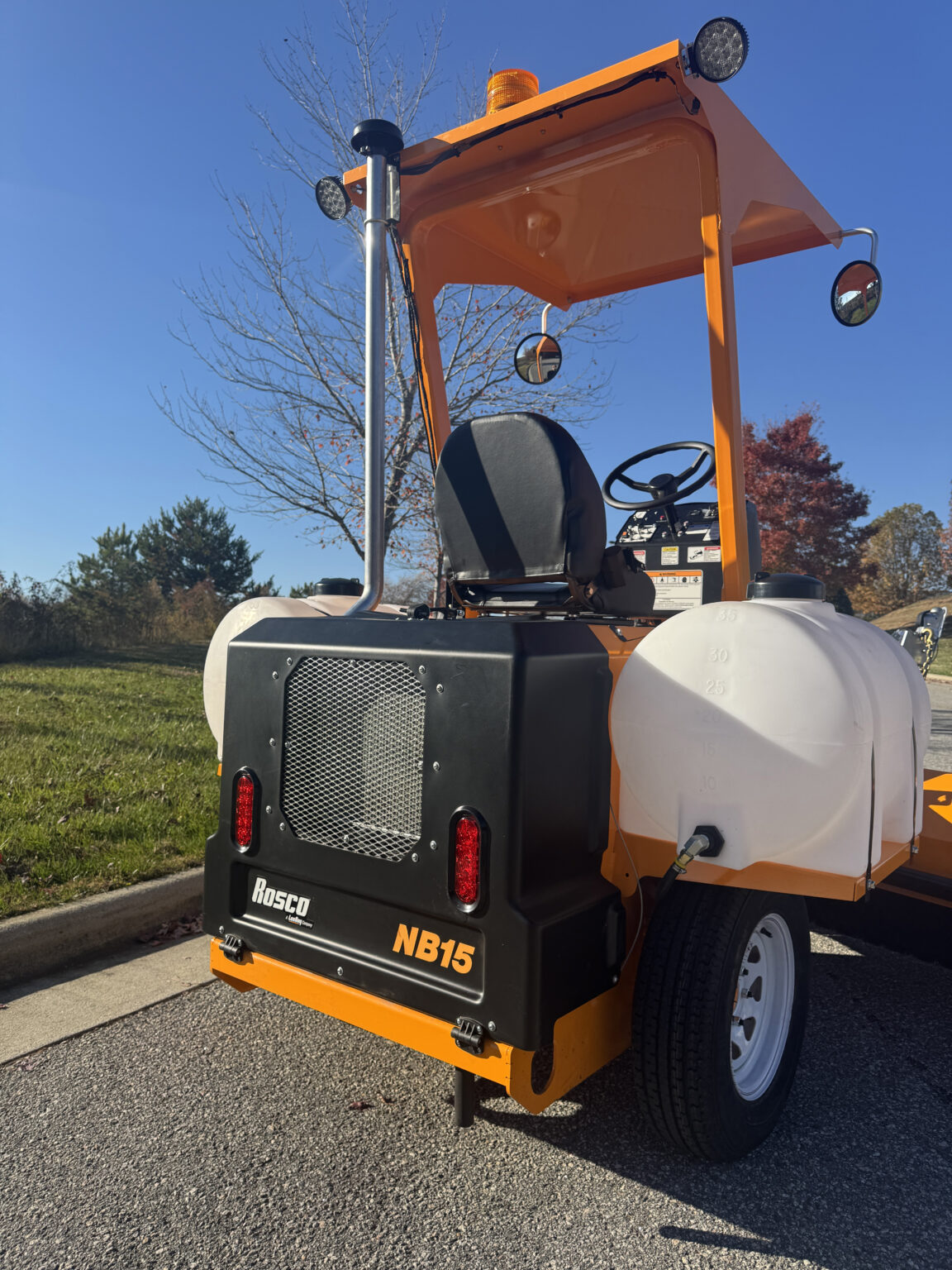

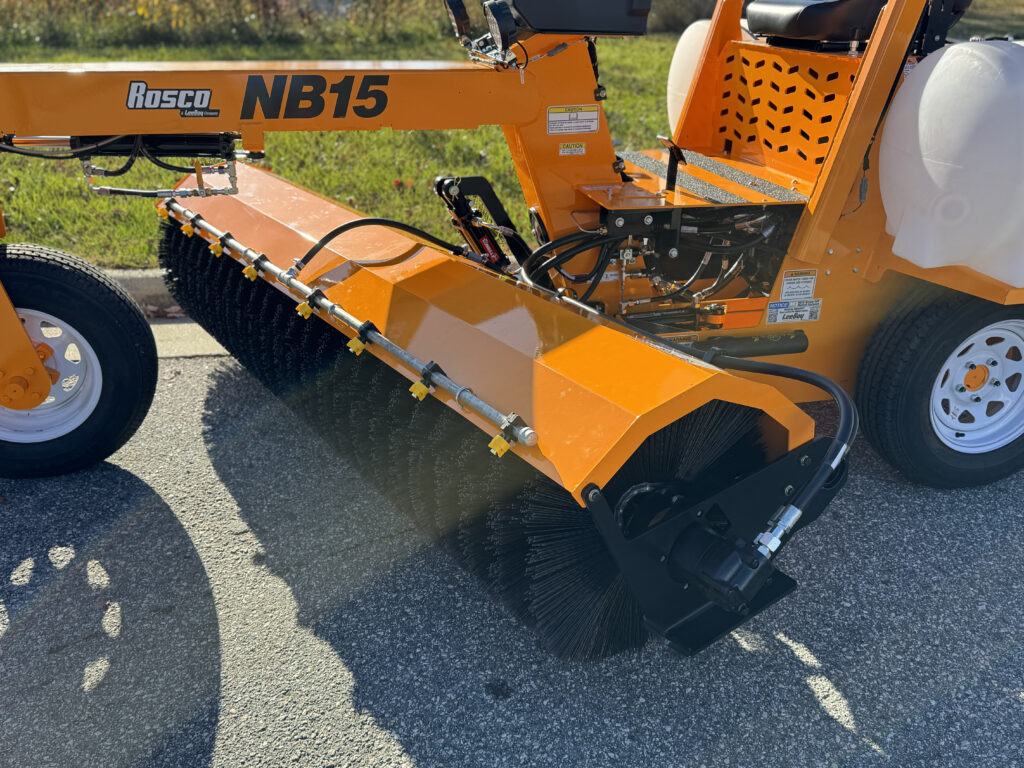

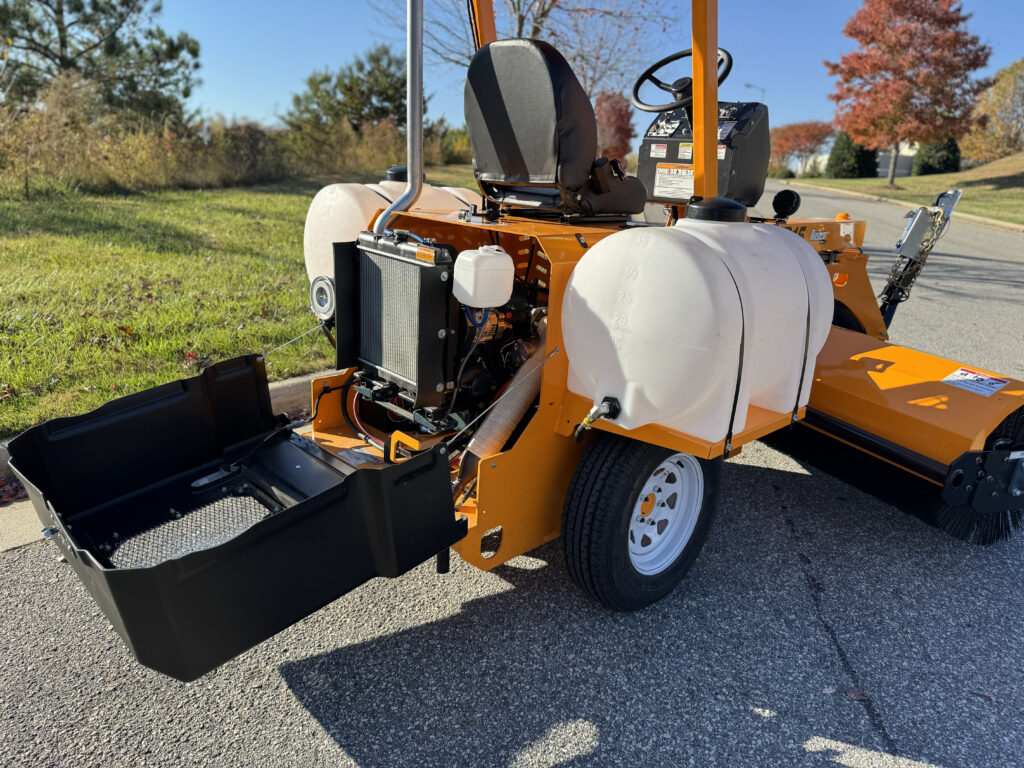

The Rosco NB15 is a three-wheeled, self-propelled sweeper engineered specifically for professional use.
It features a comfortable, ergonomic design and a powerful brush core for quality cleaning. The machine is also designed to be easily towed, making transport simple.
This makes the NB15 a perfect fit for rental companies or any operation needing a dependable sweeper for paved surfaces.
INFORMATION
BRAND
Leeboy
PRODUCTION
Made in USA
PRODUCT TYPE
Self-propelled Sweeper
COLLECTION
NB15
BRUSH LOCATION
Center-Mount Brush Location
BRUSH FULLY ROTATED
7’11” Brush fully rotated
TRAILER HITCH UP
13′ w/ Trailer hitch up
TOW PACKAGE
12’2″ w/o Tow package
WIDTH
9′ Brush centered
LENGTH
15’1″ w/ Trailer hitch down
HEIGHT
8’ 2′ Beacon
WHEELBASE
8’5″
BEACON FLIPPED
8’9″ Beacon flipped up, operating
TRACK WIDTH
4’3″
GROUND CLEARANCE
7″
TURNING RADIUS
10’4″ center front wheel
TURNING CIRCLE
4’0″ inside rear wheel
TOTAL WEIGHT
2,620 lbs. w/o water
WATER
3,205 lbs. w/ water
USE
Outdoor

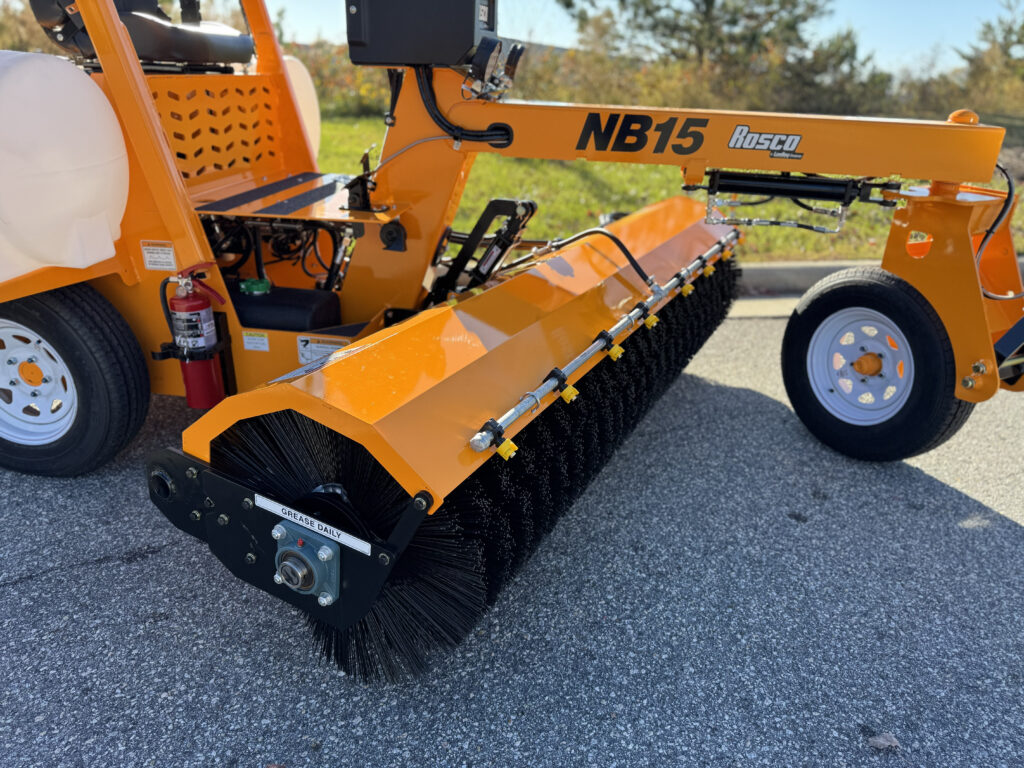

BRUSH
- Hydraulic control
- Hydraulic down pressure
- Sweep angle : 30°, left or right
- Filler : wafer type. poly, 24″ diameter, 8′ long
- Speed : 180 rpm max, variable by engine speed
- Drive mechanism consists of direct hydraulic motor
ENGINE
- Fuel reservoir : 8 gallons
- Standard : 25 hp max @ 3,300 rpm, Kubota D1105
- Electrical system : 12 volt system, alternator and battery
