Metrotile Bond Roof Tiles
BOND ROOF TILES
BOND ROOF TILES

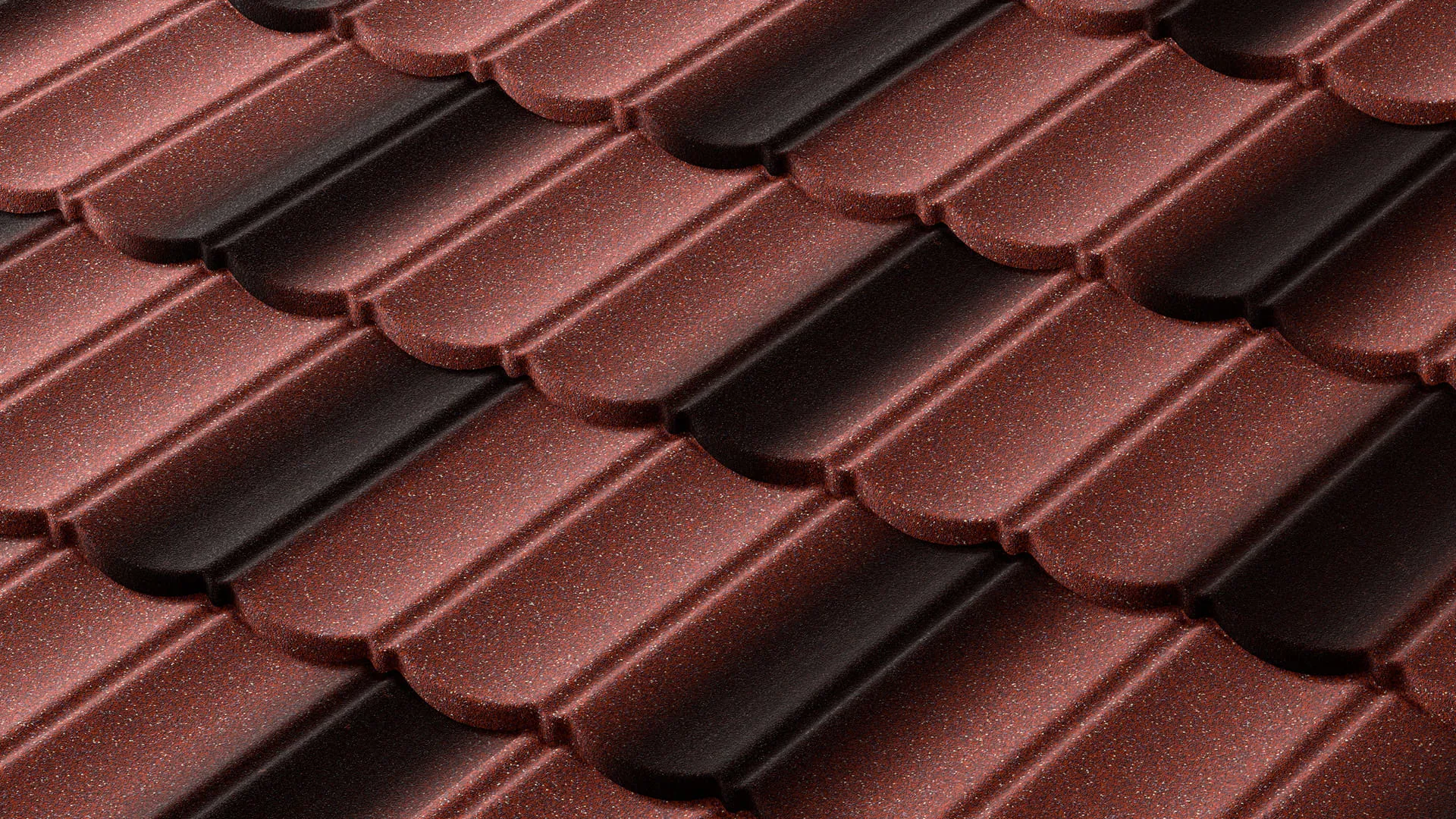

Smooth flowing curves for a timeless appeal
The bond profile is designed to get the same appearance of the traditional clay roof style, with the additional benefits of steel.
Because of the downturned front and the upturned rear edges, the panels interlock tile covering, which provides an excellent durability, protection and resistance to wind lift or other extreme weather conditions.
INFORMATION
BRAND
Metrotile
PRODUCT TYPE
Roof Tile
COLLECTION
Bond
BATTEN SPACE
371 mm
DOWN TURN
25 mm
UP STAND
25 mm
AVAILABLE COLORS
11
MATERIAL STRUCTURE
-Overglaze -Stone Chip -Basecoat -Transparent Acrylic Coating -Aluminium-zinc -Steel -Aluminium-zinc -Transparent Acrylic Coating
MAXIMUM ROOF PITCH
90 degrees
MINIMUM ROOF PITCH
10 degrees
BOND
The Bond is manufactured from steel flat sheets with a high grade protective layer and is available in a wide selection of colours to enhance any exterior colour scheme.
TEXTURED SURFACE
Stone chip granules are applied to provide an attractive textured finish which at the same time enhance resistance to UV radiation. Granules are ceramic coated with lightfast heat resistant pigments.
WEIGHT /PANEL
3.01 kg
WEIGHT/AREA
6.41 kg/m²
TILES PER M²
2.13
ROOF COVER
0.469 m²

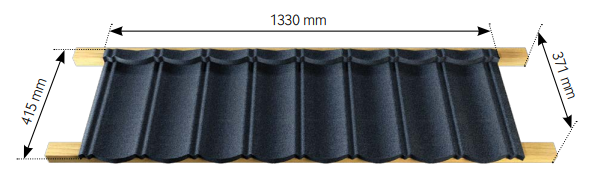

DIMENSIONS
- Width of cover : 371 mm
- Length of cover : 1270 mm
- Overall Width : 415 mm
- Overall Length : 1330 mm [± 3 mm]
STEEL SPECIFICATION
The Metrotile iShake tile is made of Aluzinc® alloy coated steel. The grade of steel used is designed to allow forming without cracking or significant elastic recovery and at the same time to be rigid enough to tolerate reasonable loads without excessive deformation.
STEEL THICKNESS
0.41 mm
STEEL GRADE
DX52D
ALUZINC® COATING MASS
150 g/m²
ALUZINC® COATING GRADE
AZ150
COATING SPECIFICATION
TRANSPARENT COATINGS
Both sides of the Aluzinc® alloy coated steel are coated with a transparent layer that provides protection and a uniform substrate for further coatings. This transparent coating allows identification of the aluminium-zinc substrate to be made by distributors and customers.
OVERGLAZE
Clear 100% acrylic resin coating for granule binding and a semi-gloss finish. It helps enhance the appearance as well as increase the resistance to physical damage.
BASECOAT
A tough opaque coating based on acrylic resin. It bonds the stone chips and protects the underlying layer from water and UV radiation. It has good UV resistance and retains its flexibility although it does become harder after the first few weeks.
STONE CHIP
Carefully selected granules provide excellent surface coverage and attractive natural looking and lasting colours.

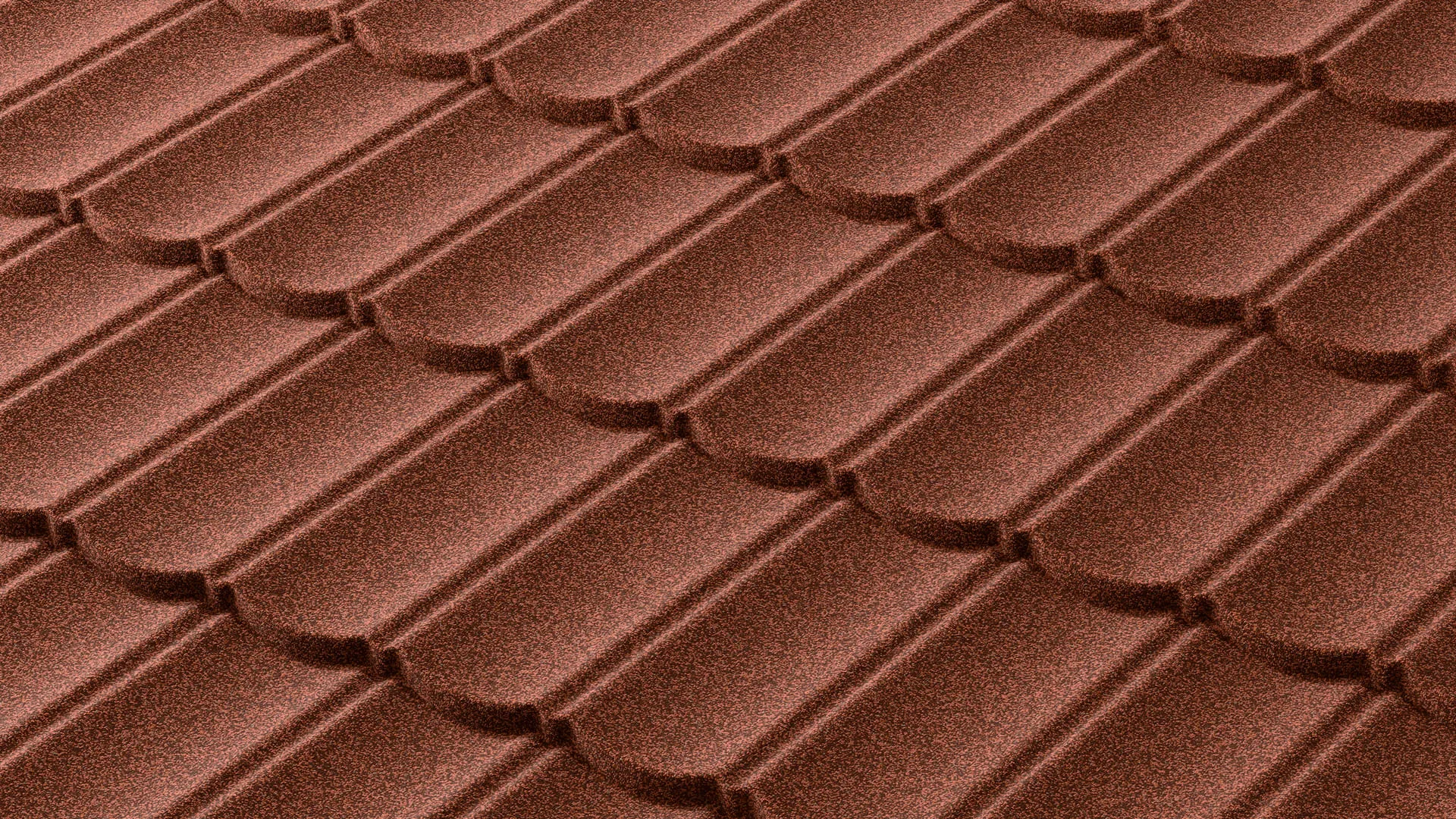

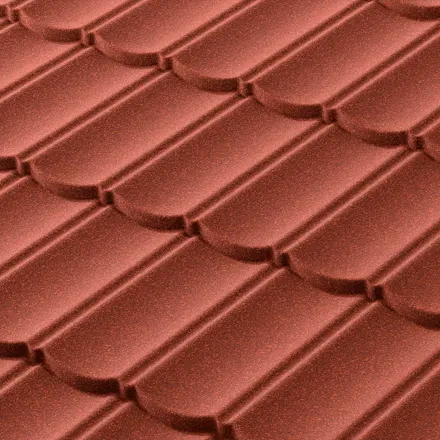

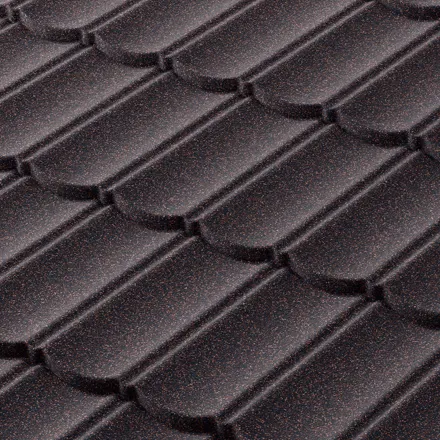

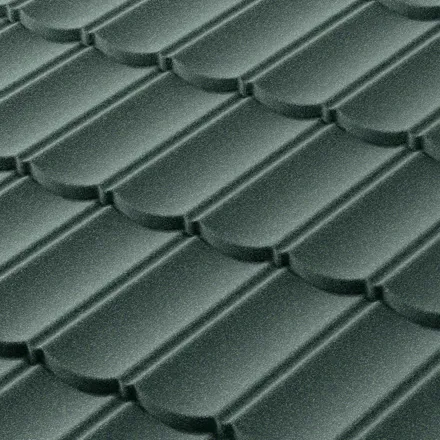

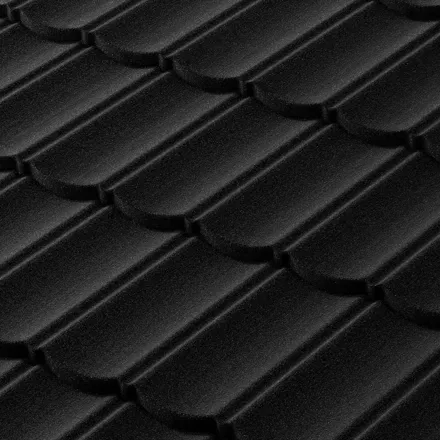

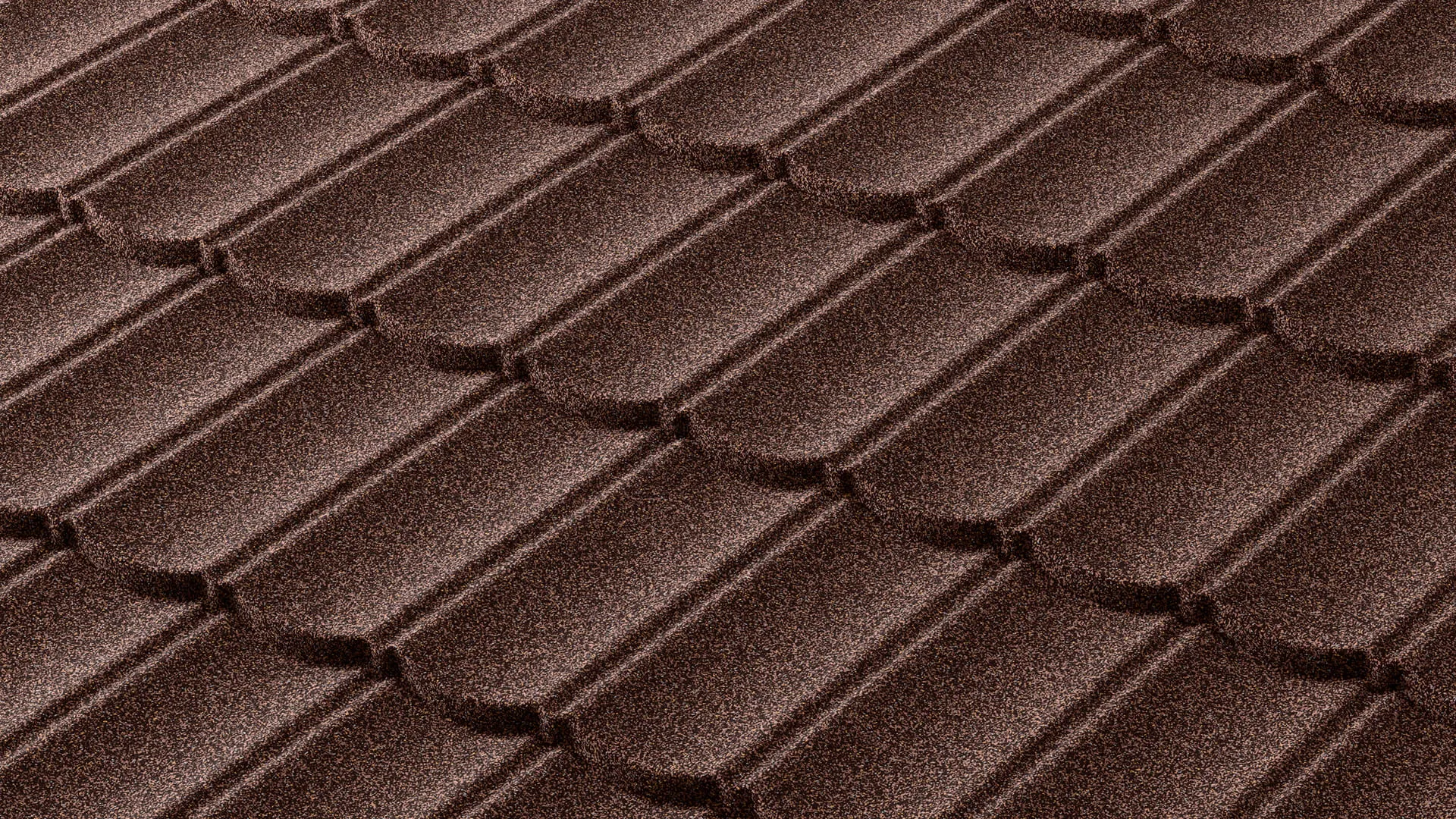

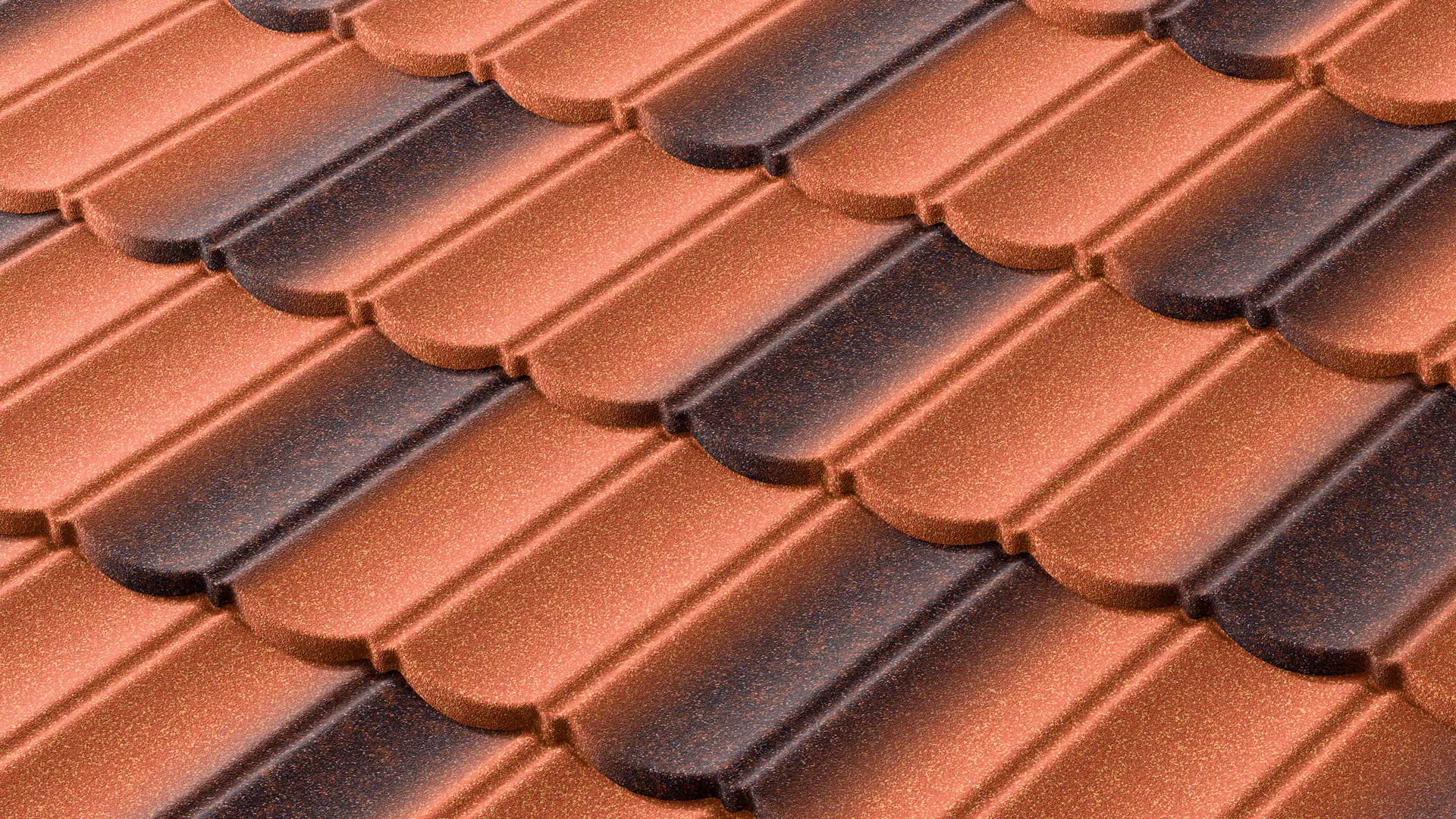

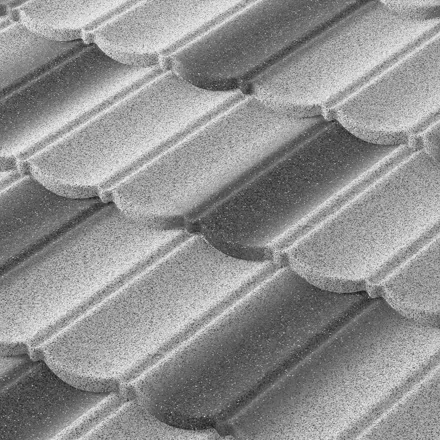

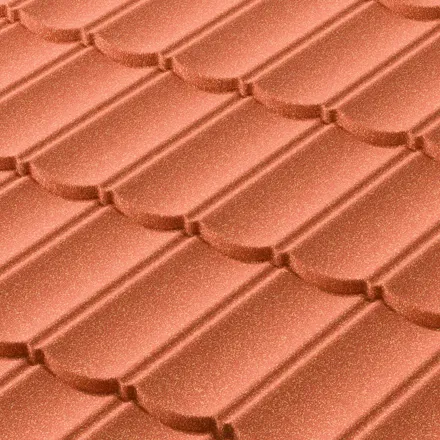

FINISHES
FINISHES

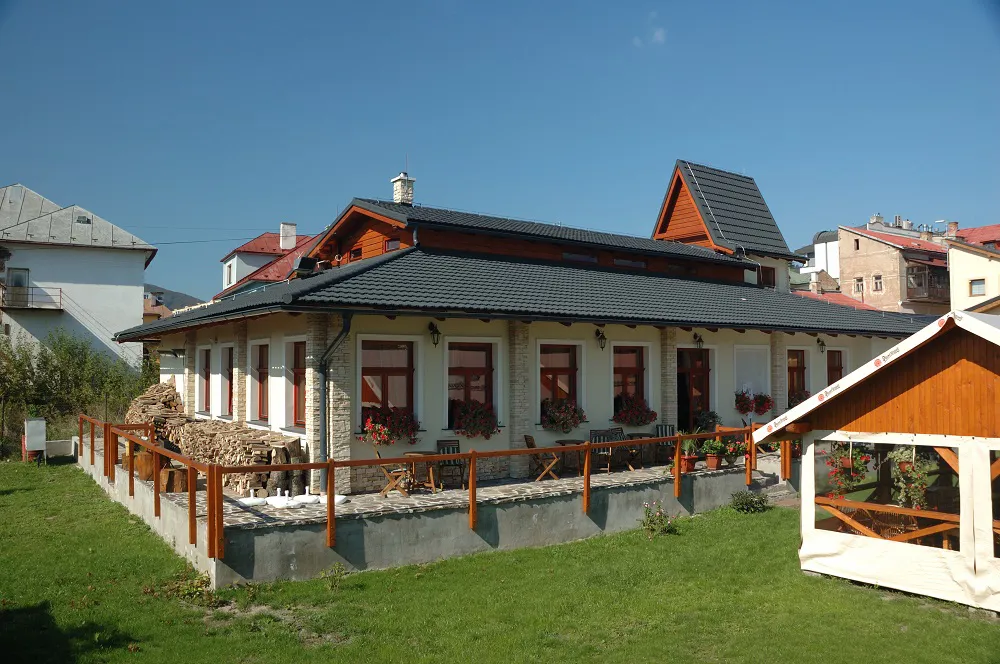

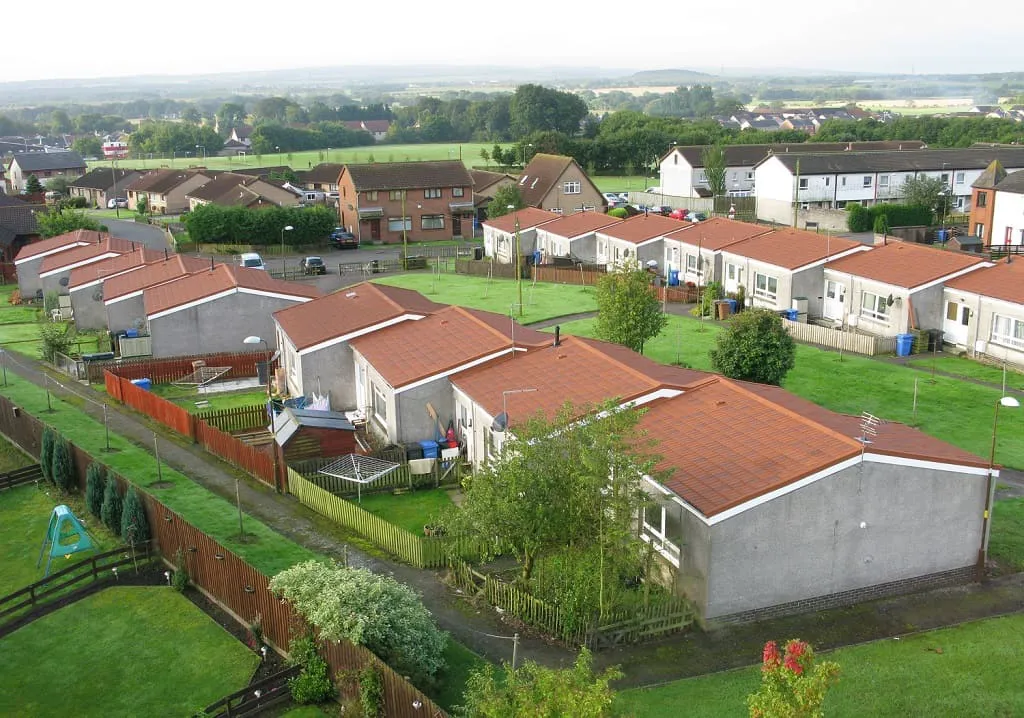

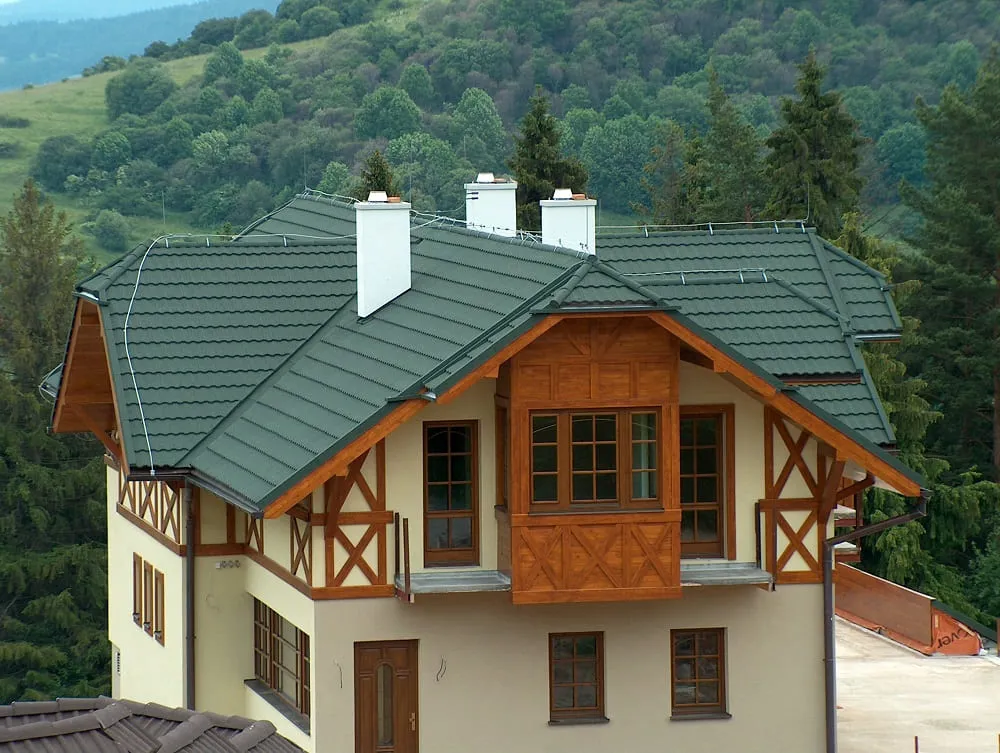

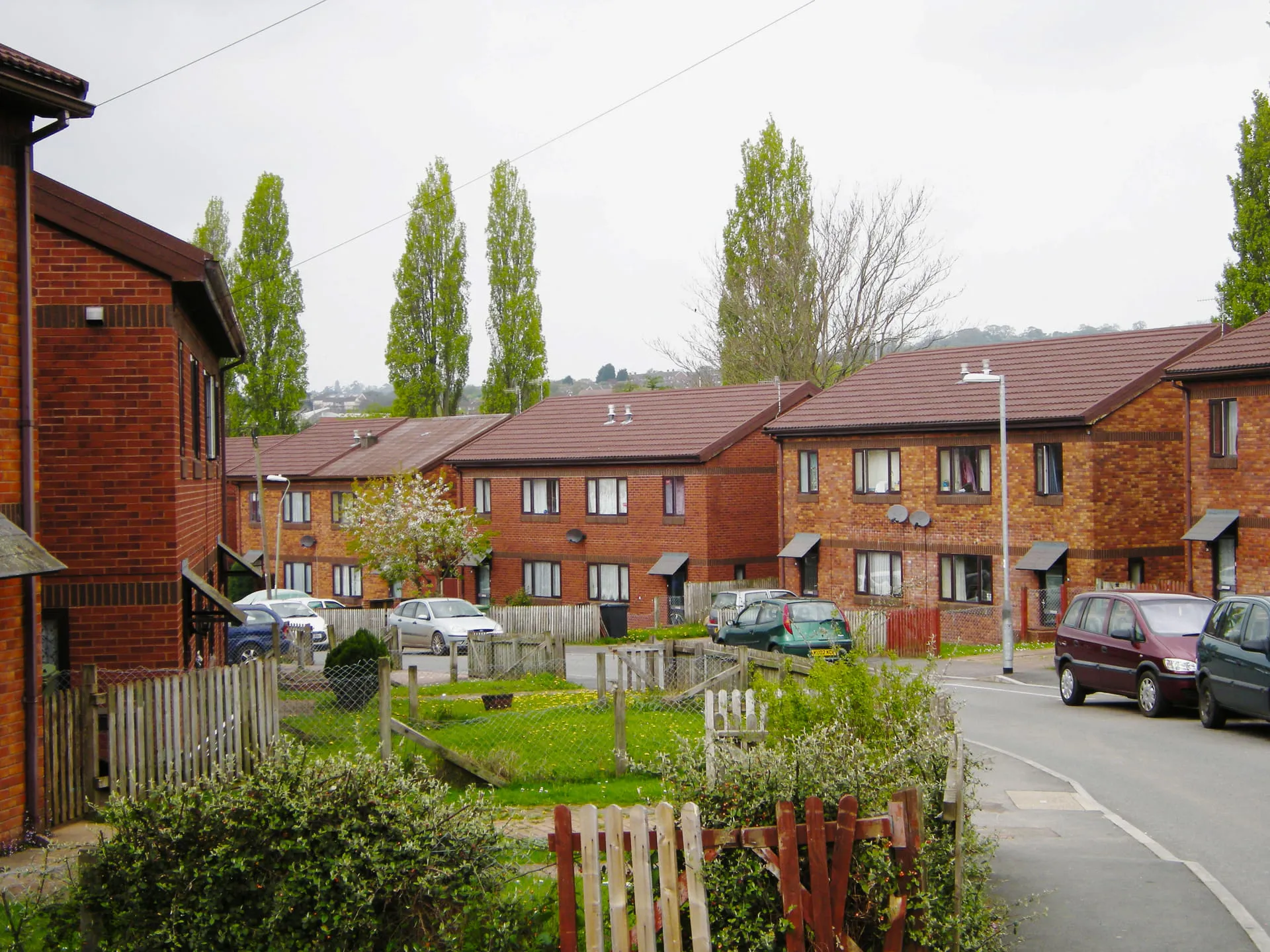

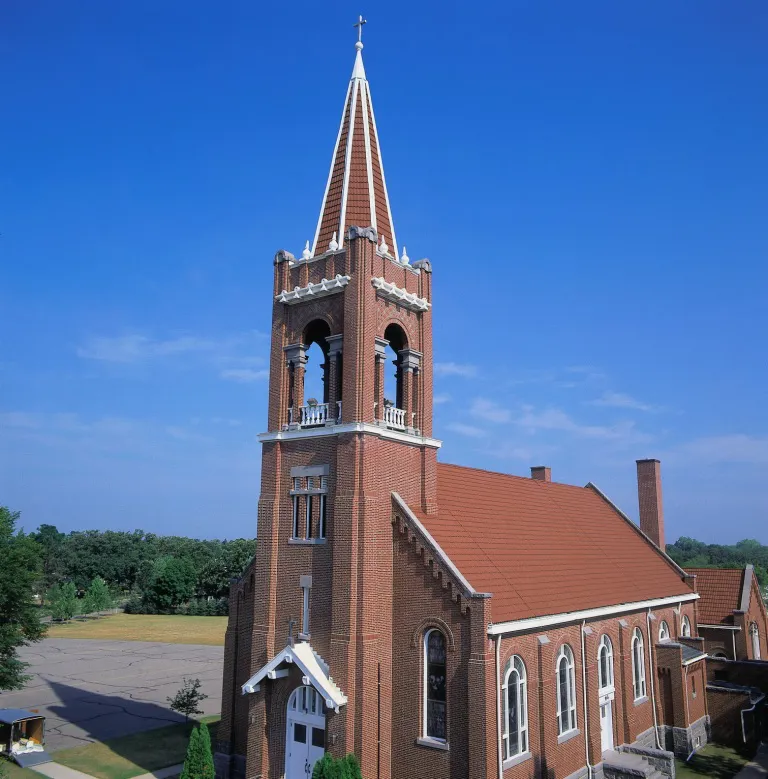

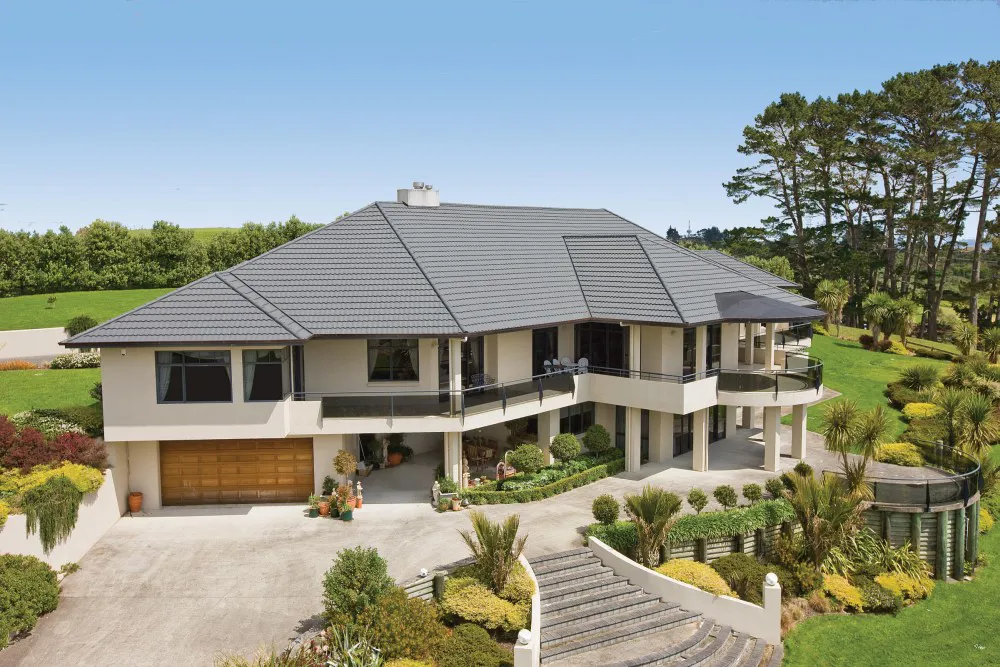

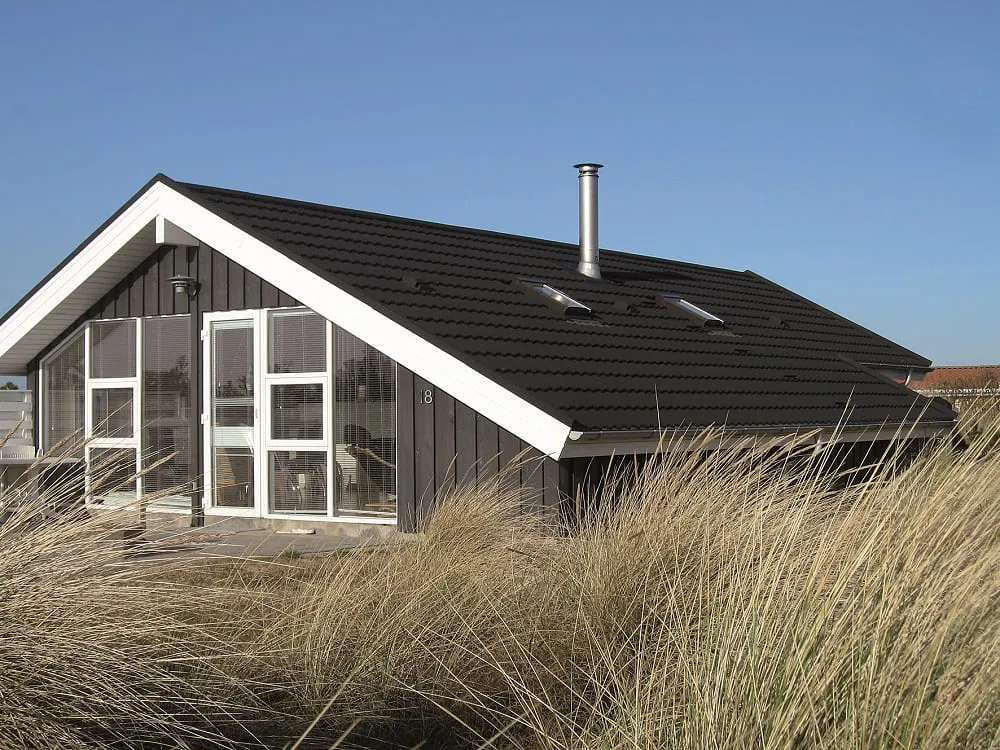

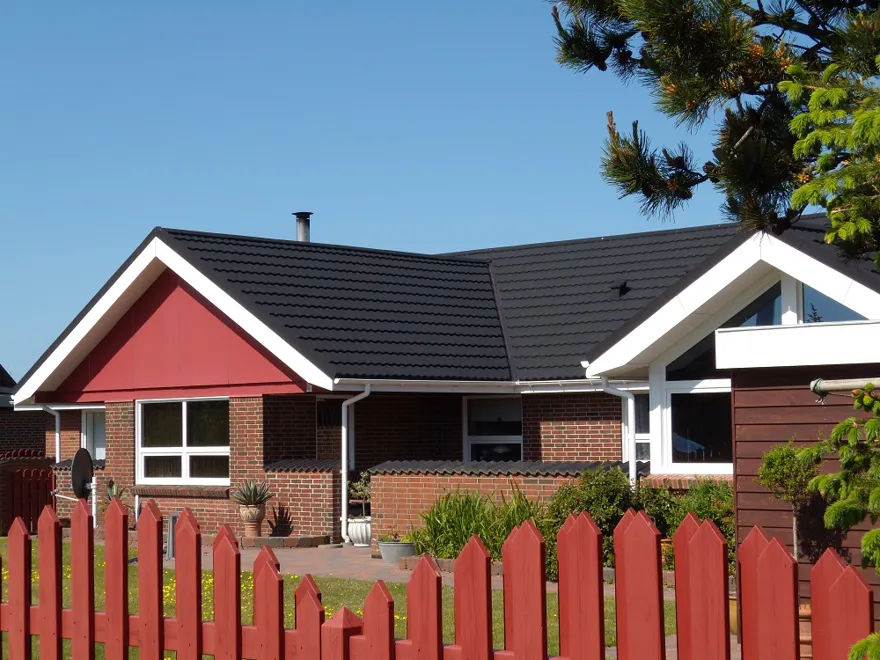

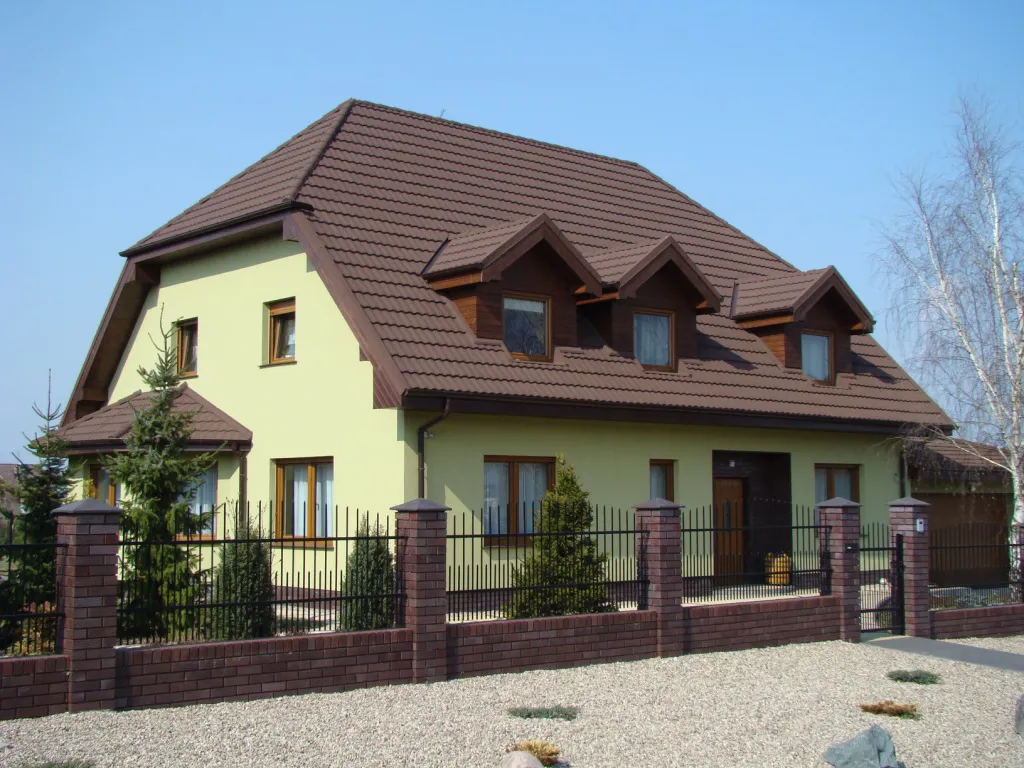

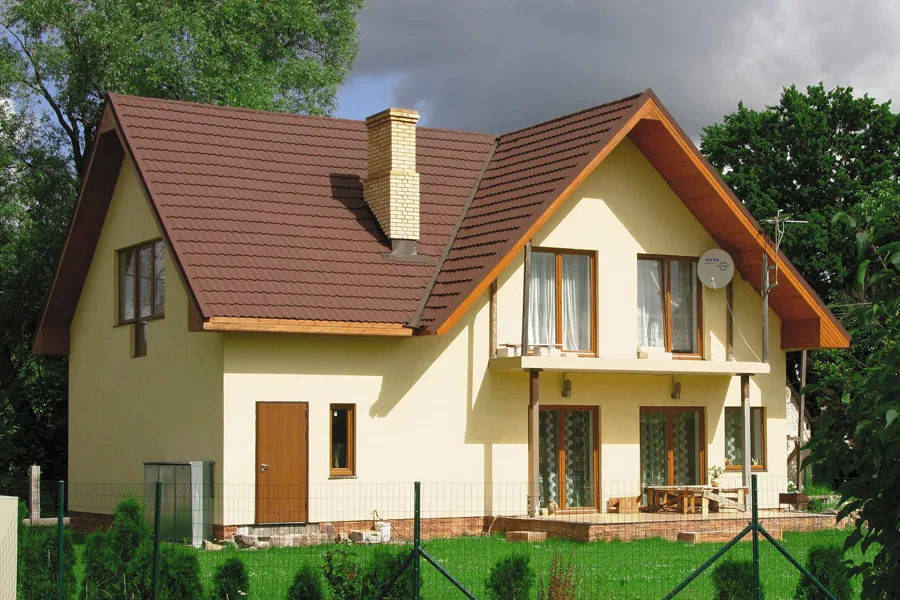

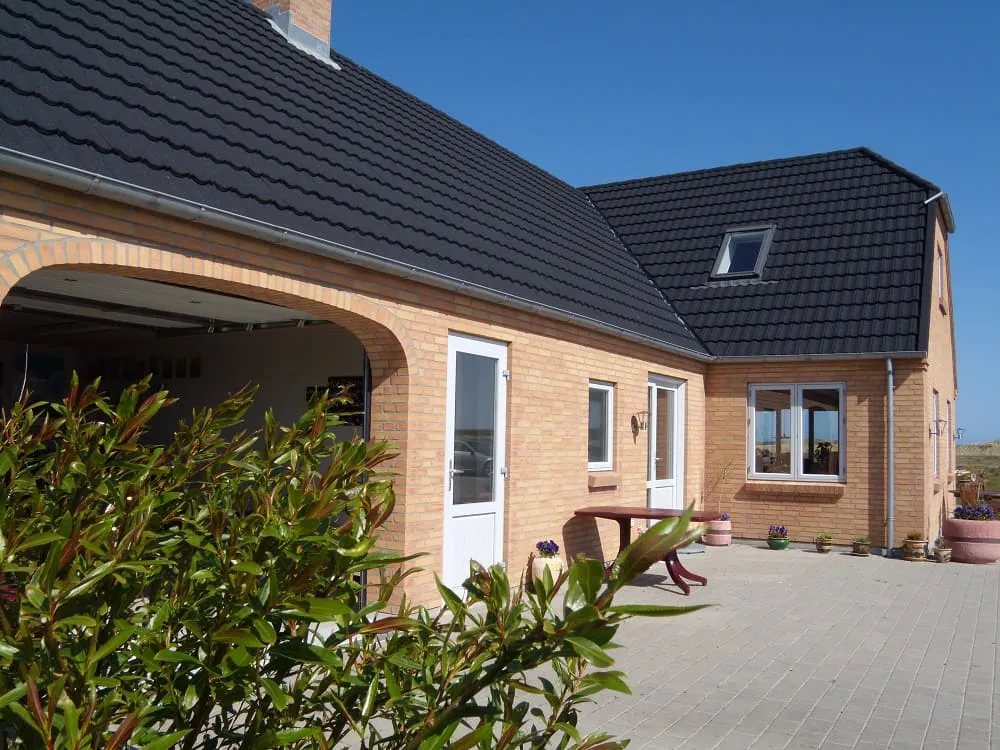

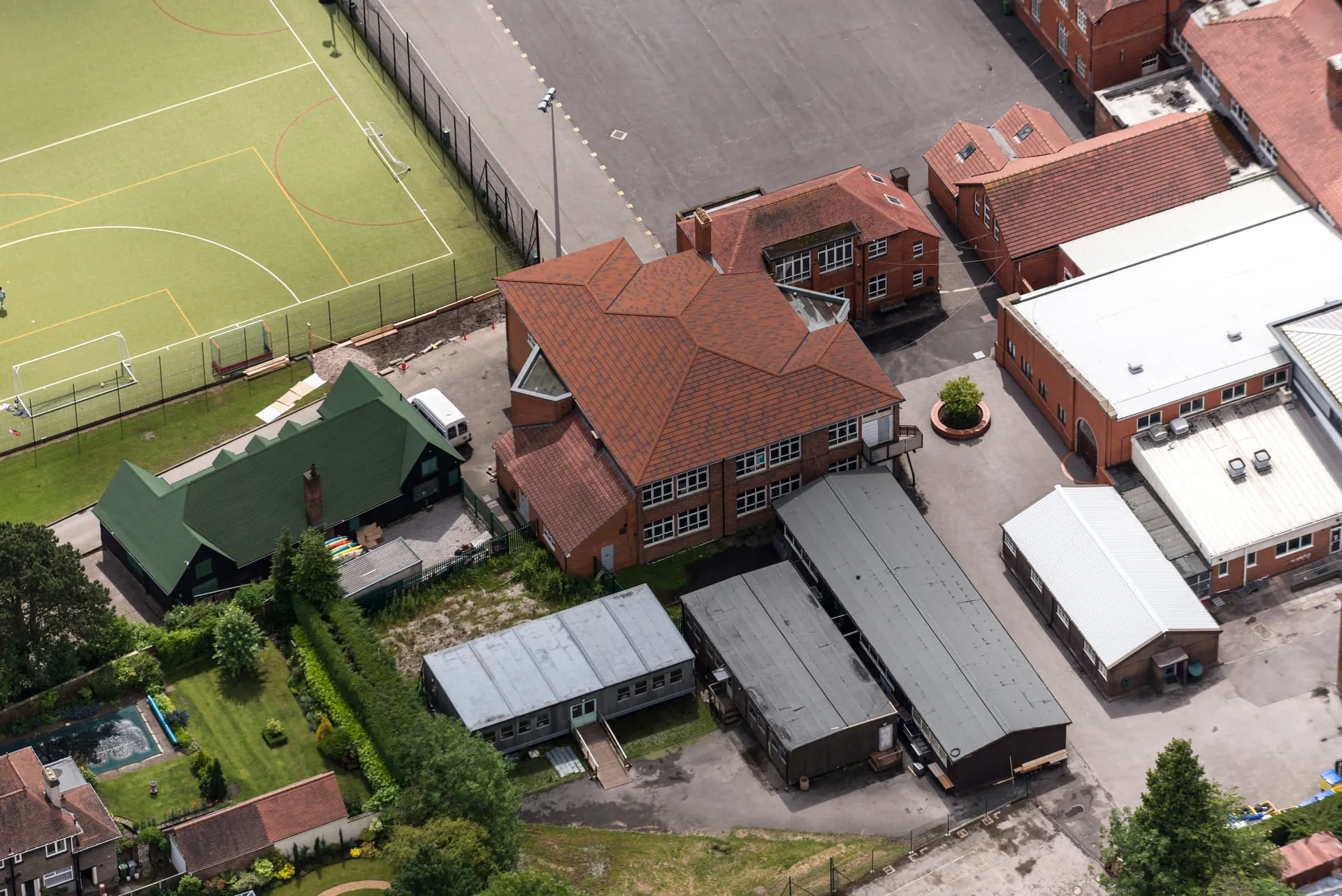

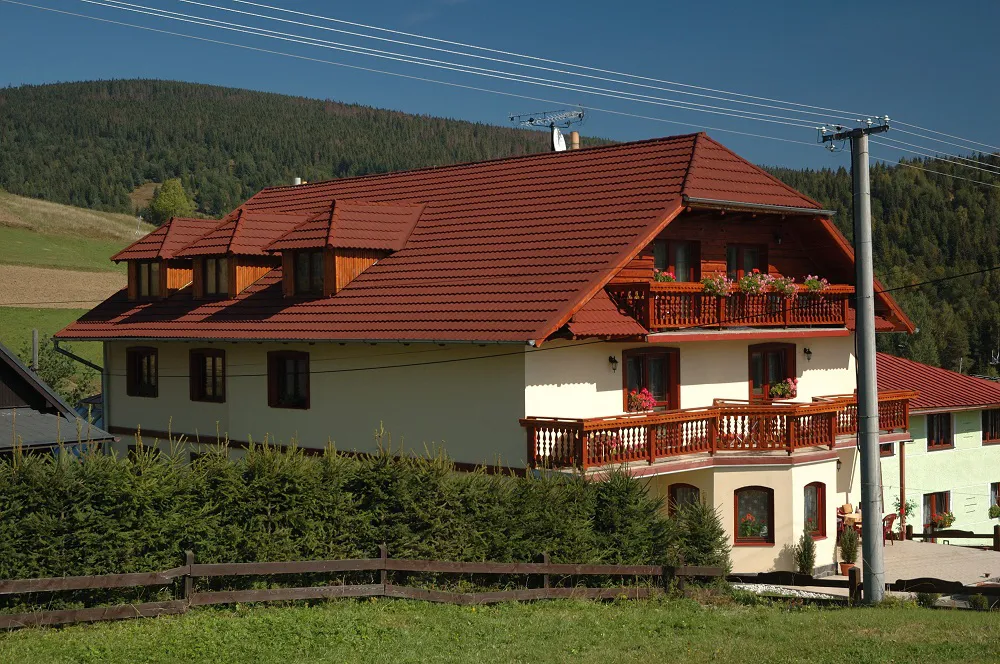

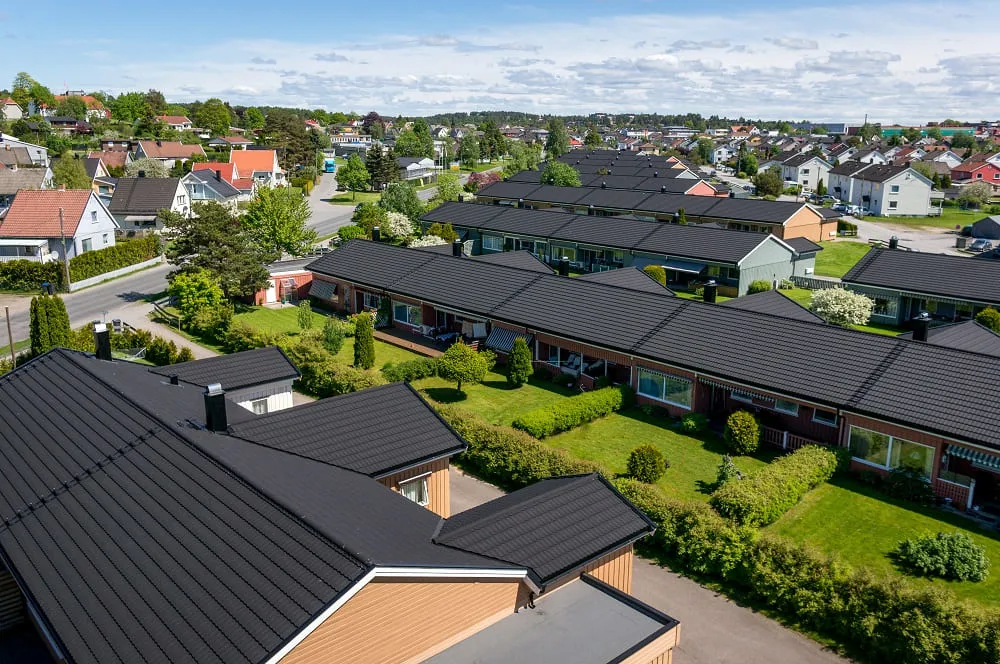

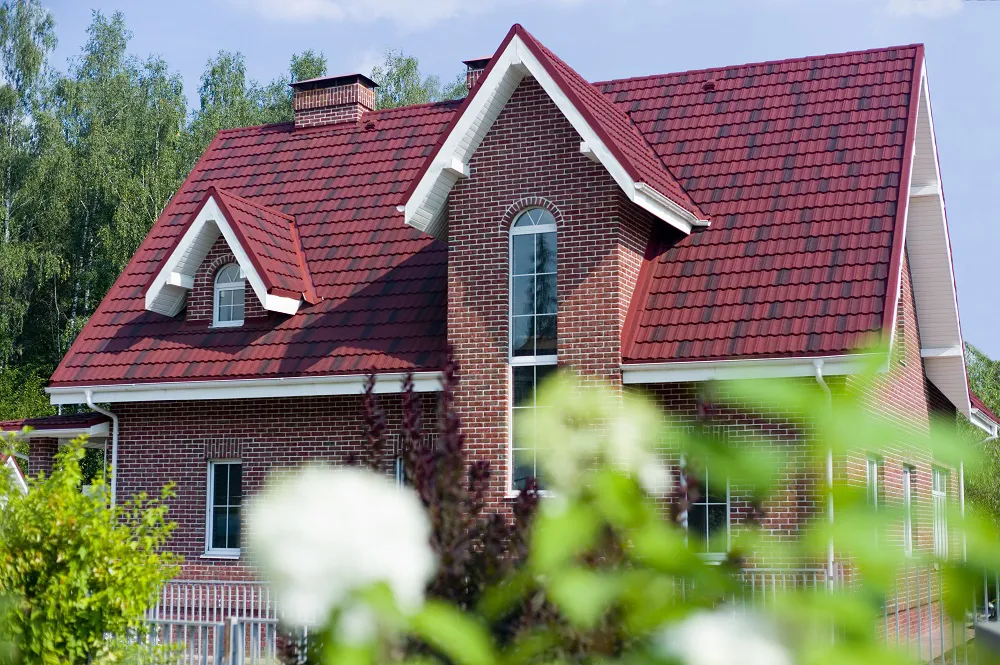

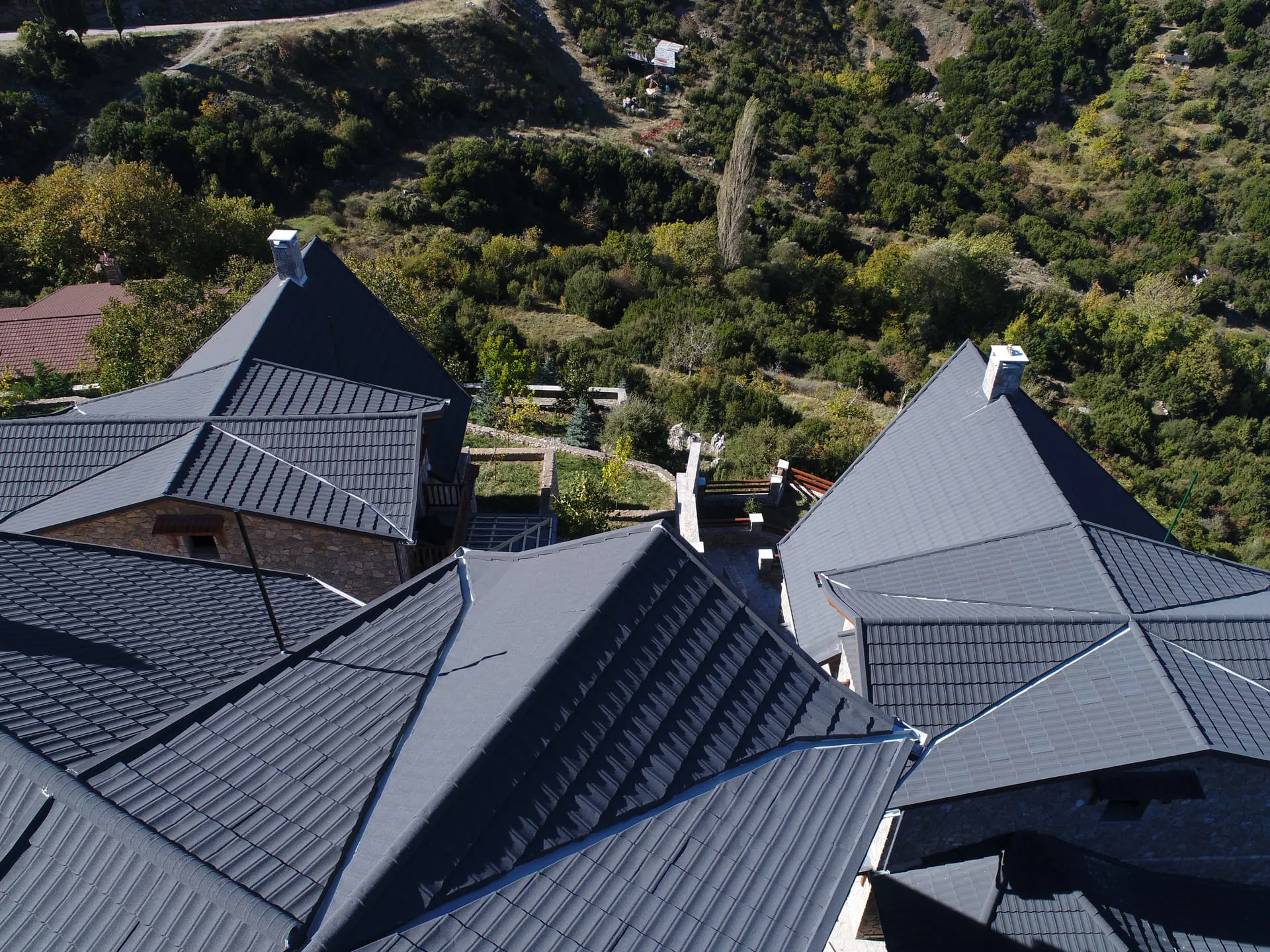

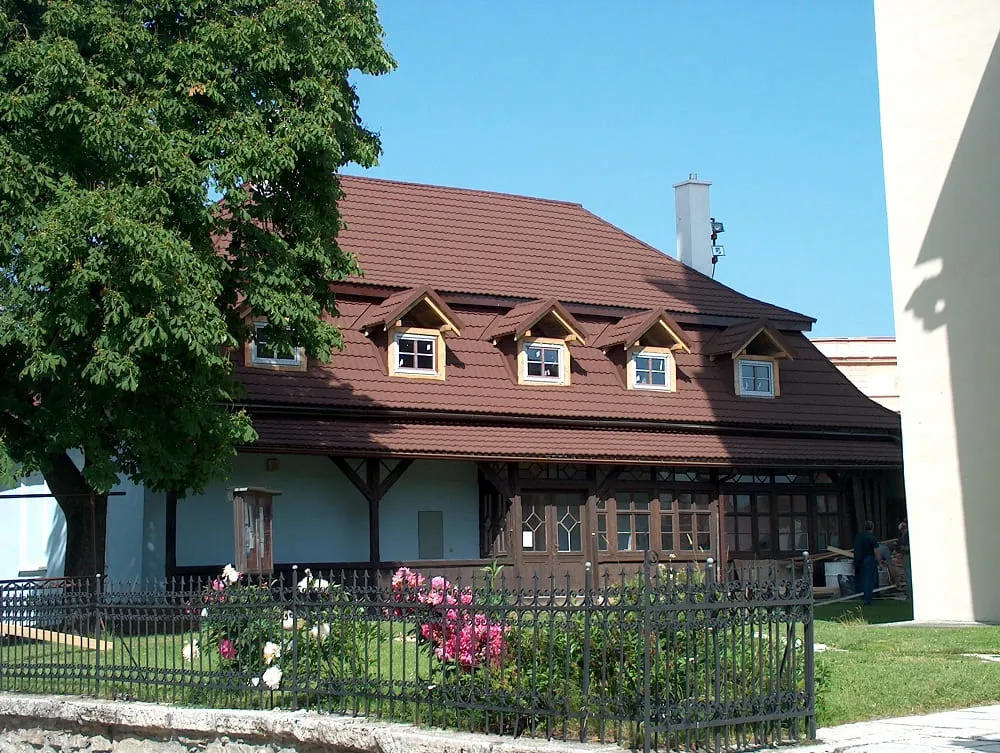

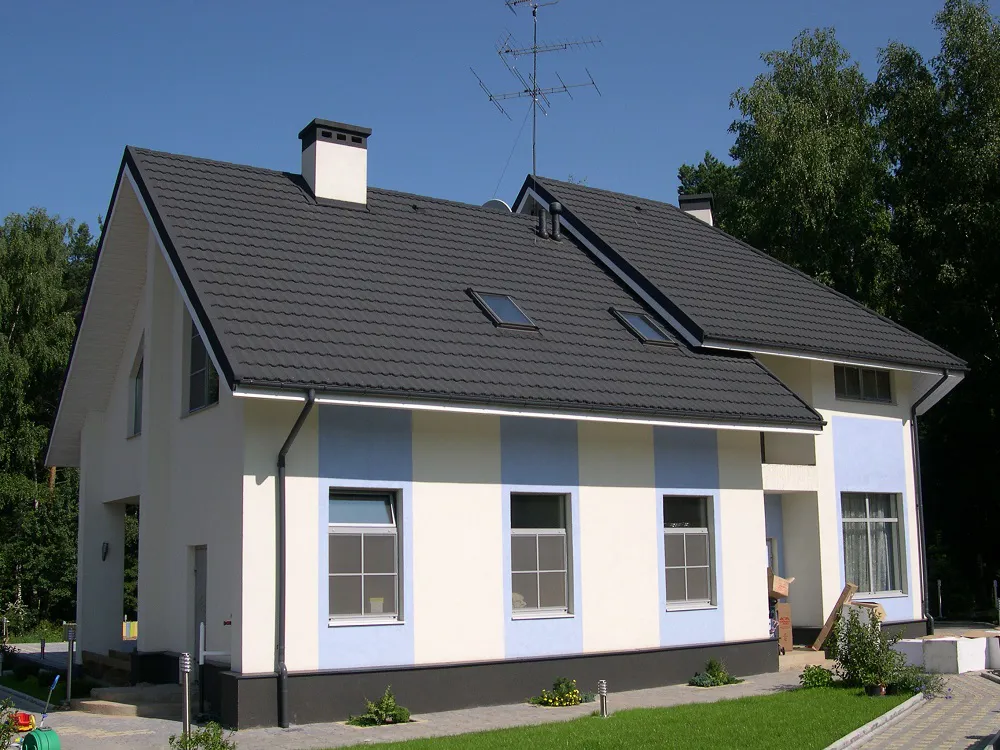

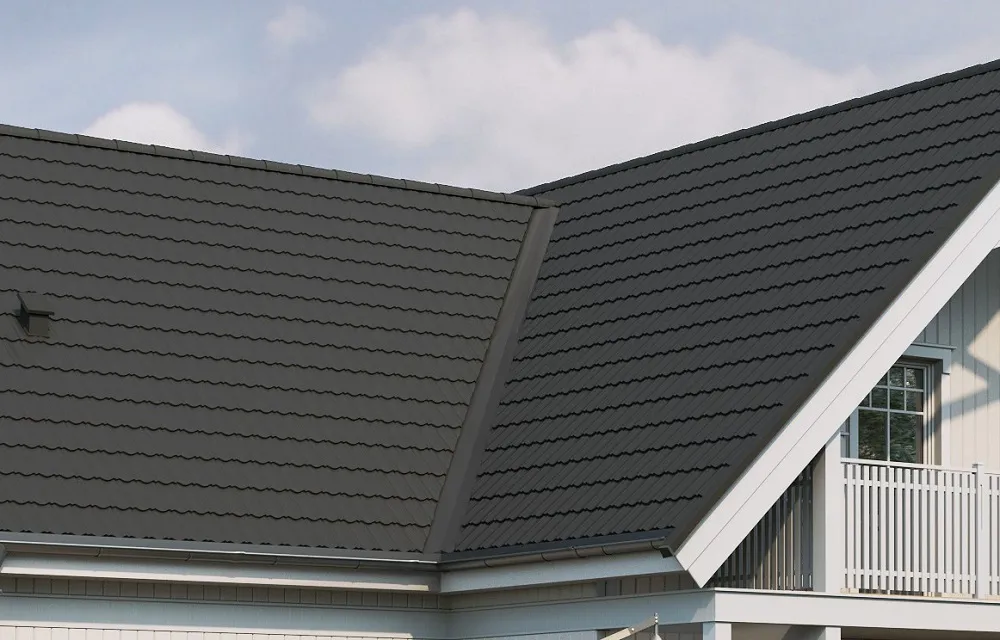

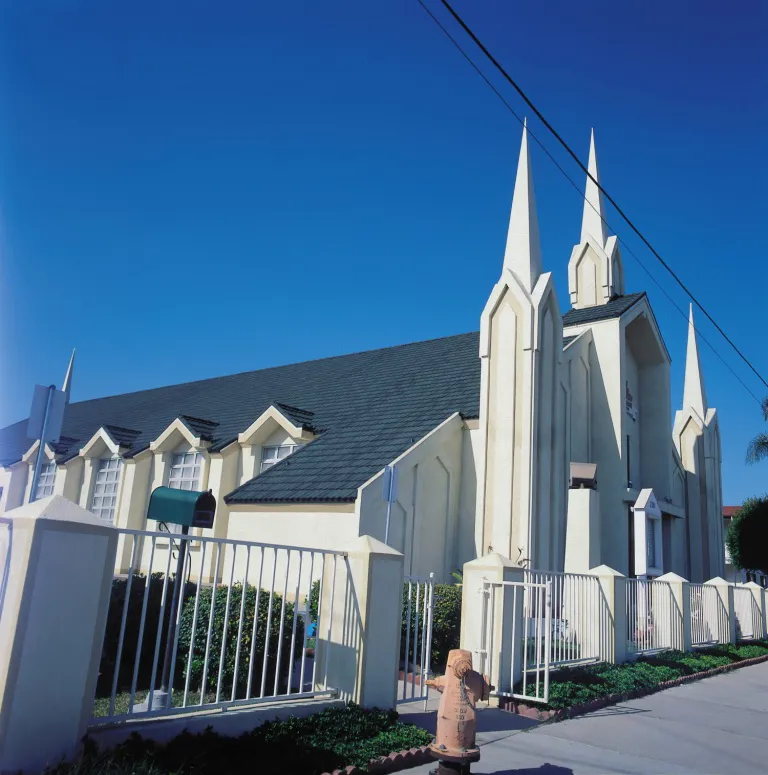

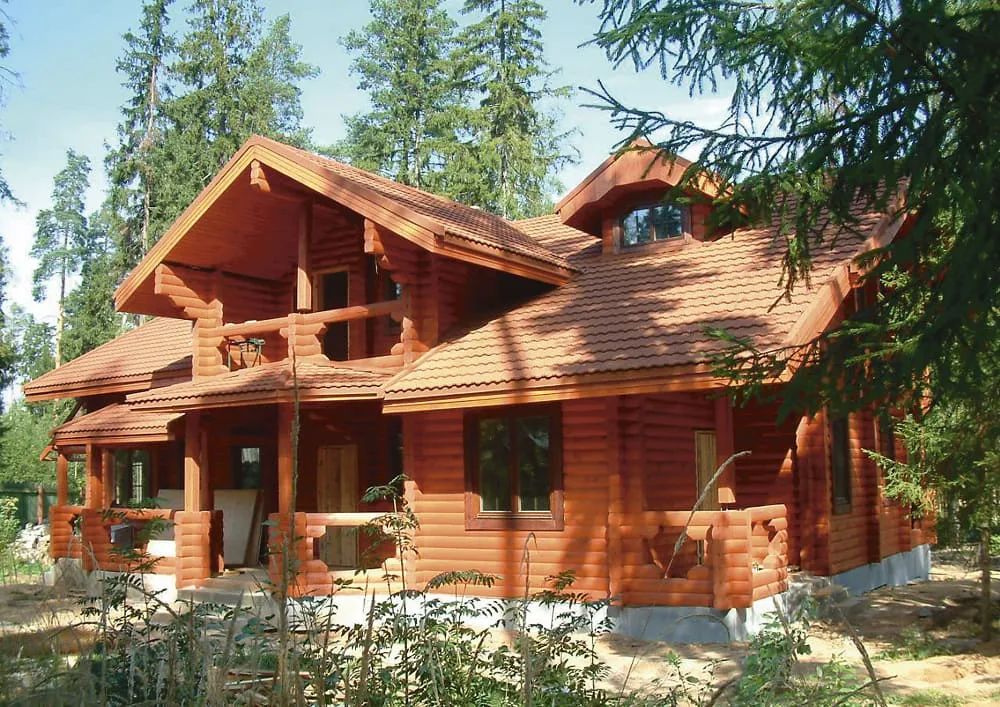

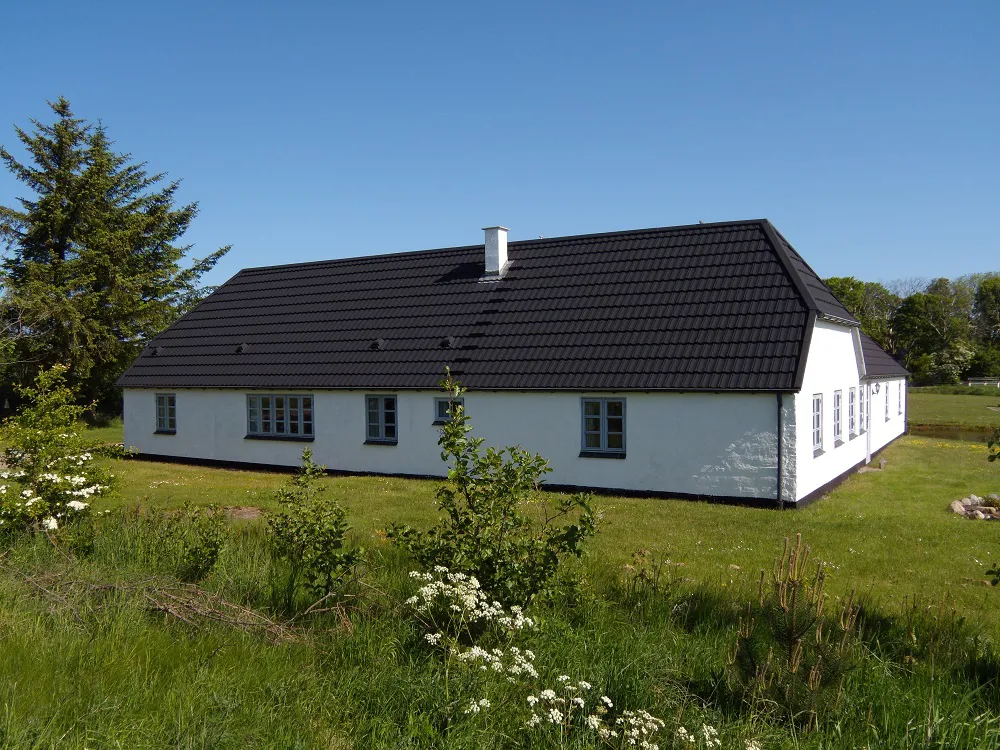

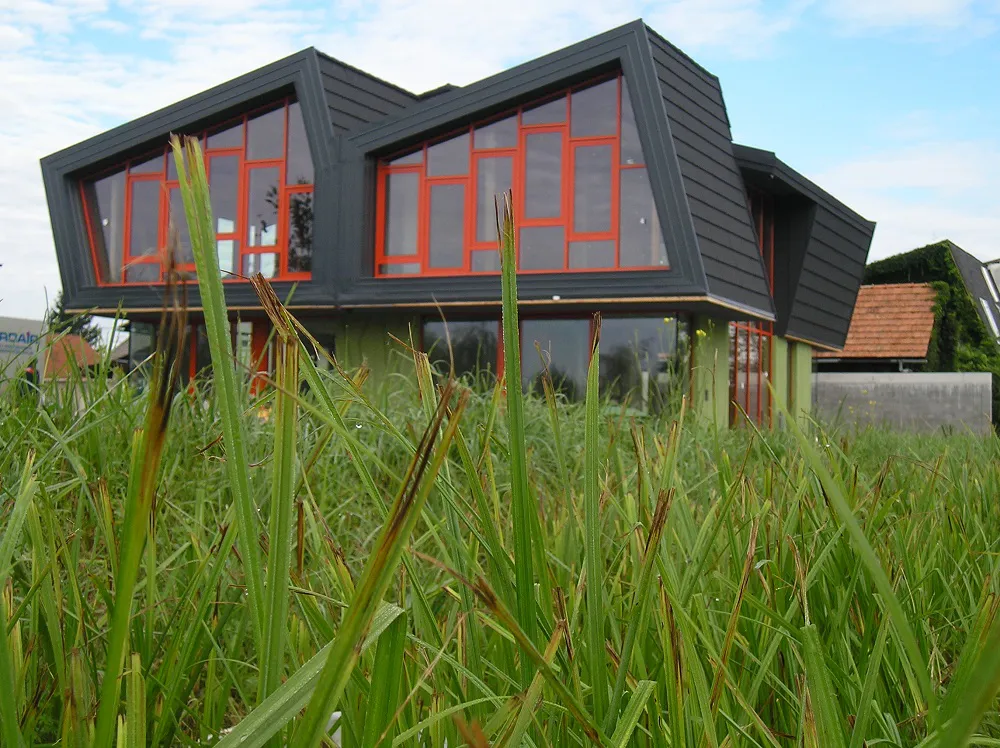

GALLERY
