Cordivari Claudia Electric Radiator
CLAUDIA ELECTRIC RADIATOR
CLAUDIA ELECTRIC RADIATOR

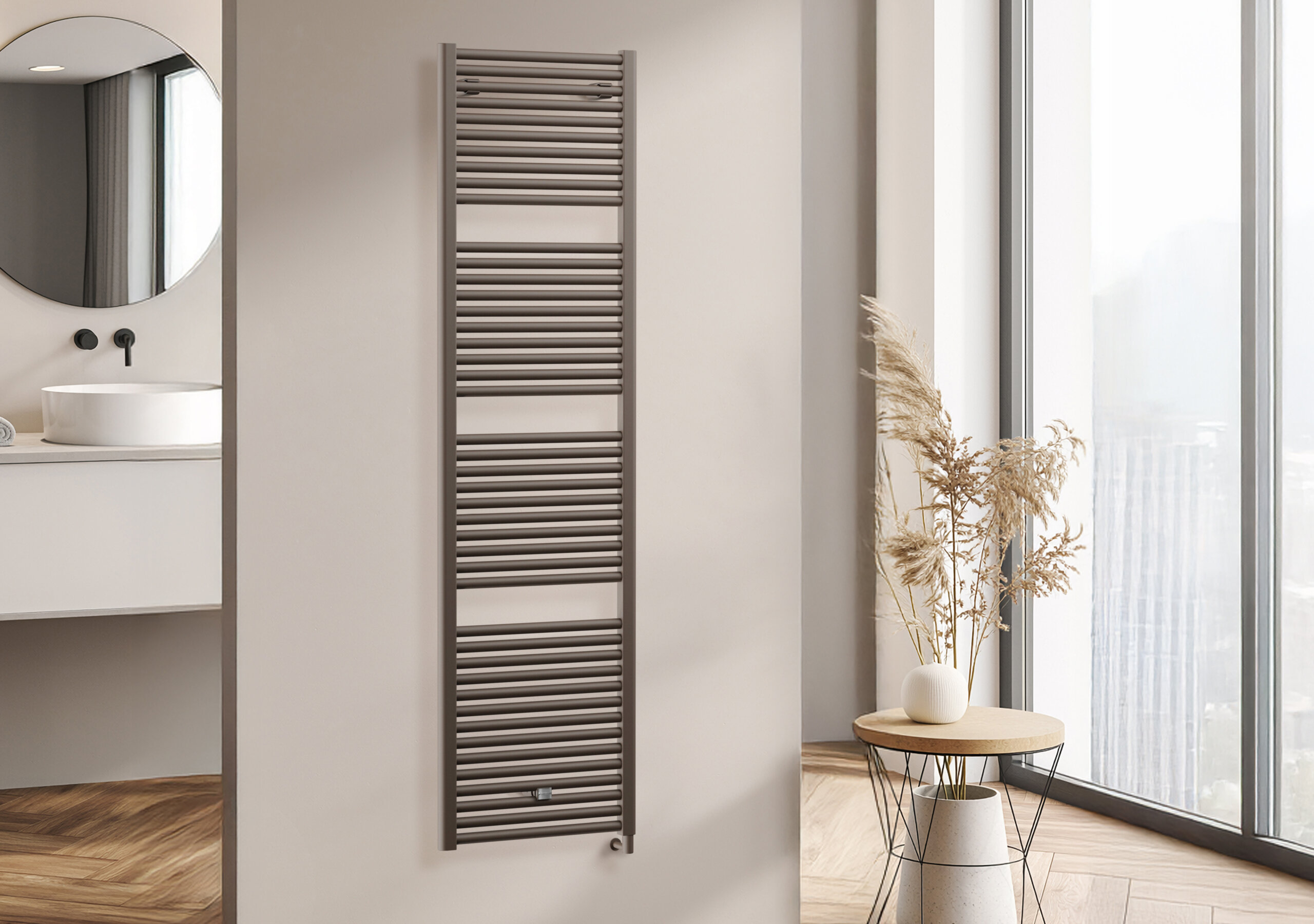

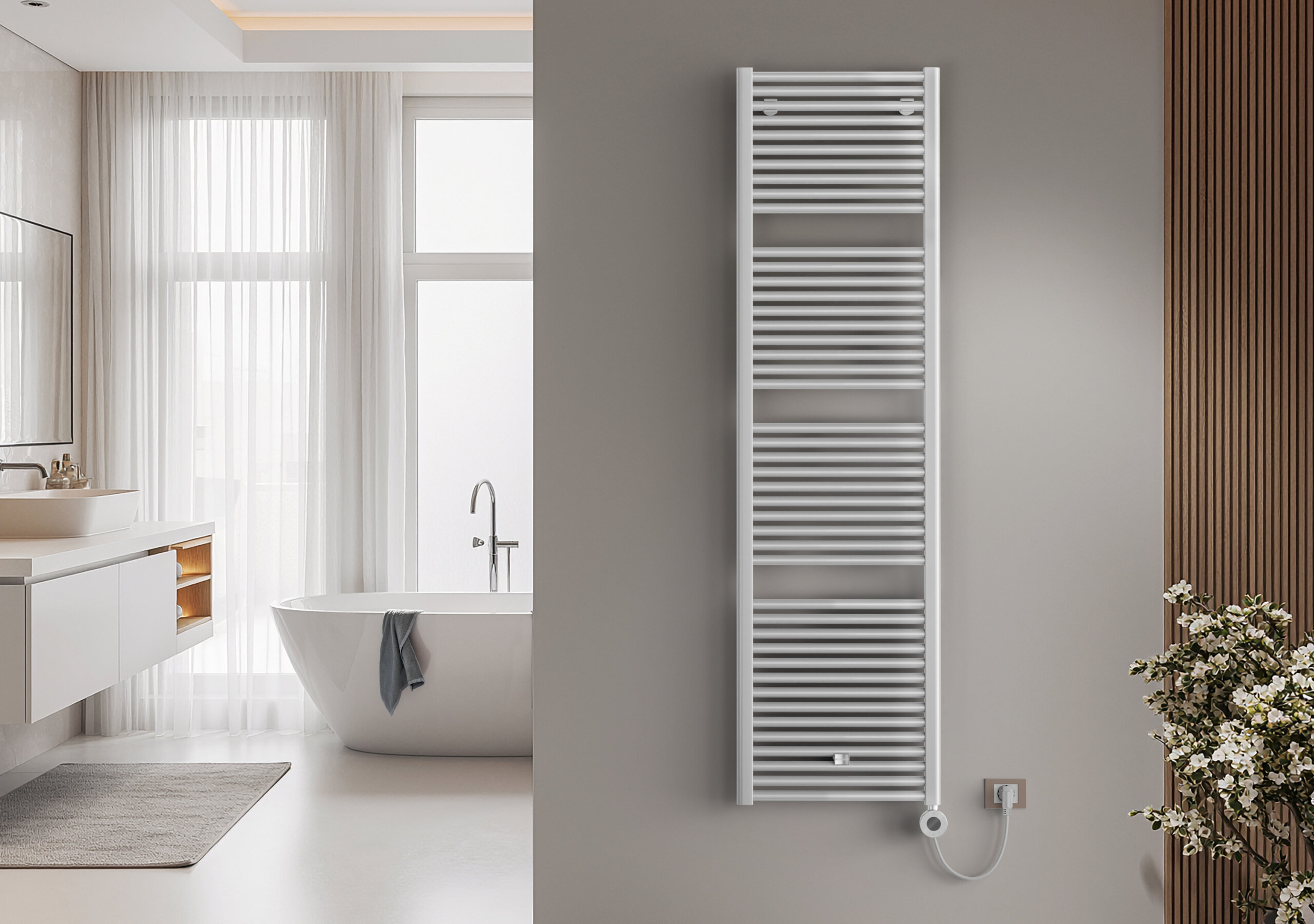

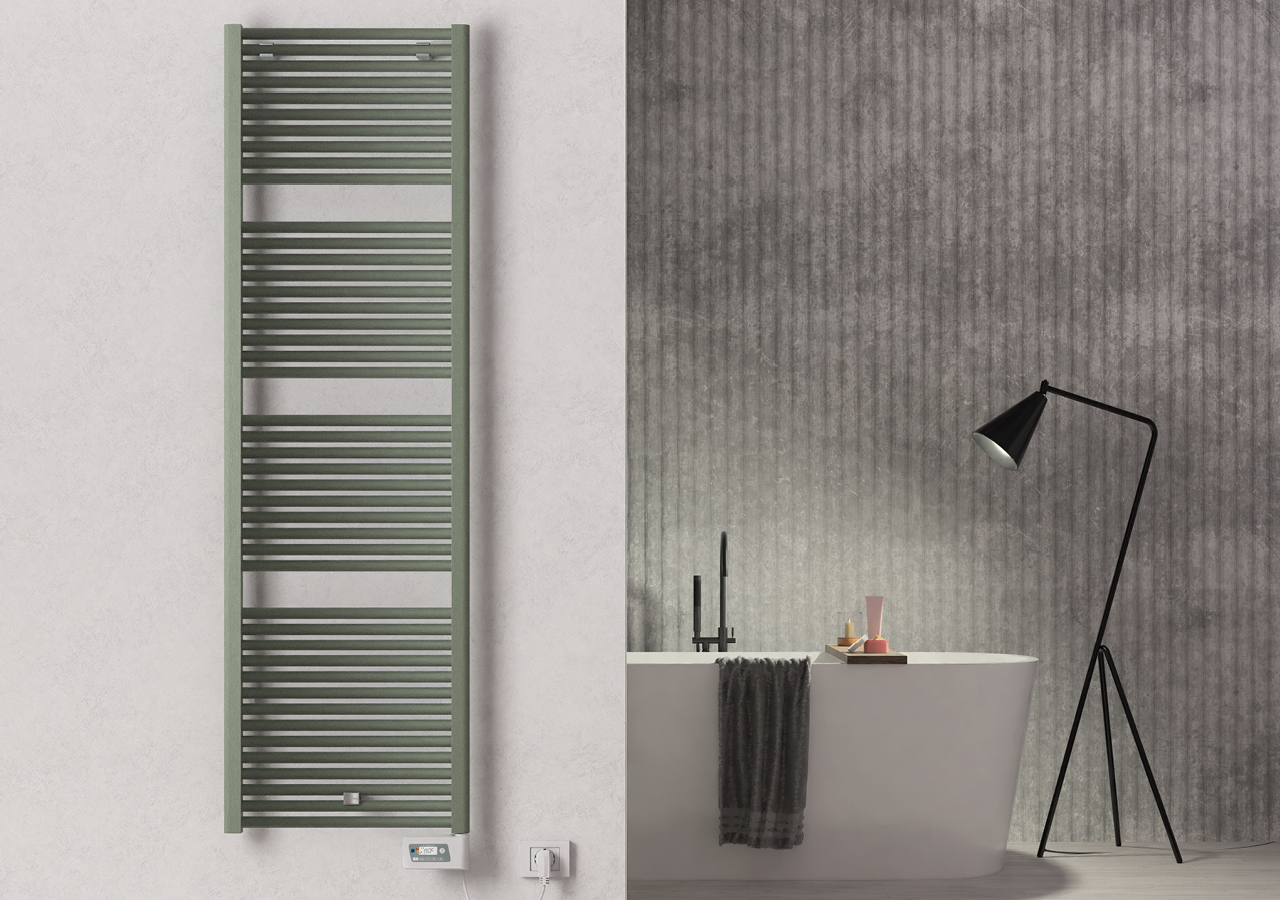

Electric Towel Warmer
Claudia electric is one of the most versatile choices to meet the dual need of heating the bathroom and drying towels.
INFORMATION
BRAND
Cordivari
PRODUCT TYPE
Radiator
COLLECTION
Claudia
PRODUCTION
Made in Italy
FEATURES
- Steel
- Heating
- Ease of cleaning
- European warranty
- Electrical functioning
ENVIRONMENT
Indoor
CLASS PROTECTION
Class 1
DETAIL
It allows for homogeneous heat diffusion, with a low impact on consumption in compliance with the European ERP ecodesign directive, guaranteeing maximum efficiency and thermal performance. Featuring electric temperature control, window opening detection and weekly programmer.
WIRE LENGTH
1200 Mm With Schuko Plug
MINIMUM INGRESS PROTECTION
IP 44
ELECTRIC RADIATORS
The national rules on installing electrical equipment in the bathroom must be scrupulously respected.

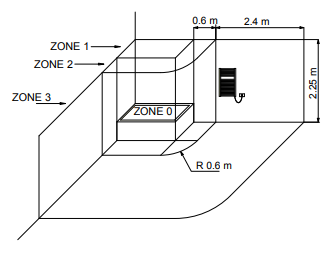

The electric radiators must be always installed outside Zone 1 and 2.In particular the electric switch and control elements must be mandatorily located in zone 3, in order that no electrical control center is accessible to a anyone using the shower or bath.
MATERIAL
- Heat transfer fluid.
- 30×40 mm vertical collectors in painted mild steel.
- Ø 25 mm horizontal heating elements in painted mild steel.
ORIENTATION
Vertical
PACKAGING
The radiator is protected by recyclable cardboard box.
PAINTING PROCESS
Painted with ecological epoxy powders (Certificate DIN 55900-1,-2).
HANGING
Wall
ELECTRIC TEMPERATURE
Control
POWER SUPPLY
- 230vac 50hz (With WiFi Digital Thermostat Or Plus)
- 230vac 50/60hz (With Eco Design Digital Thermostat)
SEASONAL ENERGY EFFICIENCY ΗS
- 51.6% (With WiFi Digital Thermostat)
- 49.5% (With Plus Digital Thermostat)
- 50.5% (With Eco Design Digital Thermostat)
FIXING FIT
Brackets, hex key, airvent, dowels and screws suitable for use on SOLID walls or perforated bricks, assembly instructions.The fixing kit is compliant with vdi 6036 norm, class 4.
TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
- 19 Elements
- 29 Elements
- 35 Elements
- 44 Elements
