L acunzaSilver-700 Plus Fireplace
SILVER-700 PLUS FIREPLACE
SILVER-700 PLUS FIREPLACE
The silver line are steel fireplace stoves that fit into the wall to become part of your home’s architecture. They have great features such as high flow and hot air velocity or a ducted hot air outlet.
FEATURES
CLEANING ACCESS
Easy access for sweeping via a hatch (patented). Deflectors easy to dismantle
by hand without tools.
PERFECT COMBUSTION
Optimum burning technology which achieves great combustion efficiency. Lower consumption and greater autonomy of firewood loads.
EOLO SYSTEM
High-pressure ventilation system with centrifugal turbines and speed regulator (control unit) or fans which allows you to heat different rooms in the home via ducts.
DOUBLE COMBUSTION
Technology to burn the gas generated during the initial combustion of firewood. More efficient, longer autonomy and lower consumption.
INFORMATION
BRAND
Lacunza
COLLECTION
Silver-700
NOMINAL HEAT OUTPUT
9.0 kW
PRODUCT TYPE
Fireplace
PRODUCTION
Made in Spain
MATERIALS
- Outer material : Steel
- Firebox material : Foundry
HEAT OUTPUT RANGE
6-12 kW
EMISSIONS CO
0.09 %
WEIGHT
100 kg
FLUE SOCKET
ø150 mm
ENERGY EFFICIENCY INDEX(EEI)
102
HEATING VOLUME
200 m3
FIREWOOD MEASURE
55 cm
TOTALS DIMENSIONS
- Width : 700 mm
- Height : 520 mm
- Depth : 445 mm
CONTROL
Speed control and air direction
TYPE OF VENTILATION
Axial fan
FIREBOX
- Width : 595 mm
- Height : 172 mm
- Depth : 357 mm
EXTRA CLEAN GLASS
New air-intake-to-glass system to keep the glass cleaner for longer.
FIRE VISION
High
ENERGY EFFICIENCY CLASS
A
HEATING AREA
80 m2
EFFICIENCY
78.0 %
SERIAL CONFIGURATION
- Grate
- Ashtray
- Deflector
- Ventilation
- Anti-stain glass
- Optimal combustion

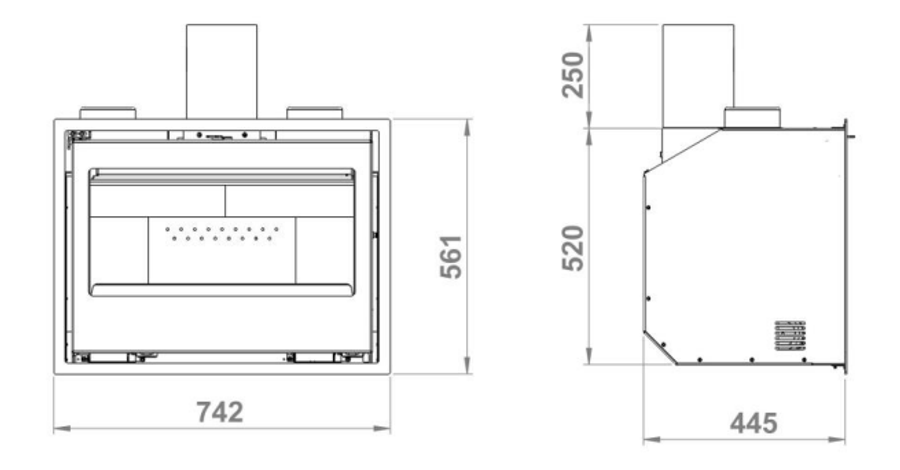

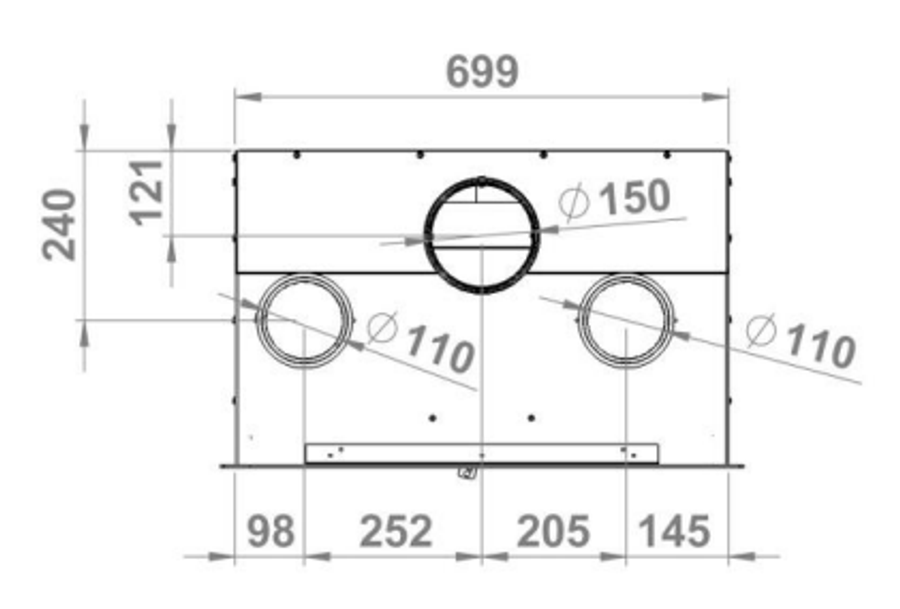

TECHNICAL DRAWINGS
