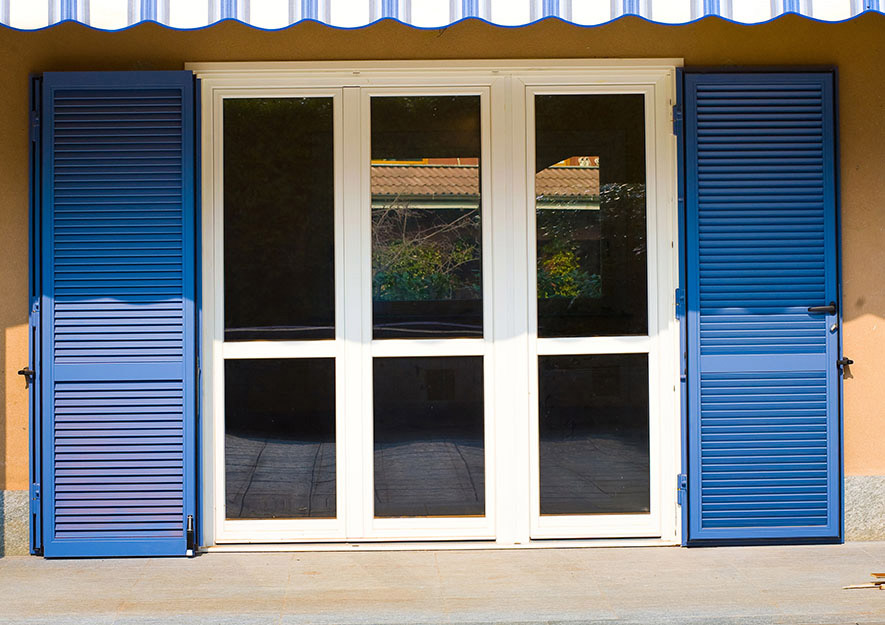

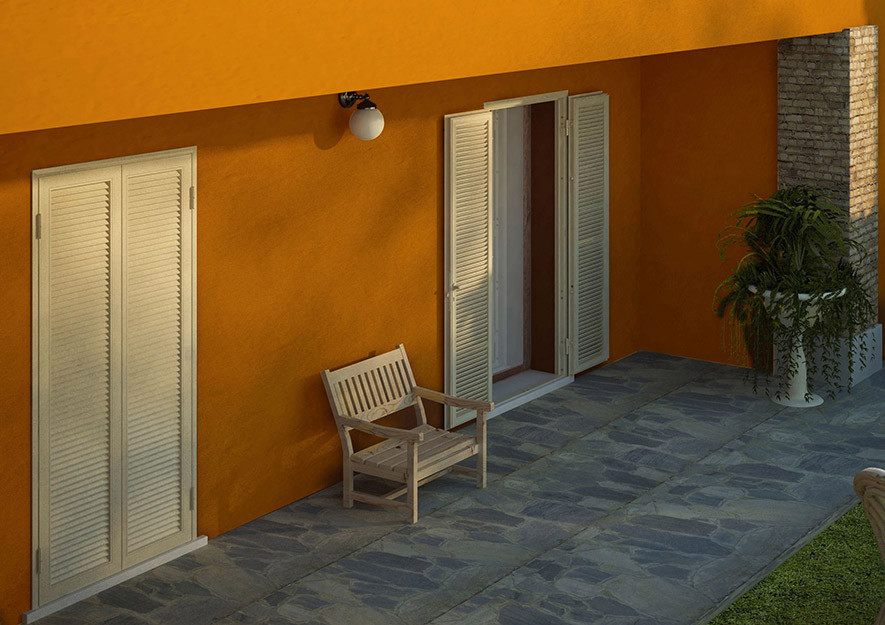

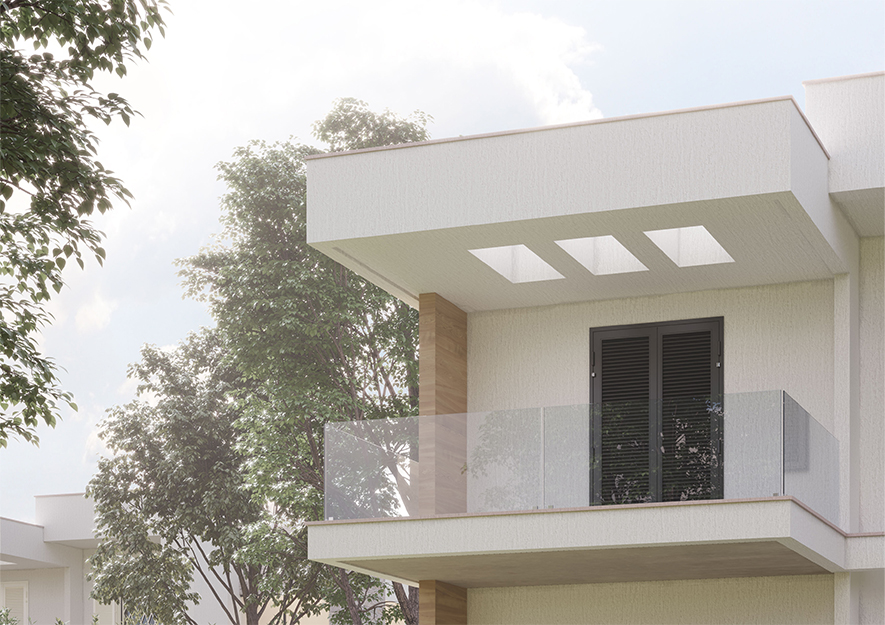

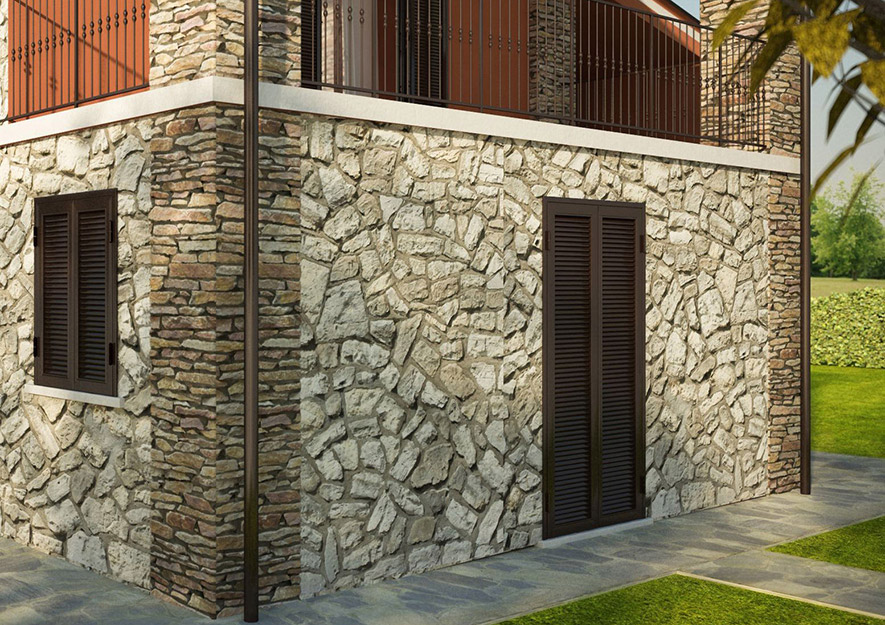

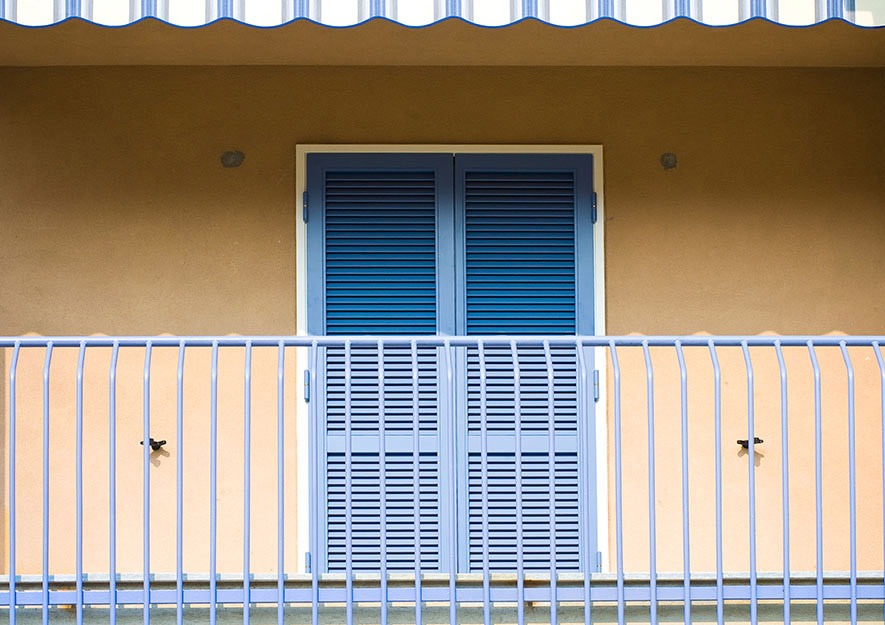

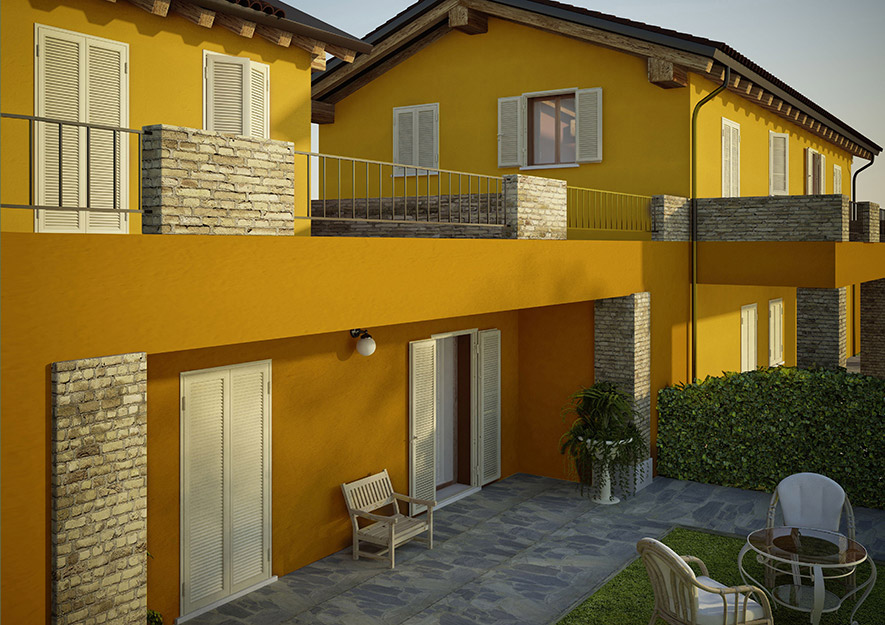

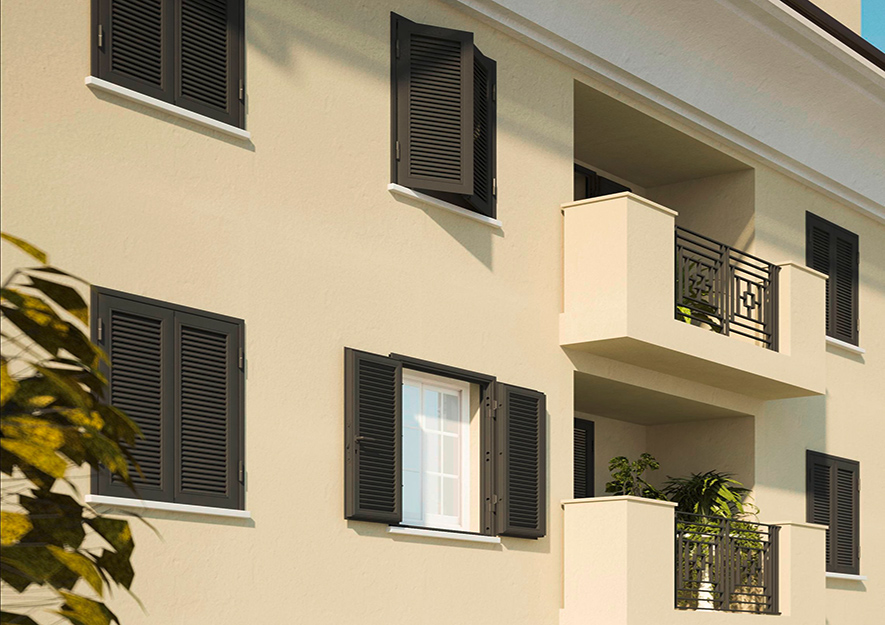

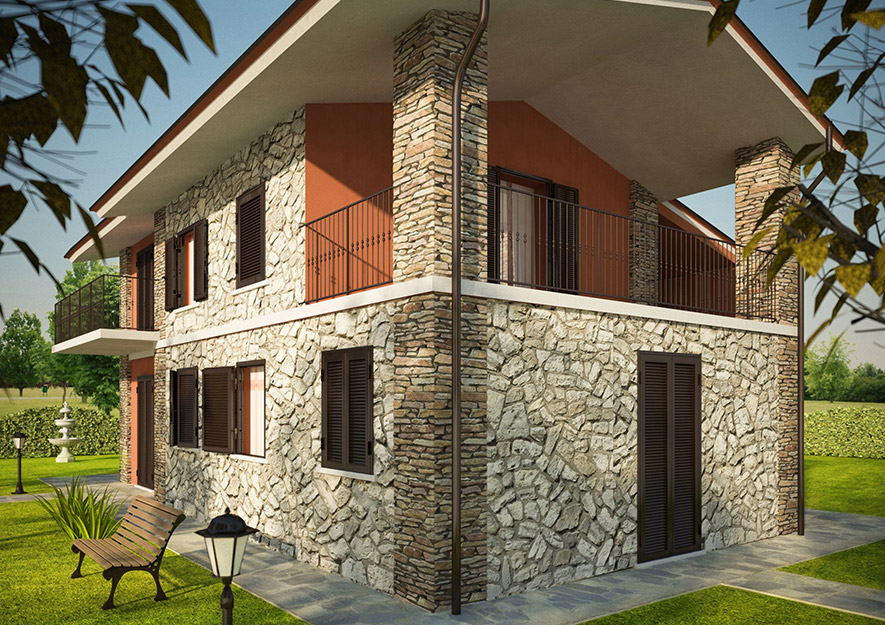

The new security shutter Vesta
Vesta is the Di.Bi. security shutter which is characterized by quality, strength and finishes in the manufacturing, sush as the sound-proofing gaskets all along the perimeter of the leaves.
Vesta is also equipped with strong iron hinges perfectly welded on the frame and the leave, with stainless steel pin and thrust bearing.

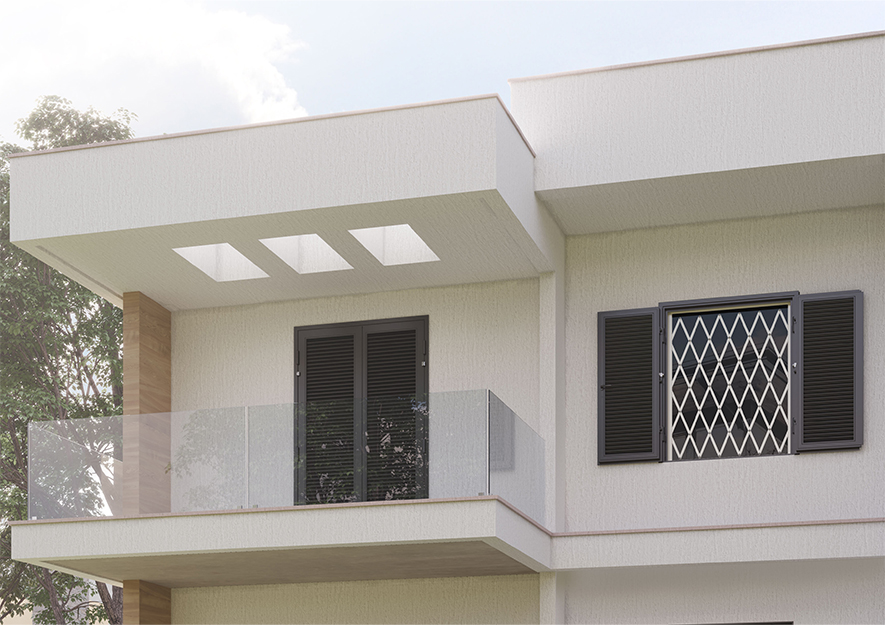

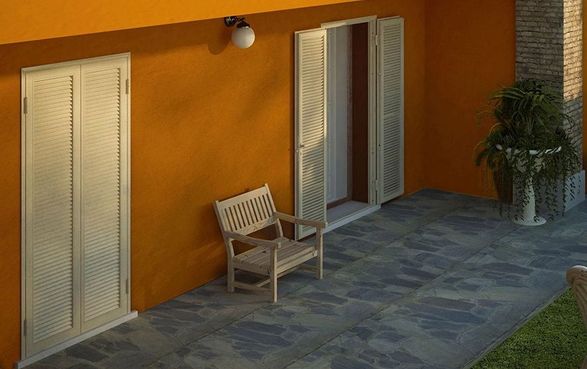

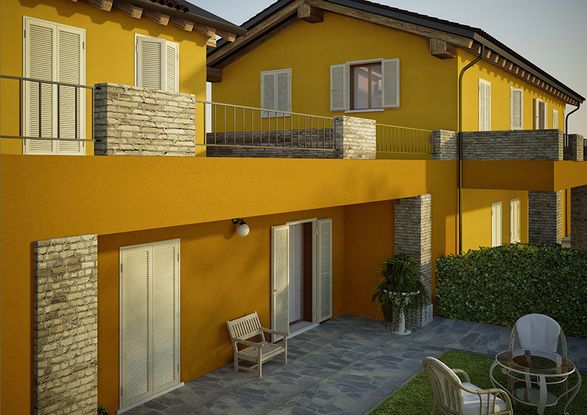

Vesta is available on different solutions: from 1 to 4 leaves, for windows and French windows; it can be installed with or without the subframe and also combined to our extending grilles.
INFORMATION
BRAND
Dibi
PRODUCT TYPE
Windows
LEAF PROFILE
Leaf profile in 15/10 galvanized steel with guide for sound-proofing gasket.
ANTI-EXTRACTION SECURITY SYSTEM
On both jambs of each leaf, a through iron rod/bar Ø 5mm is inserted in each slat to prevent extraction in case of breaking
COLLECTION
Vesta
PRODUCTION
Made in Belgium
DIMENSIONS 1 - LEAF FOR WINDOW
- Width : 400 to 900 mm
- Height 1 : 800 to 1790 mm
- Height 2 : 1800 to 2800 mm
DIMENSIONS 2 - LEAF FOR WINDOW
- Width : 800 to 1800 mm
- Height 1 : 800 to 1790 mm
- Height 2 : 1800 to 2800 mm
DIMENSIONS 3 - LEAF FOR WINDOW
- Width : 1200 to 2200 mm
- Height 1 : 800 to 1790 mm
- Height 2 : 1800 to 2800 mm
DIMENSIONS 4 - LEAF FOR WINDOW
- Width : 1600 to 2800 mm
- Height 1 : 800 to 1790 mm
- Height 2 : 1800 to 2800 mm
PERFORMANCES
Anti-intrusion : Class 3
FRAME
Frame made of 20/10 galvanized steel
GALVANIZED STEEL SLAT DESIGN
Oval slats (ovaline) made of 10/10 galvanized steel are inserted to the end stop inside the frame. The distance between each slat is variable so that unsightly additional elements are avoided.
THICKNESS
4 mm
CLOSING DEADBOLTS
Ø 18 mm
TEAR-PROOF SECURITY BOLTS
Tear-proof bolts on hinges and leaves
FLEXIBLE INSTALLATION OPTIONS
Vesta can be installed with or without subframe
ADJUSTABLE HINGE TECHNOLOGY
Hinges are made of galvanized steel 4 mm thick with stainless steel pin and thrust bearing. Hinges are adjustable on two axes for the solutions with 1 leaf and 2 leaves. For all the other solutions, the hinges (with stainless steel pin and thrust bearing) are made of galvanized steel 4mm thick and they are welded on the frame and on the leaves
SECURE LOCKING SYSTEM
European half-cylinder to lock the locking system with 3/5 keys whose code can be changed (1 +3 keys for orders up to 5 shutters, 1+5 keys for orders of more than 5 shutters).
PERIMETER SOUND-PROOFING GASKET
Sound-proofing gasket all around each leaf

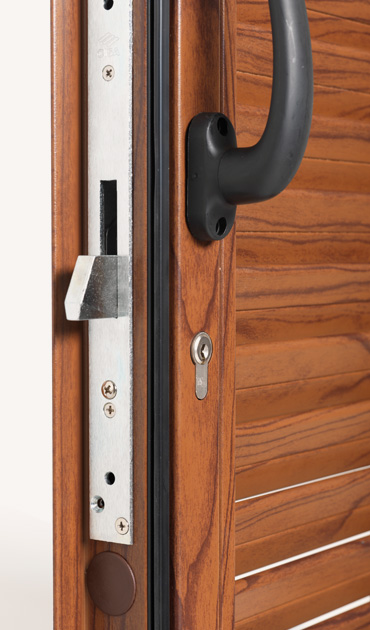

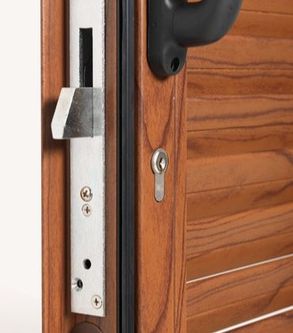

TRIPLE LOCKING SYSTEM
Locking system with 3 closing points ( top, bottom and central bolt)
POWDER-COATED FINISH
The structure is treated with cataphoresis and painted with thermosetting polyester powders.
DOWNLOADS
↓ Vesta shutter technical drawings
↓ Checklist for taking dimensions
↓ Guarantee statement for all Di.Bi. products (rev. July 2018)
↓ Form for the Installation Check - to be used after the installation
↓ Vesta anti-intrusion certification (except for the "piemontese model" as shown in the technical drawings)
COLORS
ALL COLORS
- Grey Ral 7042
- Ivory 9001
- Grey 7016
- White 9010
- Black 9005
- Brown 8017
- Green 6005
