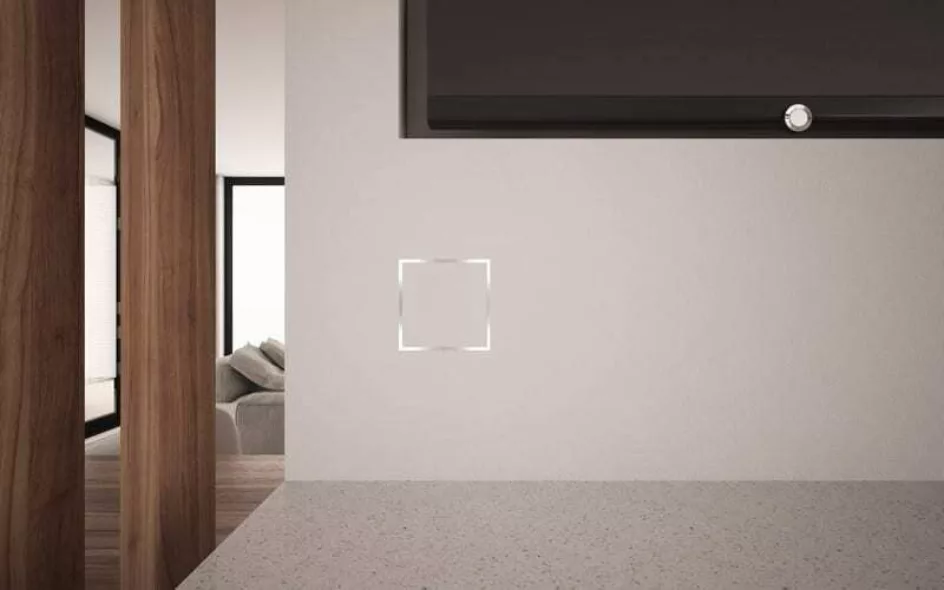

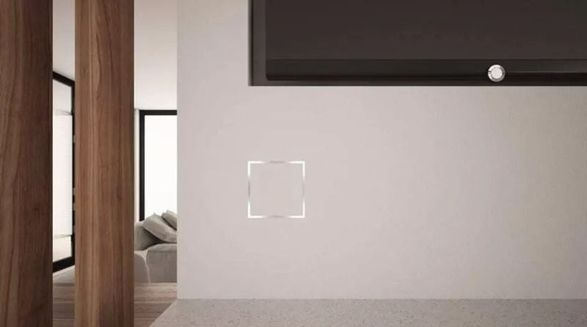

Invisible touchbutton on bus

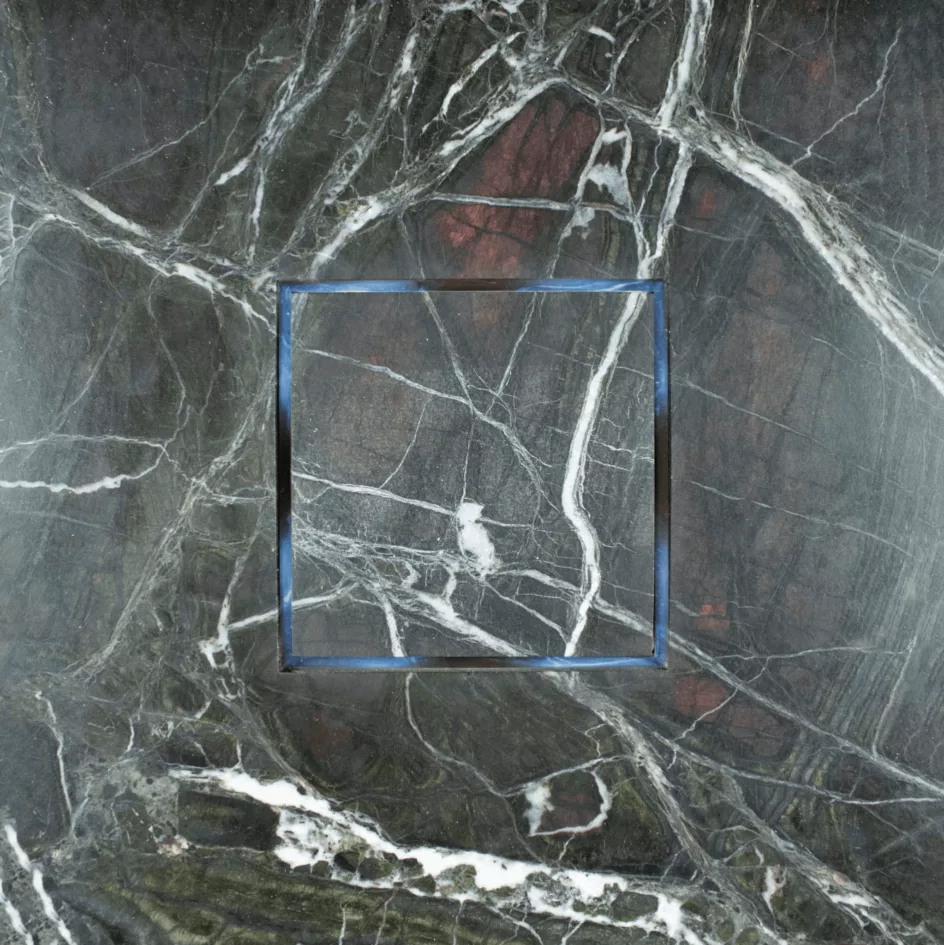

The switch named ‘Invisible’ is very easy to install & responds to very strict conditions in performance. This switch can be used on any surface. Thanks to its recessed system, you will achieve an elegant design without visible arches.
INFORMATION
BRAND
Duotecno
PRODUCT TYPE
Switches
CALIBRATION
Calibration happens automatically when the switch starts up.
LEDS
The color of the LEDs can be installed in the ‘Duotecno connection software’
DIMENSIONS
84 x 84 mm
INSTALLATION HEIGHT
1m depends on the posture of the consumer
POWER
24V AC
PROPRE CONSUMPTION
50mA @ 24V AC
DESIGN
Our switches give a modern design and fit perfectly into any contemporary interior. Our switches are all handmade & make each switch unique.
PRODUCTION
Made in Belgium
MATERIAL
- Composite
- Synthetic Material
ATTENTION
Don’t connect the switch when there is voltage on the contacts! If you touch the switch between the startup, it causses a wrong calibration.
JUMPER

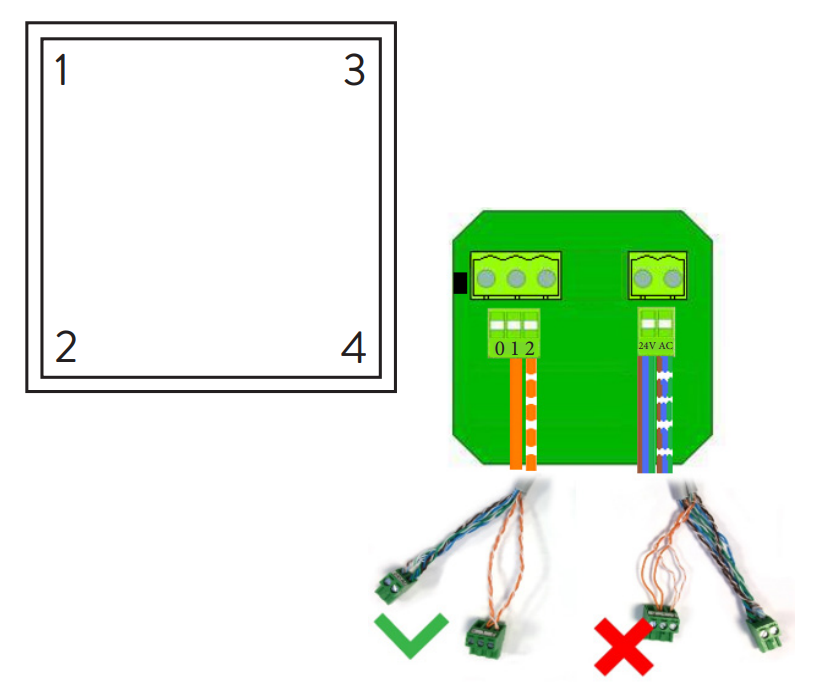

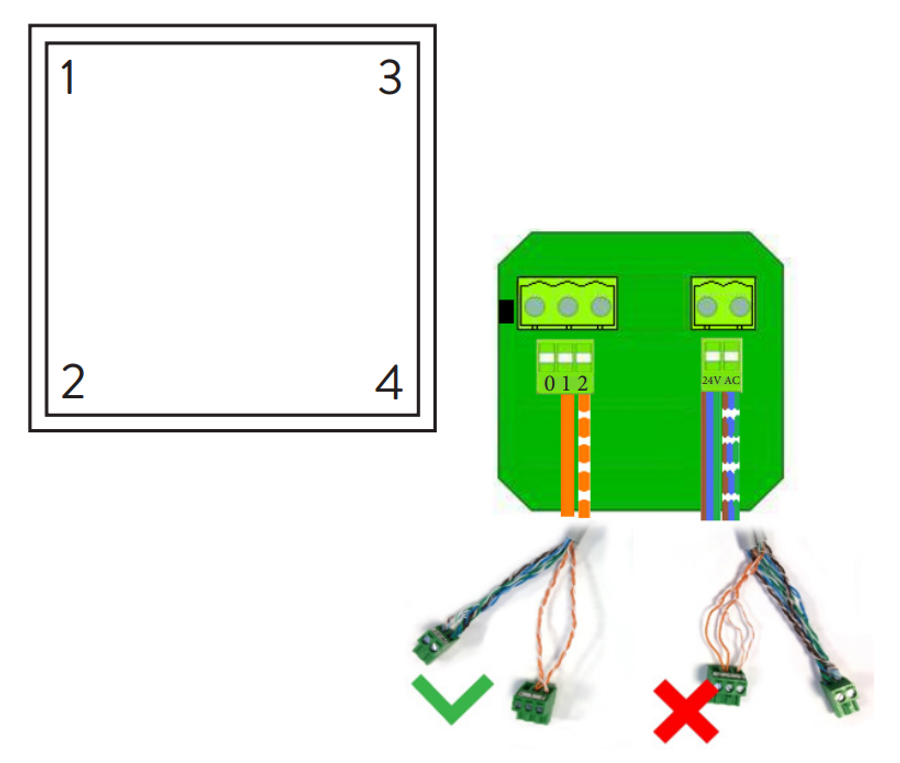

Short-circuit pins only if this receiver is the last on the bus, in other words when the bus cable arrives and does not leave again. In this way, the bus is closed.
CHARACTERISTICS & FUNCTIONALITIES
- Standard white leds
- Automatic illuminating, integrated leds
- Programmable with the configuration software
- Optional : programmable RGB leds (directly on the bus)
- Optional : temperature sensor (registers the temperature and is readable on the touchscreen and the app).
TEMPERATURE
In presence of a temperature sensor in the switch, it needs to be calibrated. This is possible through the ‘Duotecno connection software’ in the settings of the switch. The ‘measured value offset’ can be adapted below the extra settings.

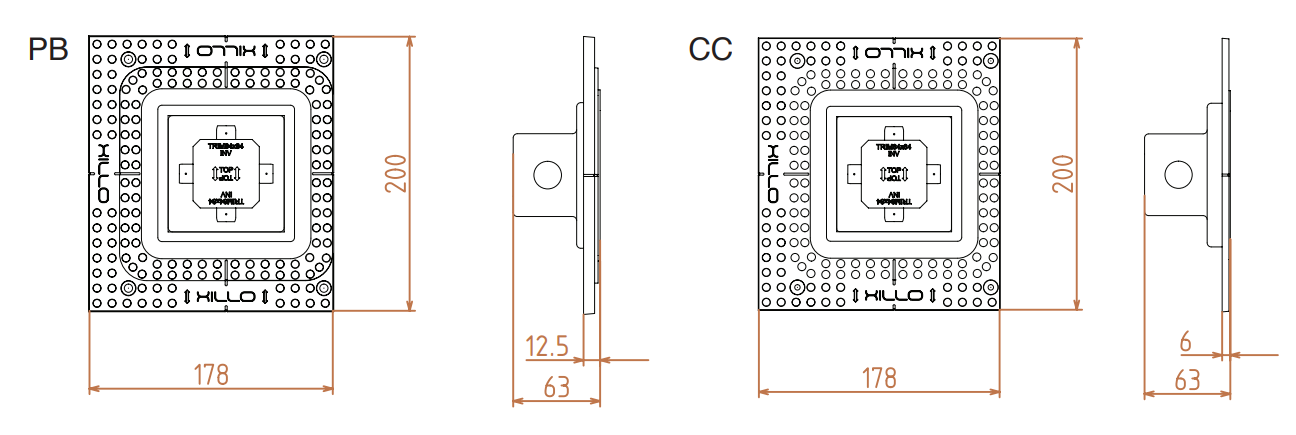

TECHNICAL DRAWING
