Contech Urbanpond® Concrete Detention Underground Stormwater
CONCRETE DETENTION UNDERGROUND STORMWATER
CONCRETE DETENTION UNDERGROUND STORMWATER
UrbanPond is a modular precast concrete underground stormwater storage system that mimics the function of ponds and open detention basins.
INFORMATION
URBANPOND CONCRETE STORMWATER DETENTION
UrbanPond is available in select regions. Please contact your local Stormwater Consultant for details.
UrbanPond is a modular precast concrete underground storage system that mimics the function of ponds and open detention basins.
BRAND
Contech
PRODUCT TYPE
Underground Stormwater
DETAIL
It has high void percentages to maximize stormwater volume, and its robust precast form allows systems to be buried deeper without the need for specialized backfill, increased wall thicknesses, or extra rebar reinforcement.
COVER
Minimum cover of only 12"
BACKFILLED
Can be backfilled with native soil
DEPTH
Maximizes available depth
URBANPOND APPLICATIONS
- Detention/Retention
- Infiltration Galleries
- Flood Control
- Treatment Train Design Options
COMPLIANCE
Slowly discharges captured runoff to keep your site in compliance
BENEFITS
Eliminates the need to purchase rock required in other concrete systems
CONTROL
Optional built-in orifice control riser
USE
Outdoor

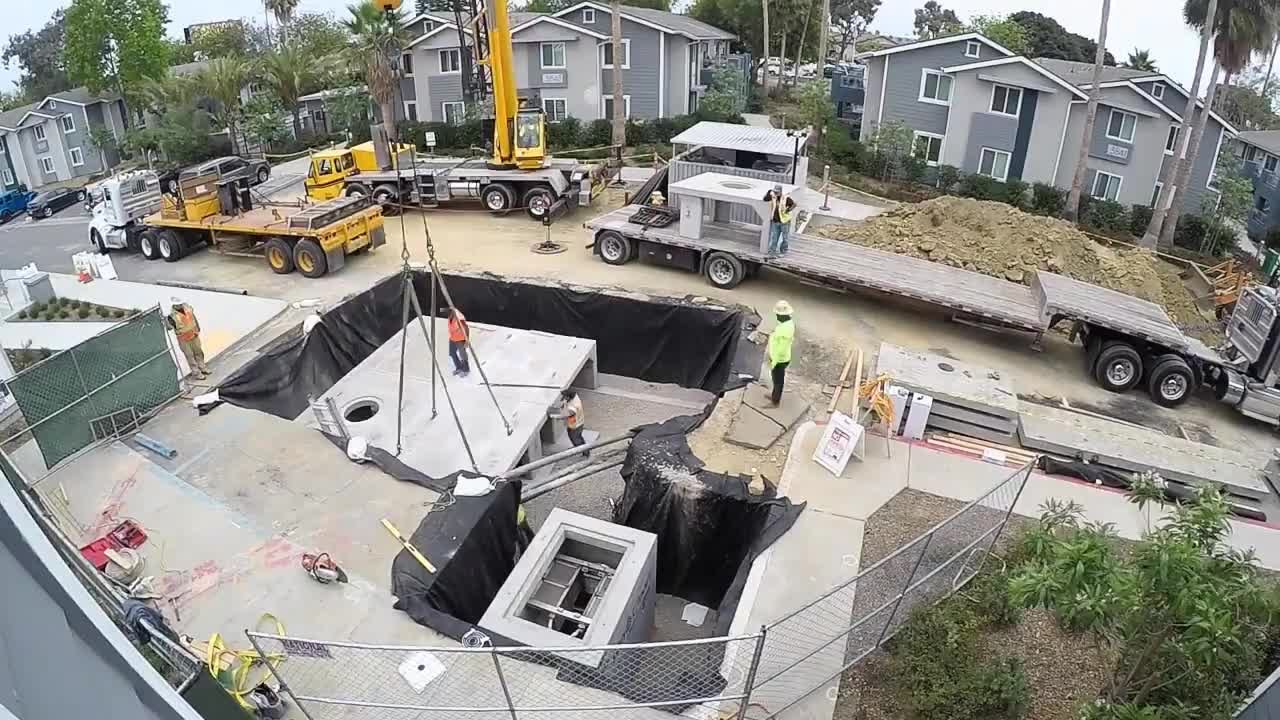

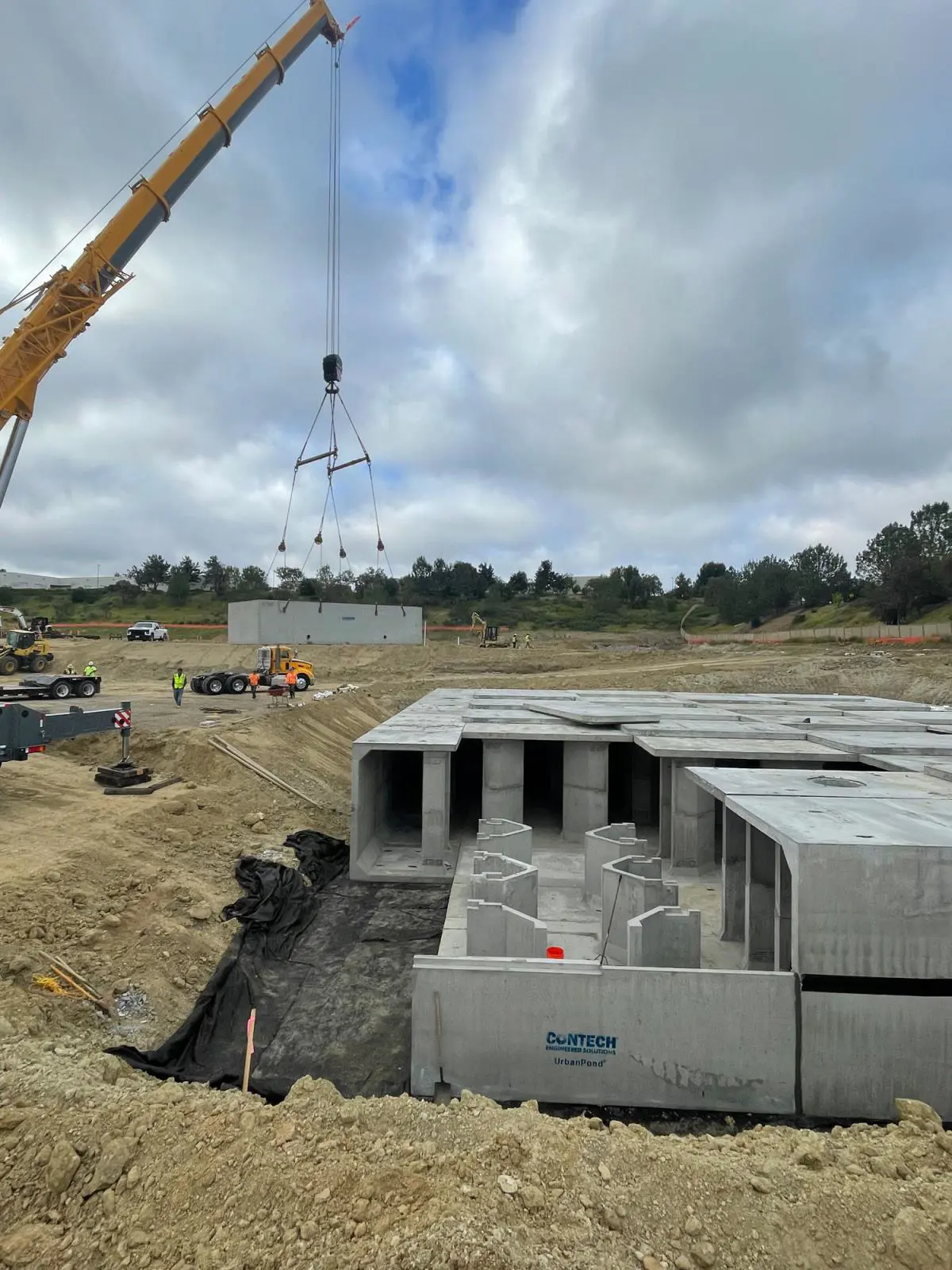

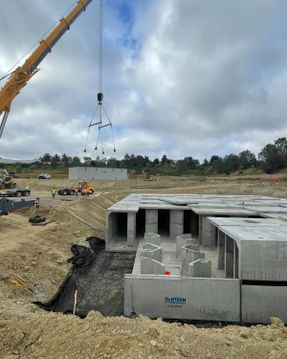

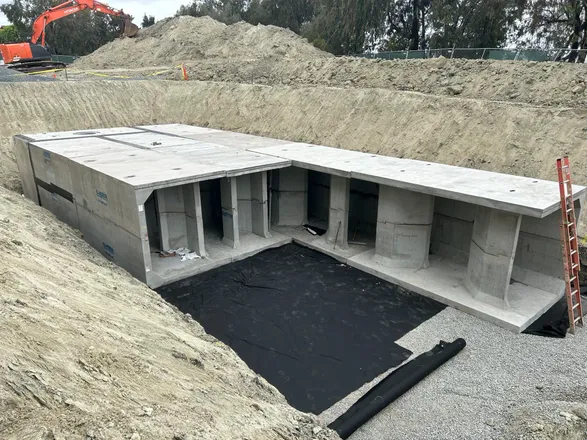

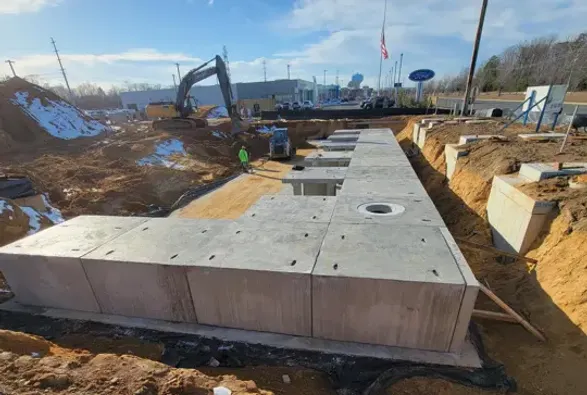

URBANPOND INSTALLATION
- UrbanPond modules can easily fit onto a flatbed truck, and the size maximizes the space on each truckload.
- As many as 3 individual pieces can be delivered on a single truckload to reduce shipping costs and minimize crane requirements during installation.
DESIGN
Designed to meet H-20 loading requirements
CAPACITY
Superior strength and load capacity
MODULE
Various module sizes available to meet site constraints and installation requirements
FLEXIBILITY
Design flexibility while maximizing
storage space
URBANPOND MAINTENANCE
- Maintenance support - Contech has created a network of Certified Maintenance Providers to provide UrbanPond maintenance at the lowest possible cost.
- Modules can be modified to act as clear wells or pretreatment chambers for capturing trash, debris, and sediment. This consolidates maintenance requirements to a select few modules. Standard manholes, hinged manholes, and other access hatches are available.
- UrbanPond is designed to be easily accessed and maintained from finished surface via multiple access ports. Using a standard vacuum truck, each access point is conveniently located, as ports are strategically placed throughout the assembly.
FEATURES

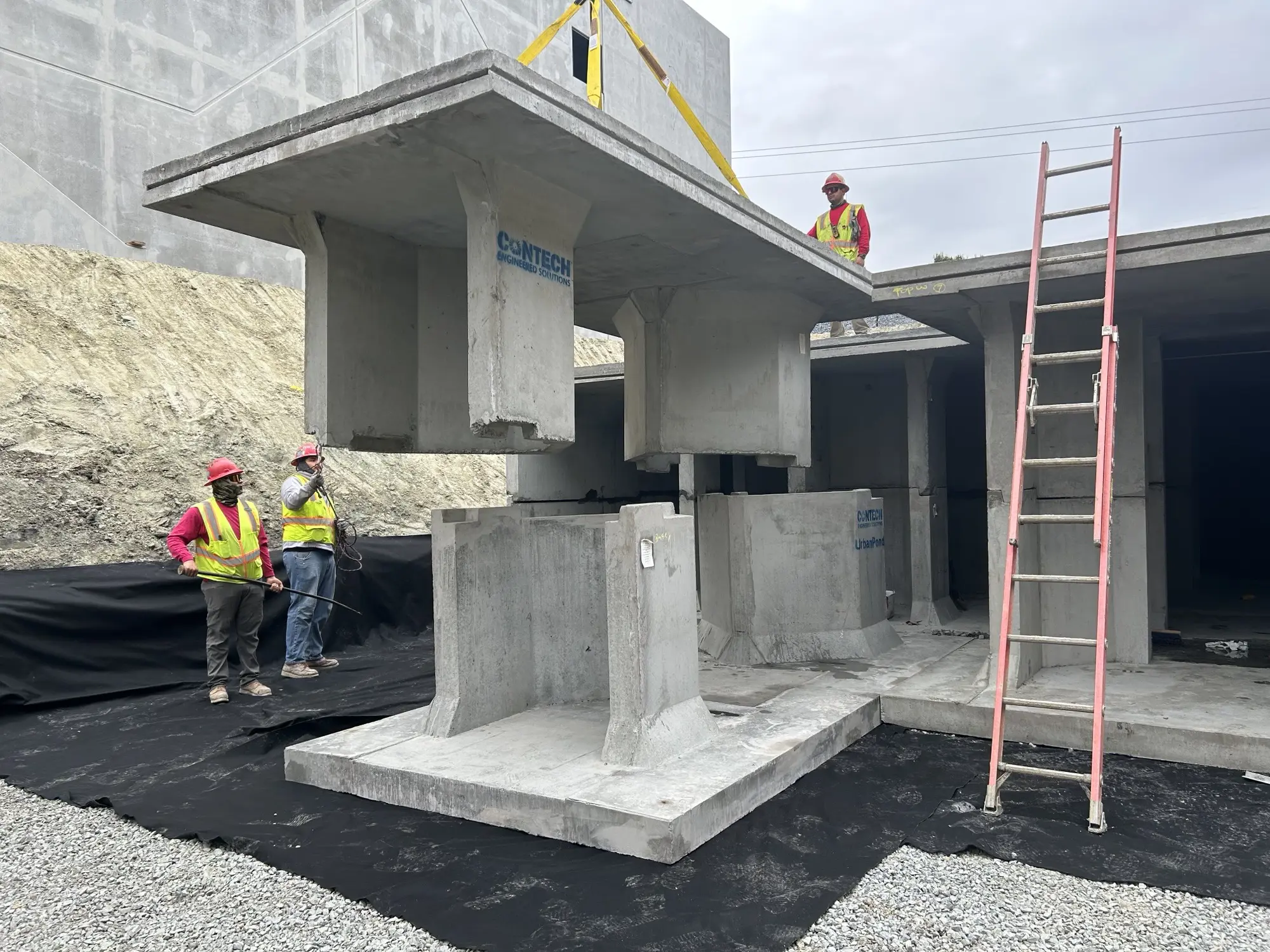

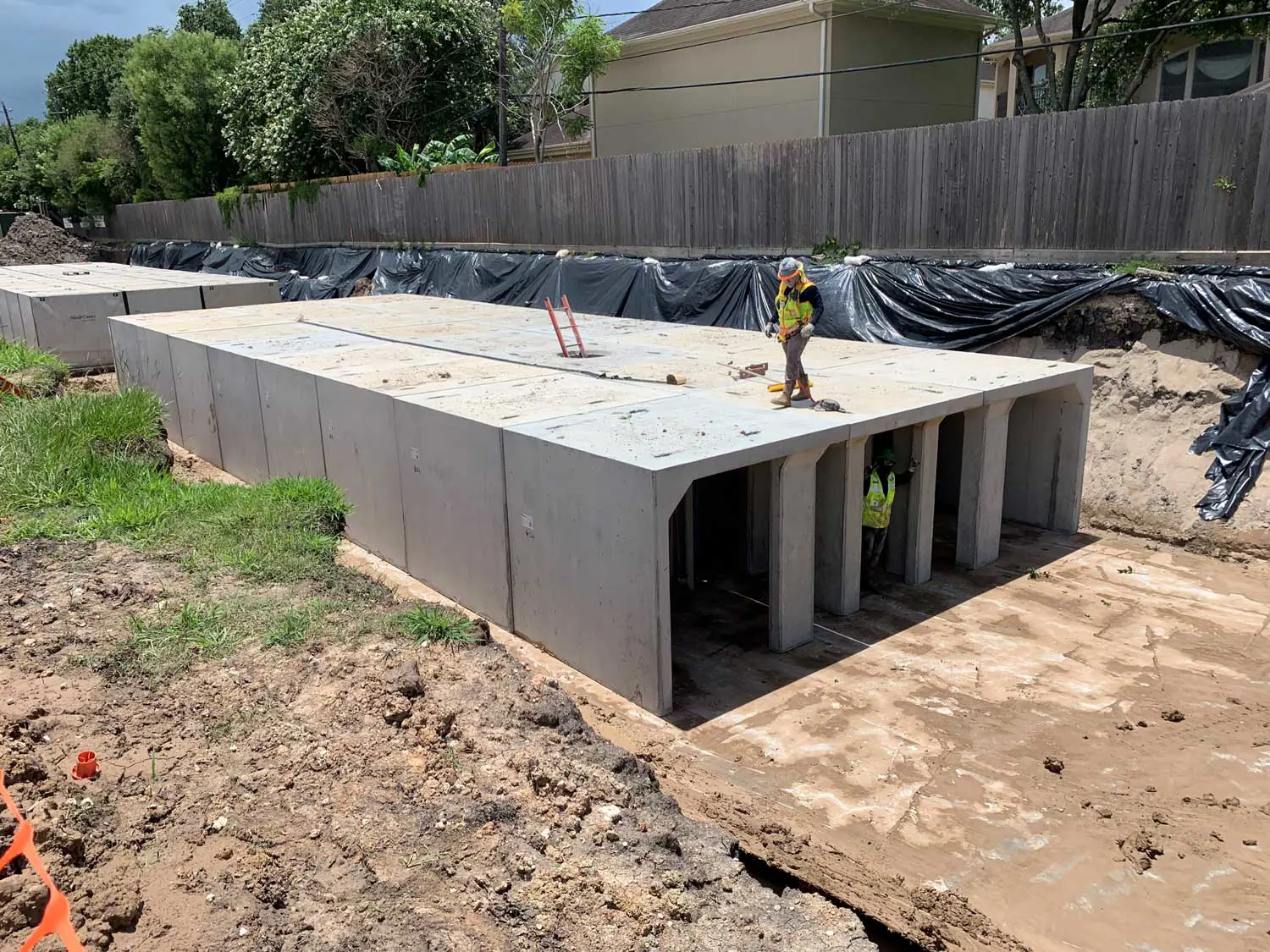

Modules are comprised of 8’ x 16’ interior and perimeter modules with inside heights ranging from 3’ to 14’ in 6” increments, giving designers more versatility to accommodate dense development, urban infill or larger high-volume projects.

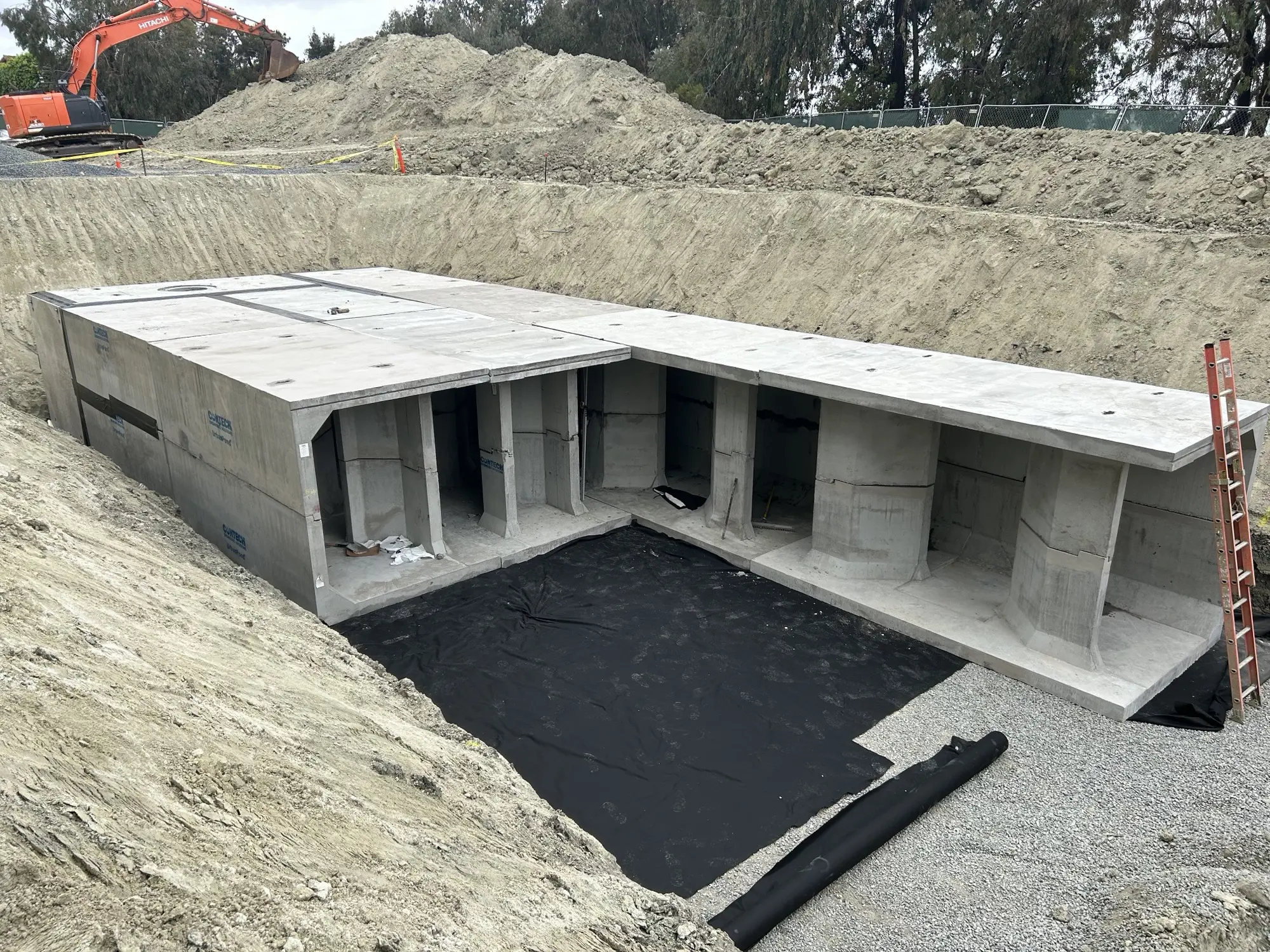

The modular design can be placed under roadways, parking lots and landscape areas in various shapes, sizes, and depths. The system’s internal offset leg configuration provides channel-less water distribution for stormwater entering and exiting the system, and the robust precast form allows it to be buried.
APPLICATIONS
FLOOD CONTROL
Contech's UrbanPond® precast underground storage system is designed to maximize storage volume and capture peak storm events to minimize downstream flooding and erosion.
PRECAST SYSTEMS FOR STORMWATER DETENTION AND INFILTRATION
Contech's UrbanPond® precast underground storage system is designed to maximize storage volume and capture peak storm events to minimize downstream flooding and erosion.
ADVANTAGES
SOLUTION DEVELOPMENT
Our engineers can review your requirements, weigh all options, and recommend the optimal solution to integrate with your site designs.
ON-SITE ASSISTANCE
Contractors know time is money, so we provide preconstruction meetings, delivery coordination, and on-site installation support to ensure a timely, smooth installation.
TECHNICAL EXPERTISE
Our engineers can assist by providing product specific engineering calculations such as hydraulics, buoyancy, foundation reactions, and unit sizing.
AGENCY/REGULATORY GUIDANCE
Our team is ready to provide you with expert advice and assistance on local regulatory requirements, resulting in faster approvals.
COST ESTIMATES
We can quickly provide engineer’s cost estimates to assist with your solution selection process.
SITE SPECIFIC DRAWINGS
Our engineers can provide site-specific drawings for proposals, project meetings, and submittals, helping you be more efficient with your time.
