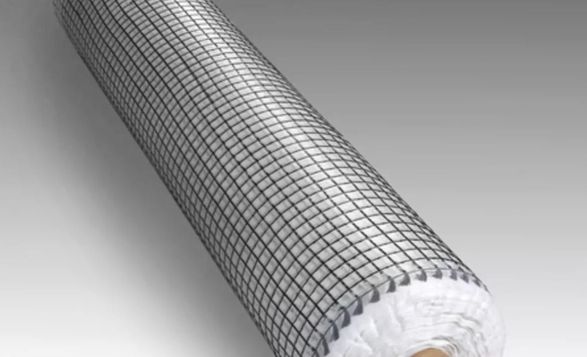

Adfors Asphalt Reinforcement Glasgrid CGL
ASPHALT REINFORCEMENT GLASGRID CGL
ASPHALT REINFORCEMENT GLASGRID CGL
Geogrids for Area-wide Repairs
Composite fibreglass asphalt reinforcement for area-wide repairs of milled surfaces

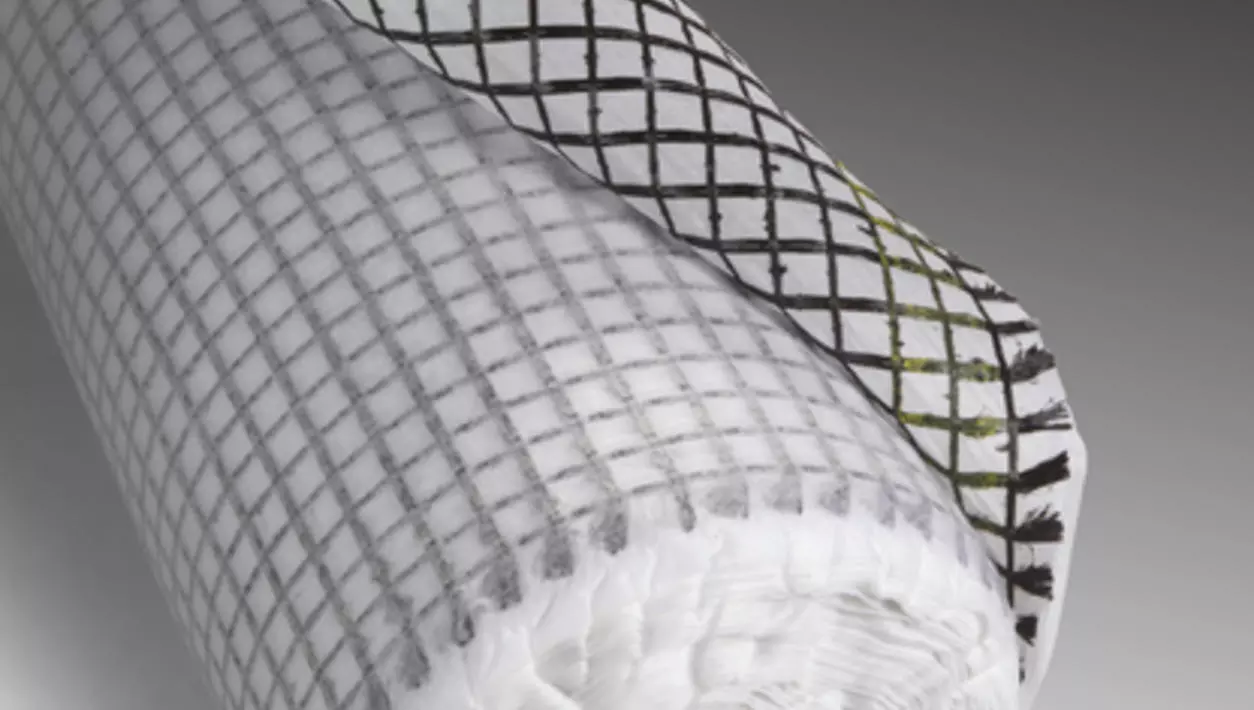

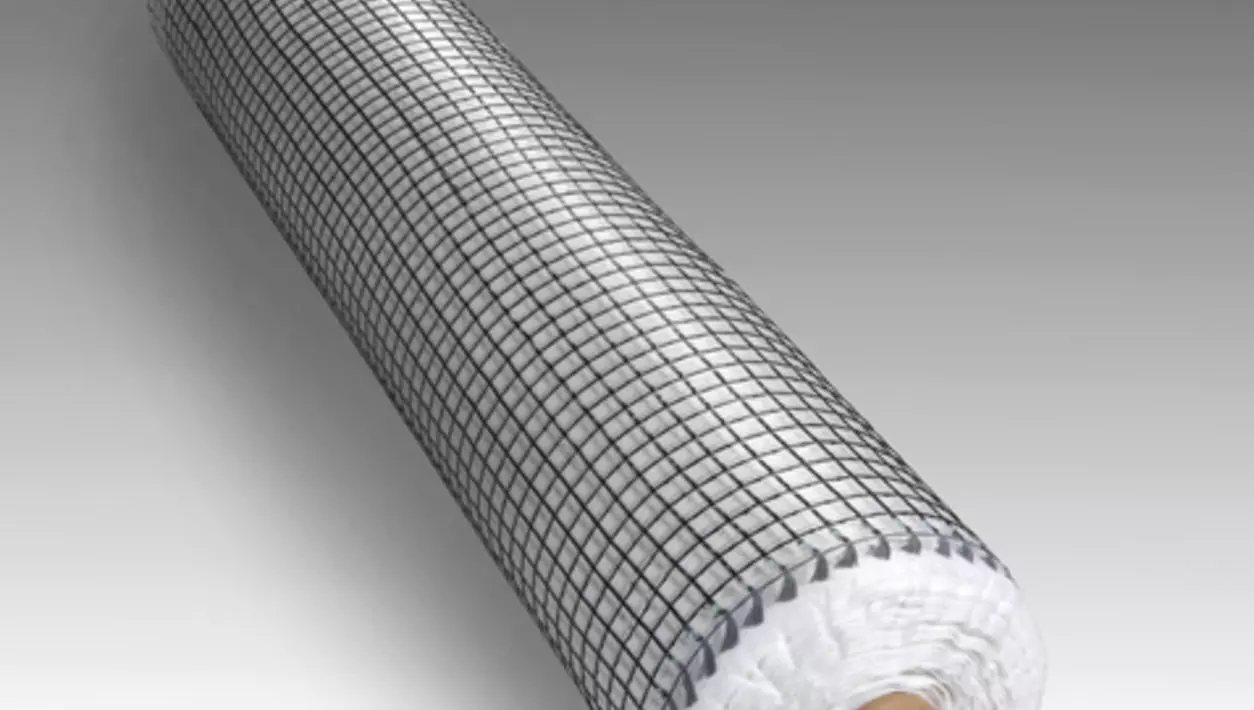

ADFORS GlasGrid® CGL is a composite material consisting of a solid fibreglass mesh bonded to a non-woven fabric. The glass fibres are coated with a modified polymer ensuring that the fibres are protected, there is sufficient lattice stiffness and optimal layer bonding.
INFORMATION
DIRECTLY

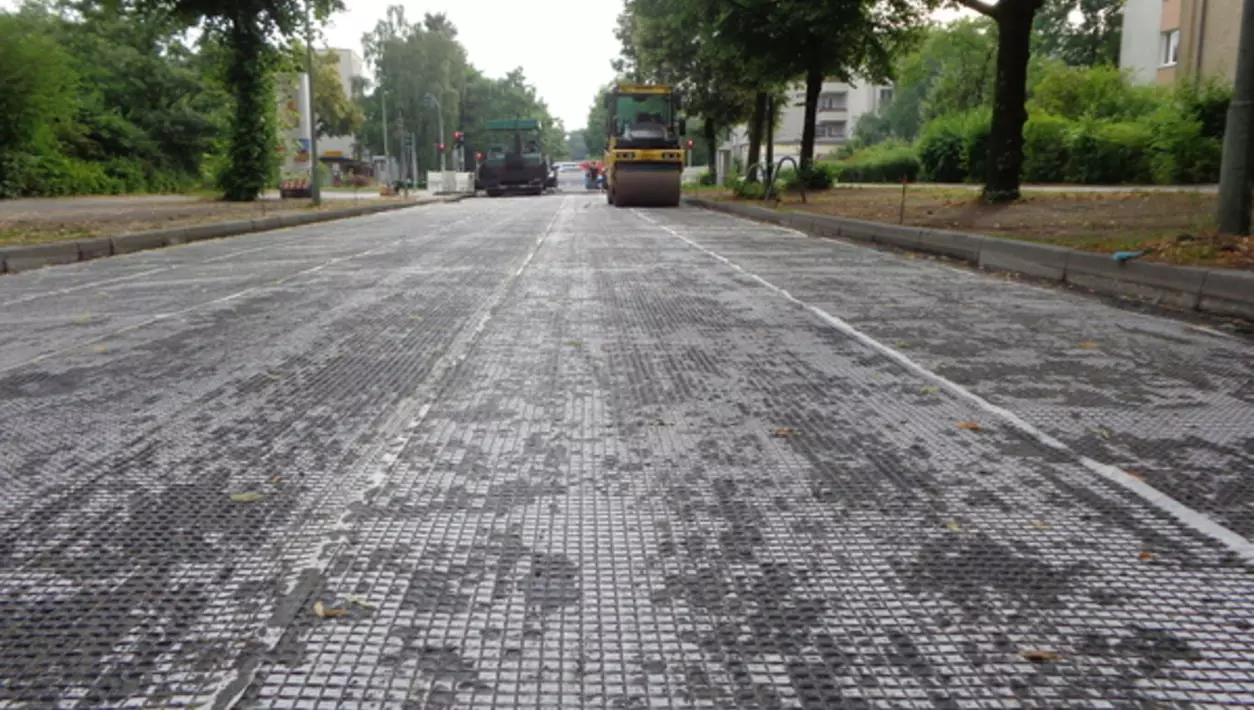

The ADFORS GlasGrid CGL geogrid can be installed directly on the milled surface without a leveling asphalt layer.
BRAND
Adfors
PRODUCT TYPE
Asphalts and Bitumens
SPECIFICATIONS

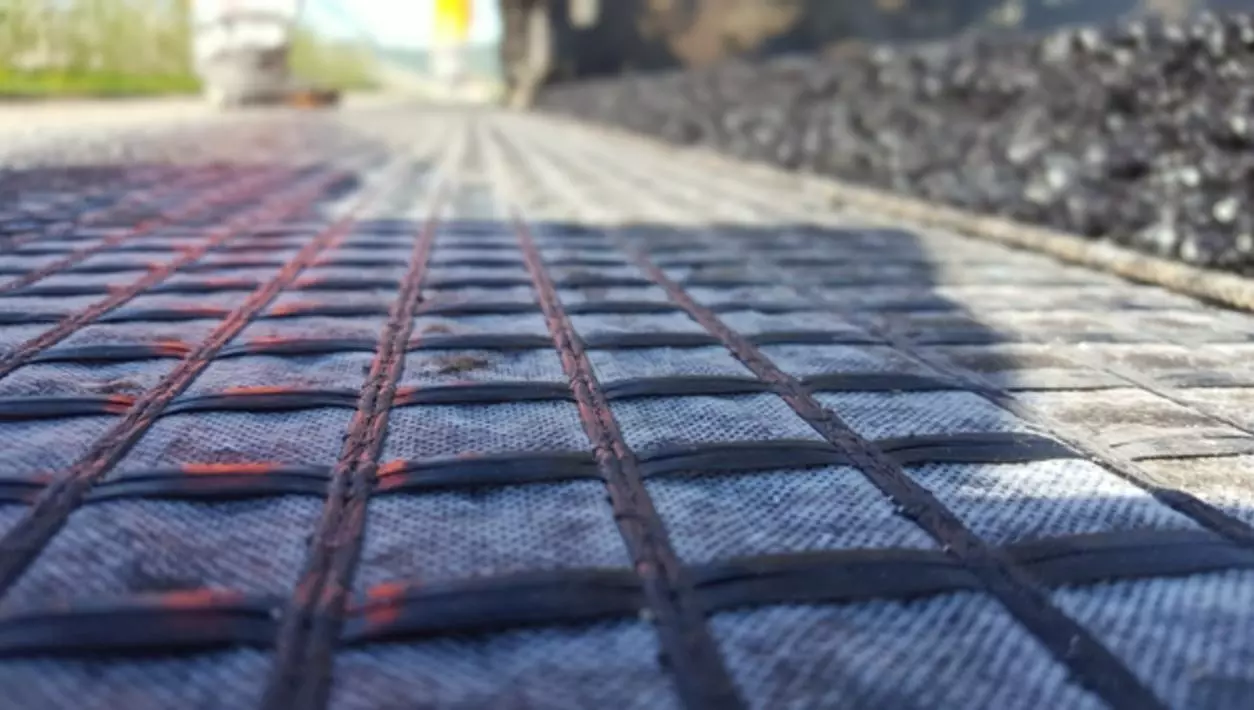

The lightweight non-woven fabric supports the efficient bonding of asphalt layers and provides high bitumen absorbency for fast and efficient laying.
SUITABLE
It is especially suitable for repairs on the entire width of the road and for widening lanes.
ABSORBENCY
Optimal absorbency of non-woven asphalt
EFFICIENT
Fast and efficient installation
LAYERS
Perfect connection of asphalt layers
SERVES
The system serves as asphalt reinforcement and stress-relief, delays the formation of reflective cracks and extends the life of the asphalt cover by up to 300% and saves up to 50% of investment costs associated with maintenance.
GEOGRID
Does not damage the geogrid during installation and compaction
PROPERTIES
Excellent milling properties
RESISTANCE
Resistance to the traffic of construction trucks
RECYCLABILITY
Unlimited recyclability and enhanced properties of Reclaimed Asphalt Pavement (RAP)
BENEFITS
- Safer roads
- Traffic jam reduction
- Quick and efficient installation
- 3times longer roads lifetime
- 50 % reduction in future investment costs
- 25% reduction of the downward rut depth
- 10% better waterproofing and drainage of the road
APPLICATIONS
- Roads
- Highways
- Airports
- Parking Lots
- Bridges
- Tram Lin
QUALITY
Flexible delivery and high quality service
FEATURES
30+ years of experiences and successful installations worldwide prove that asphalt reinforcement ADFORS GlasGrid reduces thermal and stress-related cracks reflecting through to the surface of a new asphalt overlays up to 3times.
CERTIFIED FACILITY

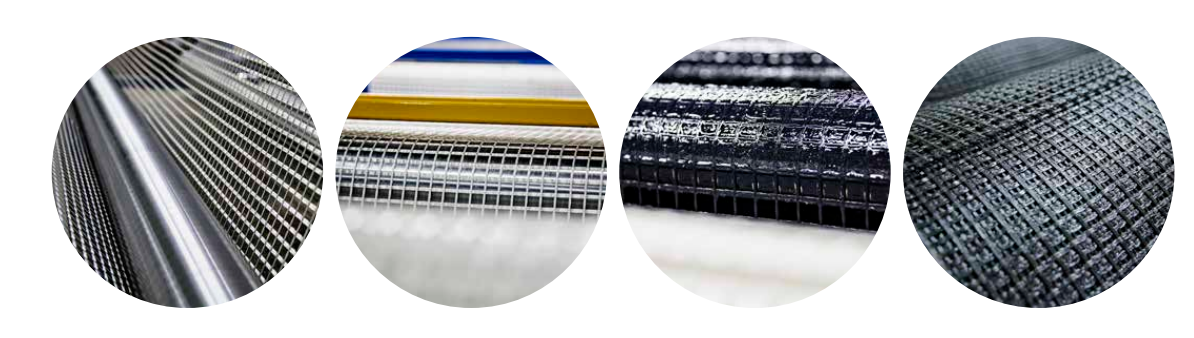

ADFORS GlasGrid is manufactured at an ISO 9001:2015 certified facility of Saint-Gobain ADFORS.
TECHNICAL DATA
| PRODUCT | TENSILE STRENGTH | AVAILABLE WIDTHS | AVAILABLE LENGTHS | WEIGHT |
|---|---|---|---|---|
| CG 50L | 50 x 50 kN/m | 1 m, 1.5 m, 2 m, 3 m | 150 m | 239 g/m² |
| CG 100L | 100 x 100 kN/m | 1 m, 1.5 m, 2 m, 3 m | 100 m | 439 g/m² |
| CG 200L | 100 x 200 kN/m | 1 m, 1.5 m, 3 m | 70 m | 637 g/m² |
DETAIL

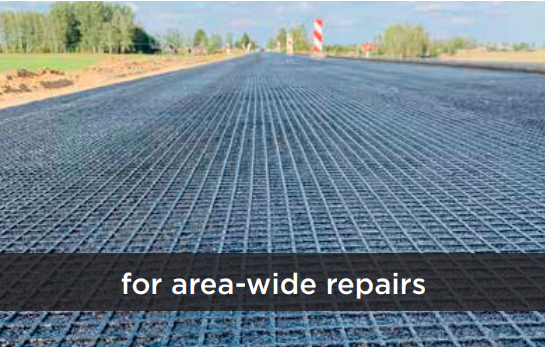

FOR AREA-WIDE REPAIRS
Anti-cracking and structural reinforcement of asphalt layers Self-adhesive grid – application on existing or new surface Compogrid - application on milled surface
ADVANTAGES
- Easy and fast application without nails need
- Edge marking for easy overlapping
- Not damage during application and compaction
- Good trafficability on applied grid (suppliers, trucks, paver)
- Excellent asphalt layers bonding

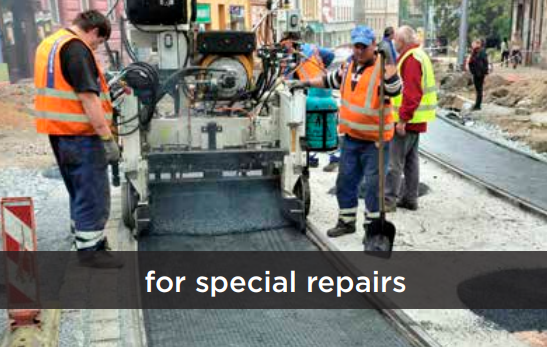

FOR SPECIAL REPAIRS
Product for all types of surfaces covered by mastic asphalt
ADVANTAGES
- Easy to cut
- Rut reduction
- Light weight for easy manipulation
- Elimination of microcracking in mastic asphalt
- Elimination of flowing of mastic asphalt during the hardening

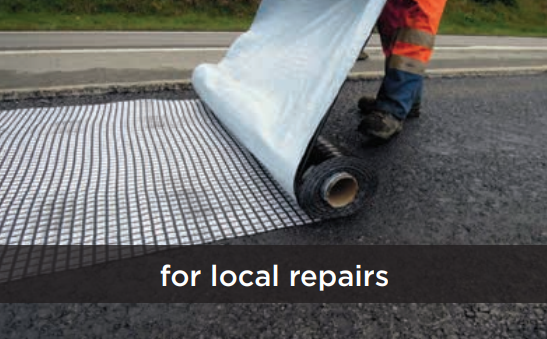

FOR LOCAL REPAIRS
Small local area repair of asphalt layers on critical areas of potholes, joints superstructures, utility trench and around manholes
ADVANTAGES
- Rapid Repair = Place & cover
- No special preparation of surface before application
- Manpower saving due to no tack coat need
- Fast and easy manual application due self-adhesive bitumen layer
- Protection against rain water penetration due to waterproofing function
- Available in rolls & special shapes for around manhole and hydrant areas
