Ecosmart Flex 68ss Fireplace
FLEX 68SS FIREPLACE
FLEX 68SS FIREPLACE
Specifically designed for a single room application, the Flex Single Sided Fireplace Insert features one open side, enabling the flame to be viewed from the front.

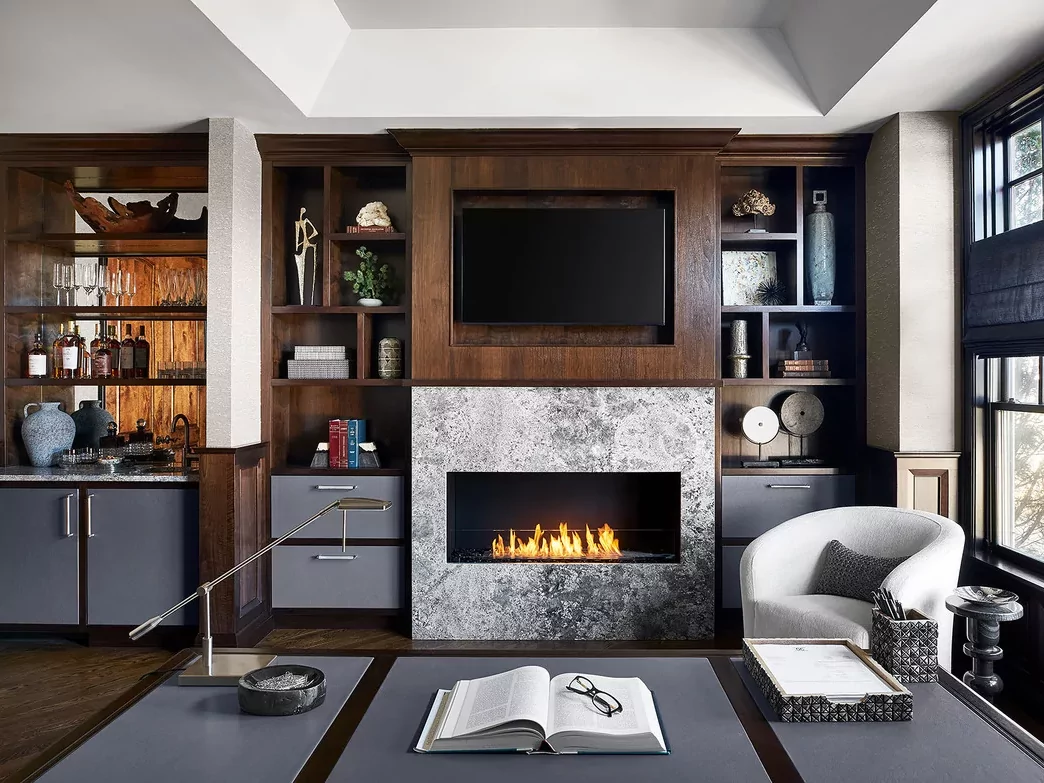

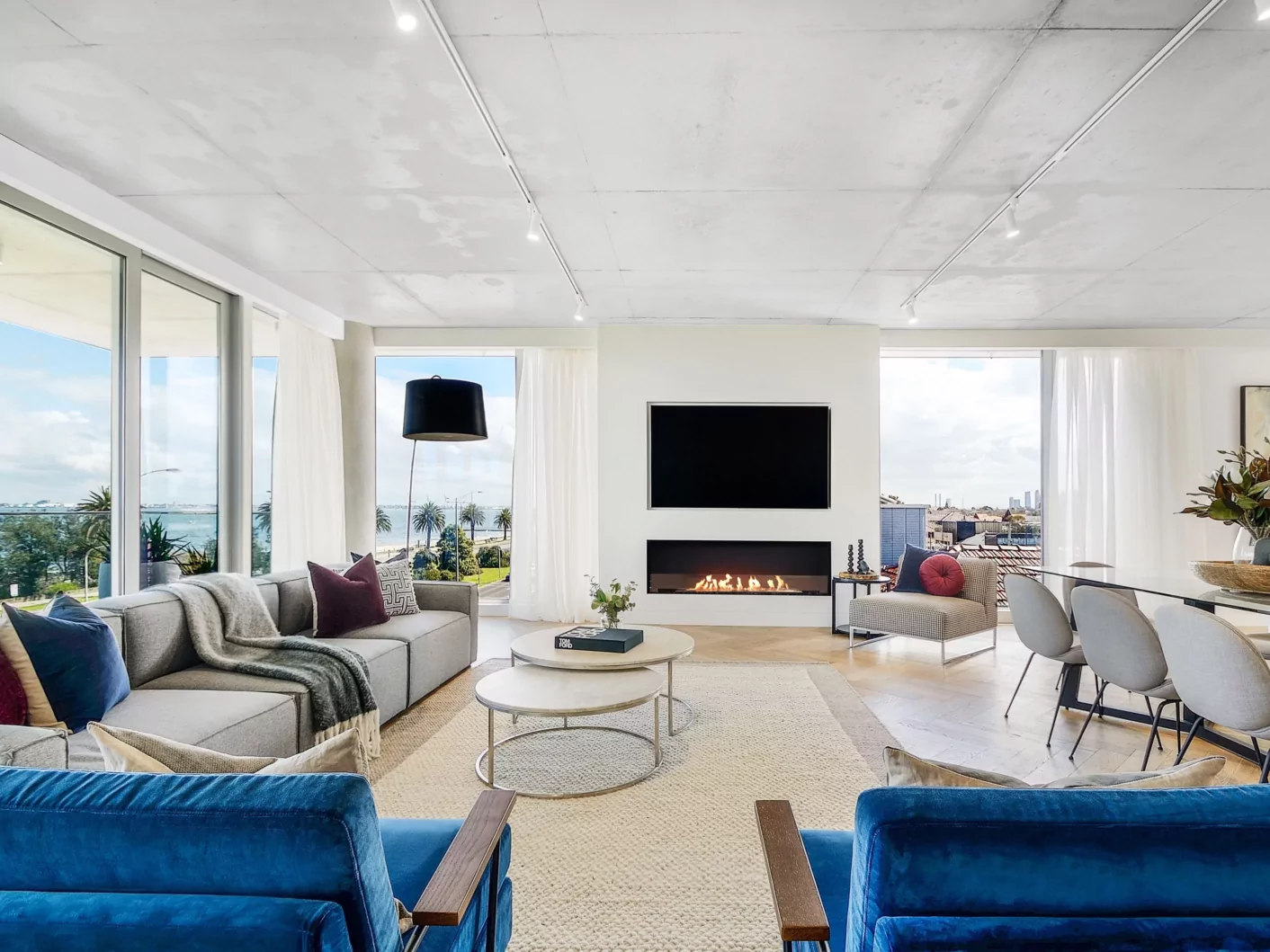

The bioethanol, true zero-clearance fireplace can be used to create a striking addition to a feature wall, integrated within cabinetry or a fireplace setting - whether in a residential dining room, indoor or outdoor living area, or commercial spaces.
FEATURES
TRUE ZERO CLEARANCE
Self-contained, zero clearance construction provides unlimited installation freedom and flexibility for builders, architects, interior designers, landscapers and homeowners.
INDUSTRY EXCLUSIVE DECORATIVE BOX

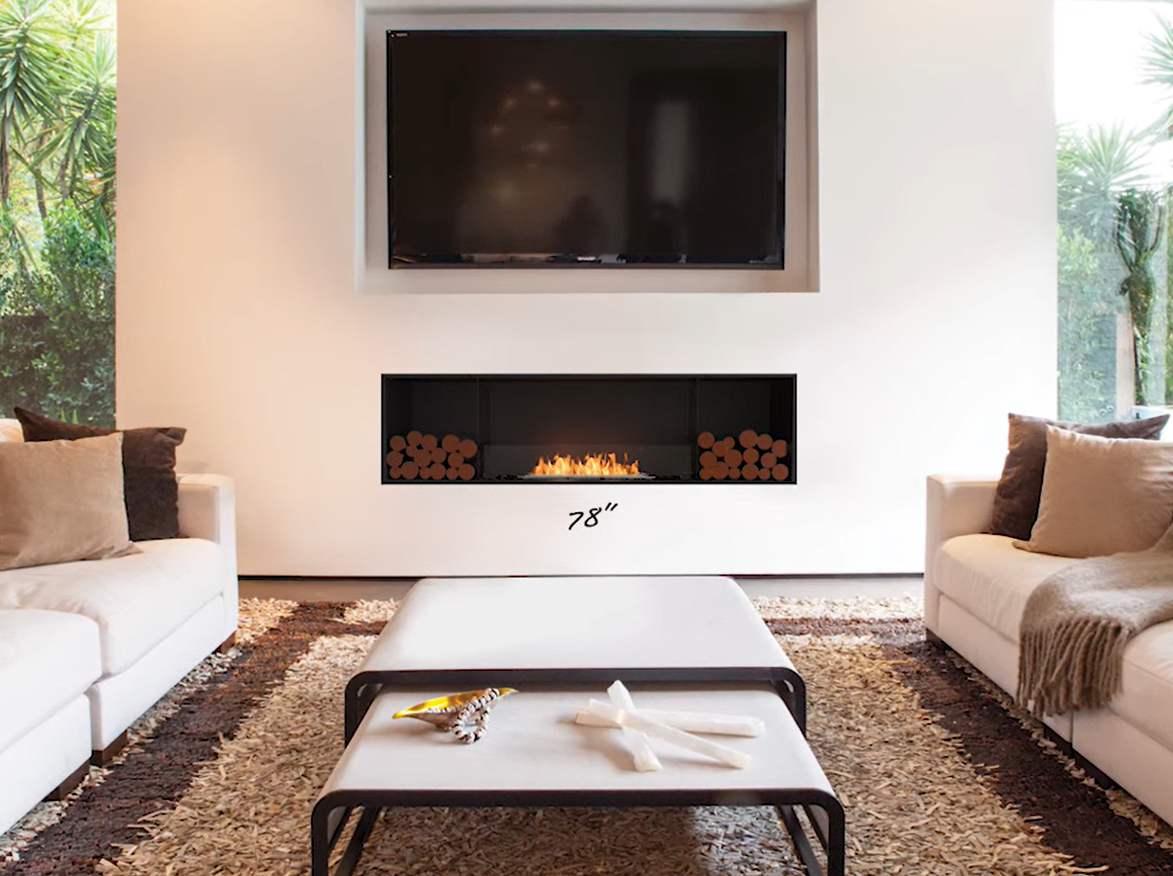

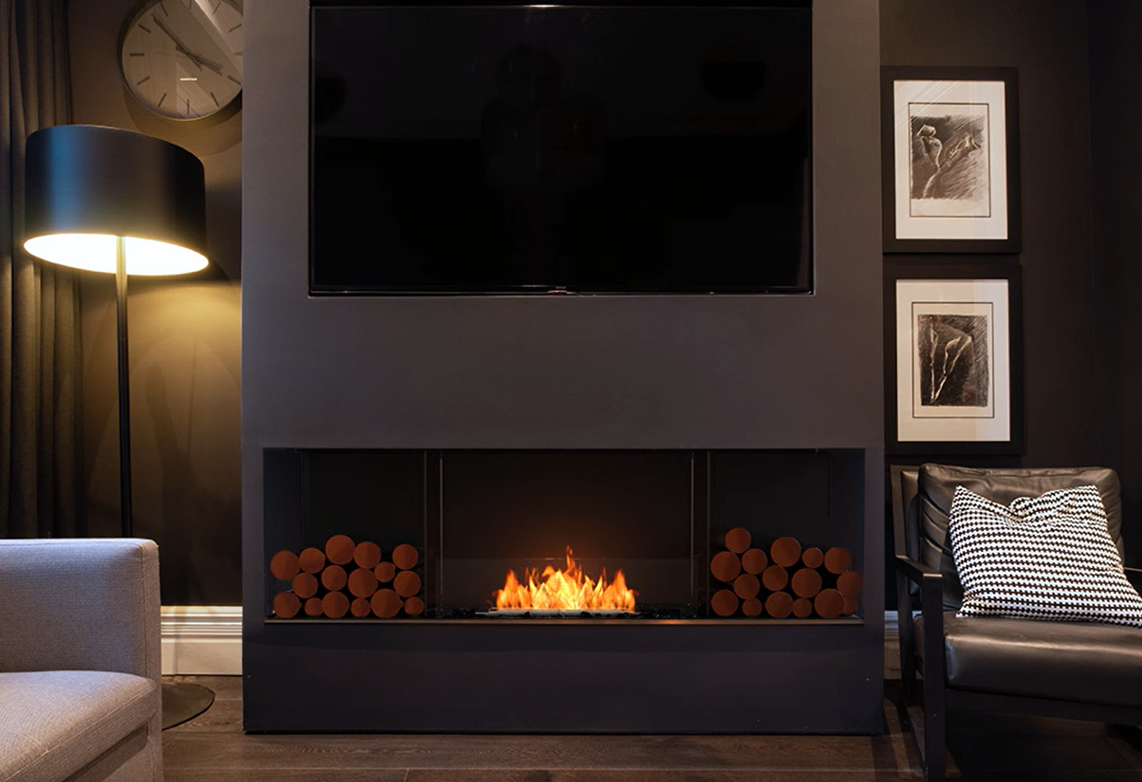

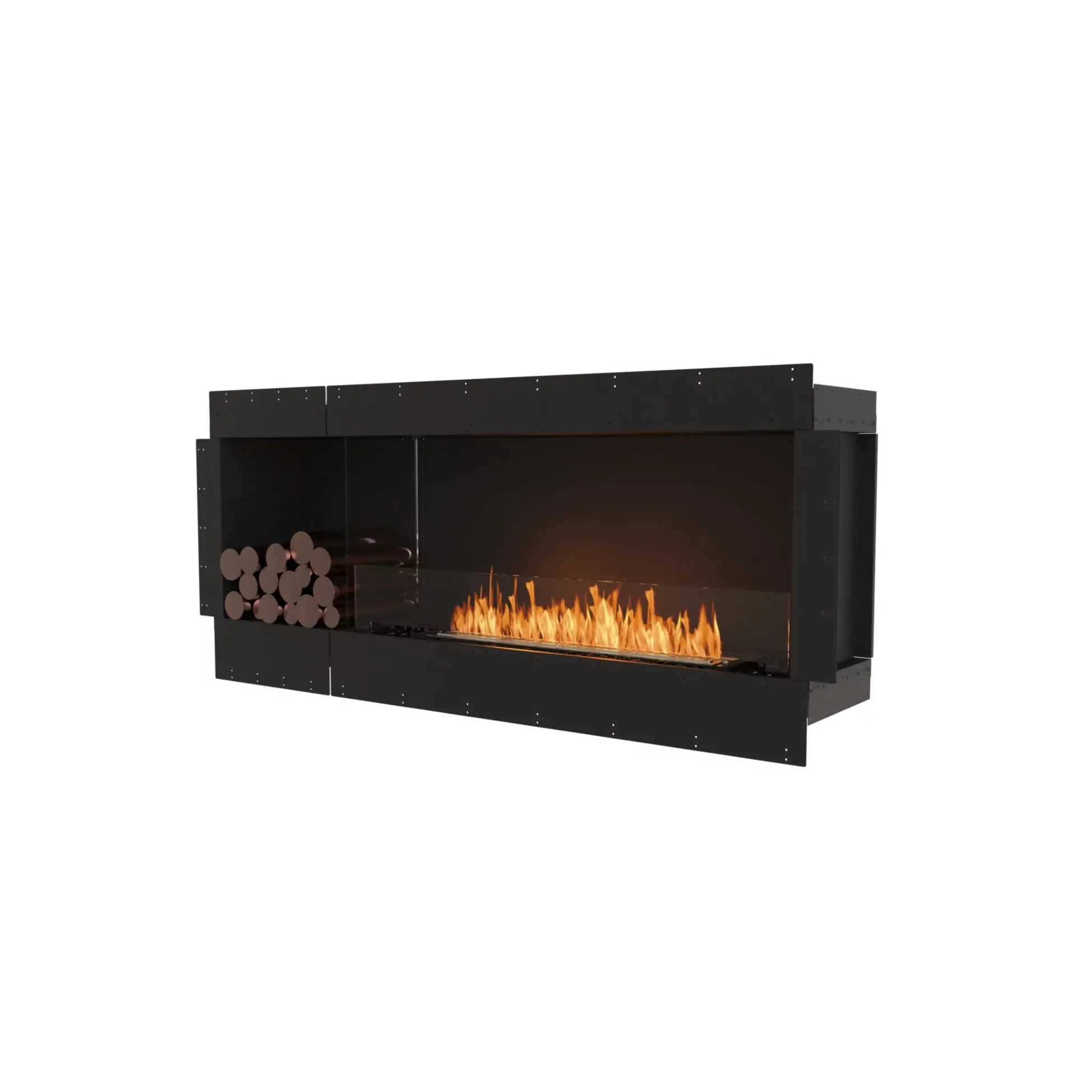

Optional or included box configurations for select firebox lengths. Fill with any non-combustible accessory or choose our optional eye-catching log set available in copper finish.
UNMATCHED HEAT EFFICIENCY
Unlike gas fireplaces that lose 30% of heat through vents, Flex’s closed combustion system keeps every BTU in your room. Warmth stays where it belongs—no energy wasted, no chimneys needed.
INCLUDED ACCESSORIES
Each Flex comes with decorative Black Glass Charcoal and integrated fire screen which sits flush behind the frame.
INFORMATION
INDOOR OR OUTDOOR APPLICATION
Powered by clean-burning e-NRG ethanol fuel, Flex 68SS is suitable for indoor or outdoor installation. Ethanol is a sustainable fuel choice made by fermenting plants like sugarcane or corn.
BRAND
Ecosmart Fire
PRODUCT TYPE
Fireplace
COLLECTION
Flex 68SS
PRODUCTION
100% Made in Germany
MATERIALS
- Mild Steel (Zinc Sealed,
- High-Temp Powder Coat) Surround;
- Grade 304 Stainless Steel (Optional Black Ceramic Coating) Ethanol Burner
DESIGN
The clean lines and 'all flame' configuration of the Flex 68SS means the entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.
WEIGHT
214.1 lb
COLOUR - MODEL
Model : Black

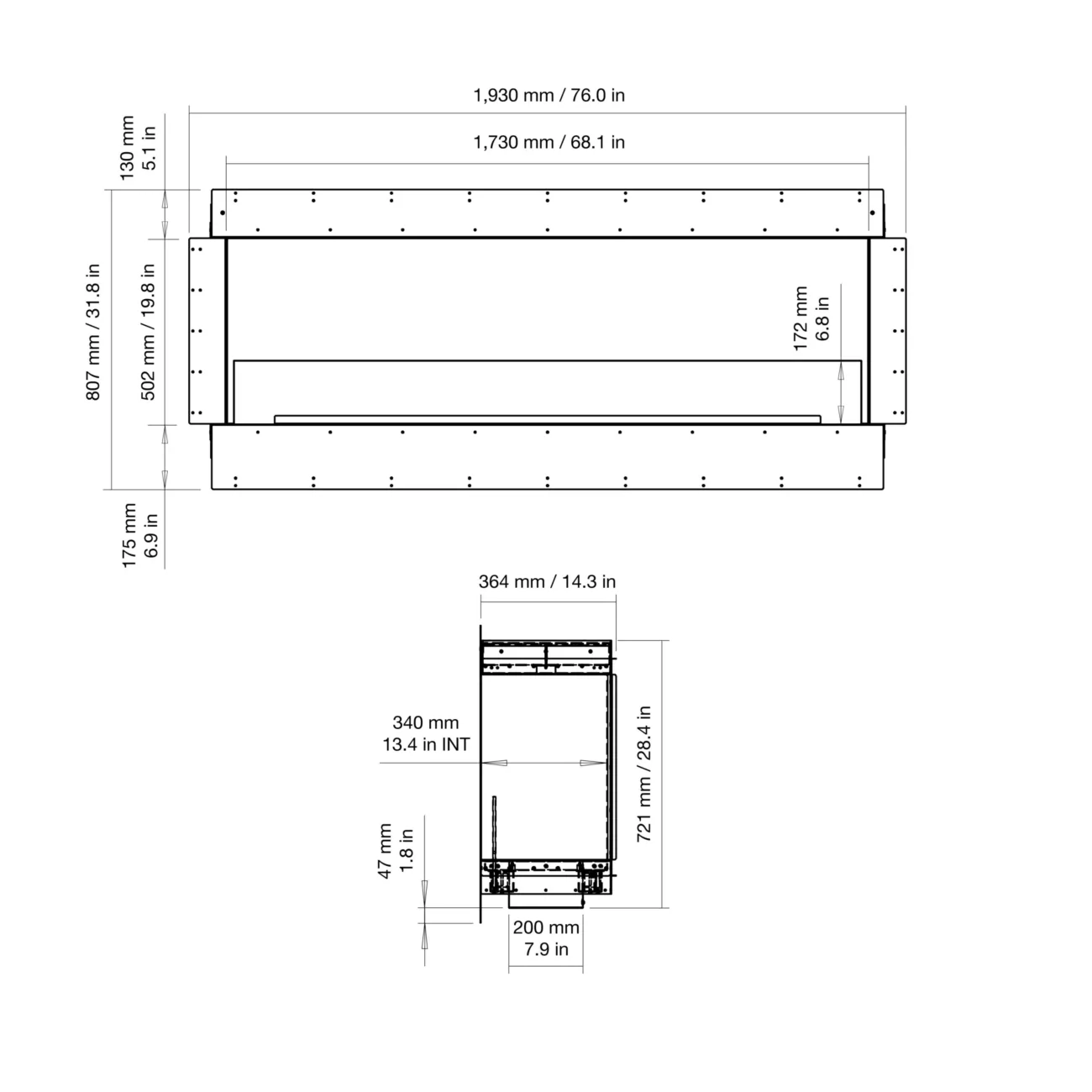

DIMENSIONS - MODEL
- Width : 76 in
- Height : 31.8 in
- Depth : 14.4 in
DIMENSIONS - VIEWING AREA
- Width : 68.1 in
- Height : 19.8 in
- Depth : 13.4 in
AWARDS
2020 BIMsmith Best Award (USA) and 2018 Attendees Choice Award (USA)
COLOUR - BURNER
- Burner : Stainless Steel
- Model : Black
QUICK AND EASY INSTALLATION
With no need for ventilation or utility connections, integrating a fire feature has never been simpler. Flex installs fast and is ready for the finishing touches in less than an hour.
EFFICIENCY
EFFICIENCY

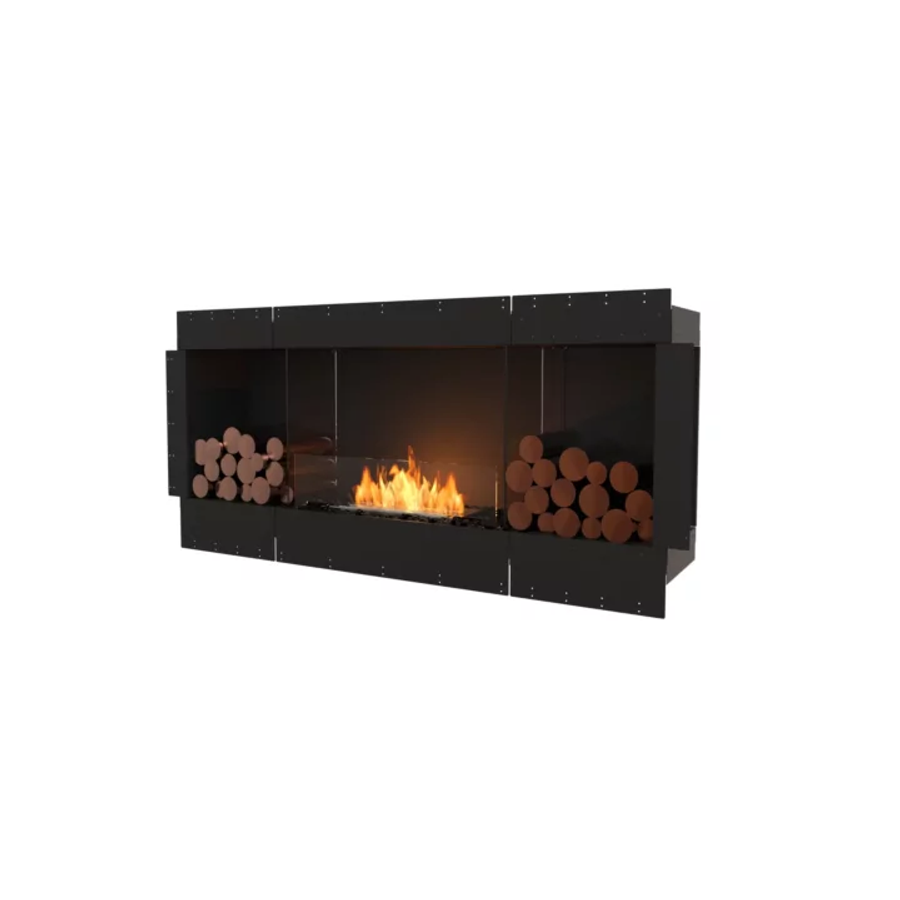

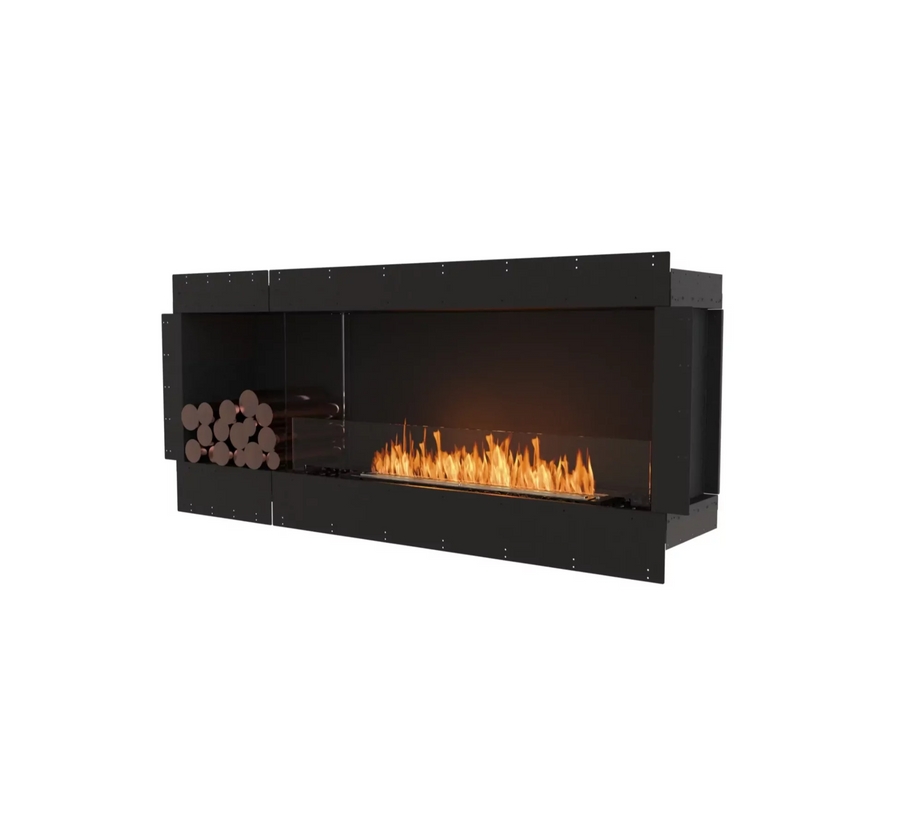

| BURNER INFORMATION | ALL FLAME | BOX LEFT/RIGHT | TWO BOXES |
|---|---|---|---|
| Burner Configuration - Compatible With This Model | XL1200 | XL900 | XL500 |
| Volume Capacity - How Much Fuel | 2.6 gal | 2.4 gal | 1.3 gal |
| Thermal Output - How Much It Heats | 15,290 BTU/h | 15,000 BTU/h | 11,430 BTU/h |
| Burn Time - How Long It Lasts | 9-14 h2.6 gal | 8-13 h2.4 gal | 10-13 h1.3 gal |
| Fuel Consumption - How Long It Lasts | 0.23 gal/h | 0.21 gal/h | 0.13 gal/h |
| Heats On Average - How Much Space It Heats | 700 ft² | 646 ft² | 431 ft² |
| Minimum Room Size - Required For This Config | 4,061 ft³ | 3,885 ft³ | 2,825 ft³ |
ACCESSORIES
GLASS FIRE SCREEN
Paired with a glass fire screen, to stabilises the flame in windy conditions.
GRATE INSERT
Crafted from 1.2mm SECC steel with hi-temp powder coating, our fireplace grates offer enduring strength and style.
JERRY CAN 5L
Safety features include automatic stop flow, fast flow rate, locking thumb button control, and self-venting system. Enables safe storage and decanting of e-NRG.
FIRE LIGHTER
This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.
LIGHTING ROD
This operational accessory enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.
BOTTLE ADAPTOR
The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.
