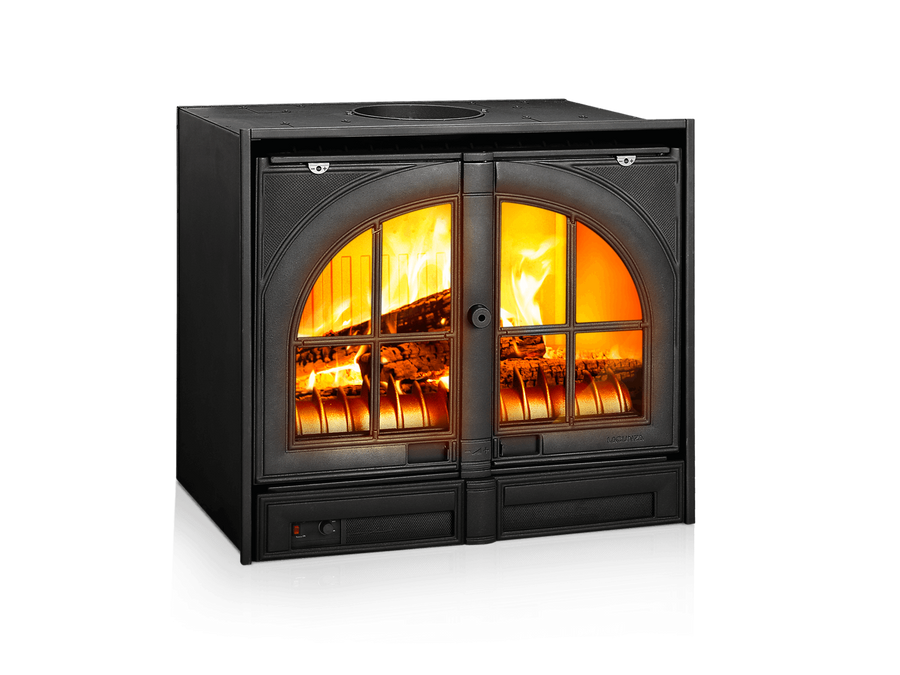

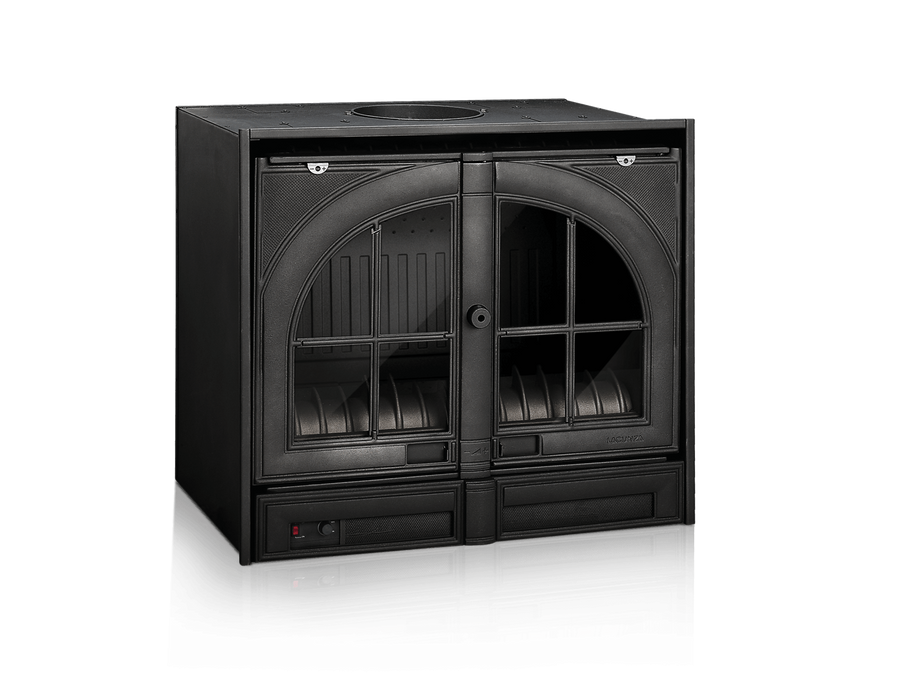

Lacunza Abodi Fireplace
ABODI fireplace
ABODI FIREPLACE

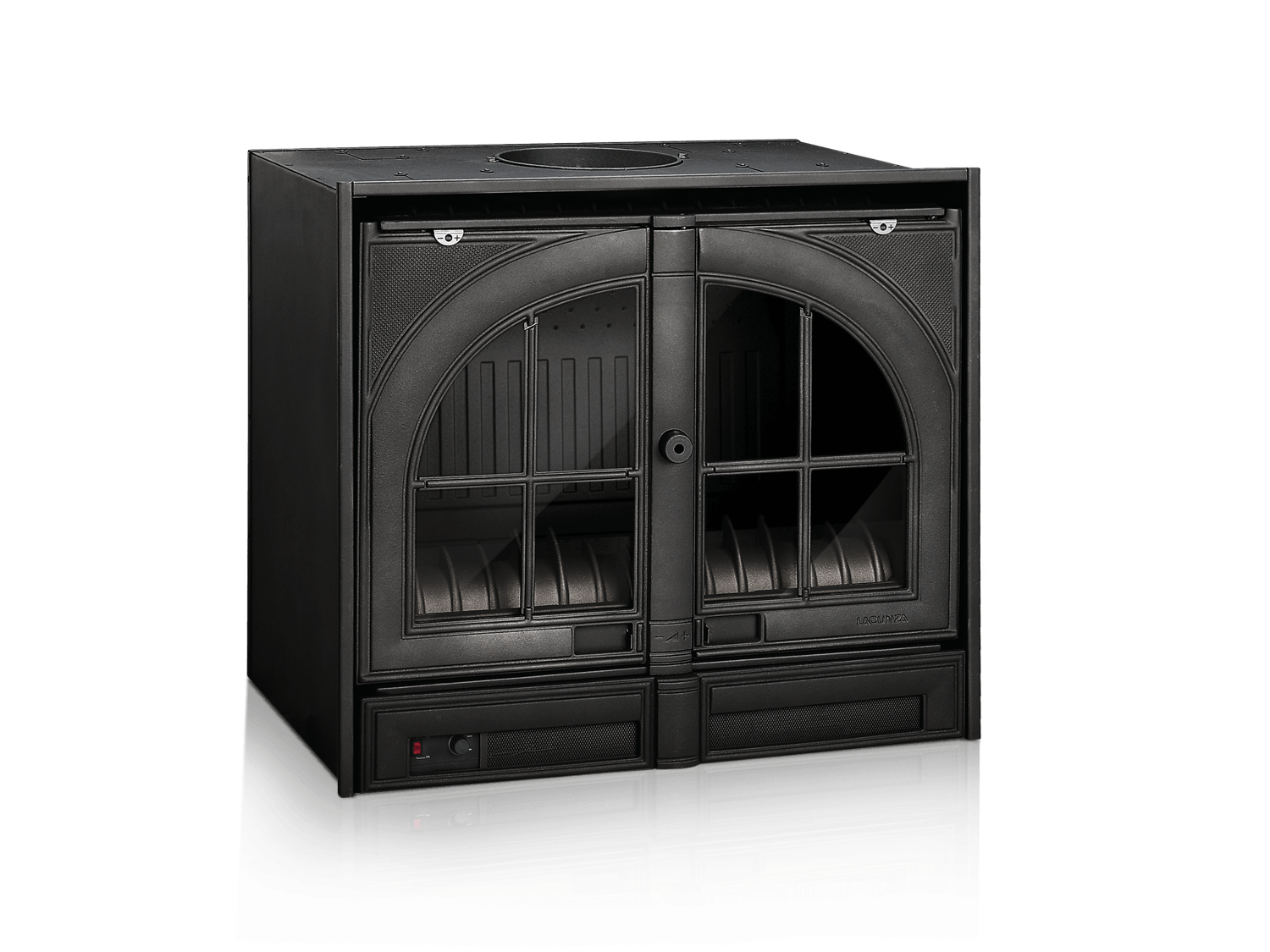

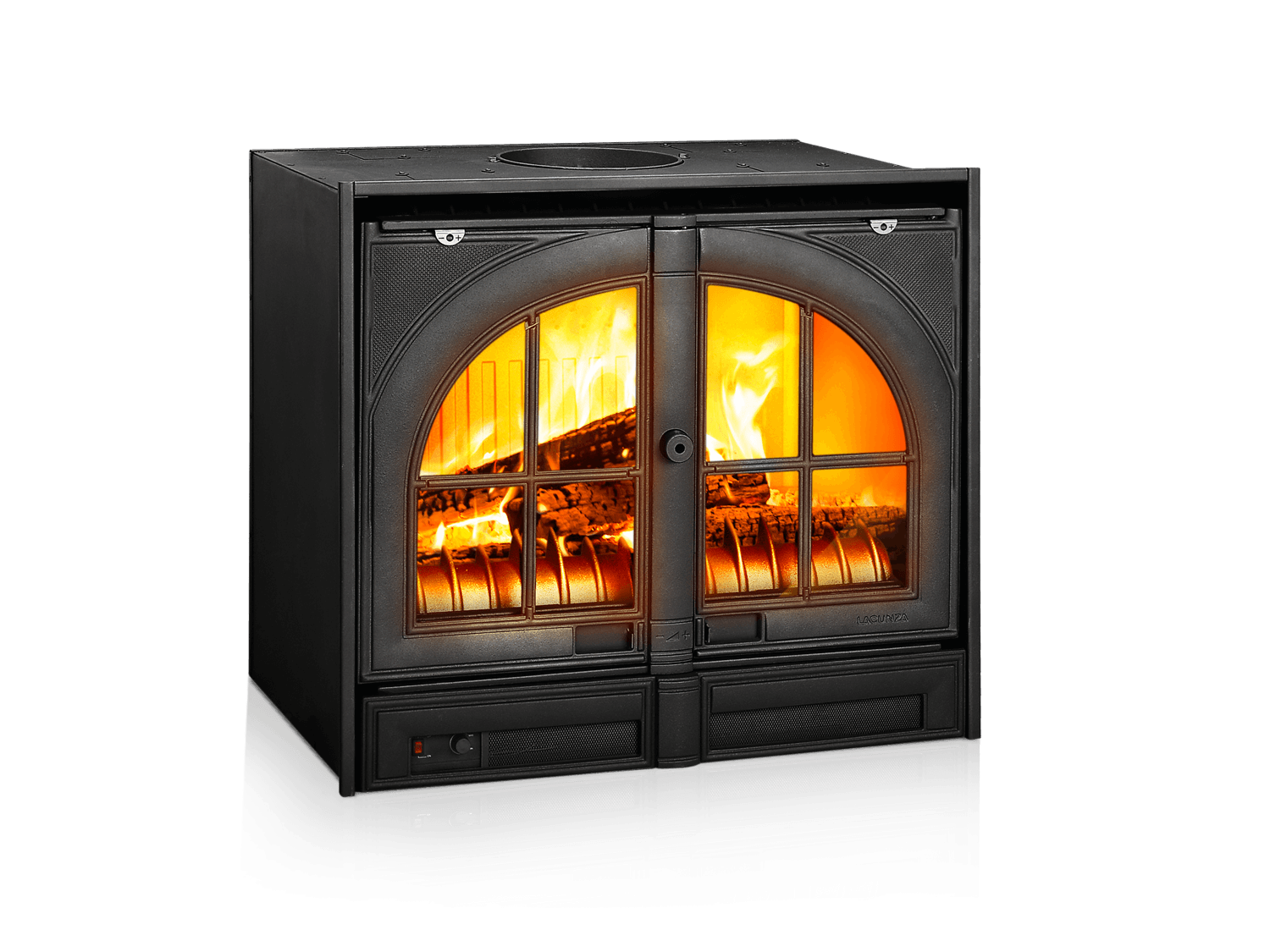

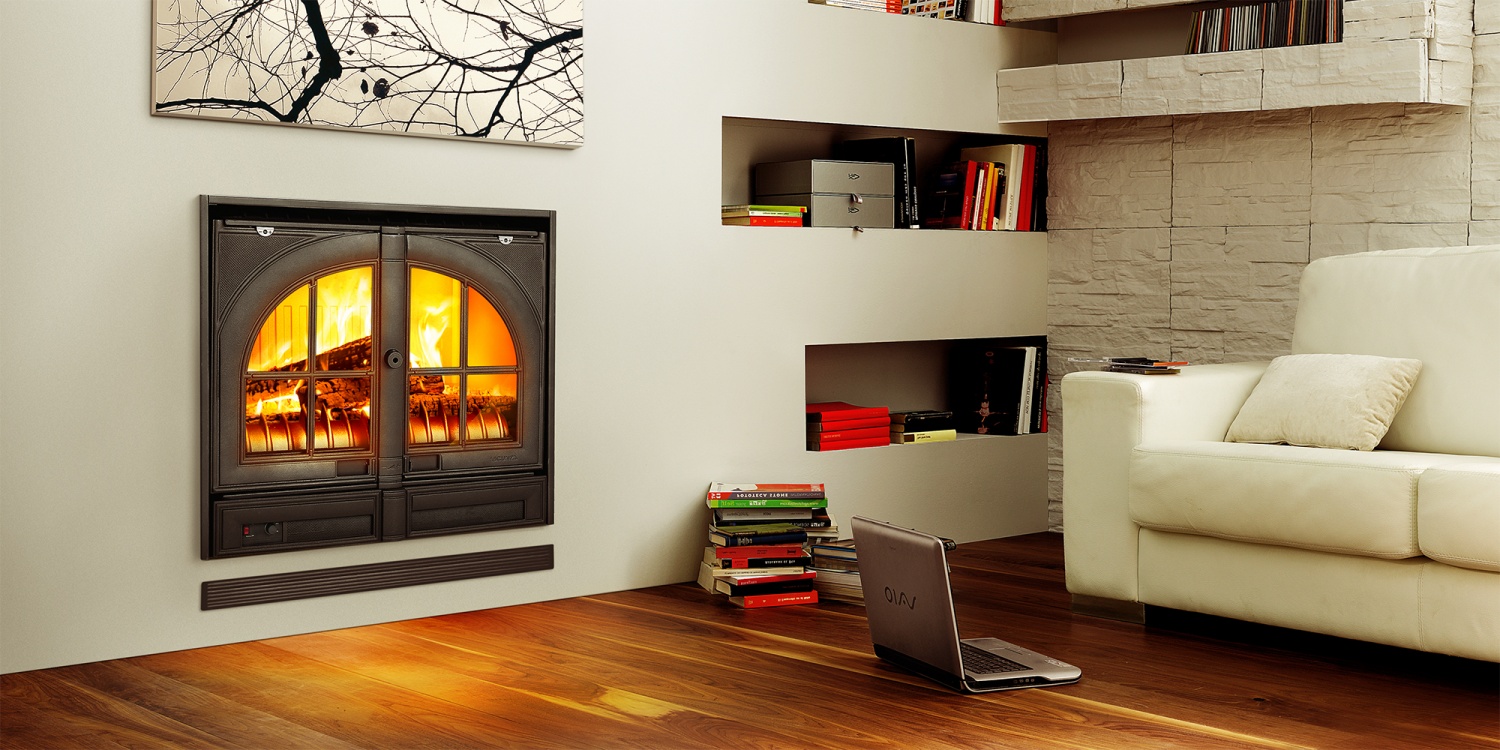

The abodi wood inset has a traditional design with vaulted retractable doors so that nothing prevents you from enjoying the fire.
FEATURES
CLEANING ACCESS
Easy access for sweeping via a hatch (patented). Deflectors easy to dismantle
by hand without tools.
PERFECT COMBUSTION
Optimum burning technology which achieves great combustion efficiency. Lower consumption and greater autonomy of firewood loads.
DOUBLE COMBUSTION
Technology to burn the gas generated during the initial combustion of firewood. More efficient, longer autonomy and lower consumption.
EOLO SYSTEM
High-pressure ventilation system with centrifugal turbines and speed regulator (control unit) or fans which allows you to heat different rooms in the home via ducts.
INFORMATION
BRAND
Lacunza
PRODUCT TYPE
Fireplace
HEATING AREA
138 m2
COLLECTION
Abodi
DIAMETER SOCKET(DOUT)
200 mm
HEAT OUTPUT RANGE
11-20 kW
NOMINAL HEAT OUTPUT
15.5 kW
WEIGHT
276 kg
EFFICIENCY
77.0 %
EMISSIONS CO
0.12 %
HEATING VOLUME
344 m3
EXTRA CLEAN GLASS
New air-intake-to-glass system to keep the glass cleaner for longer.
TOTALS DIMENSIONS
- Height : 800 mm
- Width : 912 mm
- Depth : 612 mm
FIREBOX DIMENSIONS
- Height : 500 mm
- Width : 700 mm
- Depth : 435 mm
FLUE SOCKET
ø200 mm
FIREWOOD MEASURE
65 cm
FIRE VISION
High
CHIMNEY TEMPERATURE CLASS
T400
FIRE VISION
- Very high
- Ashtray
- Anti-stain glass
- Speed control and air direction
GASS MASS FLOW AT PNOM
12.6 g/s
VOLTAGE (AC)
230V
PRODUCTION
Made in Spain
FIREBOX MATERIAL
- Foundry
- Deflector
- Double Combustion
- Type of ventilation : Centrifugal turbine
MAXIMUM LENGTH OF THE LOGS
65 Cm
CAPACITY OF THE ASHPIT
3.2 L
OUTER MATERIAL
- Foundry
- Grate
- Ventilation
- Optimal combustion
- Easy chimney sweeping
