Mm-holz Glulam Ceiling Elements
GLULAM CEILING ELEMENTS
GLULAM CEILING ELEMENTS
Precisely fitting, light and quick to install
MM profideck is The glulam ceiling element for an improved indoor climate.

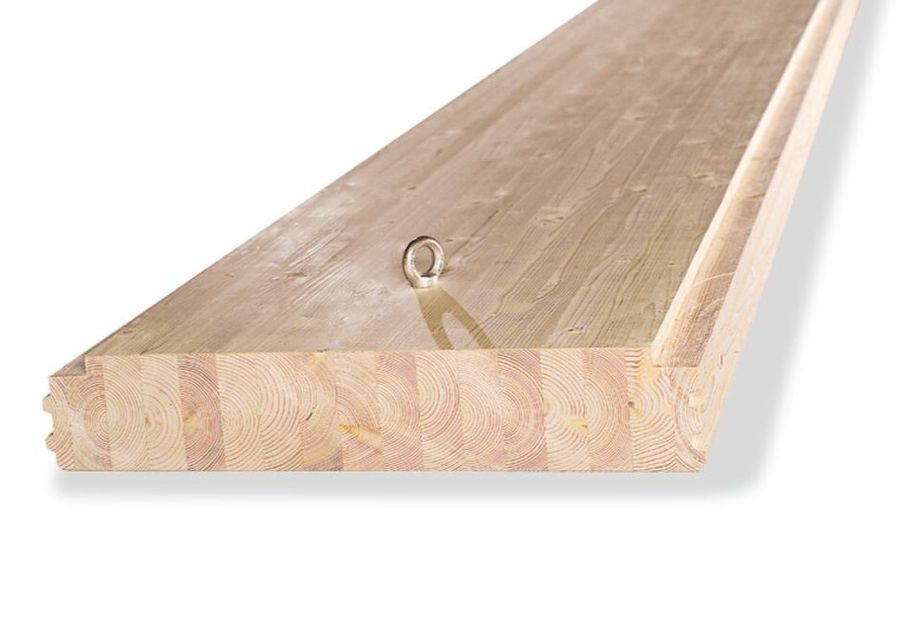

MM profideck glulam ceiling elements consist of solid glulam elements bonded in a waterproof fashion. They are much lighter than concrete ceilings, dimensionally stable and create the pleasant indoor climate so typical for wood.
Thanks to precise industrial prefabrication, the ceiling elements can be loaded immediately after installation and downstream tasks can be performed quickly. Upon request we will gladly deliver our ceilings directly to your construction site.
MM profideck glulam ceiling elements, like all Mayr-Melnhof Holz timber construction products, are PEFC-certified. As a natural, regrowing building material that stores CO2, the use of MM profideck makes an important contribution to active climate protection.
INFORMATION
MM PROFIDECK : BENEFITS
-Suitable for structural panel formation -Excellent inherent and dimensional stability -Solid, value-retaining construction method -High load-bearing capacity at significantly lower weight compared to concrete ceilings -Precise CNC machining services & finishing for mounting for individual project requirements -High degree of prefabrication, resulting in simple, low-noise and -dust installation as well as short construction time
PRODUCT TYPE
Ceiling Elements
STRENGTH CLASS
GL24h
BUILDING COMPONENTS
- Floors
- Roof slabs
- Attic floors
- False ceilings
TYPES OF BUILDINGS AREAS OF APPLICATION
- Stable construction
- Single and multiple family homes
- Commercial, office and industrial buildings
- Tourism buildings such as hotels and restaurants
- Community buildings such as kindergartens, schools and nursing homes
FIRE CLASS
D-s2, d0
MOISTURE CONTENT
12 % (± 2 %)
QUALITY
- Visual (VI)
- Non-visible (NVI)
GLUING
MUF, EN 301-I-90-GP-0,3-S (melamine resin, bright glue joint, waterproof)
WOOD SPECIES
Spruce (Picea Abies)
DENSITY
Approx. 430 kg/m³
PRODUCT STANDARD
EN 14080:2013
WIDTH
Covered width 62.5 cm (64 cm element width; special widths of up to 120 cm available on request in steps of 4 cm)
LENGTH
4 m - 16 m as standard
THICKNESS
8 cm - 26 cm (in steps of 2 cm)
SERVICE CLASS
SC 1+2
DOWNLOAD
↓ Brochure
SPECIAL FORMATS
- Acoustic Profiles
- Sanded Surfaces
SURFACE
Planed on 2 sides, profiled on the sides and visible side chamfered
CALCULATED MEASUREMENTS
Invoiced width : e.g. covered width 62.5 cm + profile 1.5 cm = element width of 64 cm
LOGISTICS SERVICES
RAIL
- We use both private & public rail service providers to transport goods in an environmentally friendly manner.
- All Mayr-Melnhof Holz sawmills in Leoben (AT) & Paskov (CZ) as well as our timber processing plants in Gaishorn (AT) & Wismar (DE) are directly connected to national railway networks.
SEA
- Loading into shipping containers is possible at all sites.
- Subject inducement we can offer breakbulk shipments from the Adriatic, Baltic and North Seas.
- With trusted logistics partnerss we are able to offer fast and reliable container shipments worldwide.
- With our own port terminal in Koper, Slovenia, we have regular chartered services to southern Mediterranean ports & beyond.
ROAD
- We use digital platforms for fast communication with our transport service providers.
- Long-standing stable business relationships with a large number of logistics service providers in Europe.
DELIVERY TO CONSTRUCTION SITES
Just-in-time deliveries to our cross-laminated and glulam construction sites. A full range of modern transport solutions is offered as necessary :
- All-wheel drive trucks
- Loads up to 52 m length
- Hydraulically steered trailers
- Trailers with on-board forklifts
- Covered loads up to 3,5 m wide
- Narrow-access self-steering trailers
- Edscha sliding roof trailers for vertical access
- Solo vehicles with up to 10 m loading length for inner-city areas
