Tenax Gravel Lock Grass Meshes
GRAVEL LOCK GRASS MESHES
GRAVEL LOCK GRASS MESHES
Composite for gravel containment, made of HDPE and PP, mesh size 35x33 mm, weight 1450 g/m²

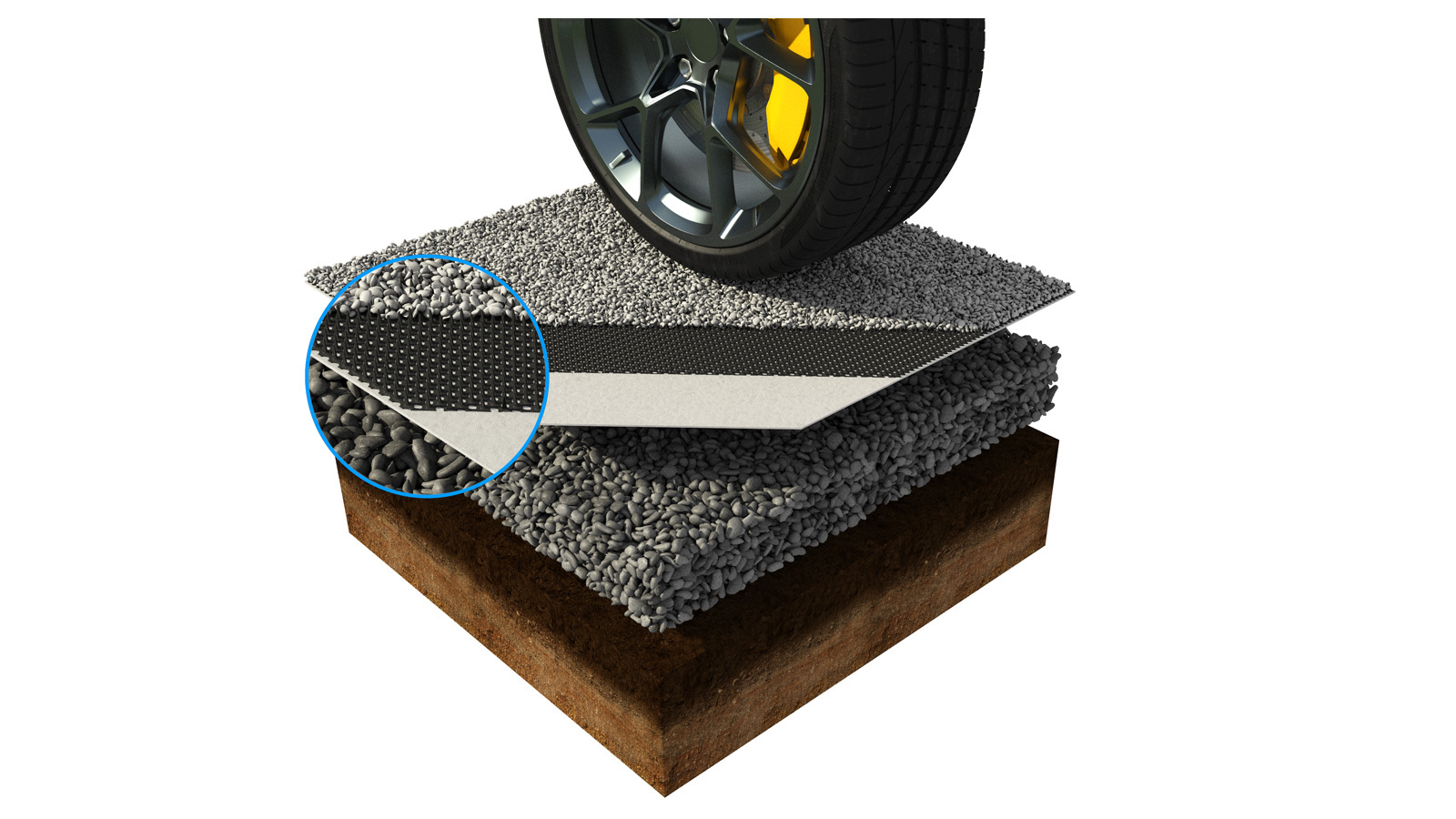

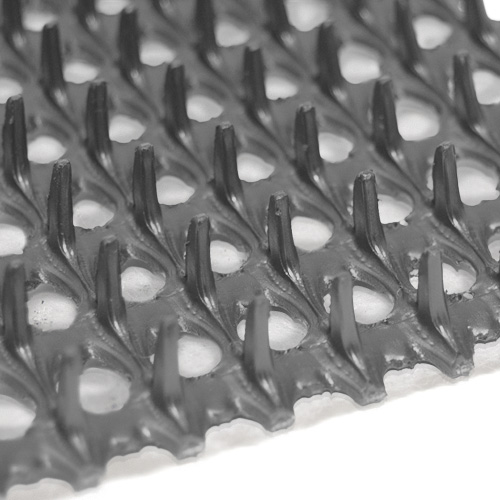

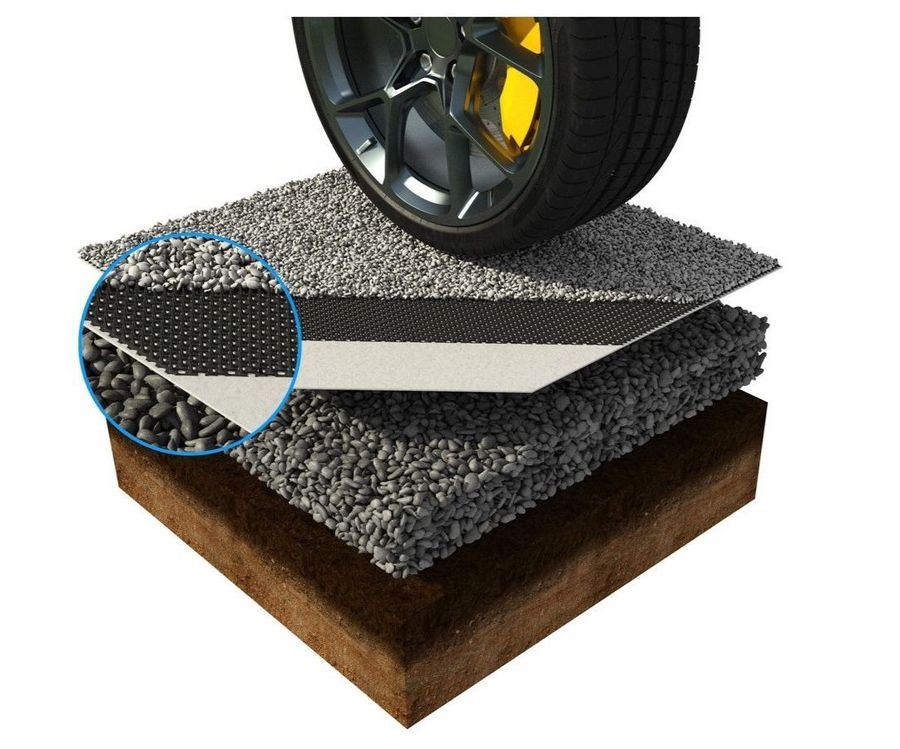

Tenax gravel lock consists of a hdpe grid with protruding points and a non-woven pp fabric heat-sealed to the bottom.
INFORMATION
BRAND
Tenax
PRODUCT TYPE
Reinforced Green Surfaces
BENEFITS
The composite material can be used to create stable, draining gravel paving for pedestrian and vehicular traffic.
SURFACE
The final surface therefore has the same characteristics and performance as a road surface while maintaining the drainage capacity of the soil.
SPECIFICATION
The non-woven fabric on the bottom also prevents soil and gravel from mixing over time under the effect of rainfall and traffic stress.
WEIGHT
1450 g/m²
THICKNESS
12 mm
FABRIC
Made of HDPE + polypropylene (PP) non-woven fabric
FEATURES
Draining
GRAVEL DIAMETER
2.6 mm
RESISTANCE
Excellent resistance to compression and atmospheric agents
CODE
1A180471
DIMENSIONS
1.5 X 20 mm
INSTALL
Quick and easy to install compared to traditional gratings
EFFECT
Excellent aesthetic effect upon completion of the work
COLOR
Grey
EAN CODE
8002929127228
REQUIRES
Requires less gravel than gratings (approximately 30 kg/m²)
CONF/UDV
1
UDV
Roll
DETAIL
- Practical and safe
- No maintenance required
INSTALLATION
TIP
Before proceeding with installation, we recommend leaving the product unrolled in the sun for a few minutes to allow it to lose its shape memory and become flatter.
PEDESTRIAN STREETS
- Create a compact, well-drained base layer approximately 10 cm thick.
- Compact and level the base surface
- Proceed with laying GRAVEL LOCK, using flat-head nails to secure it to the ground.
- Fill the mesh with gravel (Ø 2/6 mm) and compact manually (vibrating plate or hard bristle brush).
PARKING LOTS AND DRIVEWAYS
- Prepare the existing surface by weeding and compacting the area.
- Spread a layer of medium-sized gravel approximately 5 cm thick.
- Compact and level the surface obtained
- Proceed with laying GRAVEL LOCK, using flat-head nails to secure it to the ground.
- Fill the mesh with gravel (Ø 2/6 mm) and compact manually (vibrating plate or hard bristle brush).
