ARGO TREE GRATES
ARGO TREE GRATES

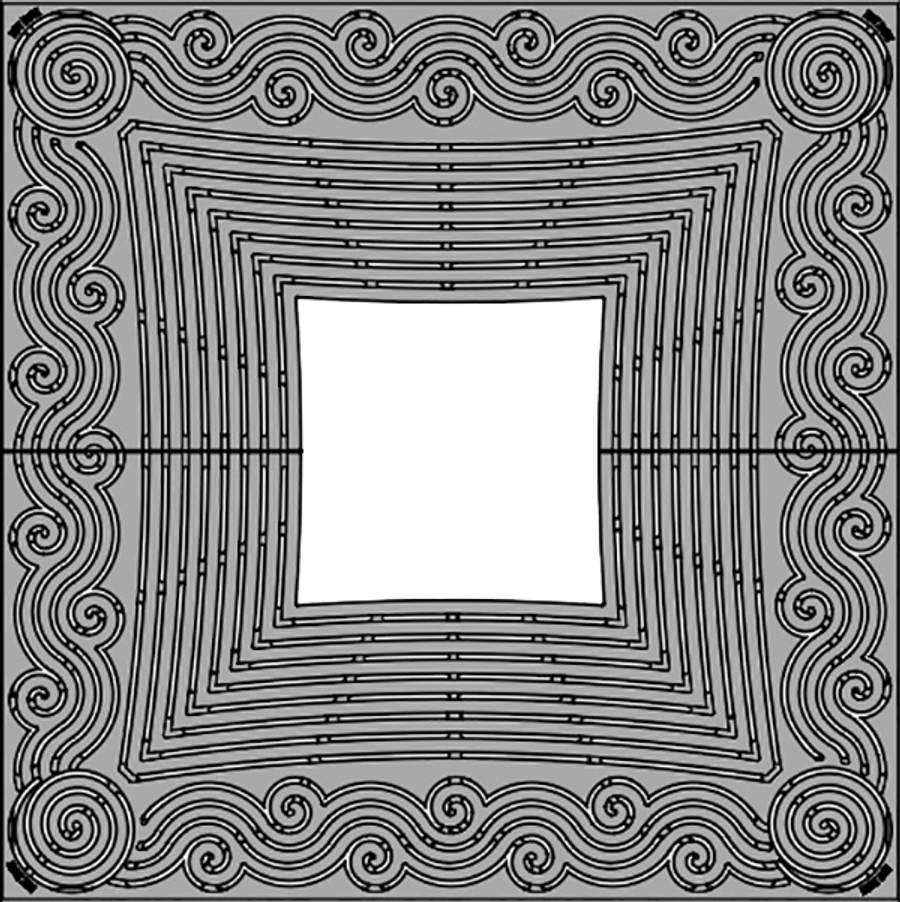

Inspired by ancient tales of the mythical ship, Argo’s rolling-wave pattern suggests moving currents of water and wind.
INFORMATIONN
NAME / DESIGN

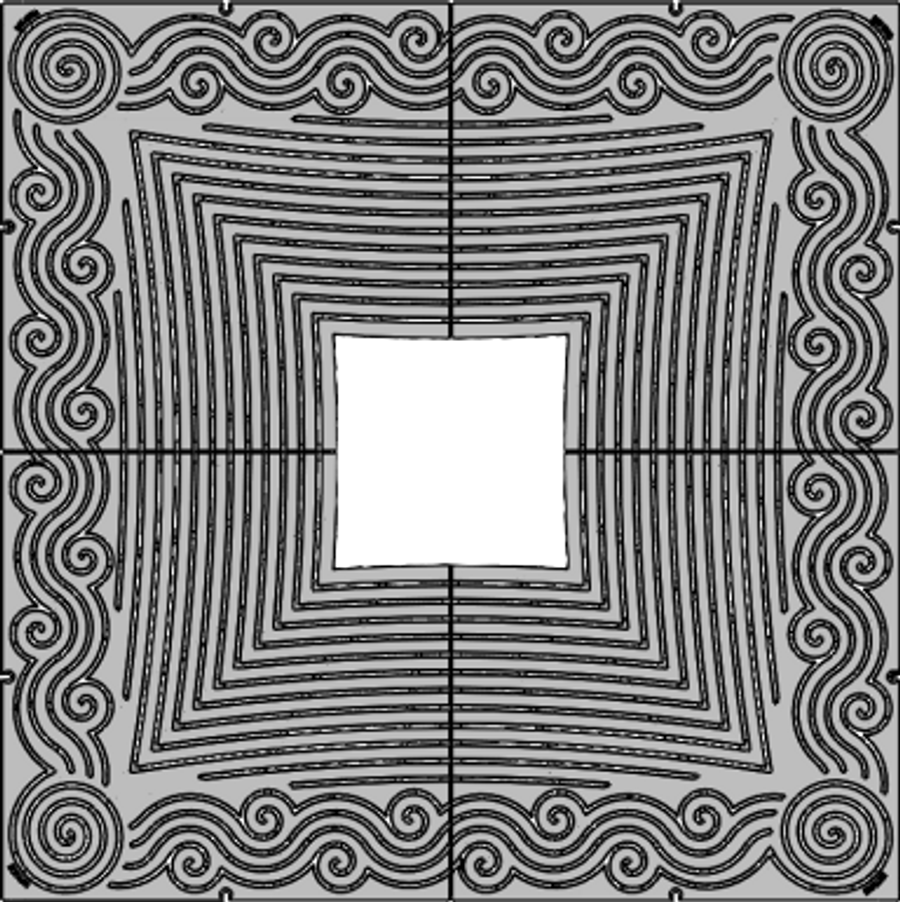

- Argo 3' x 3' Heel-Proof
- Argo 4' x 4' Heel-Proof

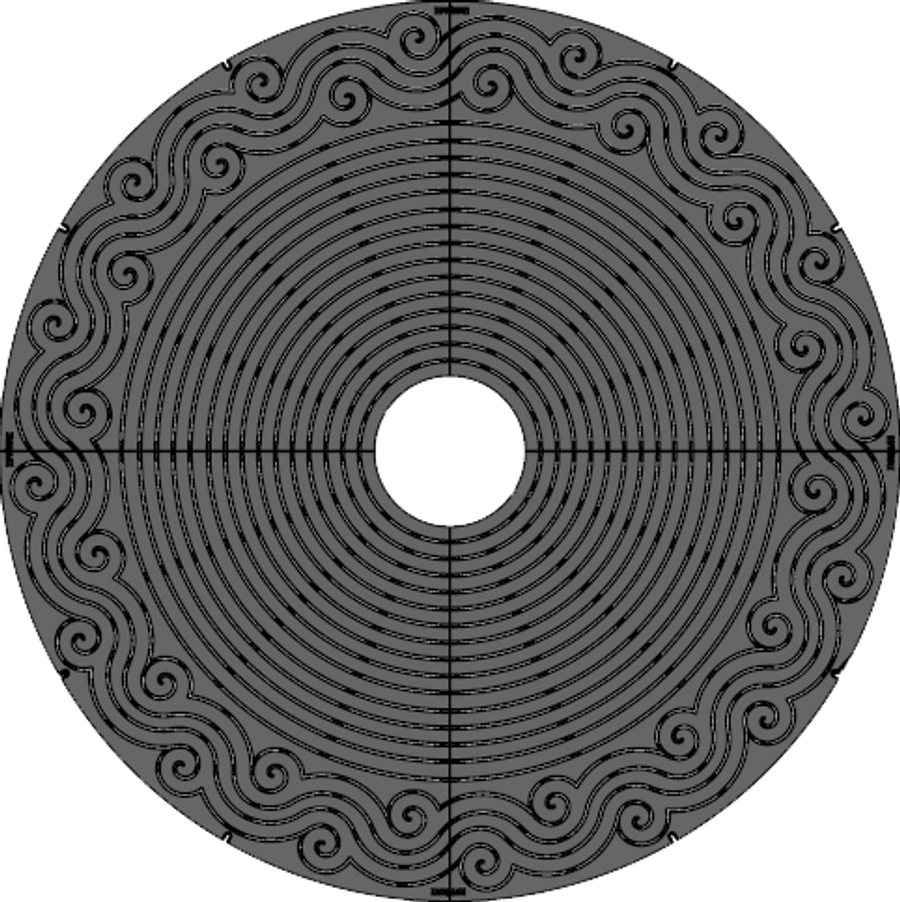

- Argo 6' Dia. Heel-Proof
BRAND
Iron Age
PRODUCT TYPE
Tree Grates
PRODUCTTION
Made in USA
DIMENSIONS -ARGO 3' X 3' HEEL-PROOF
- Length : 36"
- Width : 36"
- Thickness : 1.25"
COPYRIGHT REGISTRATION NO.
- Argo 3' x 3' Heel-Proof : VA 1-970-731
- Argo 4' x 4' Heel-Proof : VA 2-007-076
- Argo 6' Dia. Heel-Proof : VA 2-330-115
DIMENSIONS -ARGO 4' x 4' HEEL-PROOF
- Length : 47.88"
- Width : 47.88"
- Thickness : 1.00"
PRODUCT ID
- Argo 3' x 3' Heel-Proof : AX48-48I99TGHP
- Argo 4' x 4' Heel-Proof : AX48-48I99TGHP
- Argo 6' Dia. Heel-Proof : AX72DiaI99TG
DIMENSIONS -ARGO 4' x 4' HEEL-PROOF
- Diameter : 71.88" Dia.
- Thickness : 1.25"
MATERIAL
Cast Iron
STANDARD FINISH
Raw
WEIGHT
398.12 lb
FITS
Iron Age Custom Frame
FREE DRAIN AREA
12.08%
GALLONS PER MINUTE (GPM)
623.95
PATTERN
Rolling-wave pattern
RECYCLED CONTENT
80%
ADA COMPLIANT
Yes
OPTIONAL FINISHES
- Powder Coat
- Baked On Oil Finish
COLLECTION
Argo
USE
Outdoor
OPTIONAL MATERIAL UPGRADES
- Cast Bronze
- Cast Aluminum
DETAIL

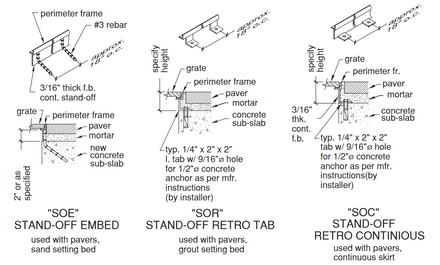

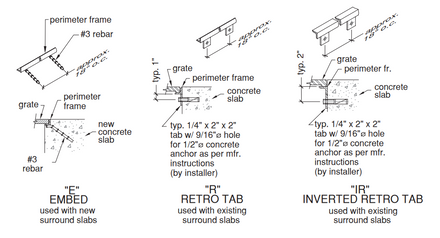

FRAME TYPES
INSTALLATION

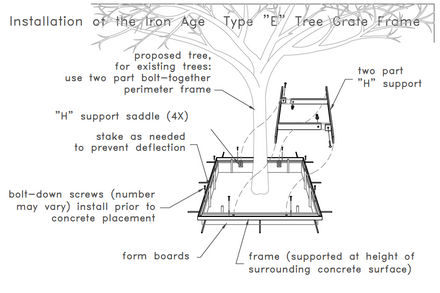

Installation of the Iron Age type "E" Embed tree grate frame.
- Excavate tree pit to approximate depth of concrete
- Use interior frame dimensions as guide for form work dimension.
- Build wooden form for concrete, provide for "H" support at saddle.
- Support frame ( and form) w / top of frame at height of surrounding concrete surface, using curb stakes - 18" O.C. max.
- Important: in all situations, be sure to use the bolt-down screws provided to protect the receiving threads from fouling. Bolting down the grates or templates will help hold the frame rigid during concrete placement.
- Allow concrete to cure before removing forms or preparing tree pit for planting
