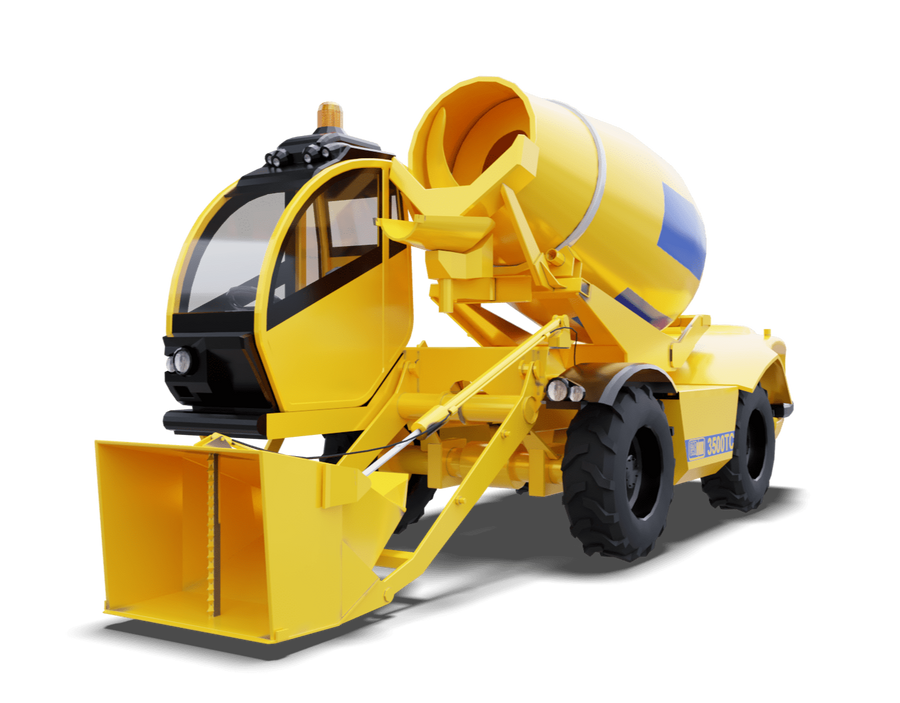

CARMIX 3500TC CONCRETE MIXER TRUCK
CARMIX 3500TC CONCRETE MIXER TRUCK
Off road mobile batching plant with a 4.850 litre drum (1.066 gal UK – 1.281 gal US) equipped with ultimate “4 sensors” electronic scale, easy to use and extra accurate for any kind of mix design.
The new Carmix concrete mixer truck presents a new cab comfort in order to guarantee safe and visibility to the operator. Find more info in the tabs below.
INFORMATION
BRAND
Carmix
PRODUCT TYPE
Concrete Mixer Truck
SPEED
Working speed from 0 to 9 km/h, road transfer from 0 to 25 km/h. Electric servo control.
STEERING
- Hydrostatic. 3-way steering.
- Radius : internal: mm. 1700, external mm 3.700.
TANKS CAPACITY
- Diesel : 115 liters
- Hydraulic oil : 80 liters
- Water tank : 2 x 400 liters
PRODUCTION
Made in Italy
GRADIENT
Fully loaded 30%.
CABIN
Comfort, safe and visibility matching edge design. ROPS-FOPS (UNI 11023) complete with closing door and rear view camera.
ELECTRIC SYSTEM
12 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off.
DOWNLOAD
↓ Data Sheet
WEIGHT
About Kg. 7.400. Equally distributed on both axles.
JOYMIX
All hydraulic functions of shovel controlled by a single - fully servo controlled Joystick.
MATERIAL
Concrete
SCALE
Electronic Scale
WATER SYSTEM
Self-contained. Hydraulic driven water pump, water meter, washing outlet. High pressure water pump.
AXLES
Dana Spicer with oil bath disc brakes and planetary reducers.
CHASSIS
Steel profile specially engineered for off-road operations.
CATALOGUE
The machine is equipped with Use and Manteinance and Spare Parts Manuals according to CE regulations.
SAFETY
Machine equipped with checking and block valves for maximum safety of the operator. Self control avoids drum to slew if shovel’s arm is lifted.
MIXING UNIT
Drum capacity 4.850 liters. Concrete drum output: 3,5 m3 . EN 206-1 IN SLUMP S1 Class, yield not vibrated. Double mixing screws, cover for emergency unloading. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed indipendent from r.p.m. of diesel engine. Discharging by reversing drum. The mixing unit is slewing hydraulically through 270° for high discharge over 2 m on the four sides of the vehicle.
ACCESSORIES
- Additive plant
- High-pressure washing pump
- Clima (air conditioning plus heater)
- Electronic weighing system with printer
- Additional discharging chute (100 cm)
- IPOTWeb modem cloud for ConcreteMate
TYRES
Off road industrial type 16/70-20 PR 14.
CONCRETE MATE
Ultimate “4 sensor” electronic scale
LOADING SHOVEL SELF ARTICULATED
Effective capacity per load 600 liters, complete with hydraulic opening gate.
BRAKES
Oil bath disc brakes inside differential axles. Twin indipendent circuits. Negative hydraulic parking brake.
CHUTE
Slewing and hydraulically tilting. Fitted with two pins easily detachable to increase the discharge height. 2 extra chutes included.
DIMENSIONS
- Height with shovel : 3990 mm
- Height without shovel : 3150 mm
- Length (without loading shovel) :
5840 mm

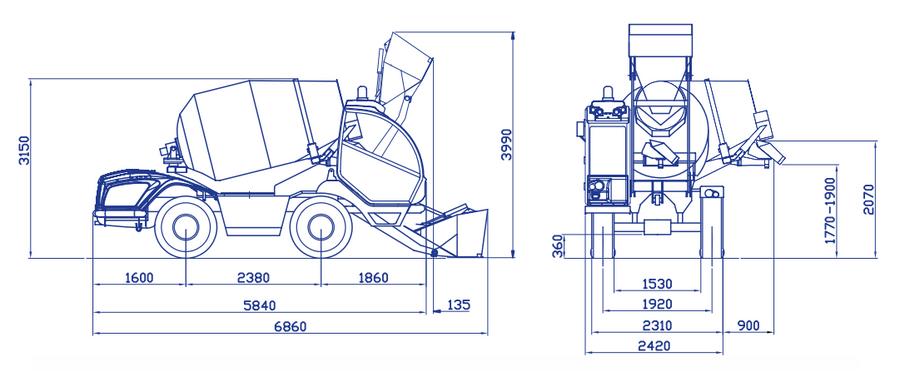

TECHNICAL DRAWING
AVAILABLE ENGINES
- Perkins Stage V - Tier 4F 904J-E36TA Turbo-diesel, 90 Kw (120 Hp)
- Perkins Stage III - Tier 3A 1104D-44TA Turbo-diesel, 4 cylinders, 83 kW (111 HP)
HYDRAULIC SYSTEM
Three circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation. 2 gear pumps for services. Inlet and outlet filter. Heat exchanger water/oil-air type.
TRANSMISSION
Hydrostatic Bosch Rexroth. Pump and motor are connected to the differentials through a 2 speed reducer (working and transfer). 4 wheel drive and steering.
