TENSEO XTREM STFE 50 COMPOSITES
TENSEO XTREM STFE 50 COMPOSITES
Structural Transparent Innovative skin
A solution for lightweight structures : STFE 50 enables the creation of spectacular transparent roofs with minimal structural impact. Its transparency, ultra-light weight, and strength make it a key solution for ambitious architectural projects.
INFORMATION
HIGH-TRANSPARENCY MEMBRANE FOR LARGE STRUCTURES
Tenseo Xtrem STFE 50 is a structural membrane offering more than 50% light transmission for a nearly invisible appearance from just a few meters away. Ultra-lightweight and durable, it delivers a unique “sunglass” effect while allowing natural light and UV rays to pass through.
BRAND
Sergeferrari
PRODUCT TYPE
Composites
FIRE RESISTANCE
Rating - International fire certificate available, such as* : B-s1,d0/EN 13501-1 AS/NZS 1530.2 & 1530.3 Class A/ ASTM E84 CSFM T19 Method 2/NFPA 701
COLORS
Stfe : 7802-51204
PRODUCT CODE
7802
WARRANTY
10-year warranty
ACOUSTIC WEAKENING INDEX EN 410
~12 dB A
PAR (PHOTOSYNTHETIC ACTIV RADIATION)
50% (all wavelengths)
TENSILE STRENGTH (WARP/WEFT) EN ISO 1421
400/400 daN/5 cm (457/457 lbs/in)
ELONGATION AT BREAK (WARP/WEFT) EN ISO 1421
4.6%/3.5%
SOLAR FACTOR (G) EN 410
61%
SOLAR REFLEXION (RS) EN 410
7%
SOLAR TRANSMITTANCE (TS) EN 410
51%
VISIBLE LIGHT REFLEXION (RV) EN 410
7%
VISIBLE LIGHT TRANSMITTANCE (TV) EN 410
Tv n-h=51%
HEAT TRANSFER COEFFICIENT (U) (VERTICAL/HORIZONTAL) CALCULATED
5.6/6.4 W/sqm.°C
DIMENSIONS
- Weight EN ISO 2286-2 : 900 g/m² (26.5 oz/sq. yd)
- Width : 155 cm (61 in)
- Thickness EN ISO 5084 : 1.8 mm (1800 microns)

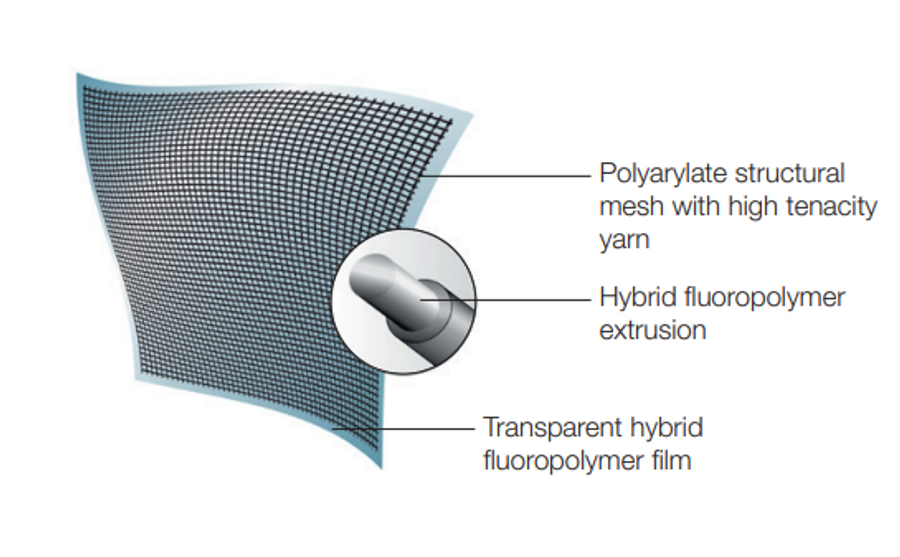

COMPLEMENTARY
- Material composition Inner surface : Polyarylate mesh
- Outer surface : Transparent hybrid fluoropolymer
UV TRANSMITTANCE
- (T UV-A) EN 410 : 58%
- (T UV-B) EN 410 : 52%
MANAGEMENT SYSTEMS
- Quality : ISO 9001
- Energy : ISO 50001
- Environment : ISO 14001
CERTIFICATIONS
Euroclass B-s1,d0, ASTM E84 Class A, ISO 9001 / 14001 / 50001
NATURAL LIGHT
- For user’s comfort
- For plants growth thanks to UV
ADDITIONAL BENEFITS
UV transmission for plant growth, structural weight reduction, lower environmental impact.
ULTRA-TRANSPARENT STRUCTURAL MEMBRANE
STRUCTURAL
The polyarylate mesh provides structural strength for large free span and minimizes secondary structure. Easier installation and reduced environmental impact.
FLEXIBLE SHAPES
Thanks to its composite and flexible nature, the Tenseo Xtrem STFE 50 opens new architectural possibilities and creative freedom for the building envelopes.
USE
- Outdoor Feeling
- Indoor Protection
HIGH RESISTANCE
High mechanical resistance (8 tons/linear meter)
DESIGN LIFE
Excellent ageing performance. Accelerated weathering tests at third party laboratory show more than 30-year longevity.
LIGHTWEIGHT
Tenseo Xtrem STFE 50 building solution is more than 10 times lighter than glass/steel system.
TRANSPARENCY, LIGHT WEIGHT, AND EXCEPTIONAL STRENGTH
- More than 50% light transmission for optimal visibility.
- “Sunglass” effect: improved outward visibility with reduced glare.
- 10 times lighter than a glass/steel system.
- High strength: up to 8 tons per linear meter.
- Service life over 30 years with excellent UV resistance.
- Structural performance: large spans with reduced secondary structure.
SUN GLASS EFFECT
Thanks to integrated sun mesh protection
LIGHT TRANSMISSION
For a better view through
