THE HIGH CAPACITY KRAKEN® FILTER
THE HIGH CAPACITY KRAKEN® FILTER
The High Capacity Kraken® Filter is a stormwater treatment system utilizing advanced membrane filtration. It ensures a high level of removal of total suspended solids (TSS), phosphorus, nutrients, metals, and trash.
INFORMATION
THE HIGH CAPACITY KRAKEN® FILTER - A STORMWATER FILTRATION SOLUTION
The High Capacity Kraken® Filter is a state-of-the-art system utilizing advanced membrane filtration, ensuring a high-level of removal for not only TSS, but also metals, trash, and nutrients.
BRAND
Contech
PRODUCT TYPE
Filtration
HIGH CAPACITY KRAKEN FILTER MAINTENANCE
- Easily cleaned with a standard vacuum truck, and reusable filter can be cleaned with a standard garden hose.
- Contech has a network of Certified Maintenance Providers to provide maintenance on the Kraken Filter and other stormwater BMP’s.
BENEFITS
Extended filter life
MAINTENANCE
Fast, easy maintenance
DRAINING
Self-draining filters
SELECT HIGH CAPACITY KRAKEN FILTER APPROVALS
The High Capacity Kraken Filter has been evaluated by some of the most stringent stormwater technology evaluation organizations in North America, including:
- New Jersey Department of Environmental Protection (NJDEP) Certification
- New Jersey Corporation for Advanced Technology (NJCAT) Verification
STRUCTURE
Eliminates the need for a separate bypass structure
FOOTPRINT
Superior pollutant removal in a small footprint
HIGH CAPACITY KRAKEN FILTER CONFIGURATIONS
- Vault
- Manhole
- Curb Inlet
- Grate Inlet
MAINTENANCE

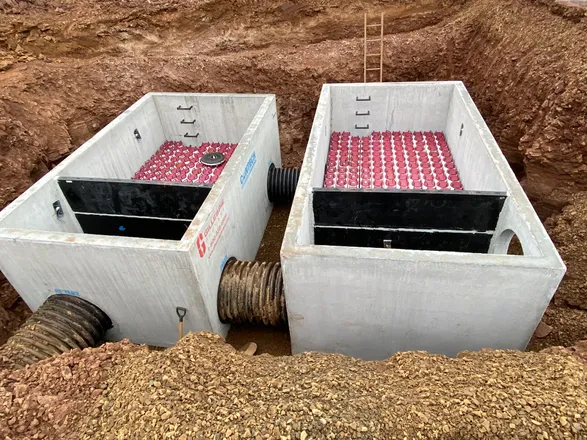

Available in vault and manhole configurations, the Kraken filter inserts are lightweight, and reusable, providing maximum performance and minimum maintenance.
LOADING RATE

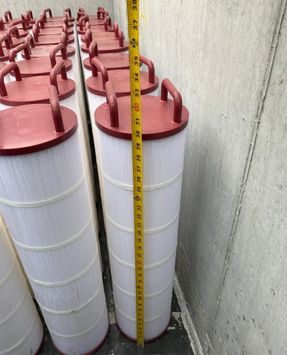

At the heart of the Kraken are the filter inserts. A 30” tall filter has over 170 sq ft of surface area, allowing it to treat 17 gpm at a loading rate of only 0.1 gpm/sf.
FEATURES
- Lightweight
- Rinsable
- Reusable Filters
SURFACE
High surface area membrane filtration
HOW THE HIGH CAPACITY KRAKEN® FILTER WORKS
- During the fill-up process, an integrated interior riser tube prevents flow through the membrane filter until the water level nears the top of the filter. This ensures loading is evenly distributed over the vertical height, maximizing efficiency.
- Membrane filtration begins when the water level reaches the top of the membrane filters. Treated water then passes down the riser tube, collects in the underdrain manifold and flows to the discharge chamber.
- An optional internal bypass is available with most system configurations. When flows exceed the treatment capacity of the system, the water level rises and goes into bypass. High flows are conveyed from the pretreatment chamber directly to the discharge chamber to prevent scouring of fine sediments captured within the filtration chamber.
APPLICATIONS
PRETREATMENT FOR LID DESIGNS

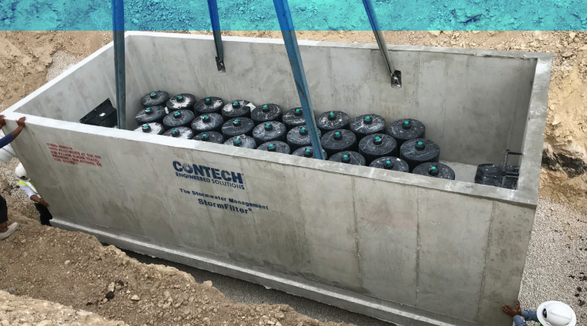

The Stormwater Management StormFilter, Jellyfish Filter, and the High Capacity Kraken Filter can be easily configured as decentralized pretreatment systems for Low Impact Development Designs.
FILTRATION SYSTEMS FOR WATER QUALITY
The Stormwater Management StormFilter, Jellyfish Filter, and the Kraken Filter provide the highest level of treatment and meet the most stringent regulatory requirements.
These low maintenance systems combine pretreatment and filtration, and are able to target site-specific pollutants to meet your water quality goals. Our field-proven products have earned hundreds of standalone BMP approvals from regulatory agencies nationwide.
FILTRATION FOR REMOVING POLLUTANTS PRIOR TO DISCHARGE
Media filtration systems - like our StormFilter, Jellyfish Filter, and Kraken Filter are able to remove the most challenging pollutants from stormwater, including total phosphorus, soluble metals, oil, and very fine particles.
Available in a variety of configurations (vault, manhole, catch basin, high flow and volume), these systems can be engineered to treat a wide range of flows within your drainage system and capture pollutants prior to discharge off-site.
HIGH VOLUME APPLICATIONS
Designing, manufacturing and installing high-volume stormwater detention and treatment systems requires expert engineering, planning, and logistical support to manage costs and keep the project on schedule and under budget. When you need a proven, large scale stormwater management system, “Go Big” with Contech.
ADVANTAGES
AGENCY/REGULATORY GUIDANCE
Our team is ready to provide you with expert advice and assistance on local regulatory requirements, resulting in faster approvals.
COST ESTIMATES
We can quickly provide engineer’s cost estimates to assist with your solution selection process.
SITE SPECIFIC DRAWINGS
Our engineers can provide site-specific drawings for proposals, project meetings, and submittals, helping you be more efficient with your time.
SOLUTION DEVELOPMENT
Our engineers can review your requirements, weigh all options, and recommend the optimal solution to integrate with your site designs.
ON-SITE ASSISTANCE
Contractors know time is money, so we provide preconstruction meetings, delivery coordination, and on-site installation support to ensure a timely, smooth installation.
TECHNICAL EXPERTISE
Our engineers can assist by providing product specific engineering calculations such as hydraulics, buoyancy, foundation reactions, and unit sizing.
