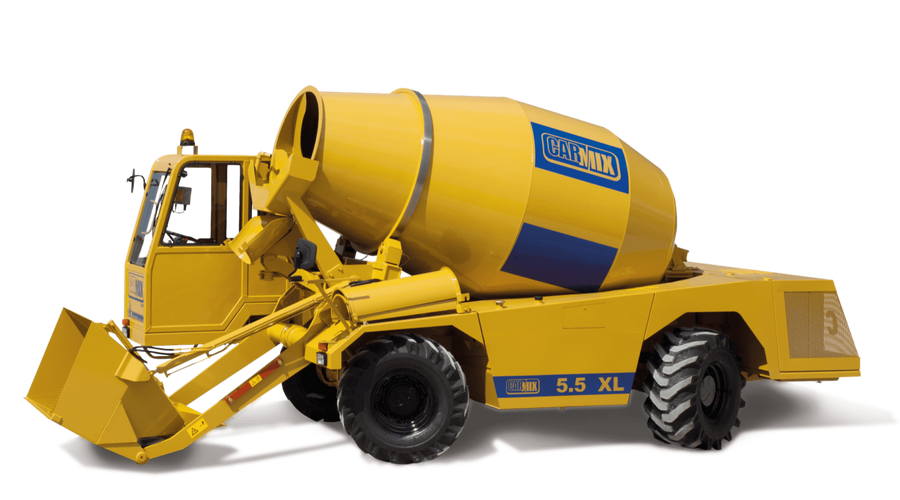

CARMIX 5.5XL SMART MOBILE CONCRETE PLANT
CARMIX 5.5XL SMART MOBILE CONCRETE PLANT
Off road mobile concrete batching plant with a 7.600-litre drum, 600-litre shovel, equipped with hydraulic opening gate and an operating speed from 0 to 10 km/h and road transfer speed from 0 to 30 km/h, with electric servo-control.
The steel chassis of this concrete mixer machine has been especially engineered and designed for off-road operations. The Carmix 5.5 XL cement mixer is equipped with checking and block valves which guarantee maximum safety of the operator.
INFORMATION
BRAND
Carmix
PRODUCT TYPE
Concrete Mixer Truck
SPEED
Working speed from 0 to 10 km/h, road transfer from 0 to 30 km/h.
STEERING
- Hydrostatic. 3-way steering.
- Radius : internal: mm. 1800, external mm 4000.
TANKS CAPACITY
- Diesel : 115 liters
- Hydraulic oil : 80 liters
- Water tank : 2 x 400 liters
PRODUCTION
Made in Italy
GRADIENT
Fully loaded 30%.
CABIN
Front cab on side of loading shovel. Rops-fops type (uni u50.01.478.0) complete with double closing door and rear view camera. Clima, air conditioning heater available upon request.
ELECTRIC SYSTEM
12 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off.
DOWNLOAD
↓ Data Sheet
USE
Construction
JOYMIX
All hydraulic functions of shovel controlled by a single - fully servo controlled Joystick.
DRUM CAPACITY
7600 liters
CONCRETE DRUM OUTPUT
5.5 m3
WATER SYSTEM
Self-contained. Hydraulic driven water pump 400 lt/ min, water meter, washing outlet. High pressure water pump.
AXLES
Dana Spicer with oil bath disc brakes and planetary reducers.
CHASSIS
Steel profile specially engineered for off-road operations.
CATALOGUE
The machine is equipped with Use and Manteinance and Spare Parts Manuals according to CE regulations.
SAFETY
Machine equipped with checking and block valves for maximum safety of the operator.
MIXING UNIT
Drum capacity 7.600 liters. Concrete drum output: 5,5 m3 . EN 206-1 in SLUMP S1 Class, yield not vibrate. Double mixing screws, cover for emergency unloading. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed indipendent from r.p.m. of diesel engine.Discharging by reversing drum.
ACCESSORIES
- Spare wheel
- Additive plant
- High-pressure washing pump
- Clima (air conditioning plus heater)
- Additional discharging chute (100 cm)
- Electronic weighing system with printer
TYRES
Off road industrial type 18-19,5 PR 16
WEIGHT
About Kg. 8.700, equally distributed on both axles.
CHUTE
Hydraulic slewing and hydraulic tilting controlled from the cab. 2 extra chutes included.
ENGINES
Cummins turbo-diesel QBS 4.5 stage 3A tier III, 4 cylinders, 119 KW (161 hp)
LOADING SHOVEL SELF ARTICULATED
Effective capacity per load 600 liters, complete with hydraulic opening gate.
DIMENSIONS
- Height with shovel : 4050 mm
- Height without shovel : 3150 mm
- Length (without loading shovel) : 6265 mm

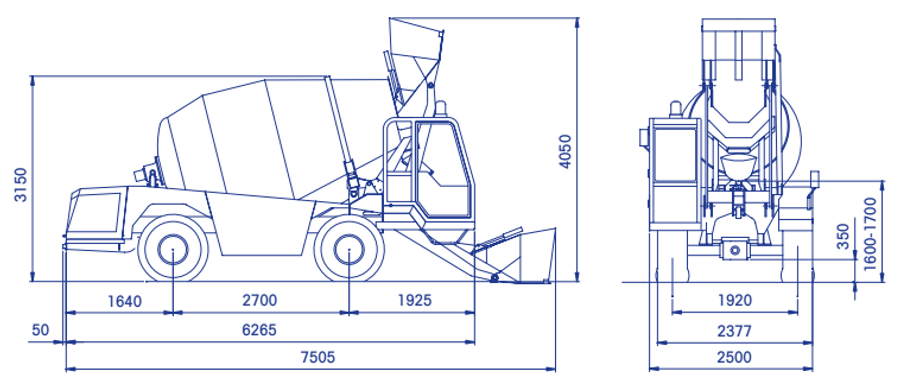

TECHNICAL DRAWINGS
TRANSMISSION
Hydrostatic Bosch Rexroth. Pump and motor are connected to the differentials through a 2 speed reducer (working and transfer). 4 wheel drive and steering.
HYDRAULIC SYSTEM
Three circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation. 2 gear pumps for services. Inlet and outlet filter. Heat exchanger water/ oil-air type.
BRAKES
Oil bath disc brakes inside differential axles. Twin indipendent circuits. Negative hydraulic parking brake.
