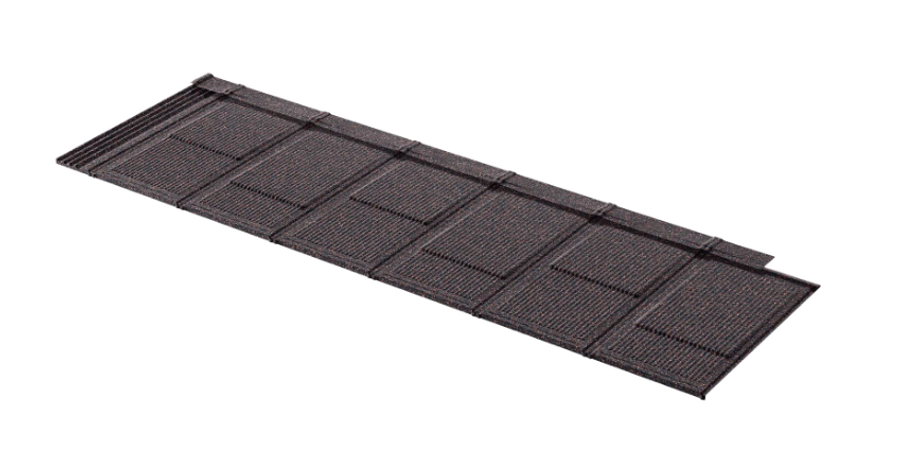

Metrotile Ishingle Roof Tiles
ISHINGLE ROOF TILES
ISHINGLE ROOF TILES
A wood shingle aesthetic without the fire risk
Beauty is not the only benefit of the iShingle these interlocking steel shingles are fire, hail and wind resistant.
INFORMATION
BRAND
Metrotile
PRODUCT TYPE
Roof Tile

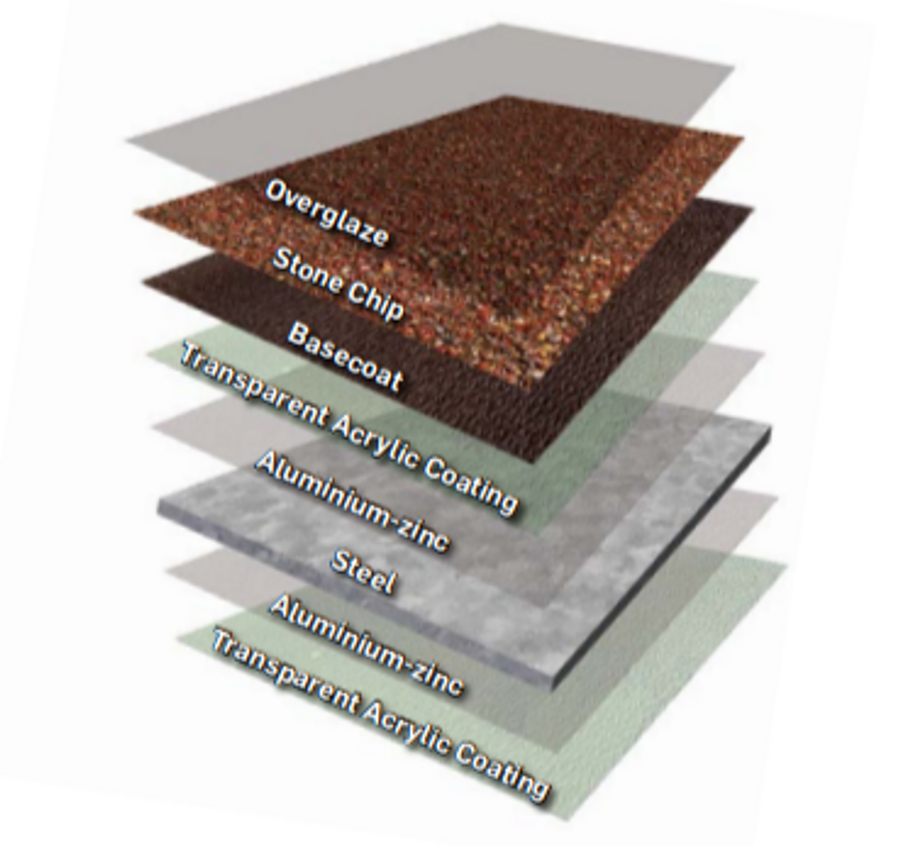

MATERIAL STRUCTURE
- Overglaze
- Stone Chip
- Basecoat
- Transparent Acrylic Coating
- Aluminium-zinc
- Steel
- Aluminium-zinc
- Transparent Acrylic Coating
FEATURES
The iShingle is an six tile, stone-coated panel pressed from a high grade of protective layer and is available in a wide selection of colours to enhance any exterior colour scheme.
COLLECTION
Ishingle
DATE OF ISSUE
September 2025

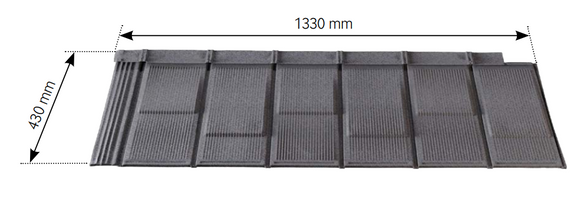

DIMENSIONS
- Overall Width : 430 mm [± 3 mm]
- Overall Length : 1330 mm [± 3 mm]]
LENGTH OF COVER
1230 mm
WIDTH OF COVER
375 mm
ROOF COVER /TILE
0.46 m2
PITCH
- Maximum roof pitch : 90°
- Minimum roof pitch : 10° (18 %)
TILES PER M²
2.17
WEIGHT/PANEL
2.90 kg
WEIGHT/AREA
6.29 kg/m²
DOWNLOADS
↓ Ishingle brochure
↓ Ishingle eave apron
↓ Ishingle box barge 1
↓ Ishingle box barge 2
↓ Ishingle specification sheet
TEXTURED SURFACE
Stone chip granules are applied to provide an attractive textured finish which at the same time enhance resistance to UV radiation. Granules are ceramic coated with lightfast heat resistant pigments.
STEEL SPECIFICATION
The Metrotile iShake tile is made of Aluzinc® alloy coated steel. The grade of steel used is designed to allow forming without cracking or significant elastic recovery and at the same time to be rigid enough to tolerate reasonable loads without excessive deformation.
STEEL THICKNESS
0.41 mm
STEEL GRADE
DX52D
ALUZINC® COATING MASS
150 g/m²
ALUZINC® COATING GRADE
AZ150
COLOR
PAINT
- Matt xBlack
- Matt Charcoal
TEXTURED
-Bister Brown -Charcoal Granite -Malabar -Ironbark
COATING SPECIFICATION
TRANSPARENT COATINGS
Both sides of the Aluzinc® alloy coated steel are coated with a transparent layer that provides protection and a uniform substrate for further coatings. This transparent coating allows identification of the aluminium-zinc substrate to be made by distributors and customers.
OVERGLAZE
Clear 100% acrylic resin coating for granule binding and a semi-gloss finish. It helps enhance the appearance as well as increase the resistance to physical damage.
BASECOAT
A tough opaque coating based on acrylic resin. It bonds the stone chips and protects the underlying layer from water and UV radiation. It has good UV resistance and retains its flexibility although it does become harder after the first few weeks.
STONE CHIP
Carefully selected granules provide excellent surface coverage and attractive natural looking and lasting colours.
