VENTANA REGULAR FAN COIL
VENTANA REGULAR FAN COIL

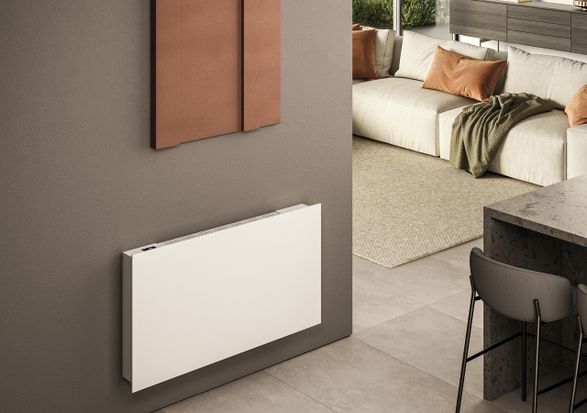

Wall-mounted heating & cooling fan coil unit
Ventana® REGULAR is the high performance and high efficiency fan coil unit designed for operation with heat pump systems.
The unit can operate in heating and cooling mode. Brushless DC inverter motors. Maximum flexibility of configuration, connectivity, and control.
INFORMATION
BRAND
Cordivari
PRODUCT TYPE
Fan Coil Unit
COLLECTION
Ventana Regular
ENVIRONMENT
Indoor
CLEANING
Filters are easily removable, washable or replaceable.
PACKAGING
The Fan coil is protected with a recyclable cardboard box. Instructions for use and maintenance provided with the product. Always refer to the included installation notice.
FIXING KIT
The kit includes plugs and screws for fixing, suitable for use on compact walls or hollow bricks.
PRODUCTION
Made in Italy
USE
Heating & Cooling
FEAUTURES
- Heating
- Cooling
- European warranty
- Suitable for traditional systems
- High power and high efficiency
- DC Inverter brushless motor
- Suitable for heat pump or low-temperature systems

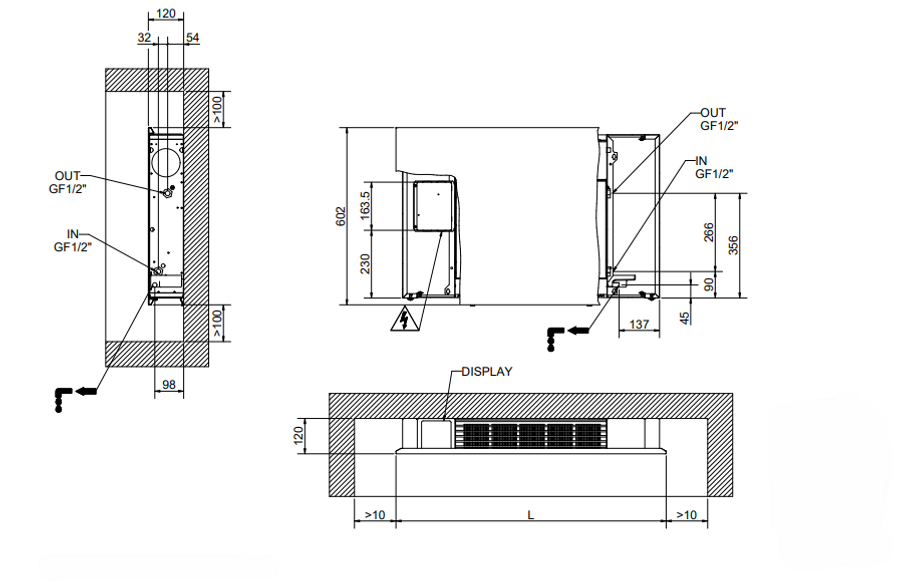

TECHNICAL DRAWINGS
MANAGEMEN
Stand-Alone management, Master-Slave o IoT
ELECTRICAL SPECIFICATIONS
Class 1
COLOR
Standard color White RAL 9016-R02
PAINTING PROCESS
Painted with ecological epoxy powders (Certificate DIN 55900-1,-2).
SETTING AND CONNECTIVITY
STAND-ALONE SETTING

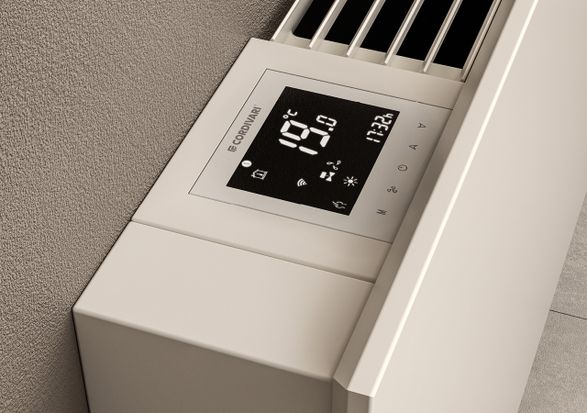

All Ventana® models can be managed in stand-alone mode through one of the available control thermostats. This is the simplest fan coil setting mode in which each terminal can be individually controlled, managed, and programmed independently of all the other terminals in the system.
MASTER-SLAVE SETTING
The Ventana® range (Regular, Low, High Wall and Built-In) is designed for setting in a – master- Slave configuration, which involves several units connected to the same thermostat (Wi-Fi control and standard control) which acts as the main manager of the settings. The creation of a Fan Coil units’ network is wired using a 7- pole cable.
IOT SETTING
This is the most advanced and smart configuration for domestic use. With the use of the Wi-Fi control thermostat, the models Ventana® Regular, Low, High Wall and Built-In (appropriately configured via Dip-Switches on the motherboard) can be managed in IoT mode with the Smart Life mobile application. This type of setting makes it possible to operate all functions and programming of each terminal remotely through stand-alone logic or through the creation of groups or levels logic.
The same mobile application can manage the Vestalis® heat pump system and the Ventana®, Run and Seven Lines terminals.
